WINDOW GLASS

TSB Revision

BODY

42A-31

(3) After adhering the lip of the liftgate dam lower 30

°-end

with the lip of the liftgate dam side 62

°-end, apply the

adhesive to the remaining area.

(4) Adhere the remaining area (ensure that there is no level

difference at the tape part).

CAUTION

Before the next operation, leave the degreased parts for 3
minutes or more to dry. Do not touch the degreased parts.
10.Use 3M

™AAD Part number 8906 or equivalent to degrease

the inside circumference of the liftgate window glass and the
liftgate flanges.

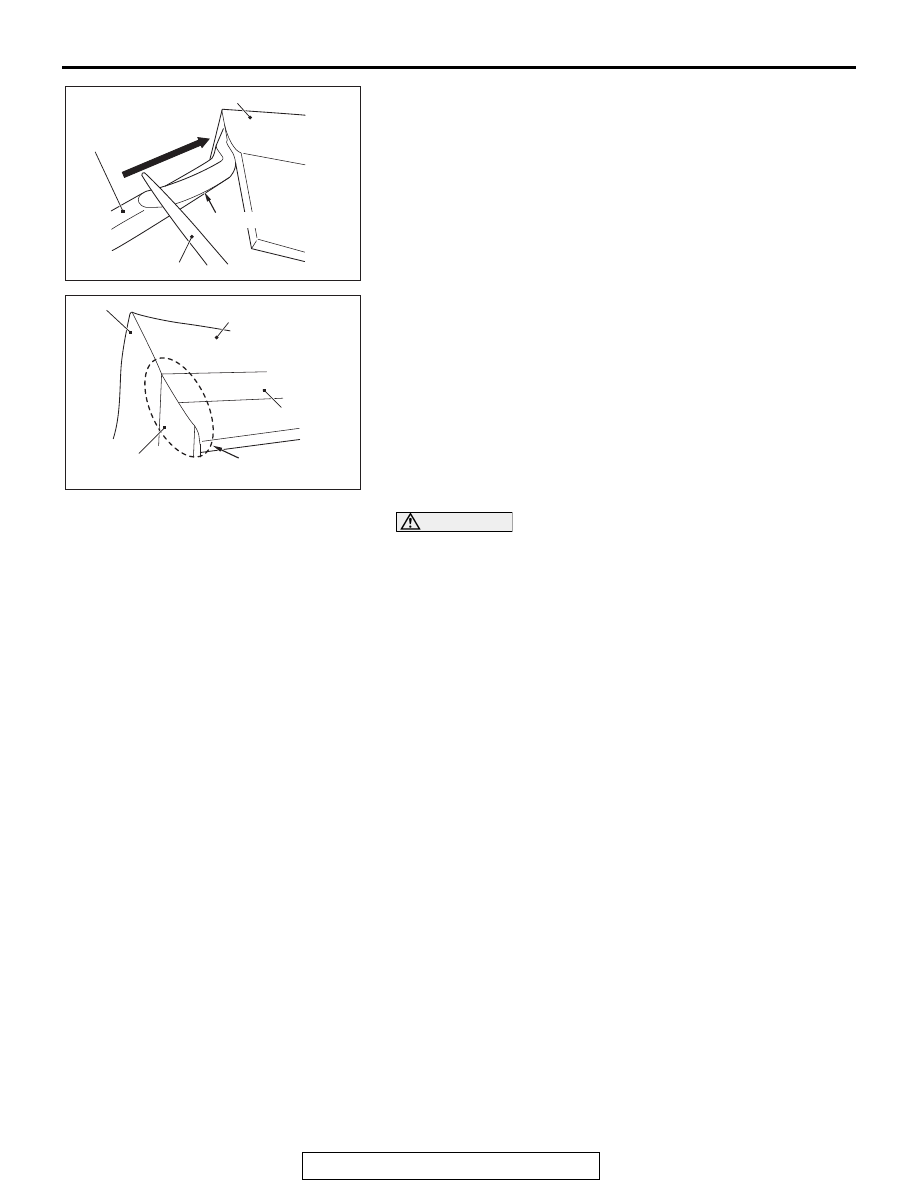

AC707900AB

Liftgate dam
lower

Liftgate dam side

Toothpick

Adhesive plane

AC707901AB

Liftgate dam lower

Liftgate dam side

Adhesive part

Tape part

Tape part

WINDOW GLASS

TSB Revision

BODY

42A-32

11.Install the liftgate dam lower, liftgate dam side, and liftgate

dam upper according to the procedures below.

(1) Peel the backing paper of the liftgate dam lower.
(2) Adhere the liftgate dam lower to the liftgate window glass.

NOTE: The liftgate dam lower can be attached cleanly if
the liftgate dam lower is attached to the liftgate window
glass starting from the adhesion areas of the liftgate dam
lower center and the liftgate dam lower side (LH, RH)
located at the liftgate dam lower.

(3) Peel the backing paper of the liftgate dam side.
(4) Adhere the liftgate dam side to the liftgate window glass.

NOTE: The liftgate dam side can be attached cleanly if
the liftgate dam side is attached to the liftgate window
glass starting from the adhesion areas of the liftgate dam
lower and the liftgate dam side (LH, RH) located at the
liftgate dam lower.

(5) Peel the backing paper of the liftgate dam upper.
(6) Adhere the liftgate dam upper to the liftgate window

glass.

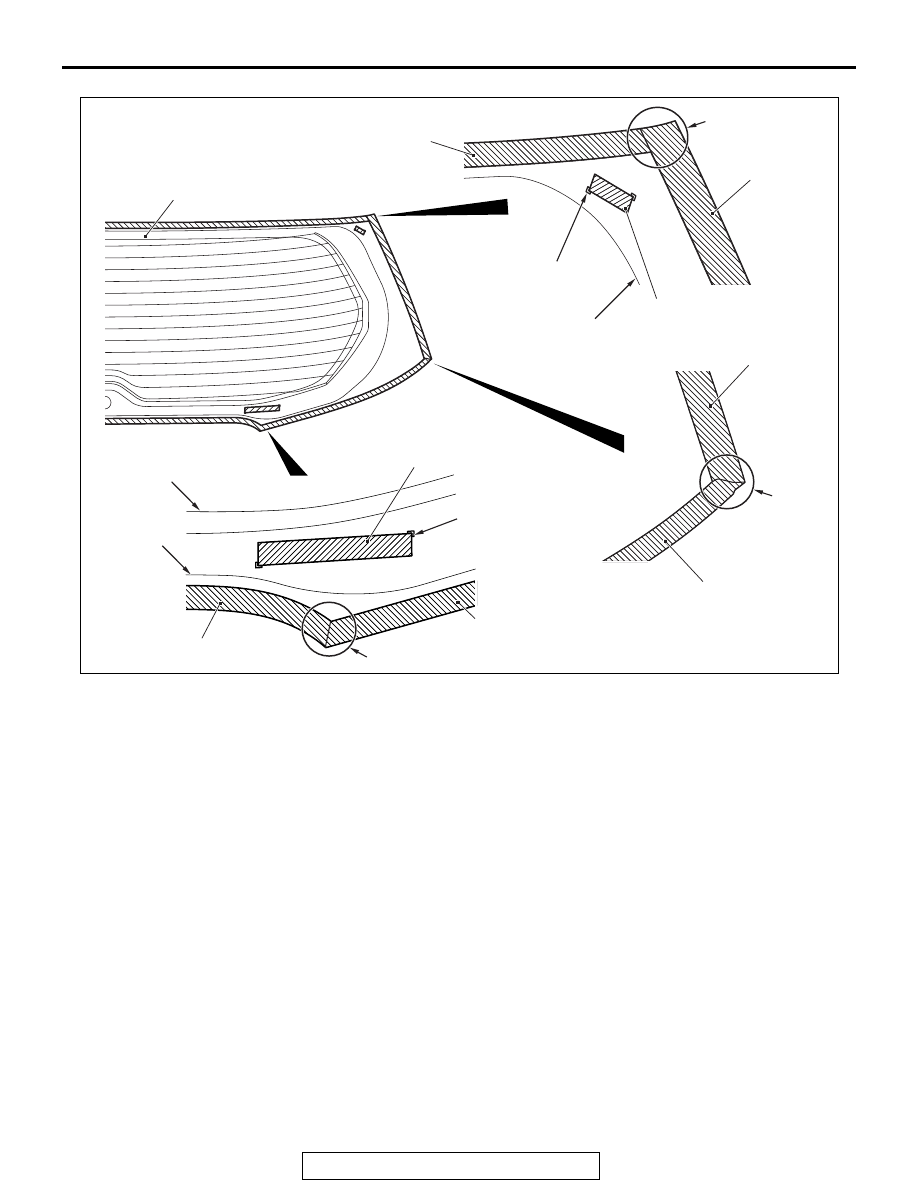

AC507085

AC506519

AC506520

AC506521

AC506522

AF

Liftgate dam side

Refer to step 11-(7).

Glass stopper

Align the glass stopper
end line with the liftgate
window glass mark

Ceramic line

Seal line

Liftgate window glass

Liftgate dam lower
(liftgate dam lower center)

Liftgate dam side

Liftgate dam lower
(Liftgate dam lower side)

Liftgate dam lower
(liftgate dam lower side)

Seal line

Liftgate dam upper

Fastener

Align the fastener end line
with the liftgate window
glass mark

Fastener and glass stopper installation position

Adhesive
part

Adhesive part

WINDOW GLASS

TSB Revision

BODY

42A-33

(7) When the liftgate dam side's upper end section is

protruding from the liftgate dam upper's upper end
section, cut off the upper end section of the liftgate dam
side so that the liftgate dam side's upper end section
becomes leveled with the liftgate dam upper's upper end
section.

12.Install the glass stopper and fastener to the specified

positions.

13.Correctly install the fasteners to the specified positions on

the liftgate flange.

.

>>B<< LIFTGATE WINDOW GLASS ASSEMBLY
INSTALLATION

1. Apply the primer and adhesive.
2. Install the liftgate window glass by the same procedures as

for the windshield glass (Refer to

P.42A-17

).

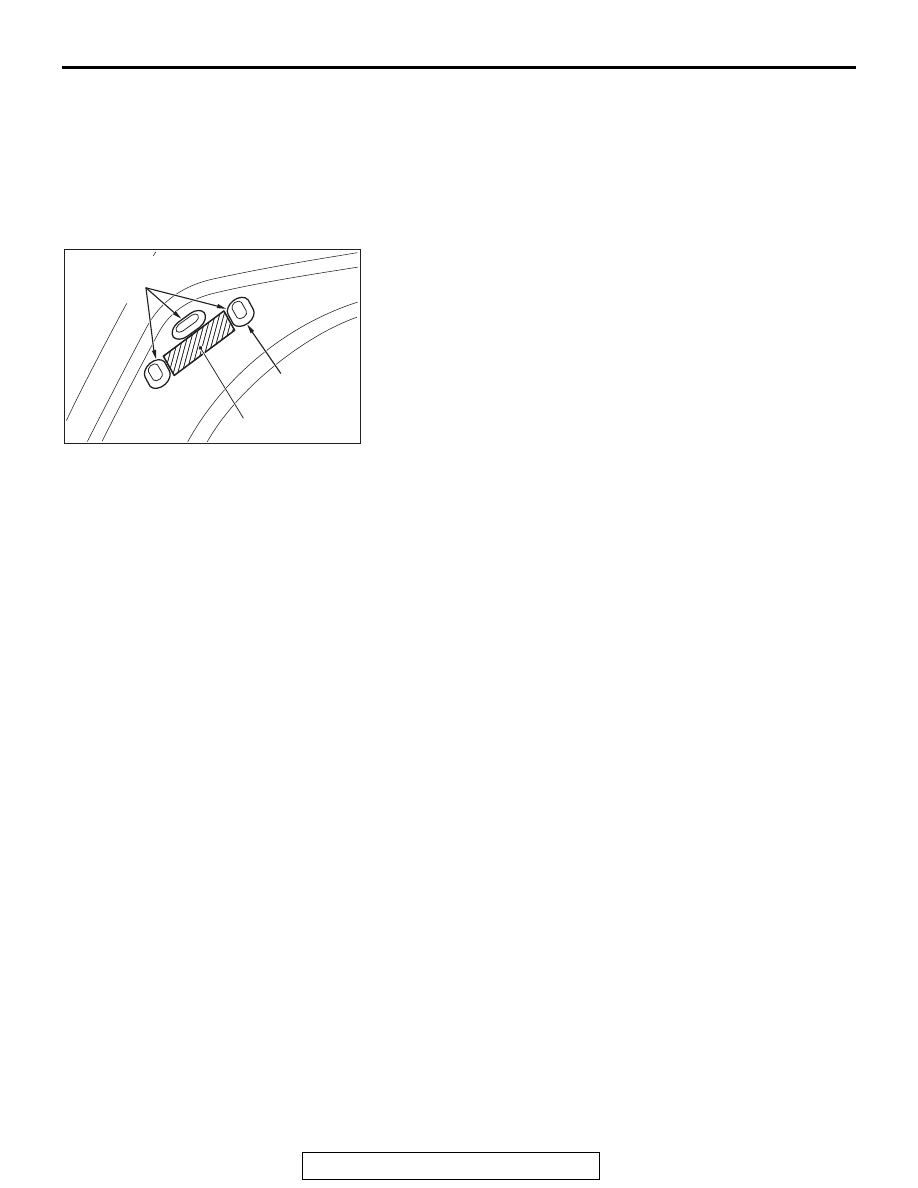

AC506523AF

Fastener

Attach the fastener
between the
convexes

Convex on the
liftgate flange

DOOR

TSB Revision

BODY

42A-34

DOOR

GENERAL INFORMATION

M1423000100633

CENTRAL DOOR LOCKING SYSTEM

The central door locking system operates the door
lock actuator to lock or unlock the doors and liftgate
using the door lock switch built into the front power
window (main or sub RH) switch. The system has the
following operations and features:

• All doors and liftgate can be locked using the

door lock switch built into the front power window
(main or sub RH) switch.

• The key reminder function automatically unlocks

all doors and liftgate when door lock operation is
performed and the front doors are opened while
the key is inserted into the ignition switch.

.

CENTRAL DOOR LOCKING OPERATION

The function that allows the driver's door to be
opened by pulling the driver's door inside handle
even when the driver's door inside lock knob is in the
lock position is called "override function".

When the door is locked by the driver’s or passen-
ger’s door lock switch, the ETACS-ECU operates its
door lock relay and passes a current through the
door lock actuators of all the doors (including the lift-
gate) for 0.25 second to lock all the doors (including
the liftgate).

When the door is unlocked by the driver’s or passen-
ger's door lock switch, the ETACS-ECU operates its
door unlock relay and passes a current through the
door lock actuators of all the doors (including the lift-
gate) for 0.25 second to unlock all the doors (includ-
ing the liftgate).
When the door is locked and unlocked by driver’s or
passenger's door lock switch consecutively, the
ETACS-ECU operates its door lock relay and passes
a current through the door lock actuators of all the
doors (including the liftgate) for 0.25 second to lock
all the doors (including the liftgate). Then, the
ETACS-ECU operates its door unlock relay and
passes a current through the door lock actuators of
all the doors (including the liftgate) for 0.25 second to
unlock all the doors (including the liftgate). Due to
this, there may be a time lag between the driver’s or
passenger's door lock switch actuation and the time
when all the doors (including the liftgate) are
unlocked.

.

SELECTOR "P" POSITION-LINKED DOOR
UNLOCKING FUNCTION

When the selector lever is shifted to the "P" (parking)
position with the ignition switch turned ON, all the
doors (including the liftgate) will be unlocked auto-
matically, improving passengers' convenience for
getting out. Using a customization function, the
selector "P" position-linked door unlocking function
can be switched (Refer to

P.42A-144

).

When the selector lever is shifted to the P position
with the ignition switch turned ON, the transaxle
range switch "P" turns ON, ETACS-ECU turns the
unlock relay output ON for 0.25 seconds to unlock all
the doors (including the liftgate).

.

AC702890

t

ON

(LOCK)

ON

(UNLOCK)

ON

OFF

ON

OFF

t: 0.25 Second

t

t

Time lag

t

t

OFF

LOCK

UNLOCK

AB

Driver's or
passenger's
door lock
switch

Lock relay
output

Unlock relay
output

All door lock
actuators

AC900907AE

t

ON

OFF

ON

OFF

t: 0.25 second

Park/Neutral position
switch "P"

Unlock relay output
