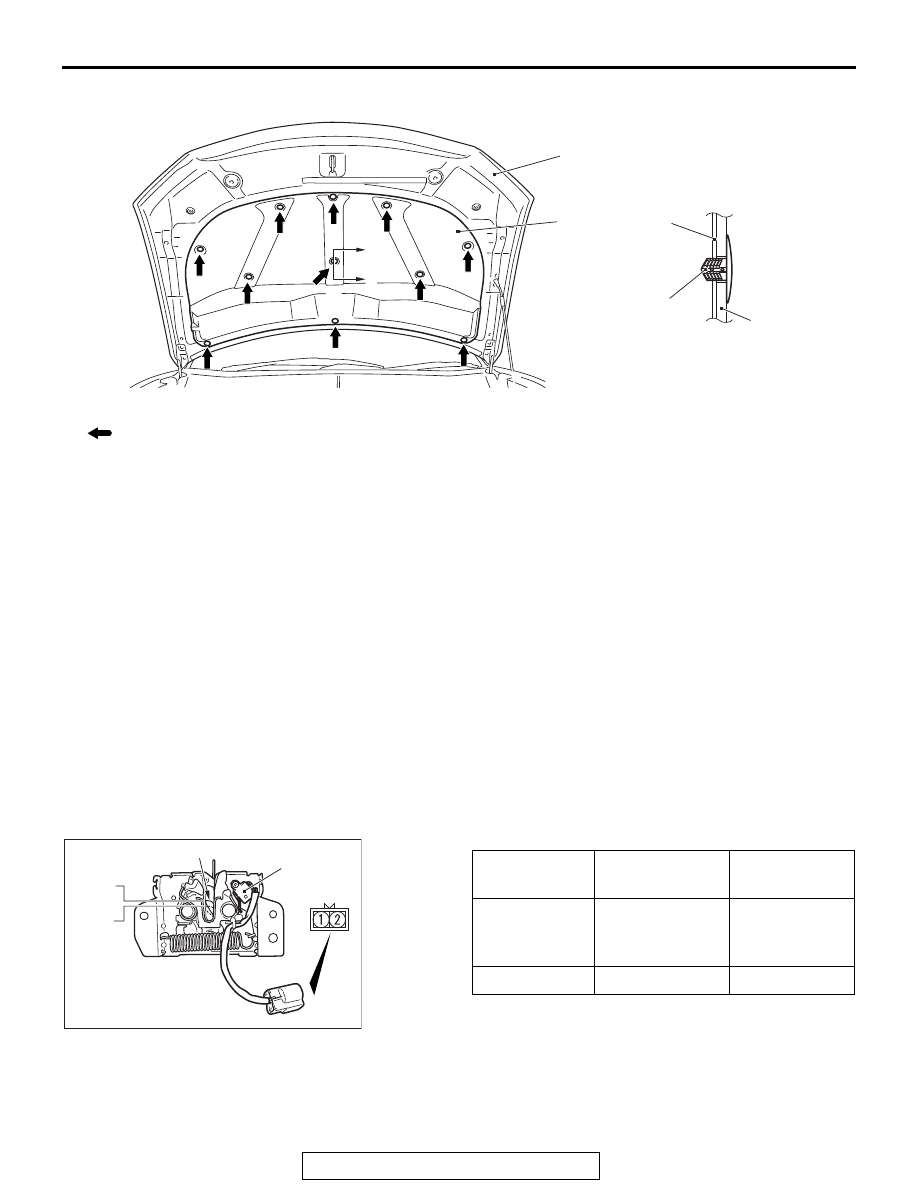

HOOD

TSB Revision

BODY

42A-7

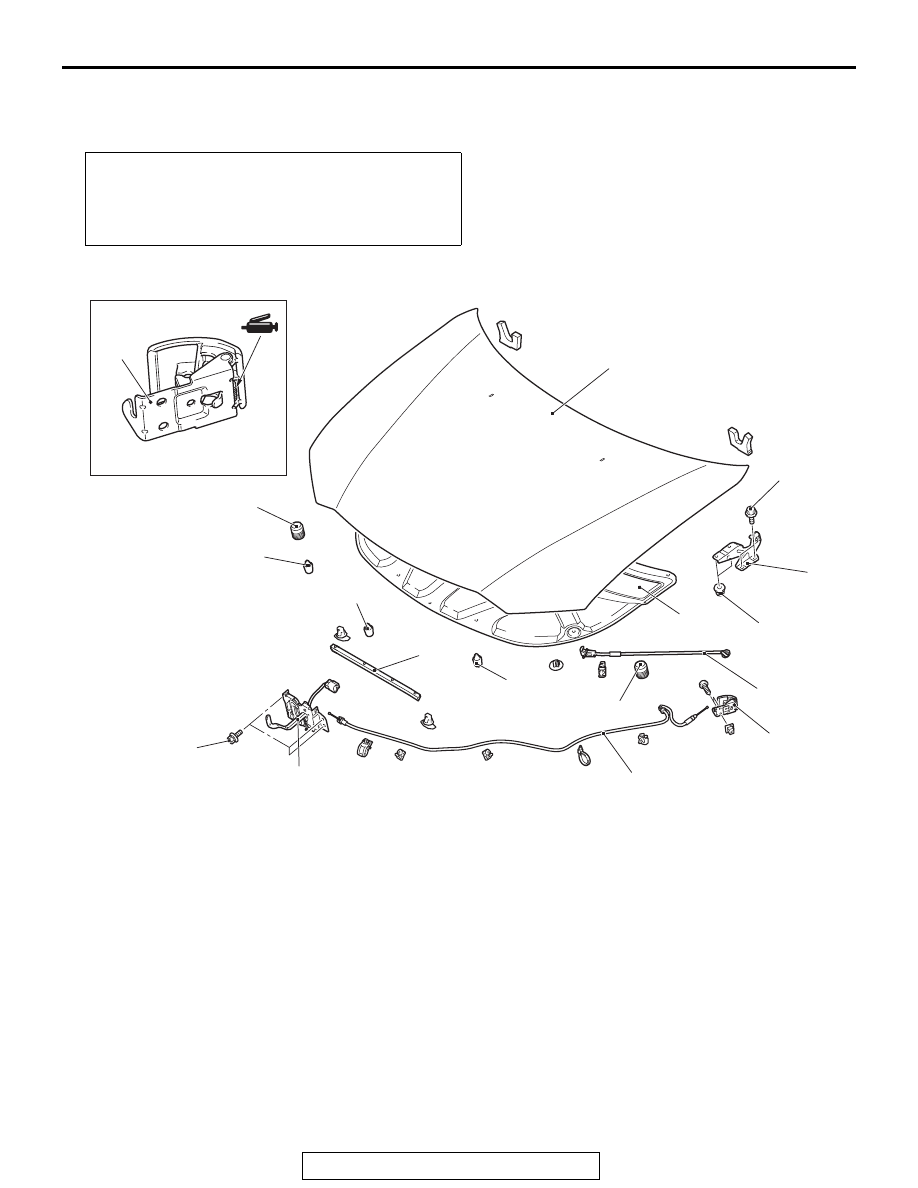

HOOD

REMOVAL AND INSTALLATION

M1421001601995

Post-installation operation
• Adjustment of clearance around hood (Refer to

P.42A-5

.)

• Adjustment of hood level and hood striker engagement

(Refer to

P.42A-5

.)

• Adjustment of hood height (Refer to

P.42A-6

.)

AC900041AB

2

1

1

3

4

5

1

1

6

7

8

9

1

9.0 ± 1.0 N·m

3

23 ± 6 N·m
17 ± 4 ft-lb

80 ± 9 in-lb

9.5 ± 3.5 N·m
84 ± 31 in-lb

HOOD

TSB Revision

BODY

42A-8

INSPECTION

M1421001700579

HOOD LATCH SWITCH CONTINUITY CHECK

AC900042

A

A

5

5

7

7

AB

          : Clip positions

Section A – A

Clip

Damper removal

1. Damper

Removal steps for hood latch and
hood lock release cable

• Headlamp support upper panel cover

(Refer to GROUP 51

− Radiator Grille

P.51-9

.)

2. Hood latch
3. Hood lock release handle
• Front splash shield (Refer to

P.42A-10

.)

• Front bumper assembly (Refer to

GROUP 51

− Front Bumper

P.51-9

.)

• Headlamp assembly (Refer to

GROUP 54A

− Headlamp

P.54A-212

.)

4. Hood lock release cable

Hood removal steps

5. Hood insulator
6. Hood weatherstrip front
• Windshield washer hose and washer

nozzles (Refer to GROUP 51

−

Windshield Washer

P.51-81

.)

7. Hood
8. Hood support rod
• Front deck garnish (Refer to GROUP

51

− Windshield wiper

P.51-76

.)

9. Hood hinge

Removal steps for hood latch and
hood lock release cable

Claw position Terminal

number

Normal value

Unlock (ON)

1

− 2

Continuity
exists (2

Ω or

less)

Lock (OFF)

1

− 2

Open circuit

AC802925AB

Claw

Hood latch
switch

Unlock

Lock

FENDER

TSB Revision

BODY

42A-9

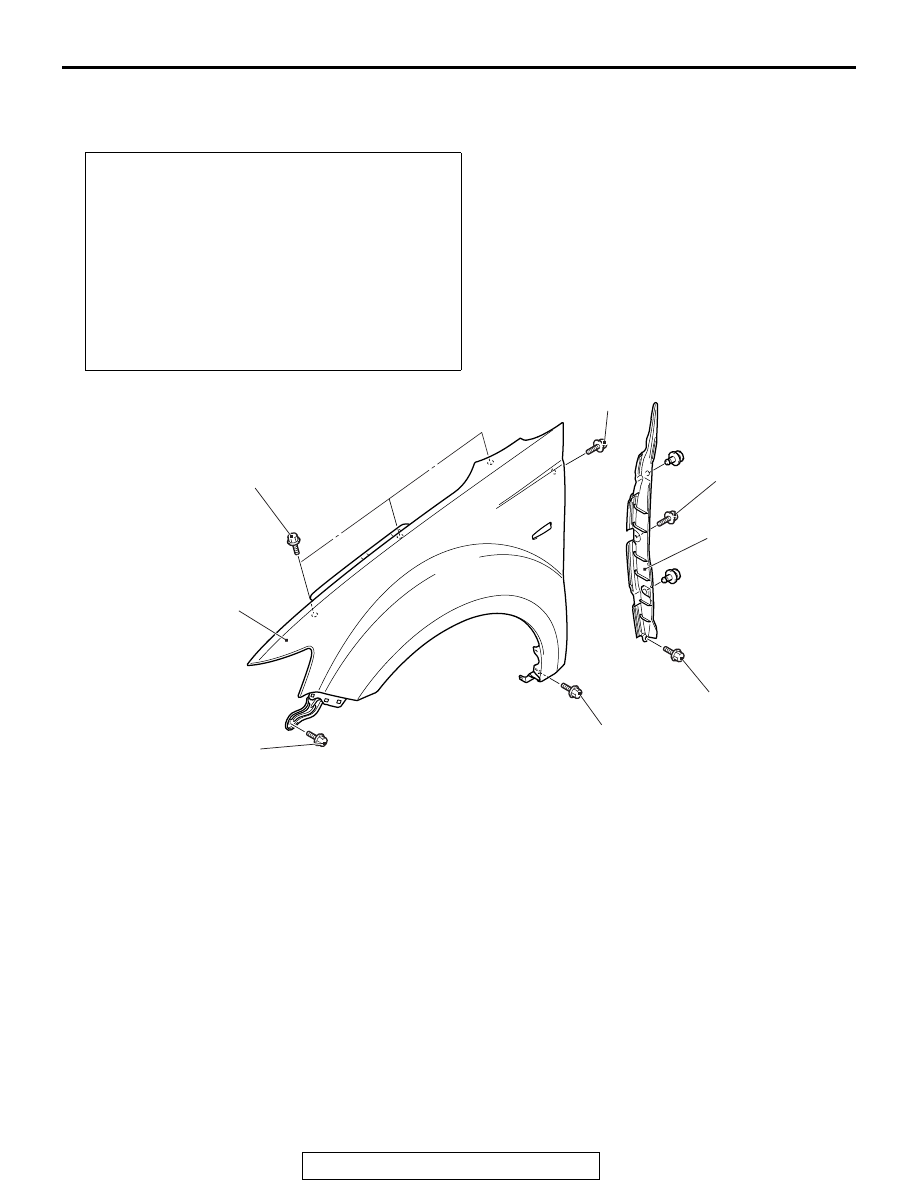

FENDER

REMOVAL AND INSTALLATION

M1421001901457

Pre-removal and post-installation operation
• Splash shield front removal and installation (Refer to

P.42A-10

).

• Front bumper side bracket removal and installation (Refer

to GROUP 51, Front Bumper Assembly

P.51-4

).

• Headlight assembly removal and installation (Refer to

GROUP 54A, Headlight

P.54A-212

).

• Side turn-signal lamp removal and installation (Refer to

GROUP 54A

− Side turn-signal lamp

P.54A-275

.)

• Front deck garnish removal and installation (Refer to

GROUP 51, Windshield Wiper

P.51-76

).

• Side air dam removal and installation (Refer to GROUP

51, Side Air Dam

P.51-20

).

AC900048

1

2

AD

5.0 ± 2.0 N·m
44 ± 18 in-lb

5.0 ± 2.0 N·m
44 ± 18 in-lb

5.0 ± 2.0 N·m
44 ± 18 in-lb

5.0 ± 2.0 N·m
44 ± 18 in-lb

4.0 ± 2.0 N·m
36 ± 18 in-lb

4.0 ± 2.0 N·m
35 ± 17 in-lb

Removal steps

1. Fender protector rear
2. Fender

SPLASH SHIELD

TSB Revision

BODY

42A-10

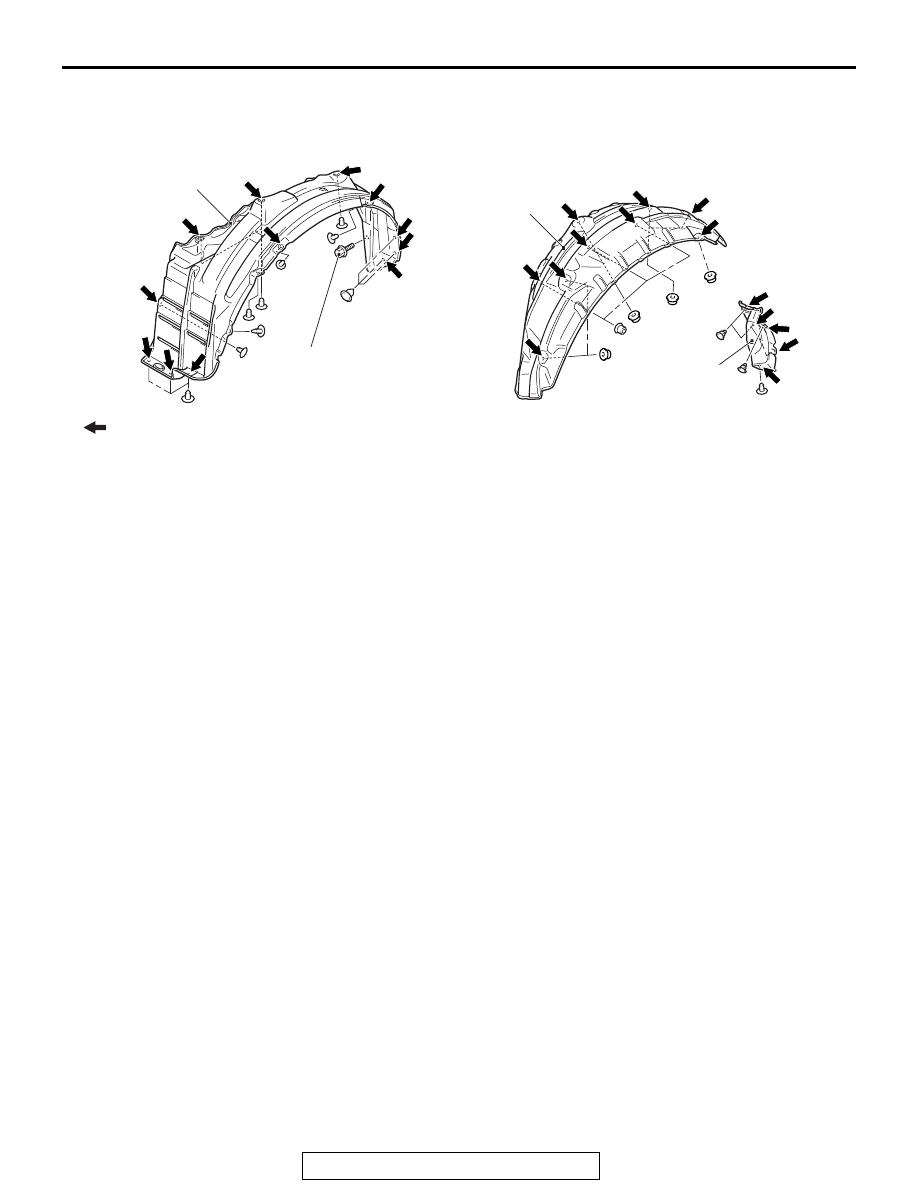

SPLASH SHIELD

REMOVAL AND INSTALLATION

M1421009700421

AC702813

1

3

AB

2

Note


: Clip position

5.0 ± 2.0 N·m
44 ± 18 in-lb

Removal

1. Splash shield front

2. Splash shield rear (body side)
3. Splash shield rear (rear bumper side)

Removal (Continued)
