INSTRUMENT PANEL ASSEMBLY

TSB Revision

INTERIOR

52A-5

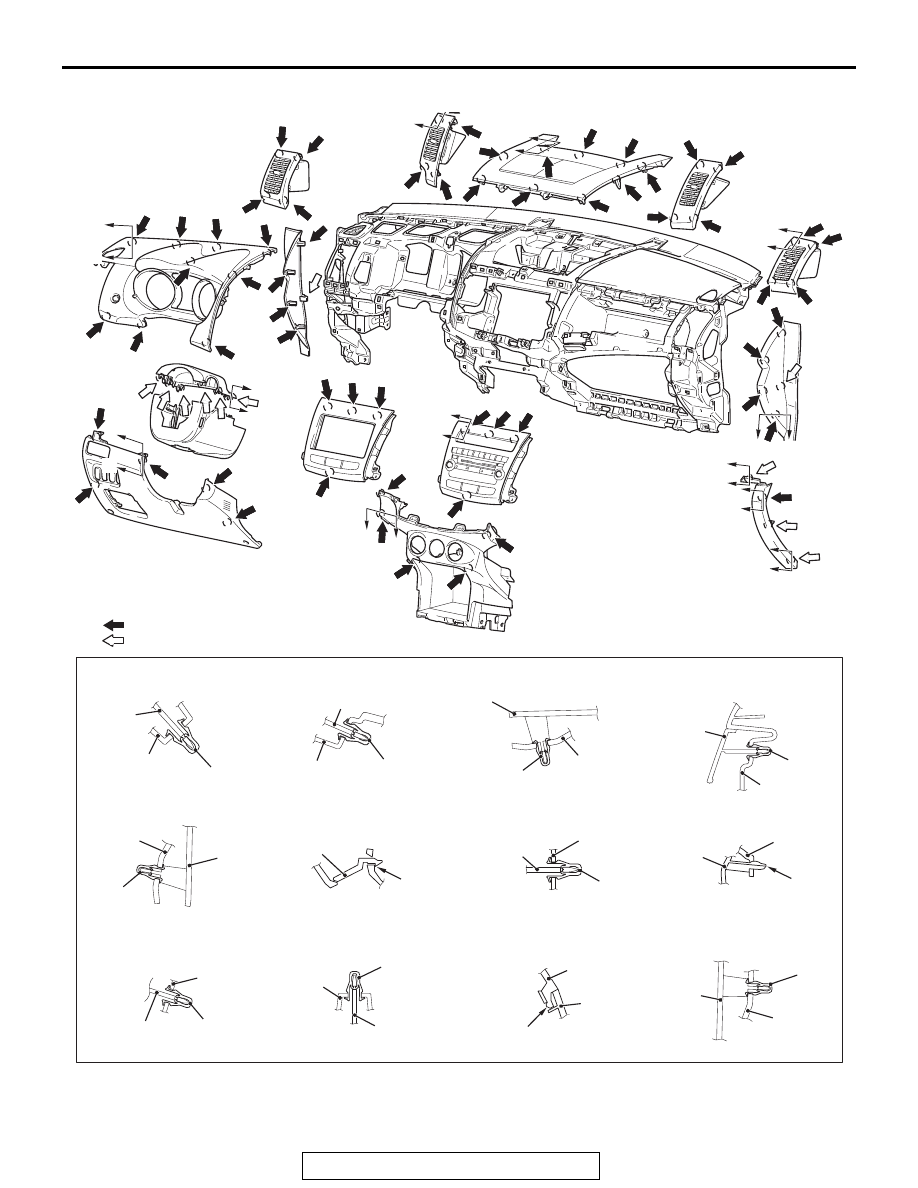

CLIP AND CLAW POSITIONS

NOTE: Each number in the illustration indicates a
part number.

AC701257AC

 Section A – A

Section B – B

25

15

 Section E – E

25

21

 Section I – I

7

25

Section J – J

18

25

Section K – K

2

1

Section F – F

20

25

25

6

Section C – C

25

22

Section D – D

25

14

Section G – G

Section H – H

20

20

25

Section L – L

25

17

A

A

B

C

C

D

D

G
G

I

I

J

J

K

K

L

L

Clip

Clip

Clip

Clip

Clip

Clip

Clip

Clip

Clip

Claw

Claw

E

E

F

F

H

H

NOTE
(1)       :Clip positions
(2)       :Claw positions

Claw

INSTRUMENT PANEL ASSEMBLY

TSB Revision

INTERIOR

52A-6

REMOVAL SERVICE POINTS

.

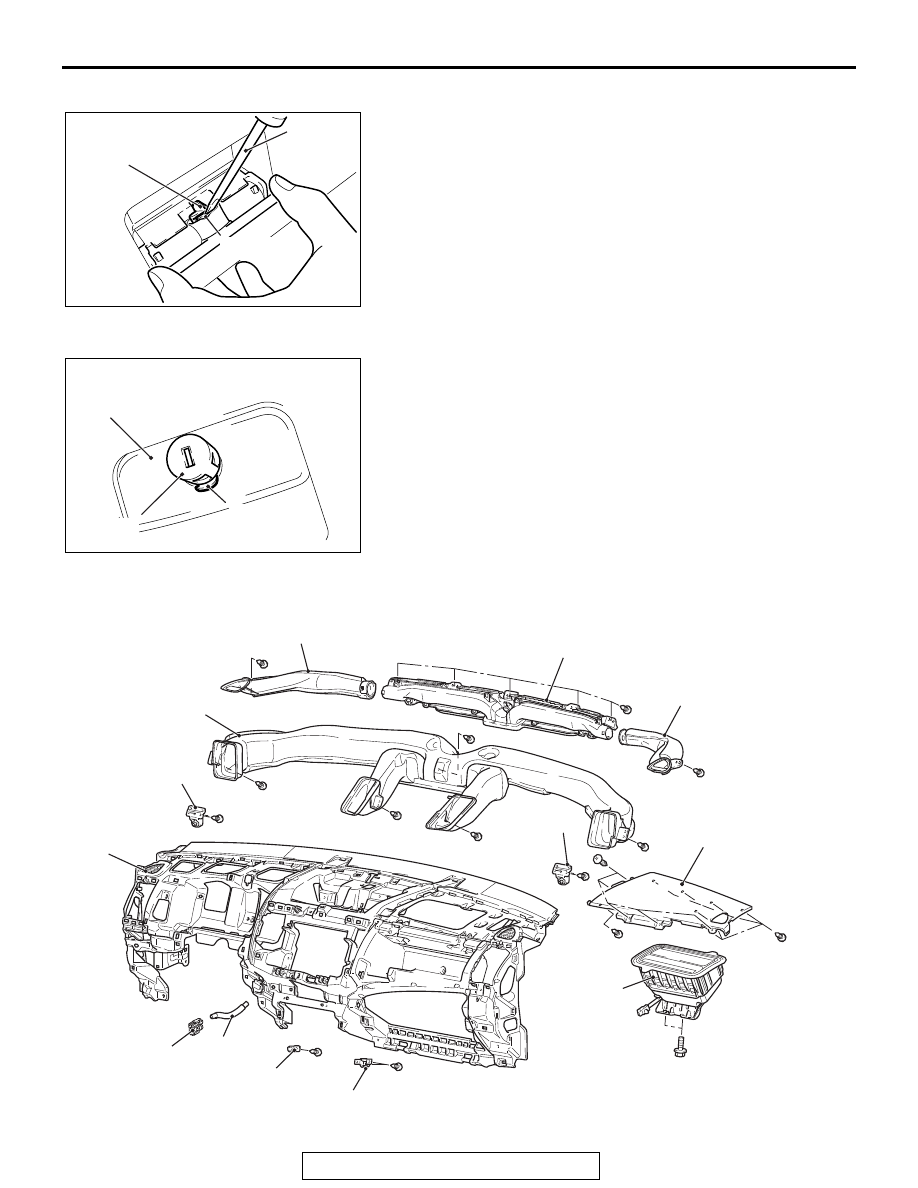

<<A>> GLOVE BOX LOCK CYLINDER REMOVAL

While pulling the lever as shown in the figure, press in the lock
plate of the glove box lock cylinder (brass-colored portion)
using a flat-tipped screwdriver and push out the glove box lock
cylinder to the direction of the arrow.
NOTE: Always unlock the glove box lock cylinder before
removal because the glove box lock cylinder cannot be
removed when it is locked.

INSTALLATION SERVICE POINT

.

>>A<< GLOVE BOX LOCK CYLINDER
INSTALLATION

1. Set the glove box lock cylinder in the direction shown in the

figure, and insert the lock plate to the installation hole of the
lever.

2. Press in the glove box lock cylinder.

DISASSEMBLY AND ASSEMBLY

M1521001900699

ACA01167

Lock plate

Flat-tipped
screwdriver

Glove box
lock cylinder

AE

ACA01243AE

Lock plate

Glove box
lock cylinder

Lever

AC701258

2

2

3

4

8

6

8

AB

7

5

1

11

a

h

a

a

a

a

a

a

a

a

a

a

a

a

9

a

10

a

FLOOR CONSOLE ASSEMBLY

TSB Revision

INTERIOR

52A-7

FLOOR CONSOLE ASSEMBLY

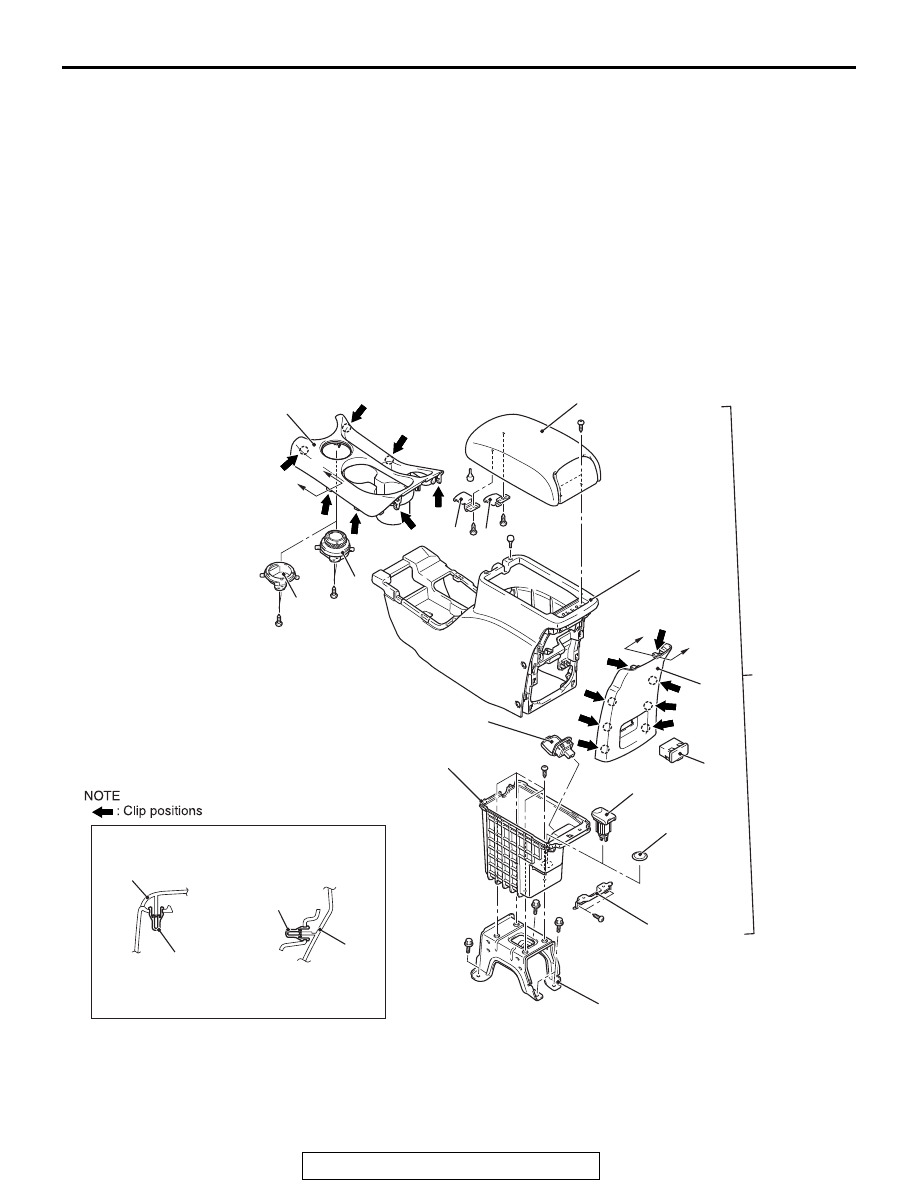

FRONT FLOOR CONSOLE ASSEMBLY

REMOVAL AND INSTALLATION

M1521005200539

Disassembly steps

1.

Front passenger's seat air bag
module (Refer to GROUP 52B,

−

Driver's and Front Passenger's Air
Bag Modules and Clock Spring

P.52B-439

.)

2.

Side defroster nozzle

3.

Center defroster nozzle

4.

Ventilation air distribution

5.

Front passenger's air bag lid
assembly

6.

Instrument holder

7.

Glove box light bracket

8.

Wiring harness bracket

9.

Interior temperature sensor

10. Aspirator hose
11. Instrument panel

Disassembly steps (Continued)

AC701197

1

1

2

3

4

5

6

7

AC

A

A

B

B

 Section A – A

 Section B – B

1

3

Clip

Clip

Removal steps

1.

Lower side cover

2.

Front floor console bracket

•

Cigarette Lighter connector

3.

Front floor console panel

•

Rear floor console assembly (Refer
to

P.52A-8

.)

Removal steps (Continued)

FLOOR CONSOLE ASSEMBLY

TSB Revision

INTERIOR

52A-8

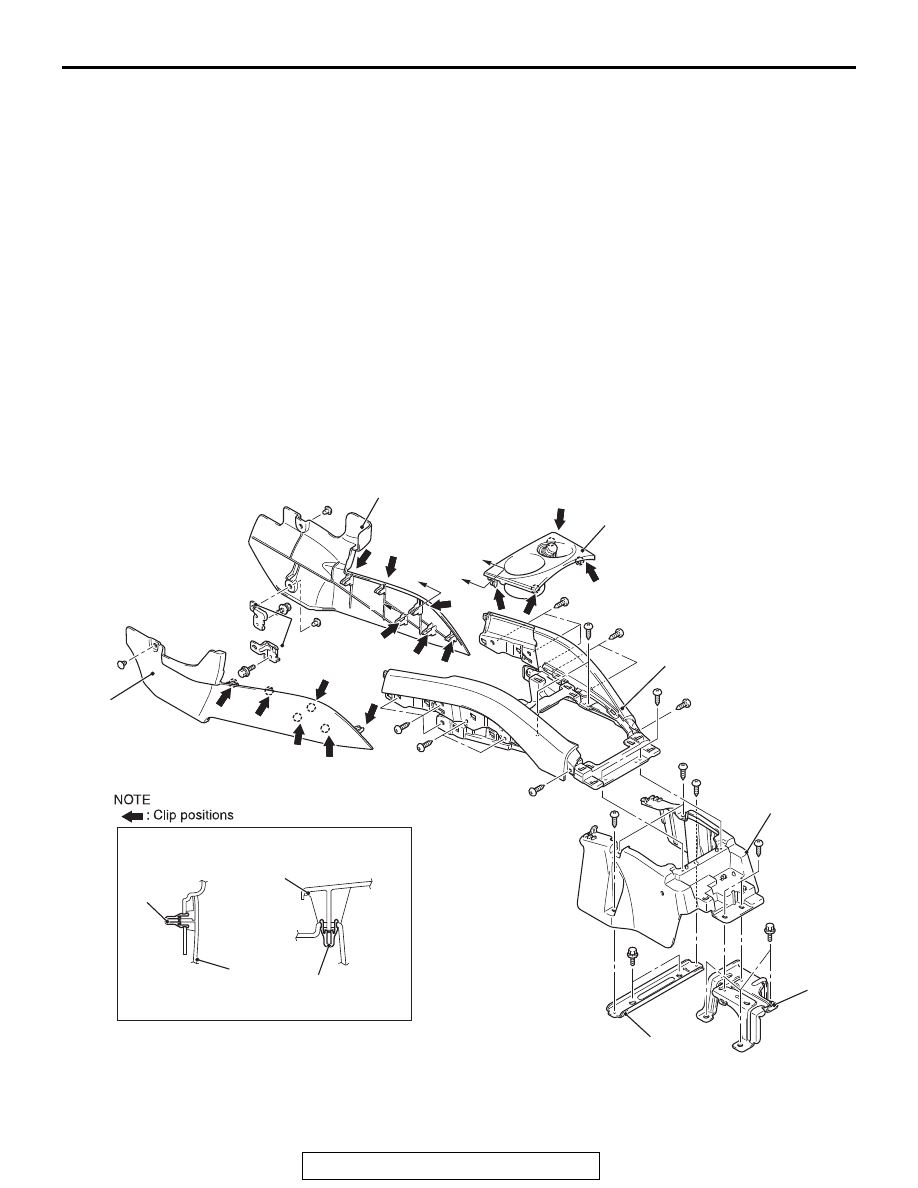

REAR FLOOR CONSOLE ASSEMBLY

REMOVAL AND INSTALLATION

M1521005700523

4.

Front floor console assembly

•

Interior transmission antenna
(front) (Refer to GROUP 42B,
Exterior Transmission Antenna,
Interior Transmission Antenna
Assembly, Receiver Antenna
Module

P.42B-202

.)

5.

Front floor console base

6.

Front floor console base bracket

7.

Front floor console mid bracket

Removal steps (Continued)

AC709780AB

1

15

 Section A – A

2

9

Clip

Clip

 Section B – B

6

7

5

2

A

A

9

B

B

8

10

11

14

16

4

3

12

13

Removal steps

1.

Rear floor console assembly

<<

A

>>

•

AWD selector switch connector

2.

Rear floor console front panel
assembly

3.

Floor console plug <FWD>

Removal steps (Continued)
