Mitsubishi Outlander GS45X. Manual - part 1027





DUCTS

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-135

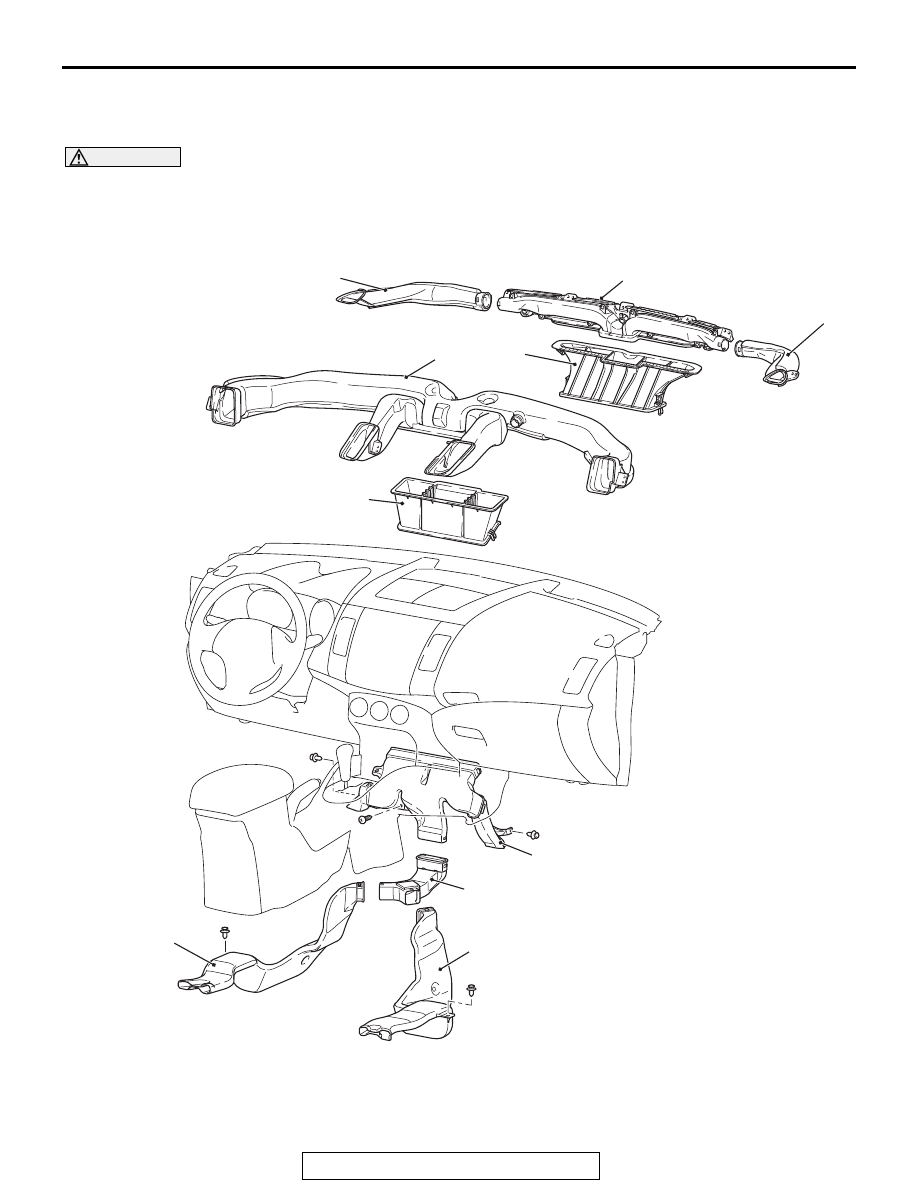

DUCTS

REMOVAL AND INSTALLATION

M1553001000952

CAUTION

• For the removal of the front passenger's air bag module, refer to GROUP 52B  Service Precau-

tions

P.52B-25

, Driver's and Front Passenger's Air Bag Module, and Clock Spring before opera-

tion.

• Do not subject SRS-ECU to any shocks when removing or installing the instrument panel.

AC702917

4

3

3

2

1

5

6

6

7

8

AB

VENTILATORS

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-136

VENTILATORS

REMOVAL AND INSTALLATION

M1553001600620

Removal steps for rear center
duct, front center duct, side
defroster duct, defroster nozzle,
ventilation air distribution duct

Instrument panel assembly (Refer
to GROUP 52A

− Instrumental

Panel

P.52A-2

).

1.

Rear center duct

2.

Front center duct

3.

Side defroster duct

4.

Defroster nozzle

5.

Ventilation air distribution duct

Rear heater duct removal steps

Front scuff plate inner and cowl
side trim (Refer to GROUP 52A

−

Interior trim

P.52A-2

).

Selector lever, selector lever panel,
glove box, lower panel, console
side cover and center console
(Refer to GROUP 52A

− Instrument

Panel

P.52A-2

).

Front seat assembly (Refer to
GROUP 52A

− Front Seat

Assembly

P.52A-17

).

6.

Rear heater duct B

7.

Rear heater duct A

Foot duct removal steps

Heater unit and blower assembly
(Refer to

P.55A-117

).

8.

Foot duct

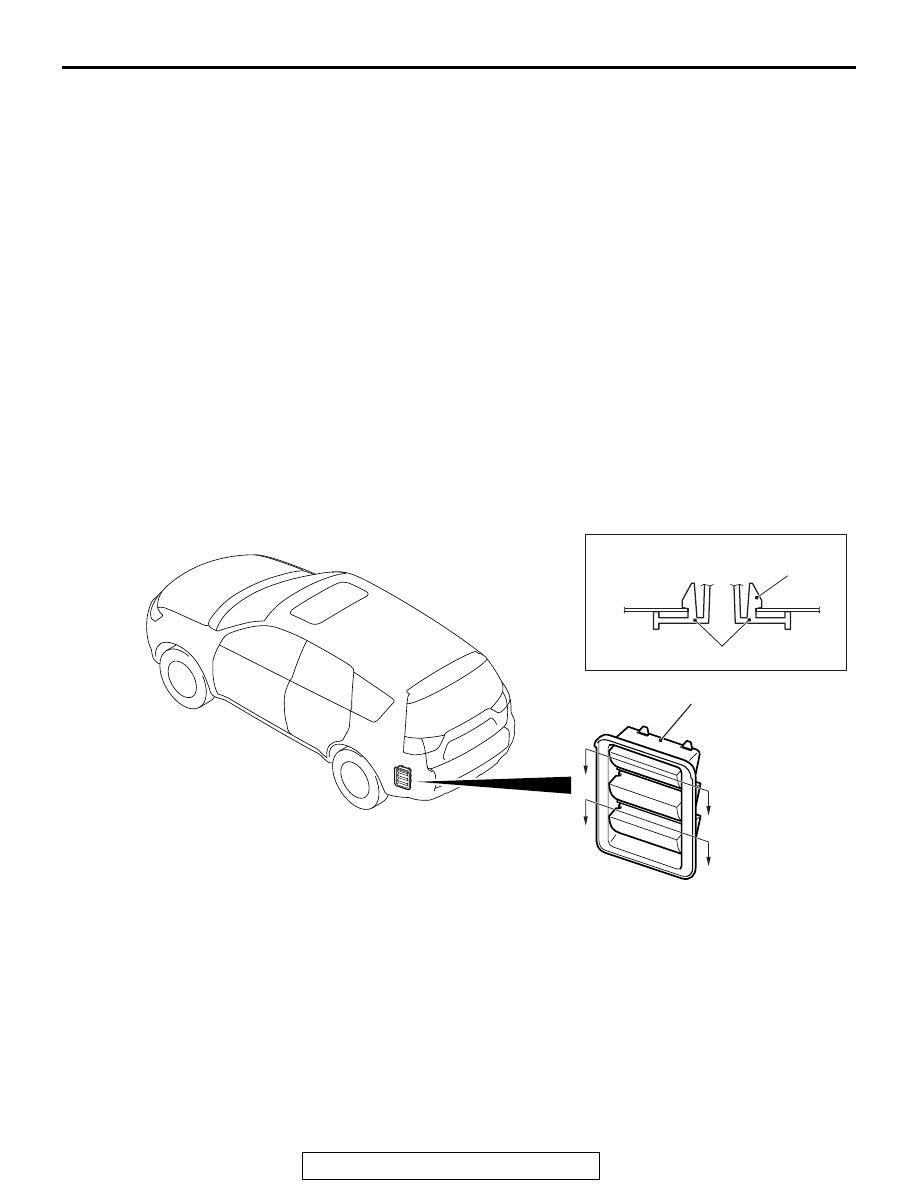

AC702918

A

A

A

A

AC

Cross-section A-A

Claw

Rear ventilation duct

Rear ventilation duct

Rear ventilation duct removal
steps

Rear bumper assembly (Refer to
GROUP 51

P.51-7

).

1.

Rear ventilation duct

55B-1

GROUP 55B

AUTOMATIC AIR

CONDITIONING

CONTENTS

GENERAL INFORMATION . . . . . . . .

55B-2

AUTOMATIC A/C DIAGNOSIS . . . . .

55B-3

INTRODUCTION. . . . . . . . . . . . . . . . . . . . .

55B-3

AUTOMATIC A/C TROUBLESHOOTING



STRATEGY. . . . . . . . . . . . . . . . . . . . . . . . .

55B-4

DIAGNOSTIC FUNCTION  . . . . . . . . . . . . .

55B-4

DIAGNOSTIC TROUBLE CODE CHART . .

55B-8

DIAGNOSTIC TROUBLE CODE



PROCEDURES. . . . . . . . . . . . . . . . . . . . . .

55B-9

SYMPTOM CHART. . . . . . . . . . . . . . . . . . .

55B-12

DATA LIST REFERENCE TABLE  . . . . . . .

55B-12

ACTUATOR TEST REFERENCE . . . . . . . .

55B-17

CHECK AT A/C-ECU TERMINAL . . . . . . . .

55B-18

SPECIAL TOOLS . . . . . . . . . . . . . . . .

55B-20

SENSORS . . . . . . . . . . . . . . . . . . . . . .

55B-22

REMOVAL AND INSTALLATION  . . . . . . . .

55B-22

INSPECTION. . . . . . . . . . . . . . . . . . . . . . . .

55B-22

OTHER PARTS. . . . . . . . . . . . . . . . . .

55B-23

OTHER PARTS MAINTENANCE



SERVICE POINTS  . . . . . . . . . . . . . . . . . . .

55B-23

GENERAL INFORMATION

TSB Revision

AUTOMATIC AIR CONDITIONING

55B-2

GENERAL INFORMATION

M1552023500082

The blower, heater, and evaporator have been inte-
grated with the heater and A/C system to achieve
greater fan power and noise reduction.

SAFETY PRECAUTIONS

WARNING

Wear safety goggles and gloves when servic-
ing the refrigeration system to prevent
severe damage to eyes and hands.

Because R-134a refrigerant is a hydro fluorocarbon
(HFC) which contains hydrogen atoms in place of
chlorine atoms, it will not cause damage to the ozone
layer.
Ozone filters out harmful radiation from the sun. To
assist in protecting the ozone layer, Mitsubishi
Motors Corporation recommends an R-134a refriger-
ant recycling device.
Refrigerant R-134a is transparent and colorless in
both the liquid and vapor state. Since it has a boiling
point of

−29.8°C (−21.64°F) at atmospheric pressure,

it will be a vapor at all normal temperatures and pres-
sures. The vapor is heavier than air, non-flammable,
and non-explosive. The following precautions must
be observed when handling R-134a.

WARNING

Do not heat R-134a above 40

°

C (104.0

°

F) or it

may catch fire and explode.

R-134a evaporates so rapidly at normal atmospheric
pressures and temperatures that it tends to freeze
anything it contacts. For this reason, extreme care
must be taken to prevent any liquid refrigerant from
contacting the skin and especially the eyes. Always
wear safety goggles when servicing the refrigeration
part of the A/C system. Keep a bottle of sterile min-
eral oil handy when working on the refrigeration sys-
tem.
1. Should any liquid refrigerant get into your eyes,

use a few drops of mineral oil to wash them out.
R-134a is rapidly absorbed by the oil.

2. Next, splash your eyes with plenty of cold water.
3. Call your doctor immediately even if irritation has

ceased.

CAUTION

Keep R-134a containers upright when charging
the system.
In most instances, moderate heat is required to bring
the pressure of the refrigerant in its container above
the pressure of the system when charging or adding
refrigerant.
A bucket or large pan of hot water not over 40

°C

(104.0

°F) is all the heat required for this purpose. Do

not heat the refrigerant container with a blow torch or
any other means that would raise temperature and
pressure above this temperature. Do not weld or
steam-clean on or near the system components or
refrigerant lines.

WARNING

The leak detector for R-134a should be used
to check for refrigerant gas leaks.

CAUTION

Do not allow liquid refrigerant to touch bright
metal or it will be stained.
When metering R-134a into the refrigeration system,
keep the supply tank or cans in an upright position. If
the refrigerant container is on its side or upside
down, liquid refrigerant will enter the system and
damage the compressor.
Refrigerant will tarnish bright metal and chrome sur-
faces, and in combination with moisture can severely
corrode all metal surfaces.

OPERATION

.

CONDENSER FAN AND RADIATOR FAN
CONTROL

The ECM judges the required revolution speed of
radiator fan motor and condenser fan motor using
the input signals transmitted from A/C switch, output
shaft speed sensor and engine coolant temperature
sensor.

.

Item

Specification

Heater control assembly

Dial type

Compressor

QS90

Compressor model

Scroll type

Refrigerant and quantity g (oz)

R-134a (HFC-134a), 480

− 520 (16.9 − 18.3)
