RADIO AND CD PLAYER

TSB Revision

CHASSIS ELECTRICAL

54A-381

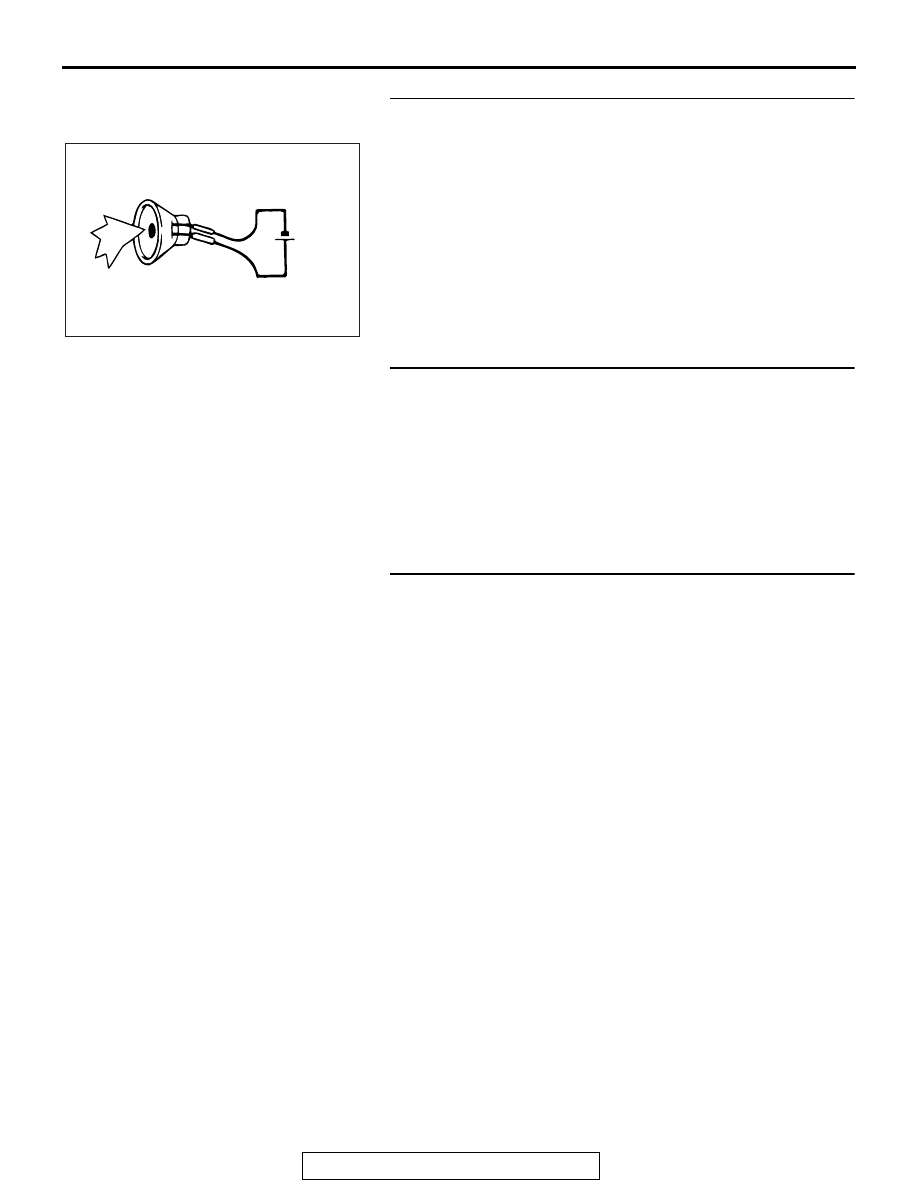

STEP 12. Rear door speaker (RH) check
(1) Remove the rear door speaker (RH). Refer to

P.54A-692

.

(2) Check that the rear door speaker (RH) outputs the noise

when the voltage of five volts is applied to the rear door
speaker (RH) connector terminal.

Q: Does the rear door speaker (RH) output the noise?

YES : Go to Step 13.
NO :  Replace the rear door speaker (RH).

STEP 13. Check radio and CD player connector C-16 for
loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Is radio and CD player connector C-16 in good

condition?
YES : Go to Step 14.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

.

STEP 14. Check the wiring harness between radio and CD
player connector C-16 (terminal 25, 35) and rear door
speaker (RH) connector E-10 (terminal 1, 2).
NOTE: Also check intermediate connectors C-20 and D-36 for
loose, corroded, or damaged terminals, or terminals pushed
back in the connector. If intermediate connector C-20 or D-36 is
damaged, repair or replace the connector as described in
GROUP 00E, Harness Connector Inspection

P.00E-2

.

• Check the communication lines for open circuit and short

circuit.

Q: Is the wiring harness between radio and CD player

connector C-16 (terminal 25, 35) and rear door speaker
(RH) connector E-10 (terminal 1, 2) in good condition?
YES : Check the trouble symptom. Go to Step 27.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary.

AC703723AB

5 volts

RADIO AND CD PLAYER

TSB Revision

CHASSIS ELECTRICAL

54A-382

STEP 15. Check rear door speaker (LH) connector E-24 for
loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Is rear door speaker (LH) connector E-24 in good

condition?
YES : Go to Step 16.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

.

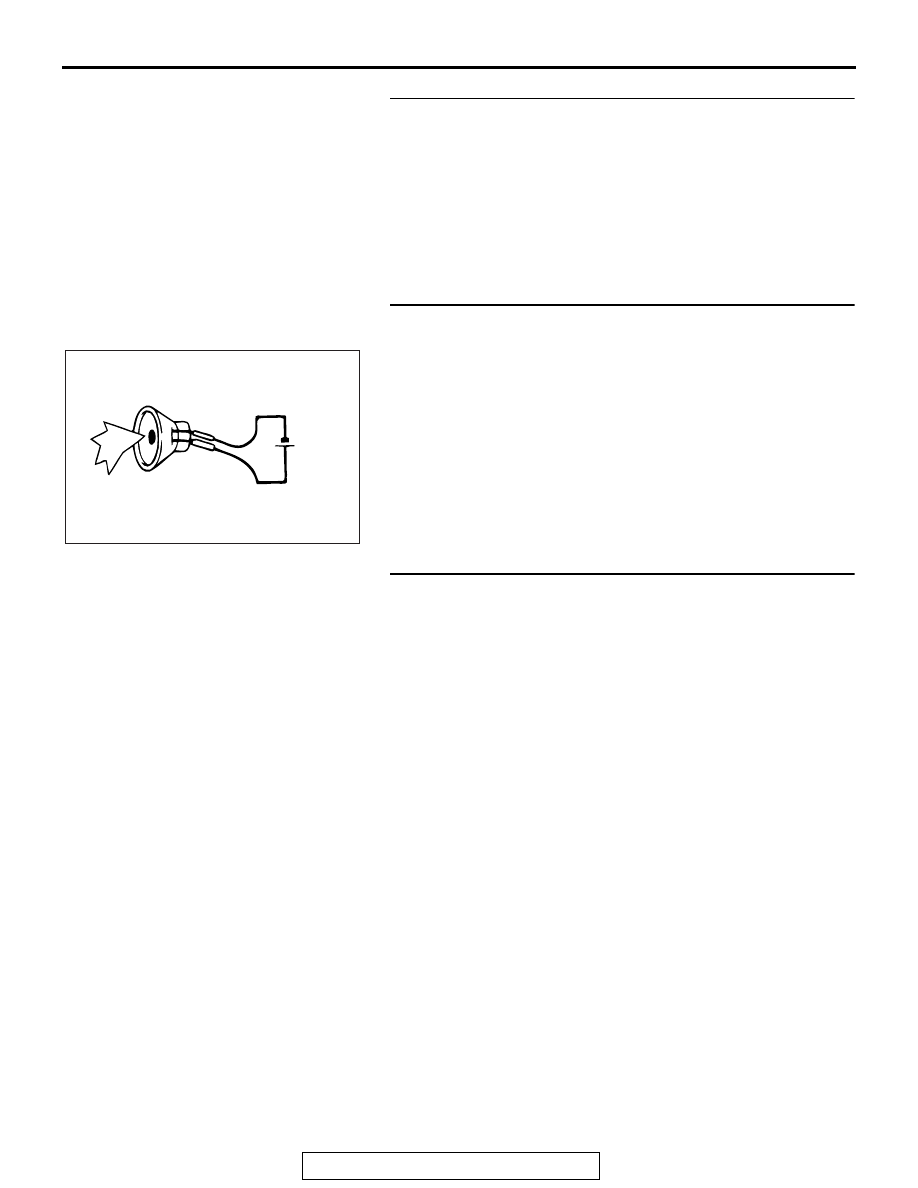

STEP 16. Rear door speaker (LH) check.
(1) Remove the rear door speaker (LH). Refer to

P.54A-692

.

(2) Check that the rear door speaker (LH) outputs the noise

when the voltage of five volts is applied to the rear door
speaker (LH) connector terminal.

Q: Does the rear door speaker (LH) output the noise?

YES : Go to Step 17.
NO :  Replace the rear door speaker (LH).

STEP 17. Check radio and CD player connector C-16 for
loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Is radio and CD player connector C-16 in good

condition?
YES : Go to Step 18.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

.

AC703723AB

5 volts

RADIO AND CD PLAYER

TSB Revision

CHASSIS ELECTRICAL

54A-383

STEP 18. Check the wiring harness between radio and CD
player connector C-16 (terminal 27, 37) and rear door
speaker (LH) connector E-24 (terminal 1, 2).
NOTE: Also check intermediate connectors C-32 and D-21 for
loose, corroded, or damaged terminals, or terminals pushed
back in the connector. If intermediate connector C-32 or D-21 is
damaged, repair or replace the connector as described in
GROUP 00E, Harness Connector Inspection

P.00E-2

.

• Check the communication lines for open circuit and short

circuit.

Q: Is the wiring harness between radio and CD player

connector C-16 (terminal 27, 37) and rear door speaker
(LH) connector E-24 (terminal 1, 2) in good condition?
YES : Check the trouble symptom. Go to Step 27.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary.

STEP 19. Check tweeter (RH) connector E-02 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Is tweeter (RH) connector E-02 in good condition?

YES : Go to Step 20.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

.

STEP 20. Tweeter (RH) check.
(1) Remove the tweeter (RH). Refer to

P.54A-692

.

(2) Check that the tweeter (RH) outputs the noise when the

voltage of five volts is applied to the tweeter (RH) connector
terminal.

Q: Does the tweeter (RH) output the noise?

YES : Go to Step 21.
NO :  Replace the tweeter (RH).

STEP 21. Check radio and CD player connector C-16 for
loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Is radio and CD player connector C-16 in good

condition?
YES : Go to Step 22.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

.

AC703723AB

5 volts

RADIO AND CD PLAYER

TSB Revision

CHASSIS ELECTRICAL

54A-384

STEP 22. Check the wiring harness between radio and CD
player connector C-16 (terminal 26, 36) and tweeter (RH)
connector E-02 (terminal 2, 1).
NOTE: Also check intermediate connector C-113 for loose, cor-
roded, or damaged terminals, or terminals pushed back in the
connector. If intermediate connector C-113 is damaged, repair
or replace the connector as described in GROUP 00E, Harness
Connector Inspection

P.00E-2

.

• Check the communication lines for open circuit and short

circuit.

Q: Is the wiring harness between radio and CD player

connector C-16 (terminal 26, 36) and tweeter (RH)
connector E-02 (terminal 2, 1) in good condition?
YES : Check the trouble symptom. Go to Step 27.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary.

STEP 23. Check tweeter (LH) connector E-14 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Is tweeter (LH) connector E-14 in good condition?

YES : Go to Step 24.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

.

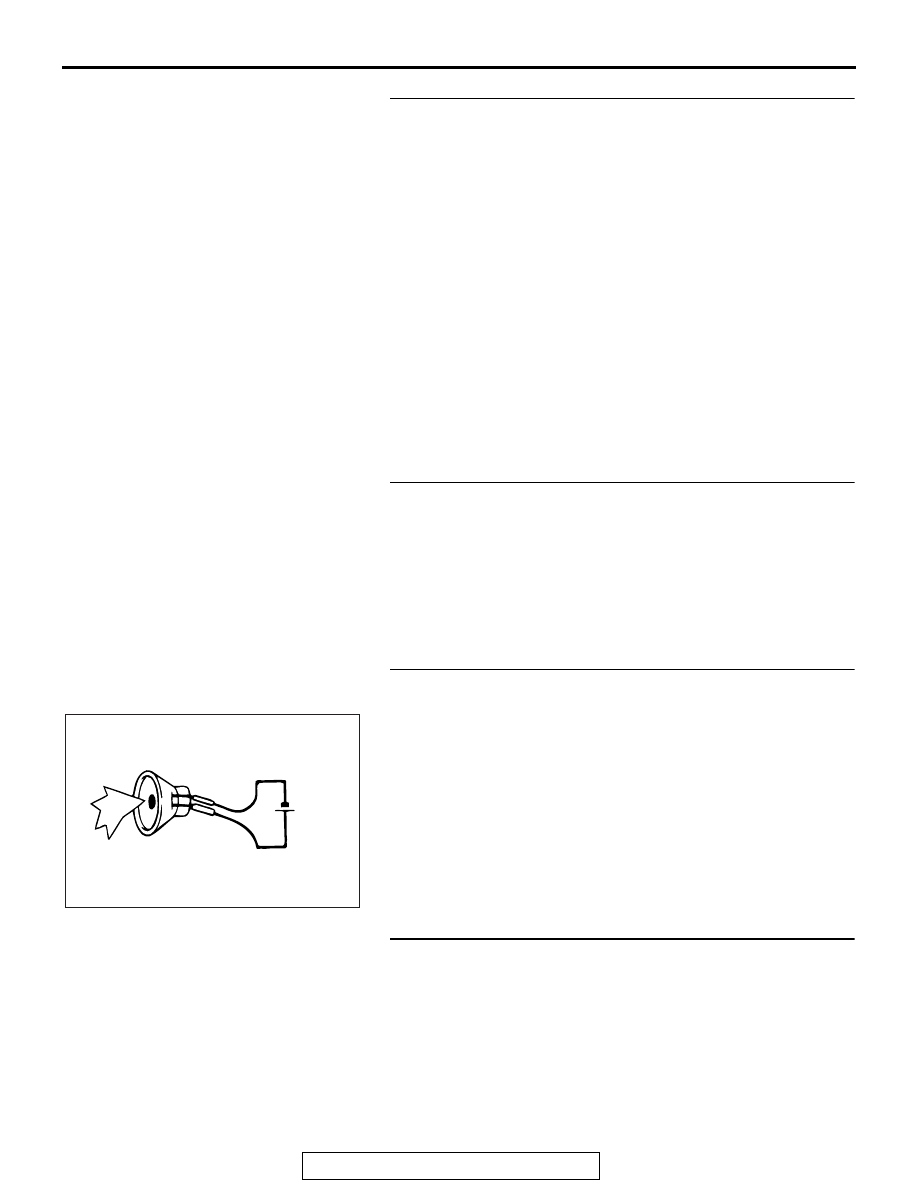

STEP 24. Tweeter (LH) check.
(1) Remove the tweeter (LH). Refer to

P.54A-692

.

(2) Check that the tweeter (LH) outputs the noise when the

voltage of five volts is applied to the tweeter (LH) connector
terminal.

Q: Does the tweeter (LH) output the noise?

YES : Go to Step 25.
NO :  Replace the tweeter (LH).

STEP 25. Check radio and CD player connector C-16 for
loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Is radio and CD player connector C-16 in good

condition?
YES : Go to Step 26.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

.

AC703723AB

5 volts
