RADIO AND CD PLAYER

TSB Revision

CHASSIS ELECTRICAL

54A-349

DTC U1415: Coding not completed/Data fail

CAUTION

If there is any problem in the CAN bus lines, an incorrect
diagnostic trouble code may be set. Prior to this diagno-
sis, always diagnose the CAN bus lines.

CAUTION

Before replacing the radio and CD player, be sure to check
that the power supply circuit, ground circuit, and commu-
nication circuit are normal.

.

TROUBLE JUDGMENT

When the vehicle information data is not registered to the audio
unit, the radio and CD player sets the DTC No.U1415.

.

COMMENTS ON TROUBLE SYMPTOM

The audio unit, ETACS-ECU, or CAN bus line may have a
problem.

.

PROBABLE CAUSES

• Malfunctions of audio unit

• Malfunction of the ETACS-ECU

• Malfunction of CAN bus line wiring harness and connector

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A

RADIO AND CD PLAYER

TSB Revision

CHASSIS ELECTRICAL

54A-350

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.

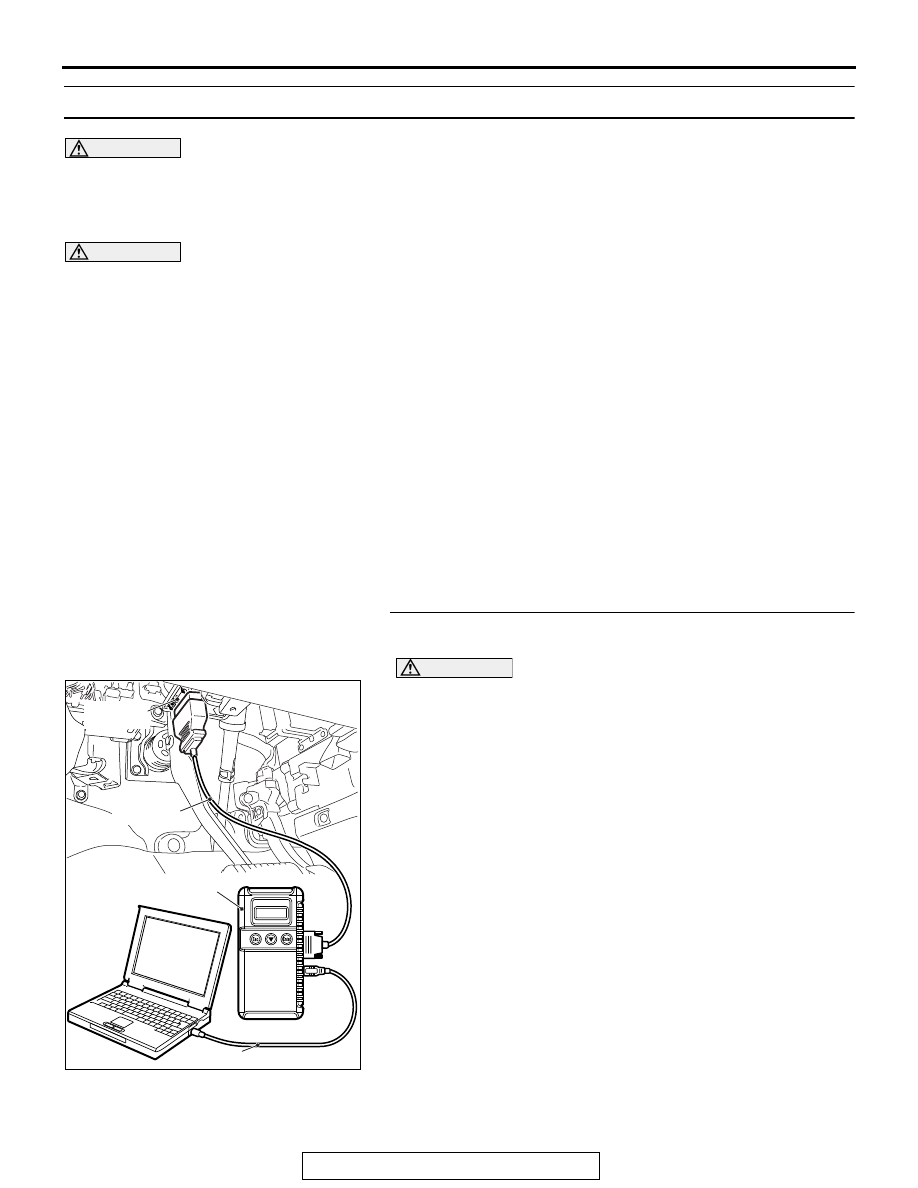

(1) Connect scan tool MB991958. Refer to "How to connect the

Scan Tool (M.U.T.-III)

P.54A-331

."

(2) Turn the ignition switch to the "ON" position.
(3) Diagnose the CAN bus line.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the CAN bus line found to be normal?

YES : Go to Step 2.
NO :  Repair the CAN bus line. (Refer to GROUP 54C,

Diagnosis

P.54C-17

).

STEP 2. Using scan tool MB991958, read the other system
DTC.
Check if the diagnostic trouble code relating to the coding error
is set to the ETACS-ECU.
(1) Turn the ignition switch to the "ON" position.
(2) Check for DTCs.
(3) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?

YES : Diagnose the ETACS-ECU (Refer to GROUP 54A,

ETACS-ECU, Diagnosis

P.54A-732

), and then go to

Step 3.

NO :  Go to Step 3.

STEP 3. Recheck for diagnostic trouble code.
Check again if the DTC is set to the radio and CD player.
(1) Erase the DTC.
(2) Turn the ignition switch from "LOCK" (OFF) position to "ON"

position.

(3) Check if the DTC is set.
Q: Is the DTC set?

YES : Replace the radio and CD player.
NO :  The trouble can be an intermittent malfunction (Refer

to GROUP 00, How to use
Troubleshooting/inspection Service Points, How to
Cope with Intermittent Malfunction

P.00-15

).

ZC501967

AC404789

AC702802

MB991824

MB991827

MB991910

Data link

connector

AB

RADIO AND CD PLAYER

TSB Revision

CHASSIS ELECTRICAL

54A-351

DTC B2420: Power integrated circuit

CAUTION

If there is any problem in the CAN bus lines, an
incorrect diagnostic trouble code may be set.
Prior to this diagnosis, always diagnose the CAN
bus lines.

CAUTION

Before replacing the radio and CD player, be sure
to check that the power supply circuit, ground
circuit, and communication circuit are normal.

.

TROUBLE JUDGMENT

If the radio and CD player continuously apply the
voltage of two volts or more to the speakers for one
minute or more, it is determined that the offset volt-
age is exceeded, and then the diagnostic trouble
code is set.

.

COMMENTS ON TROUBLE SYMPTOM

The radio and CD player or CAN bus line may have a
problem.

.

PROBABLE CAUSES

• Malfunctions of radio and CD player

• Malfunction of CAN bus line wiring harness and

connector

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958. Refer to "How to connect the

Scan Tool (M.U.T.-III)

P.54A-331

."

(2) Turn the ignition switch to the "ON" position.
(3) Diagnose the CAN bus line.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the CAN bus line found to be normal?

YES : Go to Step 2.
NO :  Repair the CAN bus line. (Refer to GROUP 54C,

Diagnosis

P.54C-17

).

ZC501967

AC404789

AC702802

MB991824

MB991827

MB991910

Data link

connector

AB

RADIO AND CD PLAYER

TSB Revision

CHASSIS ELECTRICAL

54A-352

STEP 2. Recheck for diagnostic trouble code.
Check again if the DTC is set to the radio and CD player.
(1) Erase the DTC.
(2) Turn the ignition switch from "LOCK" (OFF) position to "ON"

position.

(3) Check if the DTC is set.
Q: Is the diagnostic trouble code set?

YES : Replace the radio and CD player.
NO :  The trouble can be an intermittent malfunction (Refer

to GROUP 00, How to use
Troubleshooting/inspection Service Points, How to
Cope with Intermittent Malfunction

P.00-15

).

DTC B2421: Radio tuner

CAUTION

If there is any problem in the CAN bus lines, an
incorrect diagnostic trouble code may be set.
Prior to this diagnosis, always diagnose the CAN
bus lines.

CAUTION

Before replacing the radio and CD player, be sure
to check that the power supply circuit, ground
circuit, and communication circuit are normal.

.

TROUBLE JUDGMENT

If the communication cannot be established consec-
utively for 10 times between the incorporated tuner of
radio and CD player and the microcomputer, the
diagnostic trouble code is set.

.

COMMENTS ON TROUBLE SYMPTOM

The radio and CD player or CAN bus line may have a
problem.

.

PROBABLE CAUSES

• Malfunctions of radio and CD player

• Malfunction of CAN bus line wiring harness and

connector

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A
