STEP 4. Recheck for diagnostic trouble code.
Check again if the DTC is set to the radio and CD player.
(1) Erase the DTC.
(2) Turn the ignition switch from "LOCK" (OFF) position to "ON"

position.

(3) Check if DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?

YES : Replace the A/C-ECU.
NO :  The trouble can be an intermittent malfunction such

as a poor connection or open circuit in the CAN bus
lines between the A/C-ECU and the radio and CD
player (Refer to GROUP 00, How to Cope with
Intermittent Malfunction

P.00-15

).

STEP 5. Recheck for diagnostic trouble code.
Check again if the DTC is set to the radio and CD player.
(1) Erase the DTC.
(2) Turn the ignition switch from "LOCK" (OFF) position to "ON"

position.

(3) Check if DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?

YES : Replace the radio and CD player.
NO :  The trouble can be an intermittent malfunction such

as a poor connection or open circuit in the CAN bus
lines between the A/C-ECU and the radio and CD
player (Refer to GROUP 00, How to Cope with
Intermittent Malfunction

P.00-15

).

DTC U0168: WCM/KOS CAN timeout

CAUTION

• If DTC U0168 is set, be sure to diagnose the

CAN bus line.

• When replacing the radio and CD player,

always check that the communication circuit
is normal.

.

DIAGNOSTIC FUNCTION

If the signal from KOS-ECU <vehicles with KOS> or
WCM <vehicles with WCM> cannot be received, the
radio and CD player sets DTC U0168.

.

JUDGMENT CRITERIA

With the ignition switch in the ON position, system
voltage between 10

− 16 V (data from ETACS-ECU),

power supply fuse(IOD fuse) is OK, or odometer
value is 80.5 km (50 miles) or more, and the commu-
nication with KOS-ECU <vehicles with KOS> or
WCM <vehicles with WCM> cannot be established
for 2,500 ms or more, the radio and CD player deter-
mines that a problem has occurred.

.

TROUBLESHOOTING HINTS

• Malfunction of CAN bus line may be defective.

• Malfunction of the KOS-ECU may be defective.

<vehicles with KOS>

• Malfunction of the WCM may be defective. <vehi-

cles with WCM>

• Malfunction of radio and CD player may be defec-

tive.

RADIO AND CD PLAYER

TSB Revision

CHASSIS ELECTRICAL

54A-346

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicles Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A (Vehicles with

CAN communication system)

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958. Refer to "How to connect the

Scan Tool (M.U.T.-III)

P.54A-331

."

(2) Turn the ignition switch to the "ON" position.
(3) Diagnose the CAN bus line.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the CAN bus line found to be normal?

YES : Go to Step 2.
NO :  Repair the CAN bus line (Refer to GROUP 54C,

Diagnosis

P.54C-17

).

STEP 2. Using scan tool MB991958, read the KOS-ECU
<vehicles with KOS> or WCM <vehicles with WCM>
diagnostic trouble code.
Check again if the DTC is set to the KOS-ECU <vehicles with
KOS> or WCM <vehicles with WCM>.
Q: Is the DTC set?

YES : Troubleshoot the KOS or WCM (Refer to GROUP

42B, Diagnosis

P.42B-35

 <KOS> or GROUP 42C,

Diagnosis

P.42C-18

 <WCM>).

NO :  Go to Step 3.

STEP 3. Using scan tool MB991958, read the diagnostic
trouble code.
Check if the DTC U0168 is set to the ETACS-ECU.
Q: Is the DTC set?

YES : Go to Step 4.
NO :  Go to Step 5.

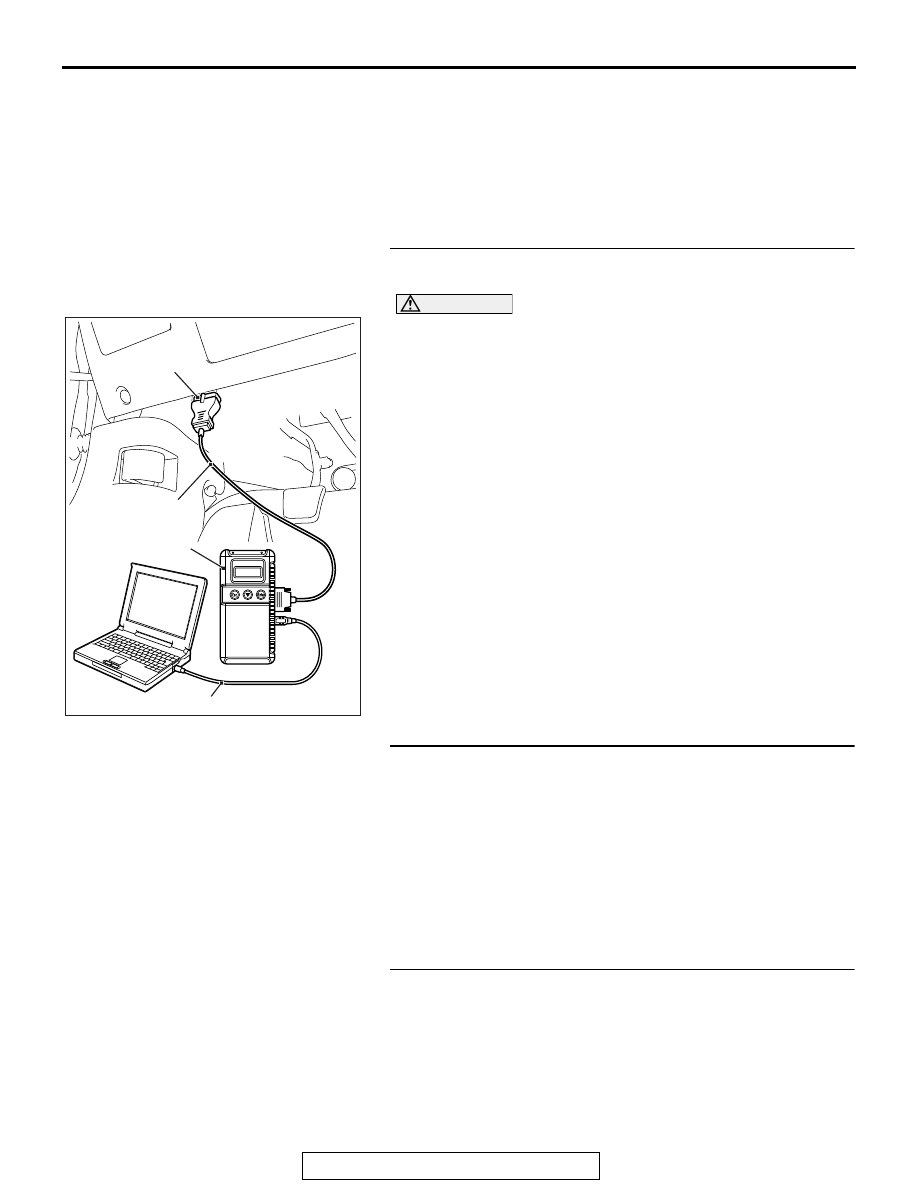

AC608435

Data link connector

MB991827

MB991824

MB991910

AB

RADIO AND CD PLAYER

TSB Revision

CHASSIS ELECTRICAL

54A-347

STEP 4. Recheck for diagnostic trouble code.
Check again if the DTC is set to the radio and CD player.
(1) Erase the DTC.
(2) Turn the ignition switch from "LOCK" (OFF) position to "ON"

position.

(3) Check if DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?

YES : Replace the WCM or KOS-ECU.
NO :  The trouble can be an intermittent malfunction such

as a poor connection or open circuit in the CAN bus
lines between the WCM or KOS-ECU and the radio
and CD player (Refer to GROUP 00, How to Cope
with Intermittent Malfunction

P.00-15

).

STEP 5. Recheck for diagnostic trouble code.
Check again if the DTC is set to the radio and CD player.
(1) Erase the DTC.
(2) Turn the ignition switch from "LOCK" (OFF) position to "ON"

position.

(3) Check if DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?

YES : Replace the radio and CD player.
NO :  The trouble can be an intermittent malfunction such

as a poor connection or open circuit in the CAN bus
lines between the WCM or KOS-ECU and the radio
and CD player (Refer to GROUP 00, How to Cope
with Intermittent Malfunction

P.00-15

).

DTC U0195: Satellite radio CAN timeout

CAUTION

If DTC U0195 is set in the radio and CD player,
diagnose the CAN main bus line.

CAUTION

Whenever the ECU is replaced, ensure that the
communication circuit is normal.

.

DIAGNOSTIC FUNCTION

When the signals from satellite radio tuner cannot be
received, the radio and CD player sets DTC U0195.

.

JUDGMENT CRITERIA

With the ignition switch in the ON position, system
voltage between 10

− 16 volts (data from

ETACS-ECU), power supply fuse(IOD fuse) is OK, or
odometer value is 80.5 km (50 miles) or more, and
the communications with satellite radio tuner cannot
be established for 2,500 ms or more, the radio and
CD player determines that a problem has occurred.

.

TROUBLESHOOTING HINTS

• The CAN bus line may be defective.

• The radio and CD player may be defective.

• The satellite radio tuner may be defective.

DIAGNOSIS

Required Special Tools:

•  MB991958: Scan Tool (M.U.T.-III Sub Assembly)

RADIO AND CD PLAYER

TSB Revision

CHASSIS ELECTRICAL

54A-348

• MB991824: V.C.I.

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958. Refer to "How to connect the

Scan Tool (M.U.T.-III)

P.54A-331

."

(2) Turn the ignition switch to the "ON" position.
(3) Diagnose the CAN bus line.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the CAN bus line found to be normal?

YES : Go to Step 2.
NO :  Repair the CAN bus line. (Refer to GROUP 54C,

Diagnosis

P.54C-17

).

STEP 2. Using scan tool MB991958 read the satellite radio
tuner diagnostic trouble code.
Check whether a satellite radio tuner DTCs are set or not.
(1) Turn the ignition switch to the "ON" position.
(2) Check for satellite radio tuner DTCs.
(3) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?

YES : Diagnose the satellite radio tuner. (Refer to

P.54A-658

.)

NO :   Go to Step 3.

STEP 3. Recheck for diagnostic trouble code.
Check again if the DTC is set to the radio and CD player.
(1) Erase the DTC.
(2) Turn the ignition switch from "LOCK" (OFF) position to "ON"

position.

(3) Check if DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?

YES : Replace the radio and CD player.
NO :  The trouble can be an intermittent malfunction (Refer

to GROUP 00, How to use
Troubleshooting/inspection Service Points

− How to

Cope with Intermittent Malfunction

P.00-15

).

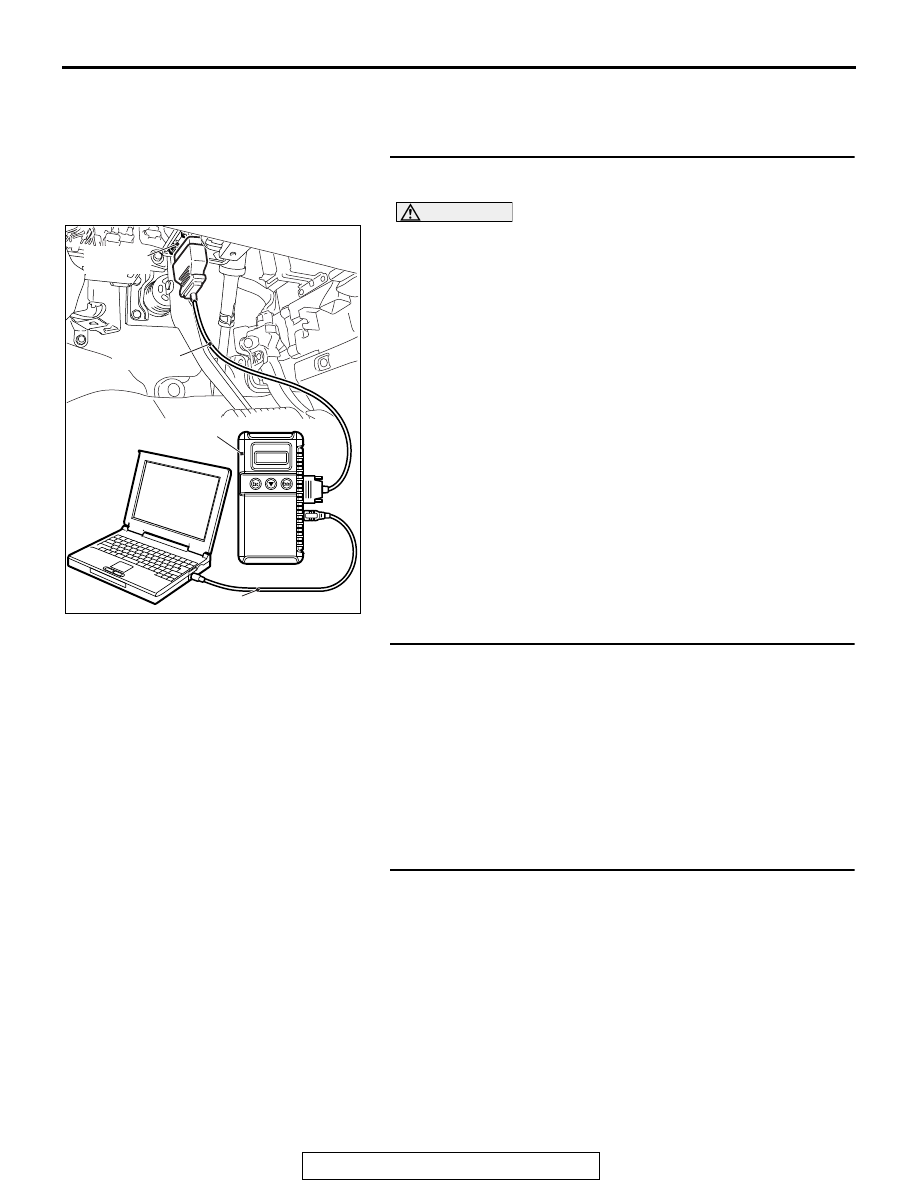

ZC501967

AC404789

AC702802

MB991824

MB991827

MB991910

Data link

connector

AB
