REAR COMBINATION LIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-225

54A

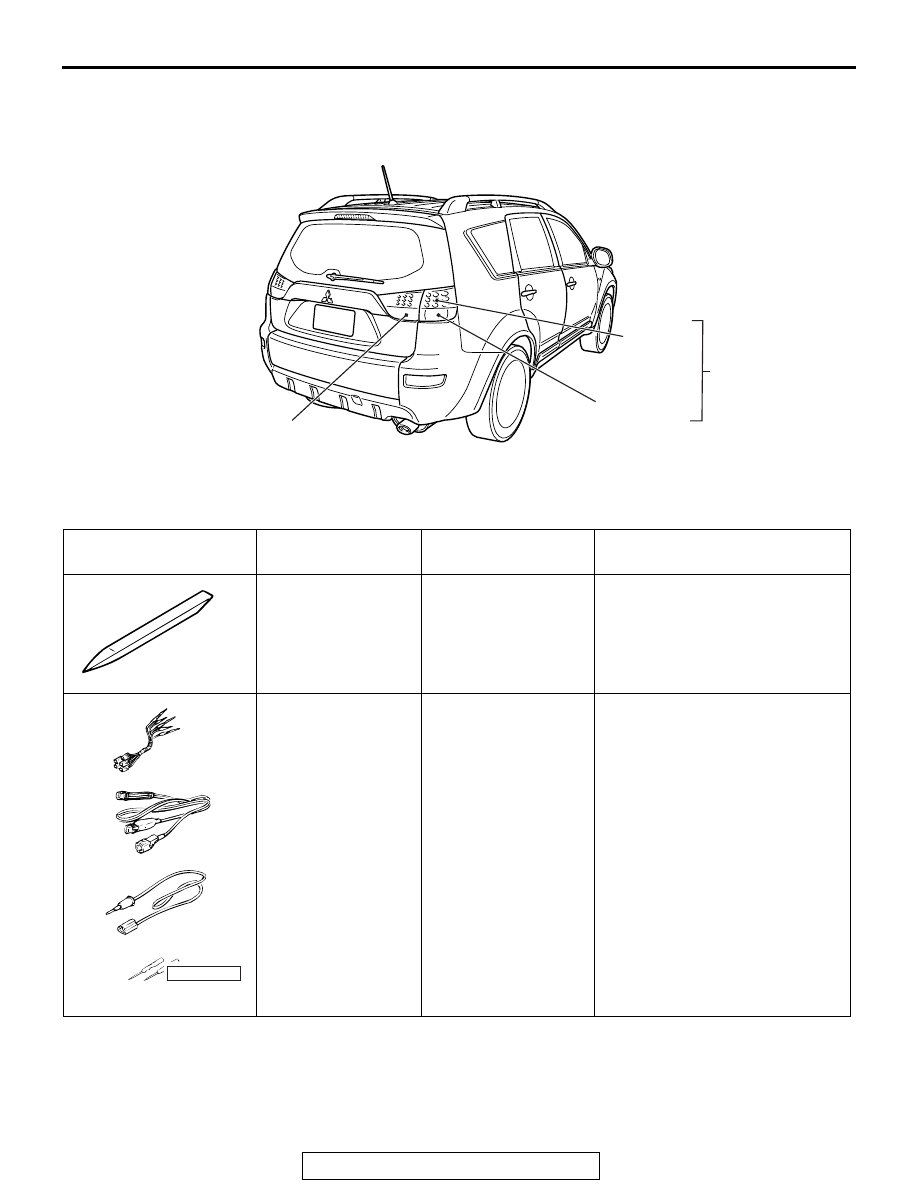

REAR COMBINATION LIGHT

GENERAL INFORMATION

M1542000100372

SPECIAL TOOLS

M1541400100281

AC703004

Tail / stop
light

Rear turn-signal
light

Tail light assembly
(back-up light)

Rear
combination light
assembly

AB

Tool

Tool number and
name

Supersession

Application

MB990784
Ornament remover

General service tool

Removal of liftgate garnish, rear
combination light assembly, tail
light assembly

MB991223

a. MB991219
b. MB991220
c. MB991221
d. MB991222

Harness set

a. Test harness
b. LED harness
c. LED harness

adaptor

d. Probe

General service tools Continuity check and voltage

measurement at harness wire or
connector

a. Connector pin contact

pressure inspection

b. Power circuit inspection
c. Power circuit inspection
d. Commercial tester connection

MB990784

MB991223

a

d

c

b

DO NOT USE

BA

<< Previous

REAR COMBINATION LIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-226

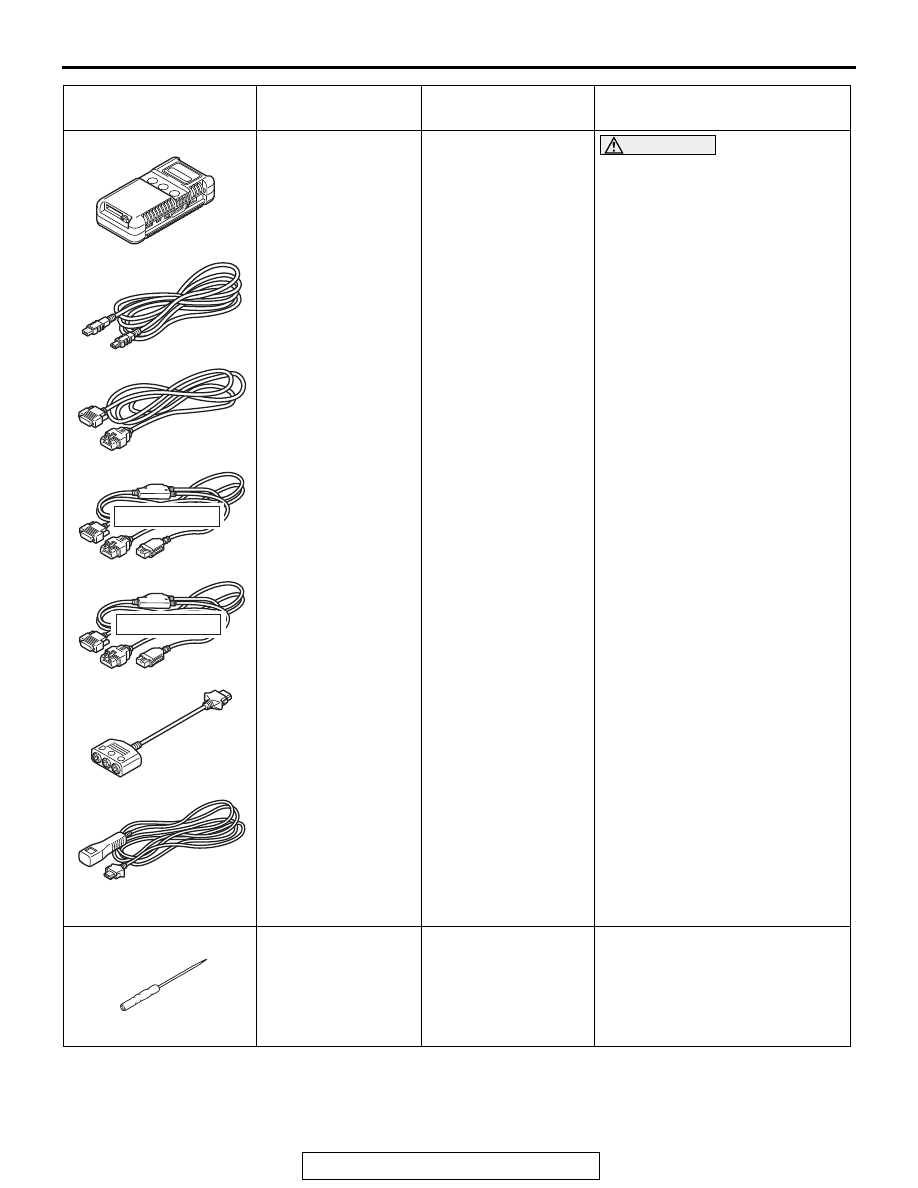

DIAGNOSIS

STANDARD FLOW OF DIAGNOSTIC TROUBLESHOOTING

M1541402500144

Refer to GROUP 00

− Contents of troubleshooting

P.00-7

.

MB991958

a. MB991824
b. MB991827
c. MB991910
d. MB991911
e. MB991914
f. MB991825
g. MB991826

M.U.T.-III sub
assembly

a. Vehicle

communication
interface (V.C.I.)

b. M.U.T.-III USB

cable

c. M.U.T.-III main

harness A
(Vehicles with
CAN
communication
system)

d. M.U.T.-III main

harness B
(Vehicles without
CAN
communication
system)

e. M.U.T.-III main

harness C (for
Chrysler models
only)

f. M.U.T.-III

measurement
adapter

g. M.U.T.-III trigger

harness

MB991824-KIT
NOTE: G: MB991826
M.U.T.-III Trigger
Harness is not
necessary when
pushing V.C.I. ENTER
key.

CAUTION

M.U.T.-III main harness B
(MB991911) should be used.
M.U.T.-III main harness A and C
should not be used for this
vehicle.
Diagnostic code, service data and
actuator test check.

MB992006
Extra fine probe

−

Continuity check and voltage
measurement at harness wire or
connector.

Tool

Tool number and
name

Supersession

Application

MB991910

MB991826

MB991958

MB991911

MB991914

MB991824

MB991827

MB991825

DO NOT USE

a

b

c

d

e

f

g

DO NOT USE

MB992006

REAR COMBINATION LIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-227

DIAGNOSTIC FUNCTION

M1541400900094

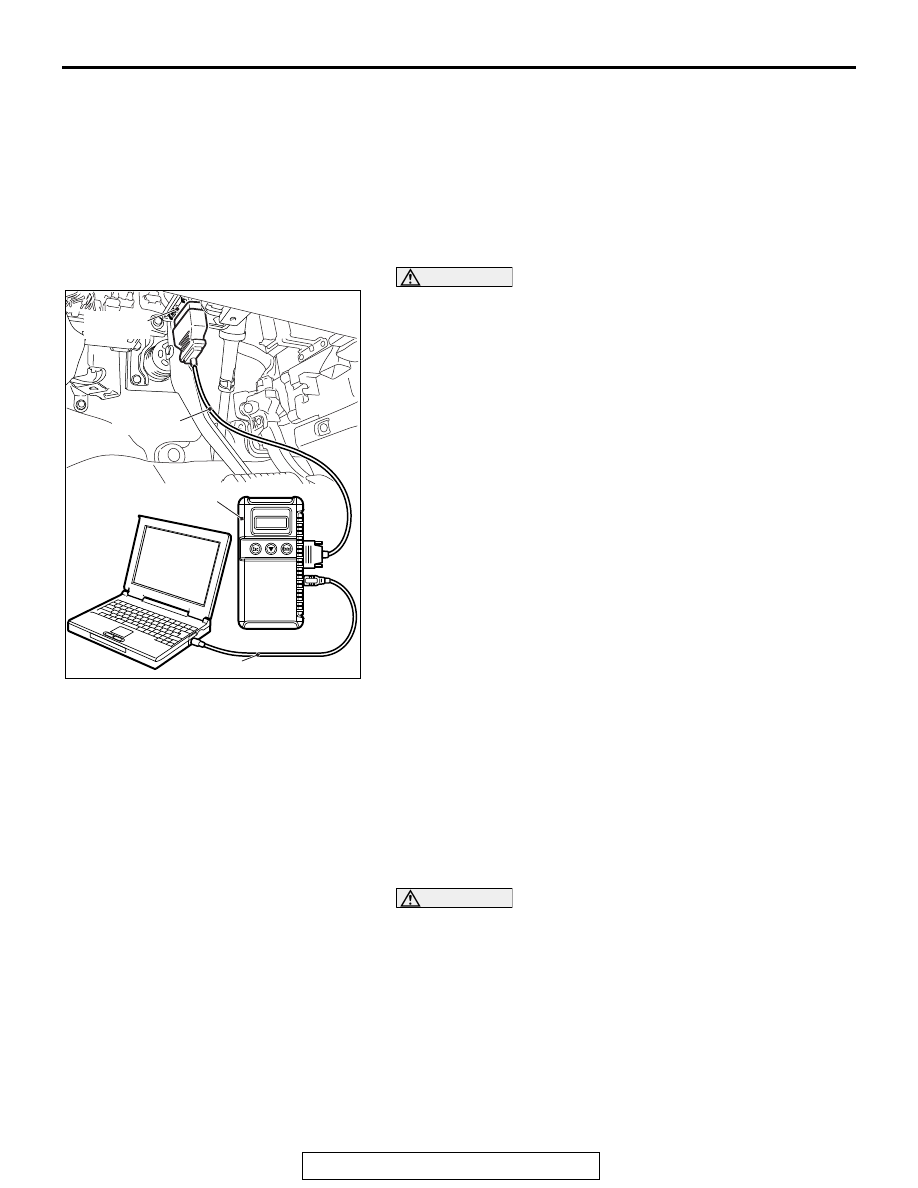

HOW TO CONNECT THE SCAN TOOL (M.U.T.-III)

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A (Vehicles with

CAN communication system)

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
1. Ensure that the ignition switch is at the "LOCK" (OFF)

position.

2. Start up the personal computer.
3. Connect special tool MB991827 to special tool MB991824

and the personal computer.

4. Connect special tool MB991910 to special tool MB991824.
5. Connect special tool MB991910 to the data link connector.
6. Turn the power switch of special tool MB991824 to the "ON"

position.
NOTE: When special tool MB991824 is energized, special
tool MB991824 indicator light will be illuminated in a green
color.

7. Start the M.U.T.-III system on the personal computer.
NOTE: Disconnecting scan tool MB991958 is the reverse of the
connecting sequence, making sure that the ignition switch is at
the "LOCK" (OFF) position.

HOW TO READ AND ERASE DIAGNOSTIC
TROUBLE CODES

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A (Vehicles with

CAN communication system)

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
NOTE: If the battery voltage is low, diagnostic trouble codes will
not be set. Check the battery if scan tool MB991958 does not
display.
1. Connect scan tool MB991958 to the data link connector.
2. Turn the ignition switch to the "ON" position.
3. Select "System select" from the start-up screen.
4. Select "From 2006 MY" of "Model Year." When the "Vehicle

Information" is displayed, check the contents.

ZC501967

AC404789

AC702802

MB991824

MB991827

MB991910

Data link

connector

AB

REAR COMBINATION LIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-228

5. Select "ETACS" from "System List", and press the "OK"

button.
NOTE: When the "Loading Option Setup" list is displayed,
check the applicable item.

6. Select "Diagnostic Trouble Code" to read the DTC.
7. If a DTC is set, it is shown.
8. Choose "Erase DTCs" to erase the DTC.

DIAGNOSTIC TROUBLE CODE CHART

M1541400200084

CAUTION

On troubleshooting, if the ignition switch is turned ON while disconnecting connector(s), diagnostic
trouble code(s) associated with other system may be set. On completion, confirm all systems for
diagnostic trouble code(s). If diagnostic trouble code(s) are set, erase them all.

Diagnostic trouble code
No.

Diagnostic item

Reference page

B16A0

Taillight (RH) circuit open <Open circuit in the
position light (RH) circuit, rear side marker light (RH)
circuit and the taillight (RH) circuit>

P.54A-229

B16A7

Taillight (RH) circuit short <Short circuit in the
position light (RH) circuit, rear side marker light (RH)
circuit or the taillight (RH) circuit>

B16A1

Taillight (LH) circuit open <Open circuit in the
position light (LH) circuit, rear side marker light (LH)
circuit, taillight (LH) circuit and the license plate light
circuit>

P.54A-236

B16A8

Taillight (LH) circuit short <Short circuit in the
position light (LH) circuit, rear side marker light (LH)
circuit, taillight (LH) circuit or the license plate light
circuit>
