HEADLIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-209

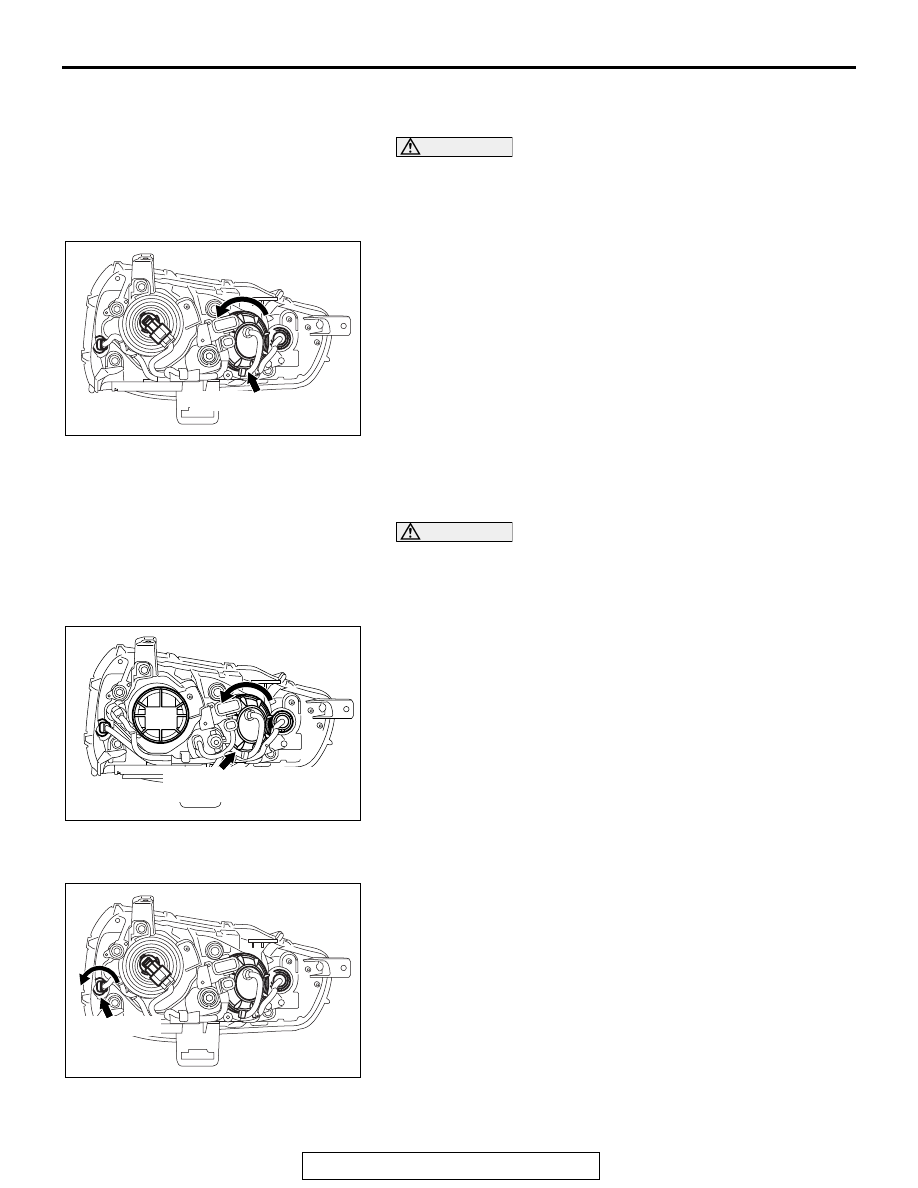

HEADLIGHT BULB (HIGH-BEAM) REPLACEMENT
<VEHICLES WITHOUT DISCHARGE HEADLIGHT>

CAUTION

Do not touch the bulb surface with bare hands or dirty
gloves. If the bulb surface (glass part) gets dirty, immedi-
ately clean it with alcohol or thinner. After drying com-
pletely, install the bulb.

1. Twist the socket cover to remove.

2. Disconnect the connector, and twist the headlight bulb

(high-beam) to remove.

DAYTIME RUNNING LIGHT BULB REPLACEMENT
<VEHICLES WITH DISCHARGE HEADLIGHT>

CAUTION

Do not touch the bulb surface with bare hands or dirty
gloves. If the bulb surface (glass part) gets dirty, immedi-
ately clean it with alcohol or thinner. After drying com-
pletely, install the bulb.

1. Twist the socket cover to remove.

2. Twist the daytime running light socket to remove it.

POSITION LIGHT BULB REPLACEMENT

Disconnect the connector, and twist the position light socket to
remove it.

AC901181

AC

Socket cover (High-beam)

AC900447AC

Socket cover
(Daytime running light bulb)

AC901181

AD

Position light

HEADLIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-210

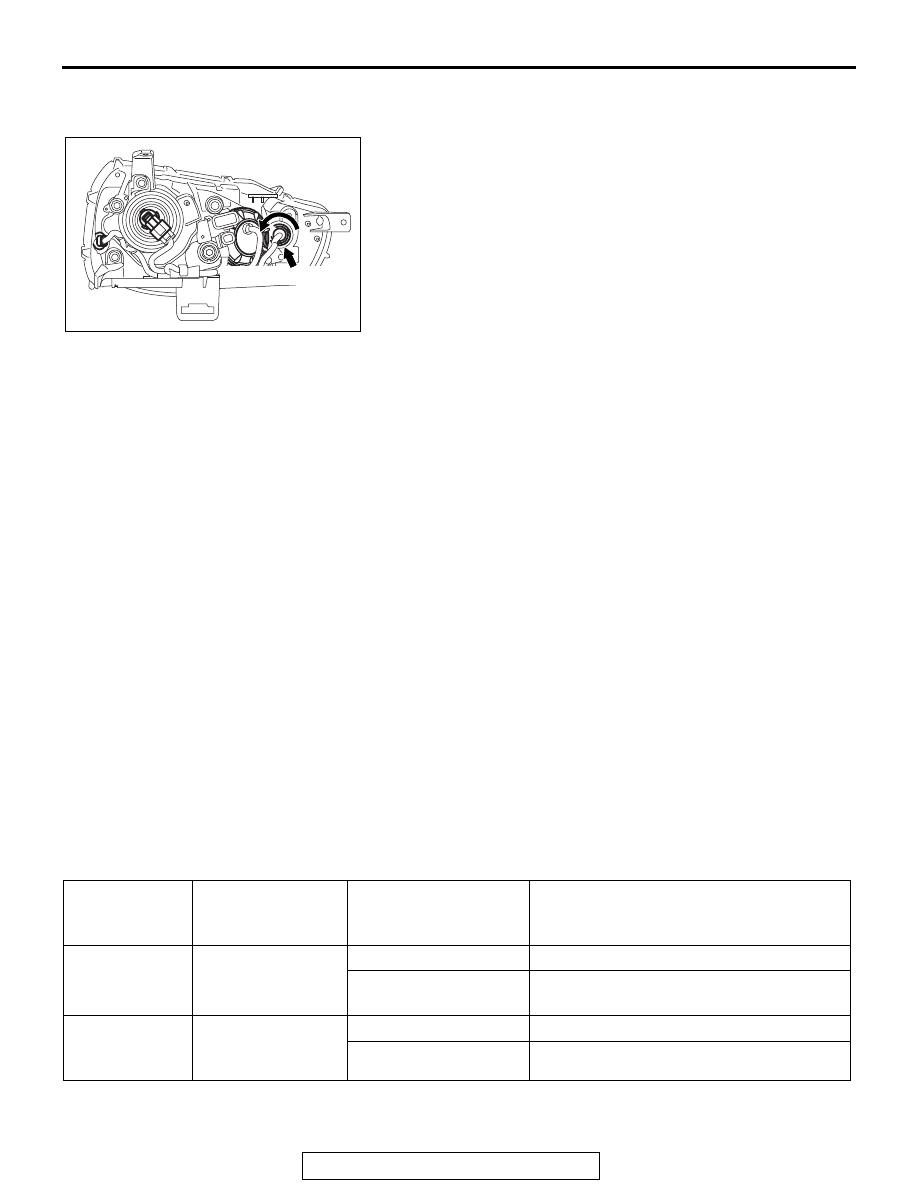

FRONT TURN-SIGNAL LIGHT BULB
REPLACEMENT

Disconnect the connector, and twist the front turn-signal light
socket to remove it.

HEADLIGHT AUTOMATIC-SHUTDOWN
FUNCTION CHECK

M1540100800167

Confirm that the headlights turn OFF in one second if the igni-
tion key is pulled out and the driver's door is opened when the
ignition switch is ON and the lighting switch is ON (HEAD posi-
tion). If there is a malfunction, perform the troubleshooting
(Refer to

P.54A-153

).

HEADLIGHT AUTO LIGHT FUNCTION CHECK

M1540100900238

Under the direct sunlight with the ignition switch ON and the
lighting switch in the AUTO position, check that the headlight
automatically illuminates when the lighting control sensor
receiver is covered by hand. If there is any trouble, carry out
the troubleshooting. (Refer to

P.54A-153

.)

NOTE: When covering the lighting control sensor receiver, be
careful not to touch the windshield surface (where the lighting
control sensor receiver is mounted). (The lighting control sen-
sor receiver has limited resistance to oil.)

CUSTOMIZATION FUNCTION

M1540103700783

With the scan tool MB991958 operation, the follow-
ing functions can be programmed. The programmed
information is held even when the battery is discon-
nected.

AC901181

AE

Front turn-signal light

Adjustment
item (scan tool
display)

Adjustment item

Adjustment contents
(scan tool display)

Adjusting contents

Turn power
source

Adjustment of
turn-signal light
operation condition

ACC or IG1

Operable with ACC or ON position

IG1

Operable with ON position (initial
condition)

Comfort flasher With/without

comfort flasher
function

Disable

Without function

Enable

With function (initial condition)

HEADLIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-211

Comfort flasher
switch time

Switch operation
time to activate the
comfort flasher
function

Normal

0.4 second (initial condition)

Long

0.8 second

Hazard answer
back

Adjustment of the
number of keyless
hazard warning light
answer back
flashes

Lock:1, Unlock:2

LOCK: Flashes once, UNLOCK: Flashes
twice (initial condition)

Lock:1, Unlock:0

LOCK: Flashes once, UNLOCK: No flash

Lock:0, Unlock:2

LOCK: No flash, UNLOCK: Flash twice

Lock:2, Unlock:1

LOCK: Flash twice, UNLOCK: Flash once

Lock:2, Unlock:0

LOCK: Flash twice, UNLOCK: No flash

Lock:0, Unlock:1

LOCK: No flash, UNLOCK: Flash once

Lock:0, Unlock:0

Without function

Sensitivity for
auto light

Lighting control
sensor sensitivity
(illumination
intensity) <vehicles
with auto light>

Level 1 bright

High-high ambient brightness

Level 2 bright

High ambient brightness

Level 3

Standard ambient brightness (initial
condition)

Level 4 dark

Low ambient brightness

Level 5 dark

Low-low ambient brightness

Headlight auto
cut customize

Adjustment of
headlight automatic
shutdown function

Disable

Without function

Enable (C-spec.).

With function (initial condition)

Welcome light

Disabling or
enabling welcome
light function

Disabled

No function

Small light

Tail light illuminates. (initial condition)

Head light

Headlight illuminates.

Coming home
light

Disabling or
enabling coming
home light function

Disabled

No function

15 sec

Headlight illuminates for 15 seconds.

30sec

Headlight illuminates for 30 seconds.
(initial condition)

60 sec

Headlight illuminates for 60 seconds.

180 sec

Headlight illuminates for 180 seconds.

Adjustment
item (scan tool
display)

Adjustment item

Adjustment contents
(scan tool display)

Adjusting contents

HEADLIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-212

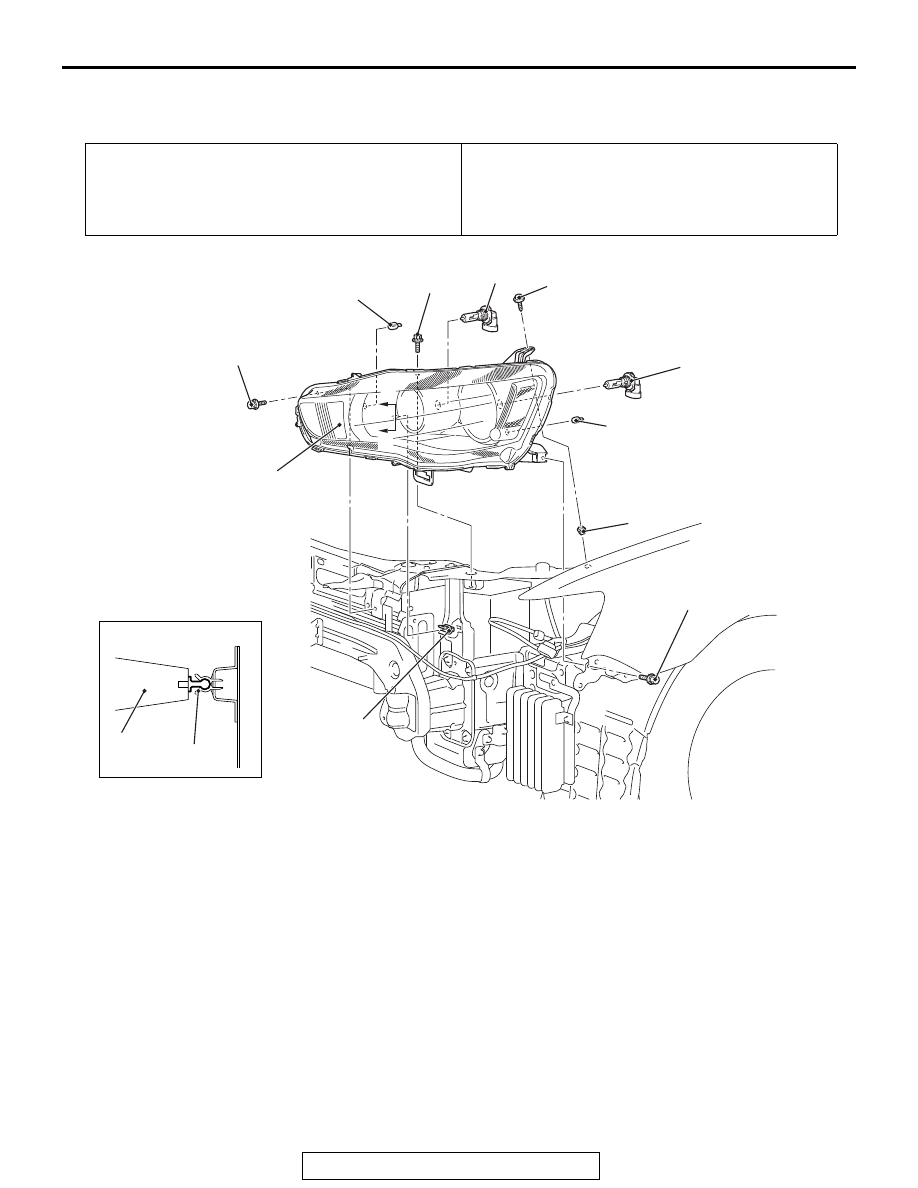

HEADLIGHT REMOVAL AND INSTALLATION

M1540101000744

<VEHICLES WITHOUT DISCHARGE HEADLIGHT>

Pre-removal operation
Front bumper assembly removal (Refer to GROUP 51

−

Front Bumper Assembly

P.51-4

.)

Post-installation operation
• Front bumper assembly installation (Refer to GROUP 51

− Front Bumper Assembly

P.51-4

).

• Check the beam direction of the headlight (Refer to Head-

light Aiming

P.54A-205

).

AC900661AC

5

1

2

6

3

4

7

Section A - A

1

A

A

7

1.5 ± 0.3 N·m
14 ± 2 in-lb

4.5 ± 1.5 N·m
40 ± 13 in-lb

4.5 ± 1.5 N·m
40 ± 13 in-lb

4.5 ± 1.5 N·m
40 ± 13 in-lb

Removal Steps

1.

Headlight assembly

2.

Headlight bulb (low-beam)

3.

Headlight bulb (high-beam)

4.

Front turn-signal light bulb

5.

Position light bulb

6.

Grommet

7.

Grommet

Removal Steps (Continued)
