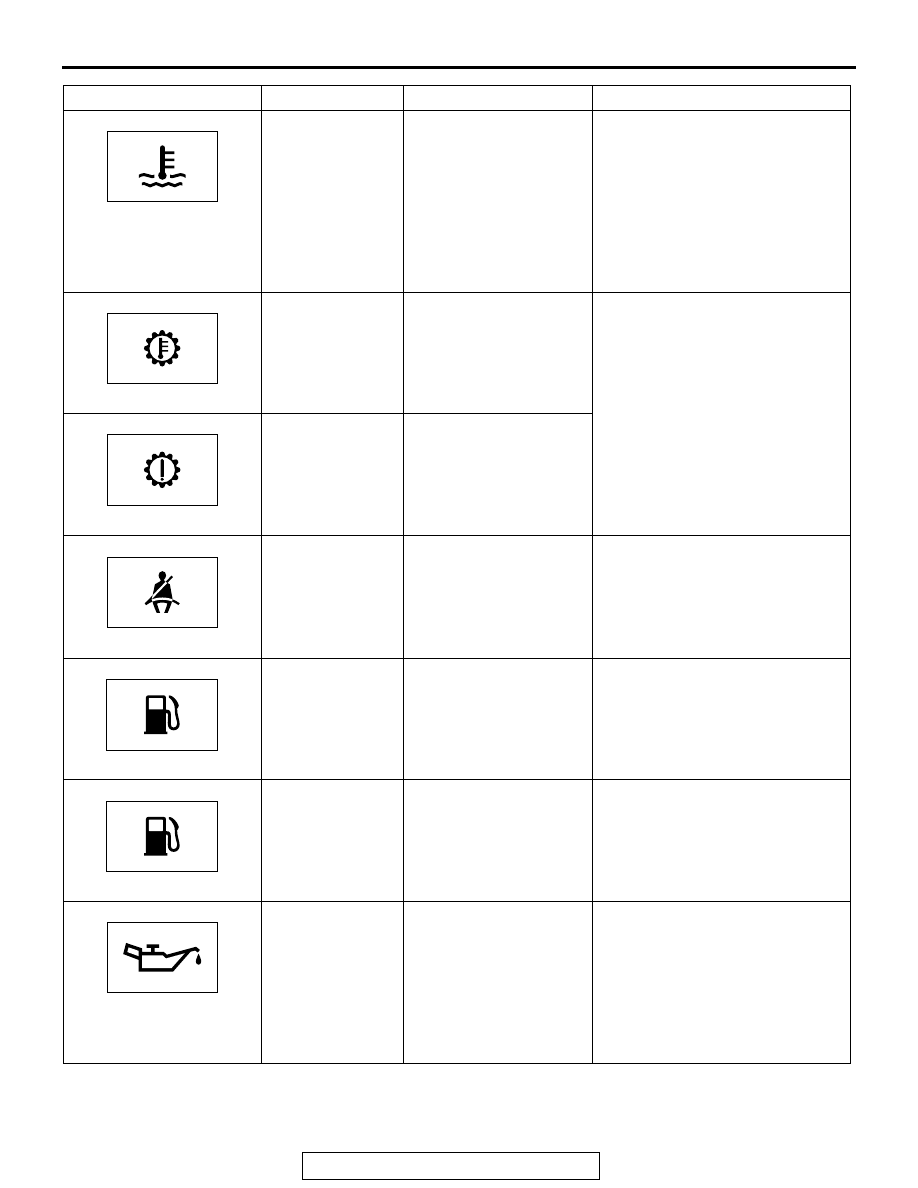

COMBINATION METER

TSB Revision

CHASSIS ELECTRICAL

54A-101

ENGINE
OVERHEATING
STOP SAFELY

Displayed when
overheated.

If the warning screen is not
displayed normally or if the screen
continues to be displayed,
perform the troubleshooting for
the engine. Refer to GROUP 13A,
Symptom Chart

P.13A-54

 <2.4 L

engine> or GROUP 13B,
Symptom Chart

P.13B-55

 <3.0 L

engine>.

TRANSMISSION
OVERHEATING
SLOW DOWN

Displayed when the
transmission oil
temperature becomes
high.

If the warning screen is not
displayed normally or if the screen
continues to be displayed, check
the CVT or automatic transaxle
diagnostic trouble code. Refer to
GROUP 23A, Automatic
Transaxle Diagnosis

P.23A-29



<CVT> or GROUP 23C,
Automatic Transaxle Diagnosis

P.23C-27

 <automatic transaxle>.

TRANSMISSION
SERVICE
REQUIRED

Displayed when there is
a malfunction to the CVT
or automatic transaxle.

FASTEN SEAT
BELT

Displayed when the
ignition switch is turned
ON without the driver's
seat belt fastened.

If the warning screen is not
displayed normally or if the screen
continues to be displayed,
perform the troubleshooting for
the seat belt reminder warning
light. Refer to

P.54A-82

.

FUEL SYSTEM
SERVICE
REQUIRED

Displayed when there is
a malfunction to the fuel
system.

If the warning screen is not
displayed normally or if the screen
continues to be displayed, check
the combination meter diagnosis
code. Refer to

P.54A-82

.

REFUEL

Displayed when the
remaining fuel amount is
small.

If the warning screen is not
displayed normally or if the screen
continues to be displayed, refuel
immediately.

LOW OIL
PRESSURE

Displayed when there is
a malfunction to the
engine oil circulation
system.

If the warning screen is not
displayed normally or if the screen
continues to be displayed, check
the engine oil amount. Refer to
GROUP 13A, Trouble symptom
chart

P.13A-54

 <2.4 L engine> or

GROUP 13B, Trouble symptom
chart

P.13B-55

 <3.0 L engine>.

Display content

Message

Factor

Action procedure

AC809619

AC809620

AC809621

AC809622

AC809623

AC809623

AC809624

COMBINATION METER

TSB Revision

CHASSIS ELECTRICAL

54A-102

CHARGING
SYSTEM
SERVICE
REQUIRED

Displayed when there is
a malfunction to the
charging system.

If the warning screen is not
displayed normally or if the screen
continues to be displayed, check
the charging system. Refer to
GROUP 16, On-vehicle service

−

Output current test

P.16-9

 and

Regulated voltage test

P.16-11

.

AIRBAG
SYSTEM
SERVICE
REQUIRED

Displayed when there is
a malfunction to the
SRS air bag or to the
pre-tensioner
mechanism.

If the warning screen is not
displayed normally or if the screen
continues to be displayed,
perform the troubleshooting for
the SRS air bag/pre-tensioner
mechanism warning light. Refer to
GROUP 52B, SRS Air Bag
Diagnosis

P.52B-31

.

ASC SYSTEM
SERVICE
REQUIRED

Displayed when there is
a malfunction to the
ASC.

If the warning screen is not
displayed normally or if the screen
continues to be displayed,
perform the troubleshooting for
the ASC. Refer to GROUP 35C,
Symptom Chart

P.35C-216

.

4WD SYSTEM
SERVICE
REQUIRED

Displayed when there is
a malfunction to the
electronically-controlled
AWD system or
multi-select AWD..

If the warning screen is not
displayed normally or if the screen
continues to be displayed,
perform the troubleshooting for
the electronically-controlled AWD
system. Refer to GROUP 27C,
Diagnosis

P.27C-11

.

POSSIBLE ICY
ROADS

Displayed with the
sounding of tone alarm
when the ambient
temperature is 37

°F (3

°C) or less.

If the freeze warning tone alarm
does not sound with the ambient
temperature of 37

°F (3 °C) or

less, perform the troubleshooting
for the freeze warning tone alarm.
Refer to

P.54A-79

.

Display content

Message

Factor

Action procedure

AC809625

AC809626

AC809630

AC809631

AC809632

COMBINATION METER

TSB Revision

CHASSIS ELECTRICAL

54A-103

OTHER SCREENS

The screen displays the operation state of each sys-
tem, periodic checkup timing, or timing for taking a
rest during driving. If the screen display differs from
the actual system operation state or if the screen is
not displayed at the set timing, take measures
according to the action procedure.

Display content

Message

System operation
state

Action procedure

−

Displays the screen in
accordance with
operation state of the
AWD selector switch.

If the AWD selector switch
position and screen do not agree
with each other, perform the
troubleshooting for the AWD.
Refer to GROUP 27C, Diagnosis

P.27C-11

.

4WD AUTO

4WD LOCK

−

Displayed when the
ASC is in operation.

If the warning screen is not
displayed normally or if the screen
continues to be displayed,
perform the troubleshooting for
the ASC. Refer to GROUP 35C,
Symptom Chart

P.35C-216

.

ROUTINE
MAINTENANCE
REQUIRED

Displayed when the set
period elapses.

−

REST
REMINDER

Displayed when the set
time elapses.

−

AC809644

AC809645

AC809646

AC809636

AC809637

AC809638

COMBINATION METER

TSB Revision

CHASSIS ELECTRICAL

54A-104

CHECK AT ECU TERMINALS

M1540201200239

AC702848AB

Connector: C-03

Termina
l No.

Check item

Check conditions

Normal conditions

1

ECU power supply (battery) Always

Battery positive
voltage

2

ECU power supply (Ignition
switch: IG1)

Ignition switch: ON

Battery positive
voltage

Ignition switch: OFF

1 V or less

3

Meter information switch
input

Meter information switch: ON

1 V or less

Meter information switch: OFF

Battery positive
voltage

4

Parking brake switch input Parking brake switch: ON

1 V or less

Parking brake switch: OFF

Battery positive
voltage

5

Seat belt switch (driver’s
side) input

Seat belt switch (driver’s side): ON

1 V or less

Seat belt switch (driver’s side): OFF

Battery positive
voltage

6

Headlight leveling

During headlight leveling warning display

1 V or less

Without headlight leveling warning display

Battery positive
voltage

7 to 12

−

−

−

13

Ground (sensor)

Always

1 V or less

14 to 16 −

−

−

17

Fuel level sensor input

−

Depending on the
condition of the fuel
level sensor, the
voltage changes.

18

Fuel level sensor input

Fuel: FULL

Approximately 2 V

Fuel: EMPTY

Approximately 8 V

19

−

−

−

20

Vehicle speed signal output Vehicle speed: Approximately 25 mph (40

km/h)

Approximately 28Hz

Vehicle speed change

In accordance with
the vehicle speed, a
pulse is generated.

21

Ground (ECU)

Always

1 V or less
