COMBINATION METER

TSB Revision

CHASSIS ELECTRICAL

54A-93

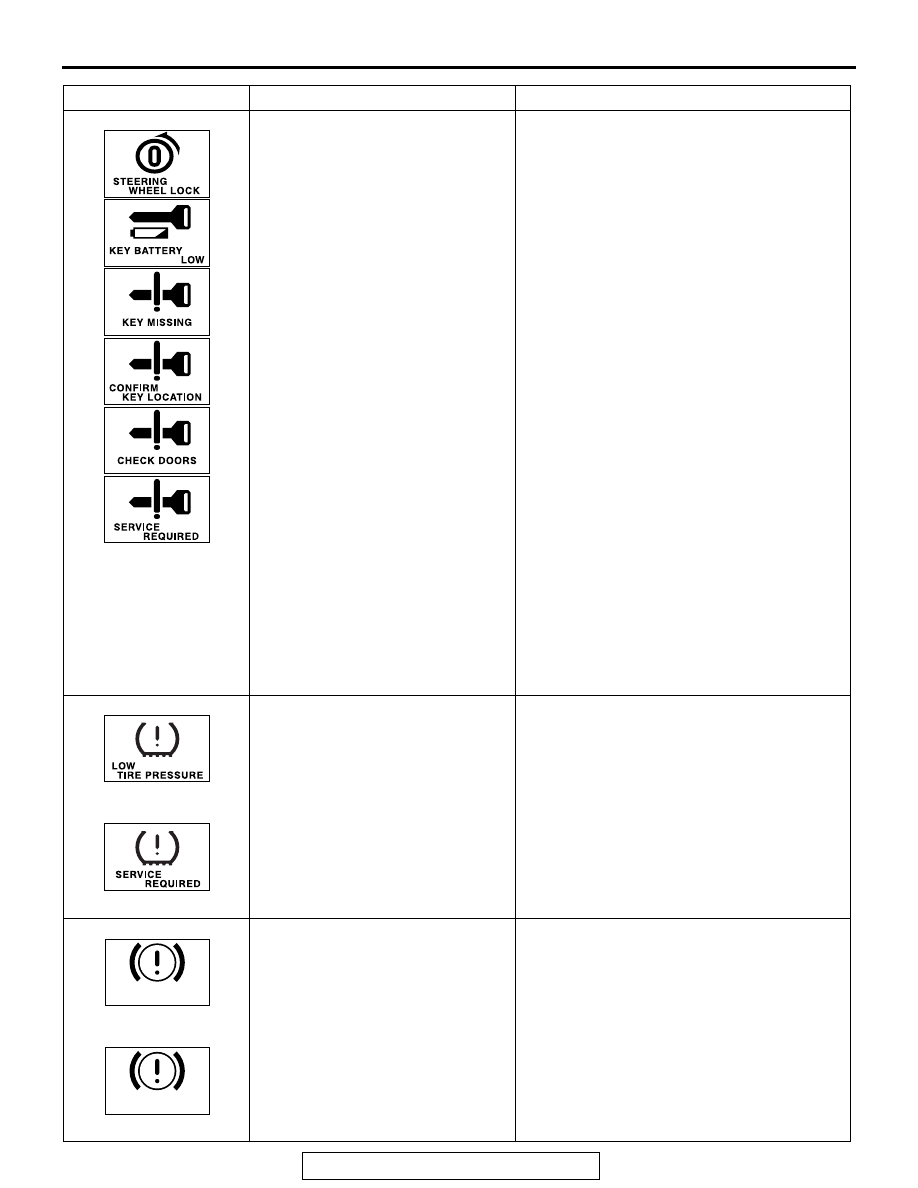

Displayed when a malfunction
occurs to KOS. Refer to GROUP
42B, Diagnosis .

a. Displayed when the following

operations are carried out with
the ignition switch at positions
other than the LOCK (PUSH
OFF) position after the engine is
stopped.
• When the driver's door is

opened

• When the doors are closed

and locked

b. Displayed when the KOS key

battery is running low.

c. Displayed if carrying a KOS key

with different ID code or the
KOS key is outside the
operative range.

d. Displayed when the KOS key

removal monitoring function or
KOS key confinement
prevention function is in
operation.

e. Displayed when the door ajar

prevention function is in
operation.

f. Displayed when there is a

malfunction to KOS.

If the warning screen is not displayed
normally or if the screen continues to be
displayed, perform the troubleshooting for
the KOS (Refer to GROUP 42B, Diagnostic
trouble code chart

P.42B-35

).

a. Displayed when the tire air

pressure is an abnormality.
(except spare tire)

b. Displayed when the TPMS is an

abnormality.

If the warning screen is not displayed
normally or erased, carry out the
troubleshooting for the TPMS (Refer to
GROUP 42B, Diagnosis

P.42B-35

).

a. Displayed when the brake fluid

amount is insufficient or a
malfunction occurs to the brake
device.

b. Displayed if vehicle is driven

with the parking brake engaged.

If the warning screen is not displayed
normally or if the screen continues to be
displayed, take the following measures for
each displayed item.

a. Check the brake fluid or brake device.

Refer to GROUP 35A, On-vehicle service

P.35A-20

.

b. Check the parking brake. Refer to

GROUP 36, On-vehicle service

P.36-10

.

Display contents

Factor

Action procedure

AC606877

a

b

c

d

e

f

AB

AC609827AB

a

AC609828AB

b

CHECK

AC509829

AB

a

RELEASE
PARKING BRAKE

AC509830

AB

b

COMBINATION METER

TSB Revision

CHASSIS ELECTRICAL

54A-94

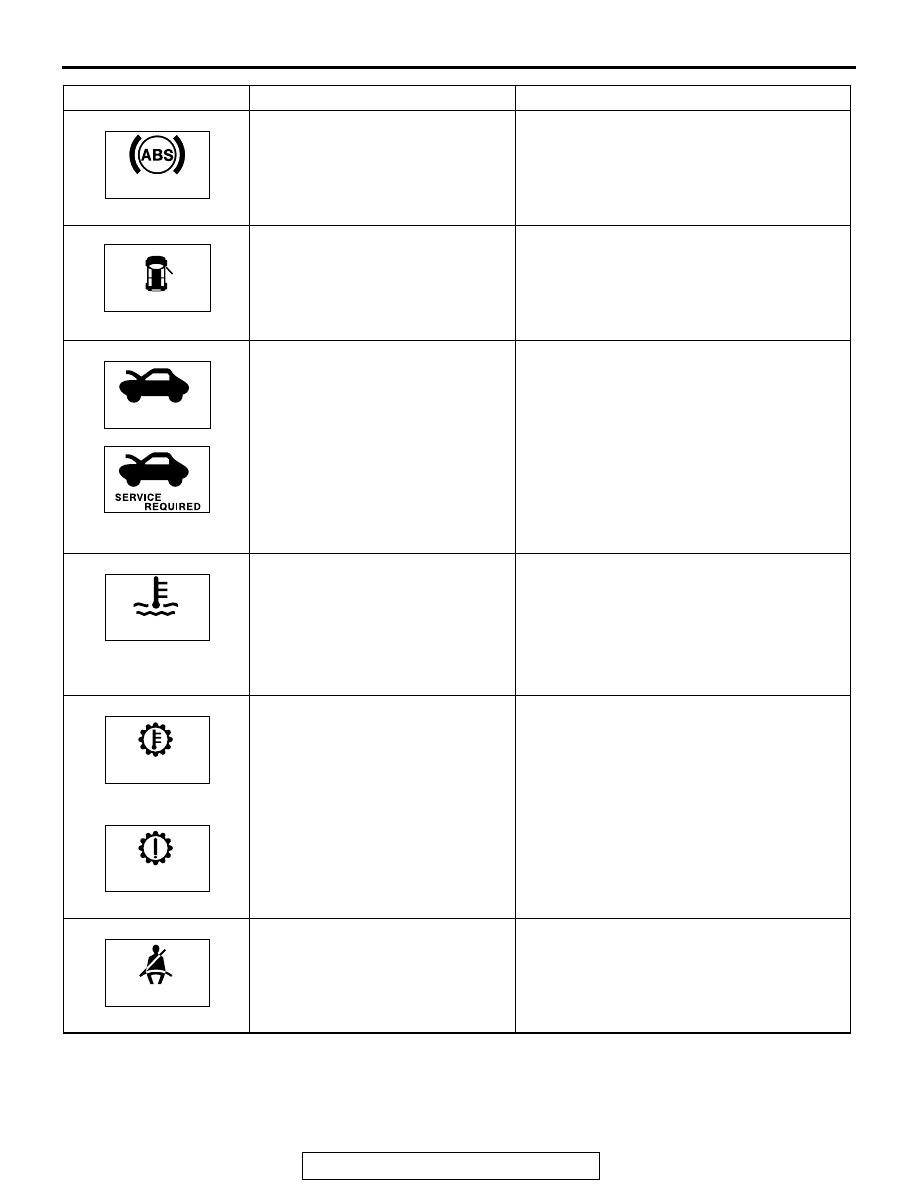

Displayed when a malfunction
occurs to the anti-lock braking
system (ABS).

If the warning screen is not displayed
normally or if the screen continues to be
displayed, perform the troubleshooting for
the ABS. Refer to GROUP 35B, Symptom
Chart

P.35B-149

.

If any of the doors or liftgate is not
closed completely, the location of
the ajar door is displayed with the
sounding of tone alarm.

If the door ajar warning tone alarm does not
sound, perform the troubleshooting for the
door ajar warning tone alarm. Refer to

P.54A-79

.

a. Displayed when the hood is

open.

b. Displayed when there is a

malfunction to the hood.

If the warning screen is not displayed
normally, or if the screen continues to be
displayed, check the hood latch switch input
signal. Refer to

P.54A-813

.

Displayed when overheated.

If the warning screen is not displayed
normally or if the screen continues to be
displayed, perform the troubleshooting for
the engine. Refer to GROUP 13A, Symptom
Chart

P.13A-54

 <2.4 L engine> or GROUP

13B, Symptom Chart

P.13B-55

 <3.0 L

engine>.

a. Displayed when the

transmission oil temperature
becomes high.

b. Displayed when there is a

malfunction to the CVT or
automatic transaxle.

If the warning screen is not displayed
normally or if the screen continues to be
displayed, check the CVT or automatic
transaxle diagnostic trouble code. Refer to
GROUP 23A, Automatic Transaxle
Diagnosis

P.23A-29

 <CVT> or GROUP 23C,

Automatic Transaxle Diagnosis

P.23C-27



<automatic transaxle>.

Displayed when the ignition switch
is turned ON without the driver's
seat belt fastened.

If the warning screen is not displayed
normally or if the screen continues to be
displayed, perform the troubleshooting for
the seat belt reminder warning light. Refer to

P.54A-82

.

Display contents

Factor

Action procedure

SERVICE
         REQUIRED

AC509831

AC610018

AC709211

CLOSE HOOD

AB

a

b

CHECK

AC509834

SLOW DOWN

AC509835

AB

a

SERVICE
         REQUIRED

AC509836

AB

b

FASTEN
          SEAT BELT

AC509837

COMBINATION METER

TSB Revision

CHASSIS ELECTRICAL

54A-95

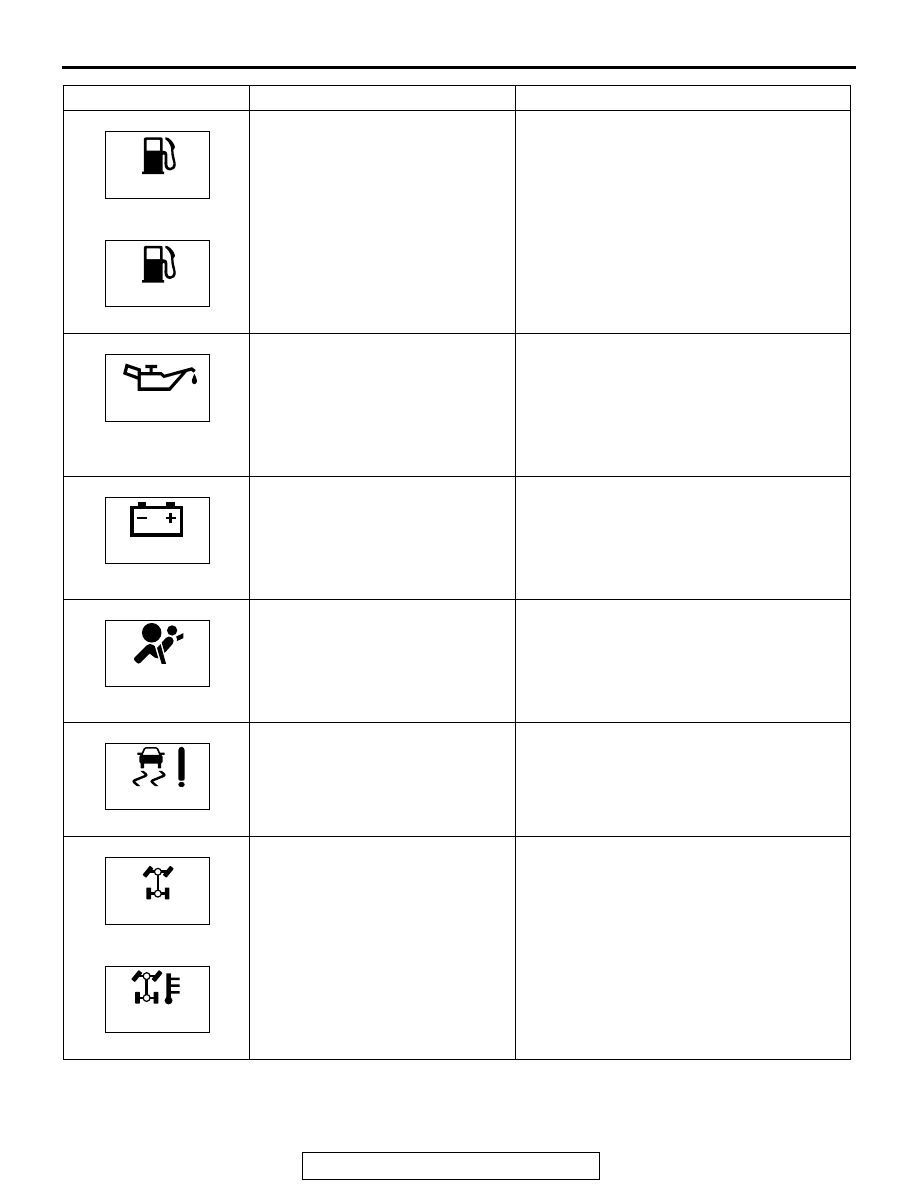

a. Displayed when there is a

malfunction to the fuel system.

b. Displayed when the remaining

fuel amount is small.

If the warning screen is not displayed
normally or if the screen continues to be
displayed, take the following measures for
each displayed item.

a. Check the combination meter diagnostic

trouble code. Refer to

P.54A-82

.

b. Immediately fill the fuel.

Displayed when there is a
malfunction to the engine oil
circulation system.

If the warning screen is not displayed
normally or if the screen continues to be
displayed, check the engine oil amount.
Refer to GROUP 13A, Trouble symptom
chart

P.13A-54

 <2.4 L engine> or GROUP

13B, Trouble symptom chart

P.13B-55

 <3.0

L engine>.

Displayed when there is a
malfunction to the charging
system.

If the warning screen is not displayed
normally or if the screen continues to be
displayed, check the charging system. Refer
to GROUP 16, On-vehicle service

− Output

current test

P.16-9

 and Regulated voltage

test

P.16-11

.

Displayed when there is a
malfunction to the SRS air bag or
to the pre-tensioner mechanism.

If the warning screen is not displayed
normally or if the screen continues to be
displayed, perform the troubleshooting for
the SRS air bag/pre-tensioner mechanism
warning light. Refer to GROUP 52B, SRS Air
Bag Diagnosis

P.52B-31

.

Displayed when there is a
malfunction to the ASC.

If the warning screen is not displayed
normally or if the screen continues to be
displayed, perform the troubleshooting for
the ASC. Refer to GROUP 35C, Symptom
Chart

P.35C-216

.

a. Displayed when there is a

malfunction to the
electronically-controlled AWD
system or multi-select AWD.

b. Displayed when there is a

malfunction to the
electronically-controlled AWD
differential or when the
multi-select AWD system
temperature is high.

If the warning screen is not displayed
normally or if the screen continues to be
displayed, perform the troubleshooting for
the electronically-controlled AWD system.
Refer to GROUP 27C, Diagnosis

P.27C-11

.

Display contents

Factor

Action procedure

SERVICE
         REQUIRED

AC509838

AD

a

REFUEL

AC509839

AB

b

CHECK

AC509840

SERVICE
         REQUIRED

AC509841

SERVICE
         REQUIRED

AC509842

SERVICE
         REQUIRED

AC509844

SERVICE
         REQUIRED

AC509845

AB

a

SLOW DOWN

AC509846

AB

b

COMBINATION METER

TSB Revision

CHASSIS ELECTRICAL

54A-96

Displayed with the sounding of
tone alarm when the ambient
temperature is 37

°F (3 °C) or less.

If the freeze warning tone alarm does not
sound with the ambient temperature of 37

°F

(3

°C) or less, perform the troubleshooting

for the freeze warning tone alarm. Refer to

P.54A-79

.

Display contents

Factor

Action procedure

POSSIBLE
        ICY ROADS

AC702844
