COMBINATION METER

TSB Revision

CHASSIS ELECTRICAL

54A-33

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A (Vehicles with

CAN communication system)

1. Connect scan tool MB991958 to the data link connector.
2. Turn the ignition switch to the "ON" position.
3. Select "CAN bus diagnosis" from the start-up screen.
4. When the vehicle information is displayed, confirm that it

matches the vehicle being diagnosed.

• If they match, go to Step 8.

• If not, go to Step 5.

5. Select the "view vehicle information" button.
6. Enter the vehicle information and select the "OK" button.
7. When the vehicle information is displayed, confirm again

that it matches the vehicle being diagnosed.

• If they match, go to Step 8.

• If not, go to Step 5.

8. Select the "OK" button.
9. When the optional equipment screen is displayed, choose

the one which the vehicle is fitted with, and then select the
"OK" button.

CHECK OF FREEZE FRAME DATA

The freeze frame data can be checked by using the
scan tool (GROUP 00, How to Cope with Intermittent
Malfunction

P.00-15

).

.

When detecting fault and storing the DTC, the ECU
connected to CAN bus line obtains the data before
the determination of the DTC and the data when the
DTC is determined, and then stores the ECU status
of that time. By analyzing each data from scan tool,
the troubleshooting can be performed more effi-
ciently. The displayed items are as the table below.
DISPLAY ITEM LIST

NOTE:

*

: If a failure occurs to both the ABS-ECU,

ASC-ECU and ETACS-ECU, 0000 mile or FFFF mile
is displayed on the scan tool MB991958.

Item No.

Item name

Content

Unit

01

Odometer

Total driving distance after the diagnostic trouble
code is generated

mile

*

02

Ignition cycle

Number of times the ignition switch is turned "ON" or
"LOCK (OFF)" after the past failure transition

Number of
counts is
displayed.

04

Current trouble
accumulative time

Cumulative time for current malfunction of
diagnostic trouble code

min

COMBINATION METER

TSB Revision

CHASSIS ELECTRICAL

54A-34

DIAGNOSTIC TROUBLE CODE CHART

M1540200600580

CAUTION

• During troubleshooting, a DTC code associated with other system may be set when the ignition

switch is turned on with connector(s) disconnected. On completion, check all systems for DTC
code(s). If DTC code(s) are set, erase them all.

• When the combination meter is required to be replaced as a result of the troubleshooting, the cur-

rent driving distance and number of elapsed days to be used for service reminder function must
be entered into the meter after the replacement. Therefore, read "Integrated mileage for reminder,"
"Integrated days for reminder," "Mileage until Extra reminder," "Months until Extra reminder," and
"Current Schedule" from the meter before the replacement using the special function of scan tool
MB991958, and note them. For the operation method of scan tool MB991958, refer to

P.54A-110

. If

"Integrated mileage for reminder" or "Integrated days for reminder" cannot be read by the scan
tool MB991958, follow the method described below.

a. For the driving distance for check warning, use the driving distance displayed on the multi

information display.

b. For the elapsed days for check warning, calculate the number of elapsed days from the deliv-

ery date to the customer (service remainder function start date) and current date.

Diagnostic trouble code
number

Diagnostic item

Reference page

B1200

Malfunction of odometer

P.54A-35

B1201

Abnormal fuel information

P.54A-37

B1208

Malfunction of LCD heater

P.54A-42

B1209

Test mode

P.54A-42

B2203

Chassis No. not programmed

P.54A-43

B2463

The sticking of rheostat switch

P.54A-44

B2464

The sticking of meter information switch

P.54A-46

B2465

Ignition switch signal error

P.54A-48

U0019

Bus off(CAN-B)

P.54A-50

U0100

Engine control module CAN timeout

P.54A-51

U0141

ETACS CAN timeout

P.54A-53

U0151

SRS-ECU CAN timeout

P.54A-55

U0154

Occupant classification-ECU CAN timeout

P.54A-57

U0164

A/C-ECU CAN timeout

P.54A-59

U0168

KOS-ECU or WCM CAN timeout

P.54A-61

U0184

Audio CAN timeout

P.54A-63

U0245

Audio visual navigation unit CAN timeout

P.54A-65

U1415

Coding not completed/Data fail

P.54A-67

COMBINATION METER

TSB Revision

CHASSIS ELECTRICAL

54A-35

DIAGNOSTIC TROUBLE CODE PROCEDURES

DTC B1200: Malfunction of odometer

.

TROUBLE JUDGMENT

If the odometer information, which is stored in the
combination meter, is abnormal when the ignition
switch at the ON position and the system voltage is
10

−16 volts (data from ETACS-ECU), DTC B1200 is

stored.

.

TROUBLESHOOTING HINTS

The combination meter may be defective.

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicles Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A (Vehicles with

CAN communication system)

STEP 1. Using scan tool MB991958, read the combination
meter diagnostic trouble code.
Check if DTC is set to the combination meter.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958. Refer to "How to connect the

Scan Tool (M.U.T.-III)

P.54A-31

."

(2) Turn the ignition switch to the "ON" position.
(3) Erase the DTC.
(4) Turn the ignition switch from "LOCK" (OFF) position to "ON"

position.

(5) Check if diagnostic trouble code is set.
Q: Is the DTC set?

YES : Replace the combination meter, and then go to Step

2.

NO :  The trouble can be an intermittent malfunction (Refer

to GROUP 00, How to Cope with Intermittent
Malfunction

P.00-15

).

ZC501967

AC404789

AC702802

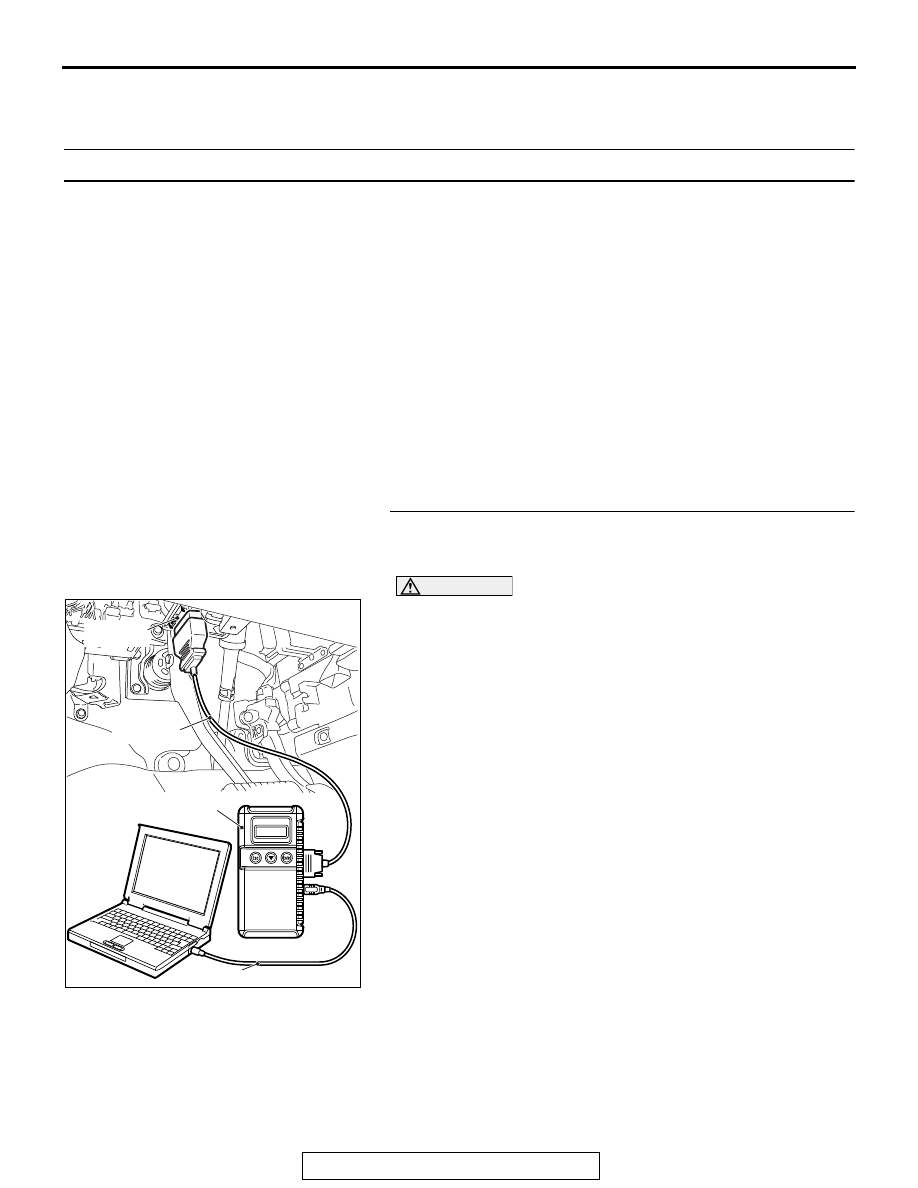

MB991824

MB991827

MB991910

Data link

connector

AB

COMBINATION METER

TSB Revision

CHASSIS ELECTRICAL

54A-36

STEP 2. Recheck for diagnostic trouble code.
Check if DTC is set to the combination meter.
(1) Erase the DTC.
(2) Turn the ignition switch from "LOCK" (OFF) position to "ON"

position.

(3) Check if diagnostic trouble code is set.
Q: Is the DTC set?

YES : Go to Step 1.
NO :  The procedure is complete.
