COMBINATION METER

TSB Revision

CHASSIS ELECTRICAL

54A-29

SERVICE SPECIFICATIONS

M1540200200300

Item

Standard Value

Speedometer indication tolerance mph (km/h)
<Except vehicles for CANADA>

10 (16)

8.5

− 11.5 (13.6 − 18.4)

25 (40)

23.5

− 26.5 (37.6 − 42.4)

50 (80)

48.5

− 51.5 (77.6 − 82.4)

75 (120)

73.5

− 76.5 (117.6 − 122.4)

100 (161)

98.5

− 102.5 (158.6 − 165.0)

125 (201)

123.5

− 127.5 (198.6 − 205.0)

Speedometer indication tolerance km/h (mph)
<Vehicles for CANADA>

20 (12.4)

19

− 24 (11.8 − 14.9)

40 (24.8)

40

− 44 (24.8 − 27.3)

80 (49.7)

80

− 85 (49.7 − 52.8)

120 (74.6)

120.5

− 125.5 (74.9 − 78.0)

160 (99.4)

160.5

− 165.5 (99.7 − 102.8)

200 (124.3)

200.5

− 207.0 (124.6 − 128.6)

Tachometer indication tolerance r/min
The value in parentheses is a reference value.)

600

550

− 650

(2,000)

(1,950

− 2,050)

3,000

2,950

− 3,050

(4,000)

(3,950

− 4,050)

5,000

4,950

− 5,050

6,000

5,950

− 6,050

(7,000)

(6,950

− 7,050)

(8,000)

(7,950

− 8,050)

FWD

Fuel level sensor resistance (

Ω)

Stopper position "F"

13.0

± 1.0

Stopper position "E"

120.0

± 1.0

Fuel level sensor float height mm (in)

Stopper position "F"
(height A)

201.6 (7.9)

Stopper position "E"
(height B)

18.0 (0.7)

AWD

Fuel level sensor
resistance (

Ω)

Fuel level sensor
(main)

Stopper position "F"

6.5

± 1.0

Stopper position "E"

44.7

± 1.0

Fuel level sensor
(sub)

Stopper position "F"

6.5

± 1.0

Stopper position "E"

75.3

± 1.0

Fuel level sensor
float height mm
(in)

Fuel level sensor
(main)

Stopper position "F"
(height A)

166.2 (6.5)

Stopper position "E"
(height B)

38.8 (1.5)

Fuel level sensor
(sub)

Stopper position "F"
(height A)

48.8

± 3.0 (1.9 ± 0.1)

Stopper position "E"
(height B)

238.0

± 3.0 (9.3 ± 0.1)

COMBINATION METER

TSB Revision

CHASSIS ELECTRICAL

54A-30

SPECIAL TOOLS

M1540200300200

Tool

Tool number and
name

Supersession

Application

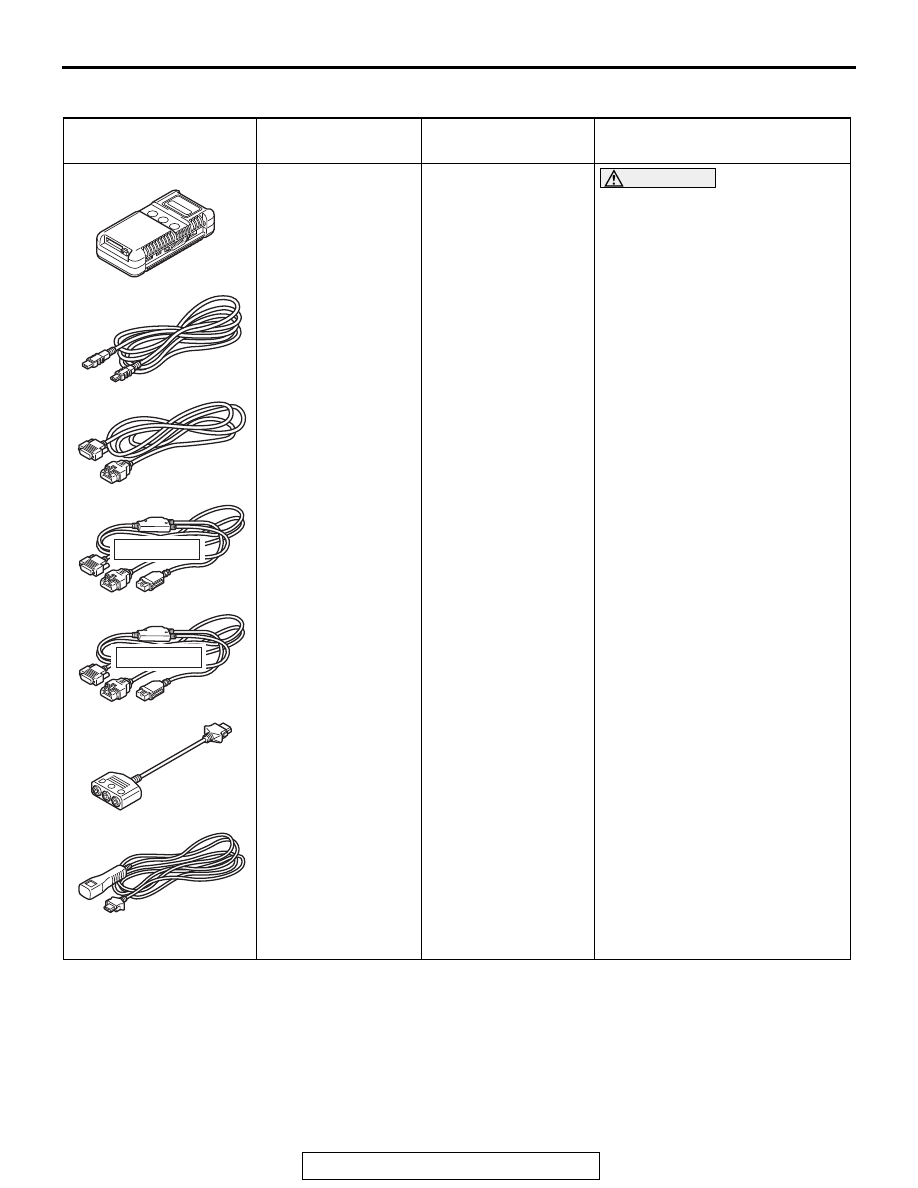

MB991958

a. MB991824
b. MB991827
c. MB991910
d. MB991911
e. MB991914
f. MB991825
g. MB991826

M.U.T.-III sub
assembly

a. Vehicle

communication
interface (V.C.I.)

b. M.U.T.-III USB

cable

c. M.U.T.-III main

harness A
(Vehicles with
CAN
communication
system)

d. M.U.T.-III main

harness B
(Vehicles without
CAN
communication
system)

e. M.U.T.-III main

harness C (for
Chrysler models
only)

f. M.U.T.-III

measurement
adapter

g. M.U.T.-III trigger

harness

MB991824-KIT
NOTE: G: MB991826
M.U.T.-III Trigger
Harness is not
necessary when
pushing V.C.I. ENTER
key.

CAUTION

M.U.T.-III main harness A
(MB991910) should be used.
M.U.T.-III main harness B and C
should not be used for this
vehicle.
Combination meter check
(Diagnostic trouble code, service
data)

MB991910

MB991826

MB991958

MB991911

MB991914

MB991824

MB991827

MB991825

Do not use

a

b

c

d

e

f

g

Do not use

COMBINATION METER

TSB Revision

CHASSIS ELECTRICAL

54A-31

COMBINATION METERS DIAGNOSTIC

STANDARD FLOW OF DIAGNOSTIC
TROUBLESHOOTING

M1540203800215

Refer to GROUP 00, Contents of troubleshooting

P.00-7

.

DIAGNOSTIC FUNCTION

M1540200500130

HOW TO CONNECT THE SCAN TOOL (M.U.T.-III)

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicles Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A (Vehicles with

CAN communication system)

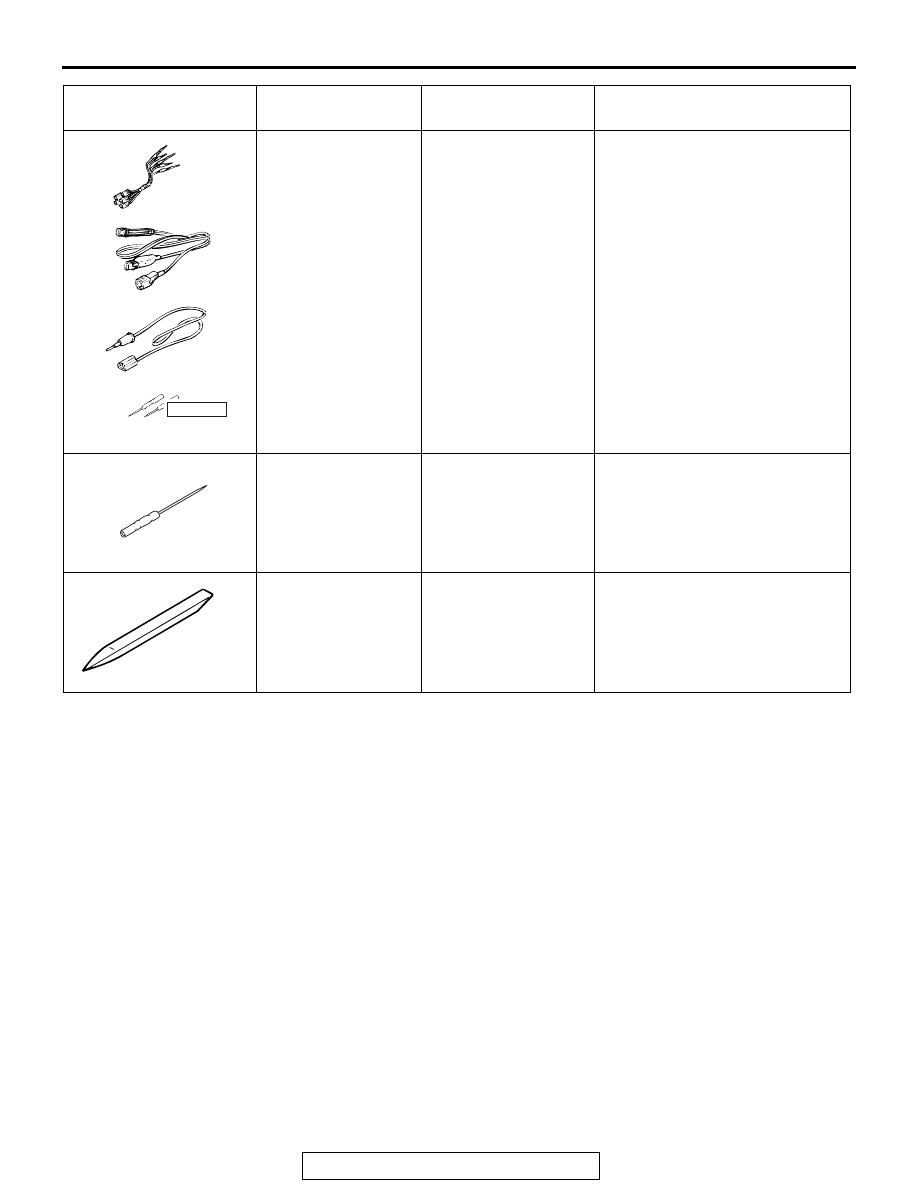

MB991223

a. MB991219
b. MB991220
c. MB991221
d. MB991222

Harness set

a. Test harness
b. LED harness
c. LED harness

adaptor

d. Probe

General service tools Continuity check and voltage

measurement at harness wire or
connector for loose, corroded or
damaged terminals, or terminals
pushed back in the connector.

a. Connector pin contact

pressure inspection

b. Power circuit inspection
c. Power circuit inspection
d. Commercial tester connection

MB992006
Extra fine probe

−

Making voltage and resistance
measurement during
troubleshooting

MB990784
Ornament remover

General service tool

Removal of switch, trim, etc.

Tool

Tool number and
name

Supersession

Application

MB991223

a

d

c

b

Do not use

BD

MB992006

MB990784

COMBINATION METER

TSB Revision

CHASSIS ELECTRICAL

54A-32

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.

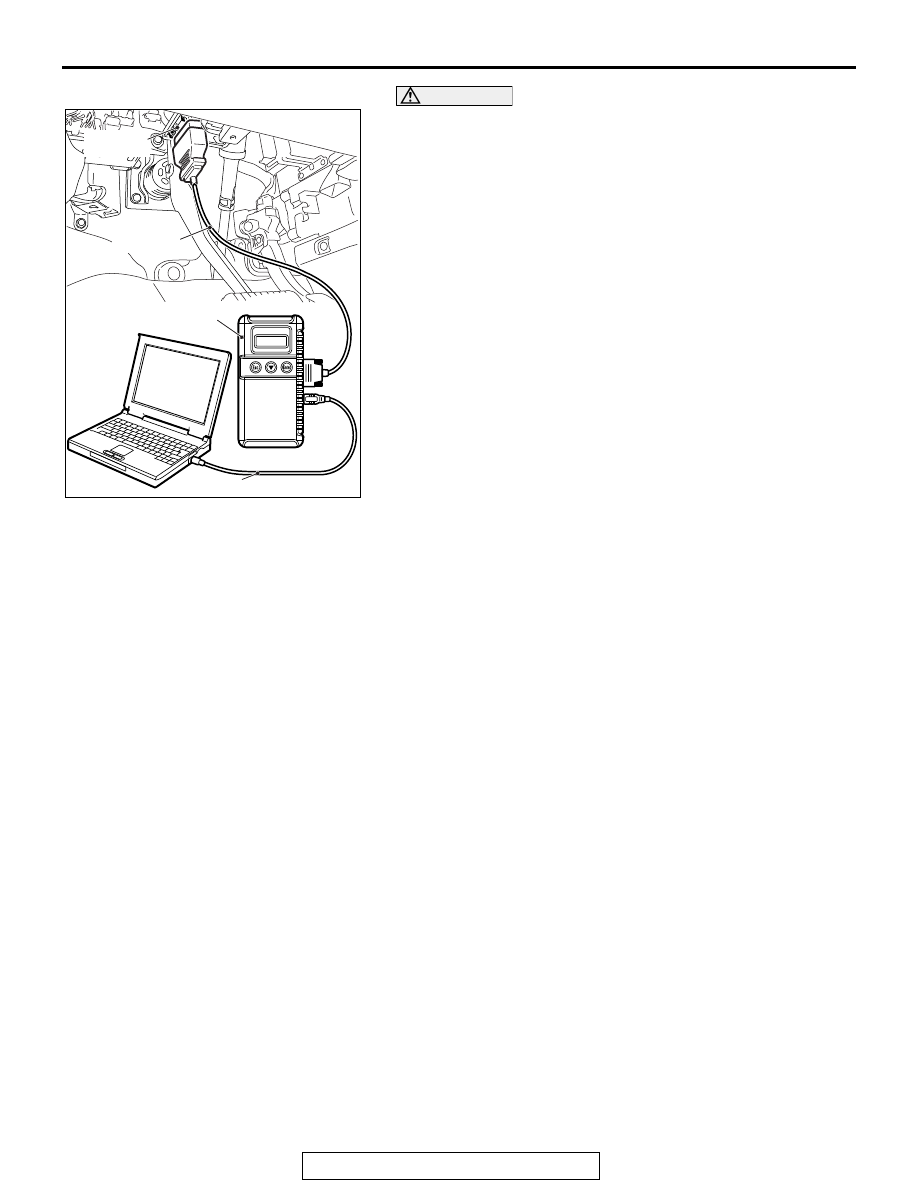

1. Ensure that the ignition switch is at the "LOCK" (OFF)

position.

2. Start up the personal computer.
3. Connect special tool MB991827 to special tool MB991824

and the personal computer.

4. Connect special tool MB991910 to special tool MB991824.
5. Connect special tool MB991910 to the data link connector.
6. Turn the power switch of special tool MB991824 to the "ON"

position.
NOTE: When special tool MB991824 is energized, special
tool MB991824 indicator light will be illuminated in a green
color.

7. Start the M.U.T.-III system on the personal computer.
NOTE: Disconnecting scan tool MB991958 is the reverse of the
connecting sequence, making sure that the ignition switch is at
the "LOCK" (OFF) position.

HOW TO READ AND ERASE DIAGNOSTIC
TROUBLE CODES

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicles Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A (Vehicles with

CAN communication system)

NOTE: If the battery voltage is low, diagnostic trouble codes will
not be set. Check the battery if scan tool MB991958 does not
display.
1. Connect scan tool MB991958 to the data link connector.
2. Turn the ignition switch to the "ON" position.
3. Select "System select" from the start-up screen.
4. Select "From 2006 MY" of "Model Year." When the "Vehicle

Information" is displayed, check the contents.

5. Select "Meter" from "System List," and press the "OK"

button.
NOTE: When the "Loading Option Setup" list is displayed,
check the applicable item.

6. Select "Diagnostic Trouble Code" to read the DTC.
7. If a DTC is set, it is shown.
8. Choose "Erase DTCs" to erase the DTC.

HOW TO DIAGNOSE THE CAN BUS LINES

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicles Communication Interface (V.C.I.)

ZC501967

AC404789

AC702802

MB991824

MB991827

MB991910

Data link

connector

AB
