BATTERY

TSB Revision

CHASSIS ELECTRICAL

54A-9

CHARGE RATE

Recommended rate and time for fully discharged
condition (flat discharged) is shown below. When the
specific gravity of electrolyte keeps 1.22 to 1.29 for
more than one hour, charging should be stopped.

.

Charge Rate Chart

BATTERY TEST

M1541001201792

BATTERY TESTING PROCEDURE

STEP 1. Check the battery cables.
(1) Remove the negative cable, then the positive

cable.

(2) Check for dirty or corroded connections.

Q: Are the battery cables dirty or have corroded

connections?
YES :

Clean the battery cables. Then go to Step 2.

NO :

Go to Step 2.

STEP 2. Check the battery posts.
Check for loose battery post.

Q: Are the battery posts loose?

Yes :

Replace the battery.

NO :

Go to Step 3.

STEP 3. Check the battery case and cover.
(1) Remove the hold-downs and shields.
(2) Check for broken/cracked case or cover.

Q: Is the battery case or cover faulty?

YES :

Replace the battery.

NO :

Go to Step 4.

STEP 4. Check the open circuit voltage.
(1) Turn headlights on for 15 seconds.
(2) Turn headlights off for two minutes to allow

battery positive voltage to stabilize.

(3) Disconnect the battery cables.
(4) Read open circuit voltage.

Q: Is open circuit voltage 12.4 volts or more?

YES :

Go to Step 6.

NO :

Go to Step 5.

STEP 5. Battery charging
Charge the battery. (See CHARGE RATE CHART

P.54A-8

)

Q: Is open circuit voltage 12.4 volts or more?

YES :

Go to Step 6.

NO :

Replace the battery.

STEP 6. Check the load test.
(1) Connect a load tester to the battery.
(2) Load the battery at the recommended discharge

rate (See LOAD TEST RATE CHART) for 15
seconds.

(3) Read voltage after 15 seconds, then remove

load.

(4) Compare the measured value with the minimum

voltage. (See LOAD TEST CHART.)

Q: Is the voltage higher than minimum voltage?

YES :

The battery is normal.

NO :

Replace the battery.

Battery

Charging time
75D23L

80D26L

Slow charging

5 amps 11 hours

5 amps 11 hours

10 amps 6 hours

10 amps 6 hours

Fast charging

20 amps 3 hours

20 amps 3 hours

30 amps 2 hours

30 amps 2 hours

BATTERY

TSB Revision

CHASSIS ELECTRICAL

54A-10

LOAD TEST RATE CHART

LOAD TEST CHART

Condition

Load test

Cranking ratio [-18

°C

(0

°F)]

Reserve capacity

75D23L

260 amps

520 amps

118 minutes

80D26L

290 amps

582 amps

133 minutes

Temperature

°C

(

°F)

21 (70)
AND
ABOV
E

16 (60)

10 (50)

4 (40)

−1 (30)

−7 (20)

−12 (10)

−18 (0)

Minimum voltage 9.6

9.5

9.4

9.3

9.1

8.9

8.7

8.5

BATTERY

TSB Revision

CHASSIS ELECTRICAL

54A-11

REMOVAL AND INSTALLATION

M1541001301410

CAUTION

• When the battery current sensor and the engine control module are replaced, make the battery

current sensor learn the neutral point by using the scan tool. (Refer to GROUP 00

− Precautions

before Service, Battery Current Sensor Calibration

P.00-56

.)

ACA02768

AB

4

5

6

7

8

2

9

12

11

12

8.5 ± 1.5 N·m
76 ± 13 in-lb

12 ± 2 N·m
102 ± 22 in-lb

4.0 ± 1 N·m
36 ± 8 in-lb

5.0 ± 1 N·m
44 ± 9 in-lb

6.0 ± 2 N·m
53 ± 18 in-lb

10

<2.4L Engine>

<3.0L Engine>

1

2

3

12 ± 2 N·m

<2.4L Engine>

<3.0L Engine>

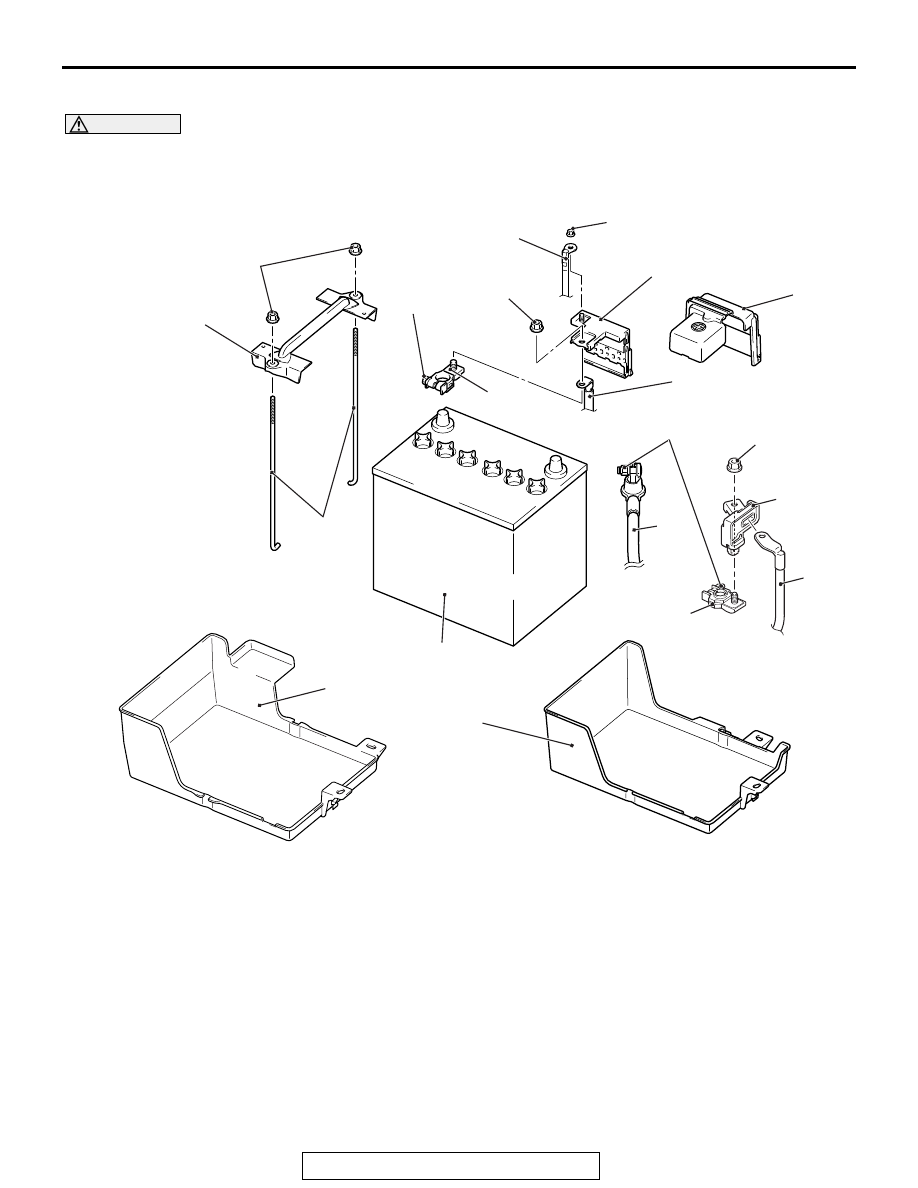

Removal steps

1.

Battery current sensor <2.4L
Engine>

2.

Battery (

−) terminal connection

harness

3.

Battery (-) terminal assembly <2.4L
Engine>

•

Air cleaner intake duct (Refer to
GROUP 15

− Air Cleaner

P.15-4

.)

<2.4L Engine>

4.

Fusible link box cover

5.

Battery (+) terminal connection
harness

6.

Fusible link box

7.

Battery (+) terminal connection
harness

8.

Battery terminal assembly

9.

Battery holder

10. Battery bolt
11. Battery
12. Battery tray

Removal steps (Continued)

BATTERY

TSB Revision

CHASSIS ELECTRICAL

54A-12

INSPECTION

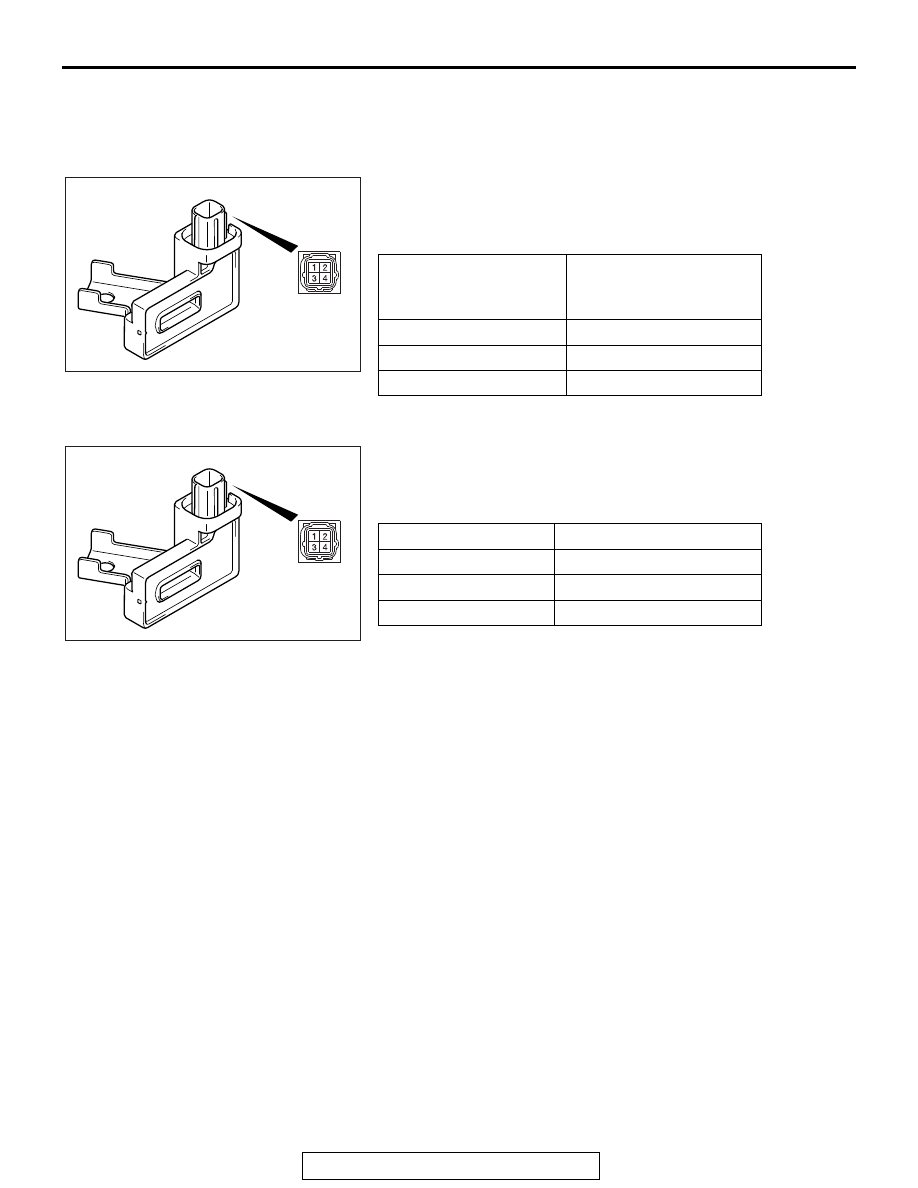

BATTERY CURRENT SENSOR CHECK <2.4L Engine>

M1541002100342

CURRENT SENSOR RESISTANCE VALUE

Use the circuit tester to measure the resistance value between
battery current sensor connector terminals.

.

Standard value:

TEMPERATURE SENSOR RESISTANCE VALUE

Using the circuit tester, measure the resistance value between
the battery current sensor connector terminal No. 2 and No. 3.

.

Standard value:

Terminal No. (positive
terminal

− negative

terminal)

Resistance (k

Ω)

1

− 3

3

− 10

1

− 4

Less than 0.5

3

− 4

3

− 10

AC808952AD

Temperature (

°C)

Resistance (k

Ω)

0

4.5

− 7.2

25

1.6

− 2.5

40

0.96

− 1.40

AC808952AD
