BATTERY

TSB Revision

CHASSIS ELECTRICAL

54A-7

BATTERY

GENERAL INFORMATION

M1541000100562

• The 80D26L battery has been adopted for 3.0L

engine.

• The 75D23L battery has been adopted for 2.4L

engine.

ON-VEHICLE SERVICE

BATTERY CHECK

M1541001000610

WARNING

Battery posts, terminals and related accessories con-
tain lead and lead compounds. WASH HANDS AFTER
HANDLING.

.

Item

Specification
75D23L

80D26L

Voltage V

12

Capacity (5-hour rate) Ah

52

55

Electrolytic fluid specific gravity [fully charged state at 20

°C

(68

°F)]

1.220

− 1.290

Battery current sensor resistance (ohms)

Current
sensor
resistance
value

between terminal No.1

− 3: 3 − 10 k

between terminal No.1

− 4: less than 0.5 k

between terminal No.3

− 4: 3 − 10 k

Temperature
sensor
resistance
value

4.5

− 7.2 k (when 0 °C)

1.6

− 2.5 k (when 25 °C)

0.96

− 1.40 k (when 40 °C)

BATTERY

TSB Revision

CHASSIS ELECTRICAL

54A-8

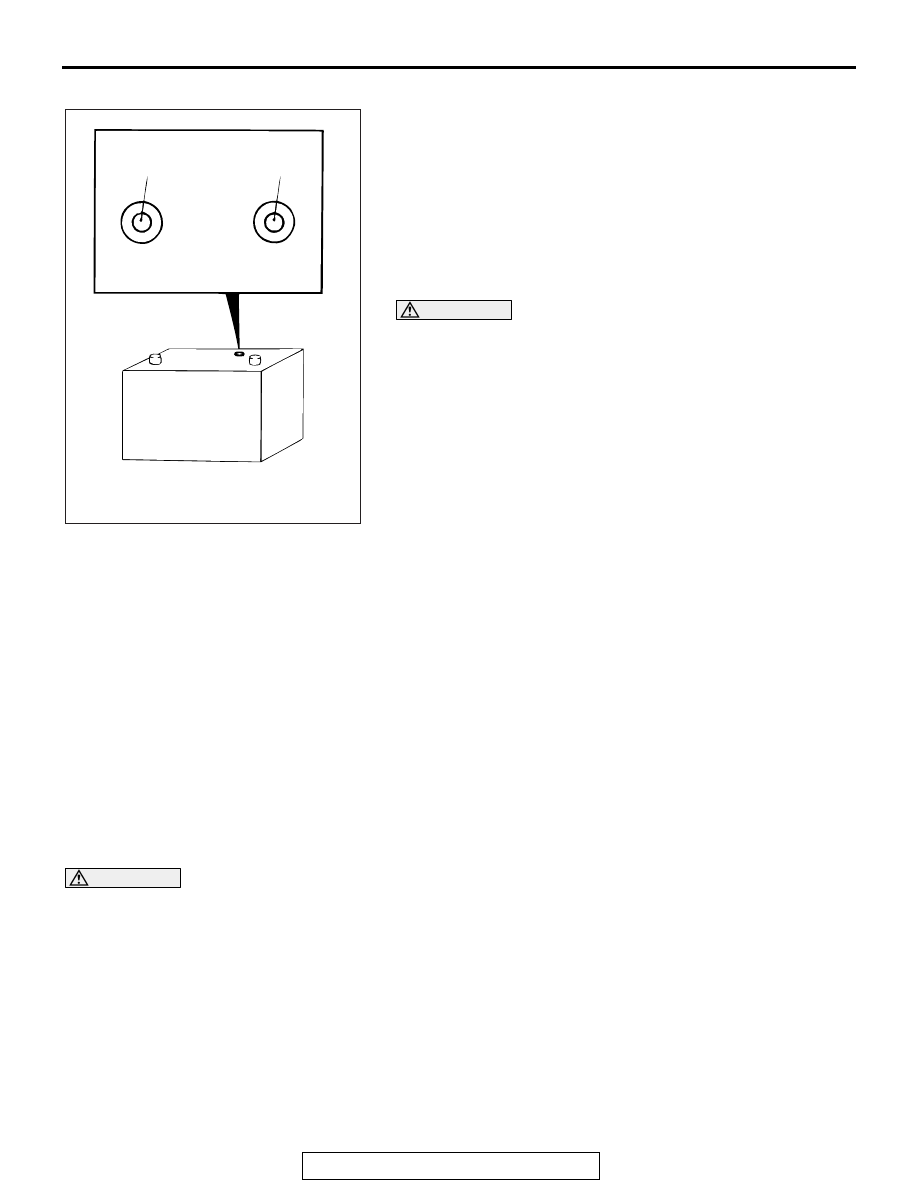

BATTERY VISUAL INSPECTION (1)

The battery contains a visual test indicator which gives a blue
signal when an adequate charge level exists, and a white sig-
nal when charging is required.

.

BATTERY VISUAL INSPECTION (2)

Make sure the ignition switch is in "LOCK" (OFF) position and
all battery fed accessories are OFF.
1. Disconnect the negative cable from battery before

disconnecting the positive cable.

WARNING

Care should be taken in the event battery case is
cracked or leaking to protect hands from the electro-
lyte. A suitable pair of rubber gloves (not the house-
hold type) should be worn when removing battery by
hand.

2. Remove the battery from the vehicle.
3. Inspect the battery carrier for damage caused by loss of acid

from battery. If acid damage is present, it is necessary to
clean area with a solution of clean warm water and baking
soda. Scrub area with a stiff bristle brush. Wipe clean with a
cloth moistened with ammonia or baking soda in water.

4. Clean the battery, especially the top, with the same solutions

as described in step 3.

5. Inspect the battery case and cover for cracks. If cracks are

present, battery must be replaced.

6. Clean the battery post with a suitable battery post cleaning

tool.

7. Clean the inside surfaces of the terminal clamps with a

suitable battery terminal cleaning tool. Replace damaged or
frayed cables and broken terminal clamps.

8. Install the battery in the vehicle.
9. Connect the positive and negative cables to the battery in

the order of mention.

10.Tighten the clamp nut securely.

BATTERY CHARGING

M1541001101687

WARNING

When batteries are being charged, an explo-
sive gas forms beneath the cover of each
cell. Do not smoke near batteries on charge
or which have recently been charged. Do not
break live circuits at the terminals of the bat-
teries on charge. A spark will occur where
the live circuit is broken. Keep all open
flames away from the battery.

Battery electrolyte temperature may temporarily be
allowed to rise to 55

°C (131 °F). Increase of electro-

lyte temperature above 55

°C (131 °F) is harmful to

the battery, causing deformation of battery cell,

decrease in life of battery, etc.

AC002728AD

Indicator

Blue

Charging
necessary

Good
condition

White
