ABS <VEHICLES WITHOUT ASC>

CIRCUIT DIAGRAMS

90-124

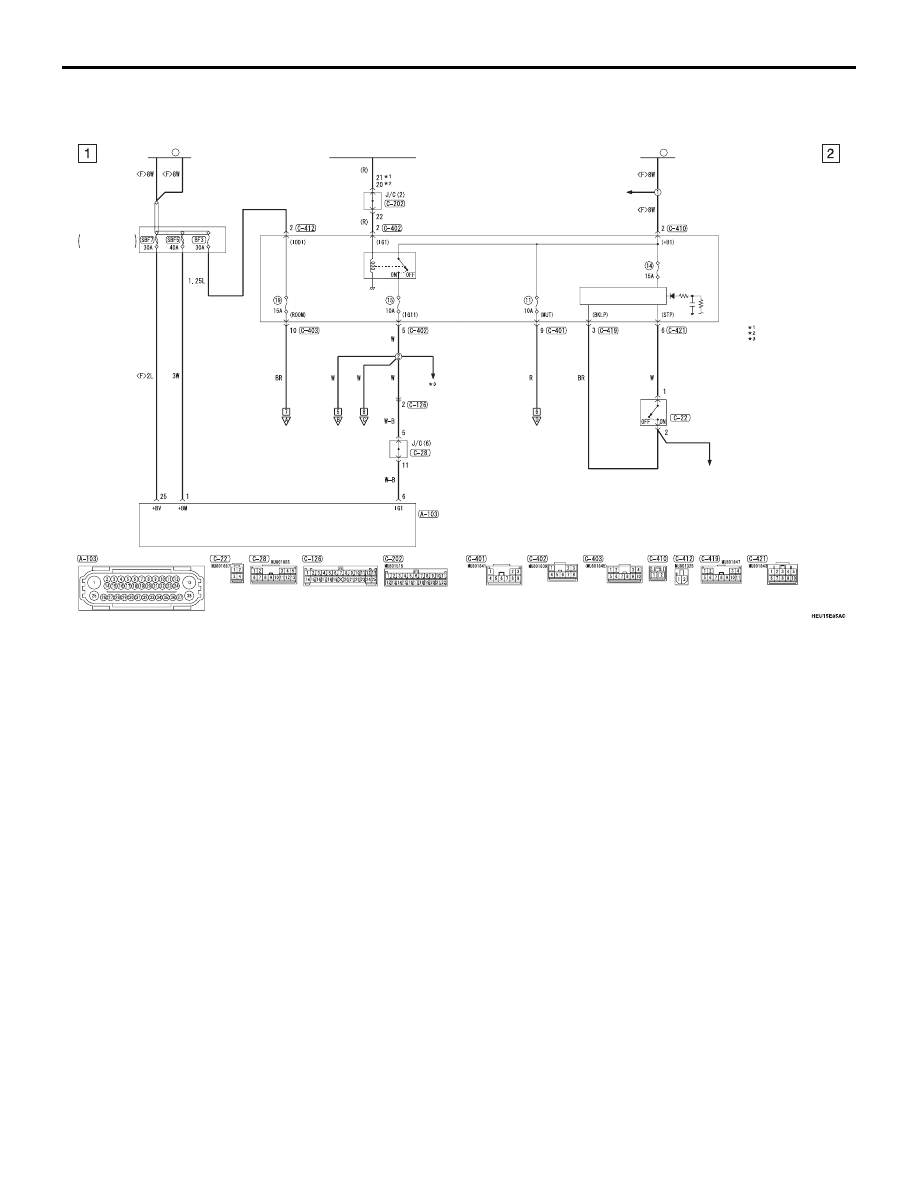

ABS <VEHICLES WITHOUT ASC> (CONTINUED)

Wire colour code
B : Black LG : Light green G : Green L : Blue W : White Y : Yellow SB : Sky blue
BR : Brown O : Orange GR : Grey R : Red P : Pink V : Violet PU : Purple SI : Silver

ABS-ECU

SOLENOID VALVE

HYDRAULIC UNIT

MOTOR

<4WD>

G SENSOR

(LH)

(RH)

FRONT WHEEL SPEED SENSOR

REAR WHEEL SPEED SENSOR

ABS <VEHICLES WITHOUT ASC> (CONTINUED)

INTERFACE
CIRCUIT

CAN DRIVE
CIRCUIT

INPUT SIGNAL

ACCELERATOR
PEDAL POSITION
SENSOR

INPUT SIGNAL

4WD SWITCH

<4WD>

4WD-ECU

DIAGNOSIS
CONNECTOR

INTERFACE
CIRCUIT

CAN DRIVE
CIRCUIT

ABS-ECU

ETACS-ECU

(FUSE )

ENGINE-
ECU

FRONT SIDE

ETACS-ECU

Wire colour code
B : Black LG : Light green G : Green L : Blue W : White Y : Yellow SB : Sky blue
BR : Brown O : Orange GR : Grey R : Red P : Pink V : Violet PU : Purple SI : Silver

ABS, ASC AND HSA

CIRCUIT DIAGRAMS

90-125

ABS, ASC AND HSA

M1901035500205

Wire colour code
B : Black LG : Light green G : Green L : Blue W : White Y : Yellow SB : Sky blue
BR : Brown O : Orange GR : Grey R : Red P : Pink V : Violet PU : Purple SI : Silver

FUSIBLE
LINK

STOP LAMP
SWITCH

ASC-ECU

FUSIBLE
LINK

STOP LAMP
CONTROL CIRCUIT

IGNITION SWITCH (IG1)
OR OSS-ECU (IG1)

RELAY BOX
(PASSENGER
COMPARTMENT)
FUSIBLE LINK
AND FUSE

·OSS-ECU
·SPARE CONNECTOR
(FOR SWITCH BOX)

RELAY BOX

ENGINE
COMPARTMENT

IG1
RELAY

ETACS-
ECU

NOTE

: VEHICLES WITHOUT KOS
: VEHICLES WITH KOS
: ·COLUMN SWITCH

·CORNER SENSOR/
BACK SENSOR-ECU
·CVT CONTROL RELAY
·EPS-ECU
·HAZARD INDICATOR
ASSEMBLY
·HEATED SEAT RELAY
·HEATER CONTROLLER
ASSEMBLY (A/C-ECU)
·KOS-ECU
·SELECTOR LEVER
ASSEMBLY
·SONAR SWITCH
·SUNROOF MOTOR
ASSEMBLY

ABS, ASC AND HSA

CIRCUIT DIAGRAMS

90-126

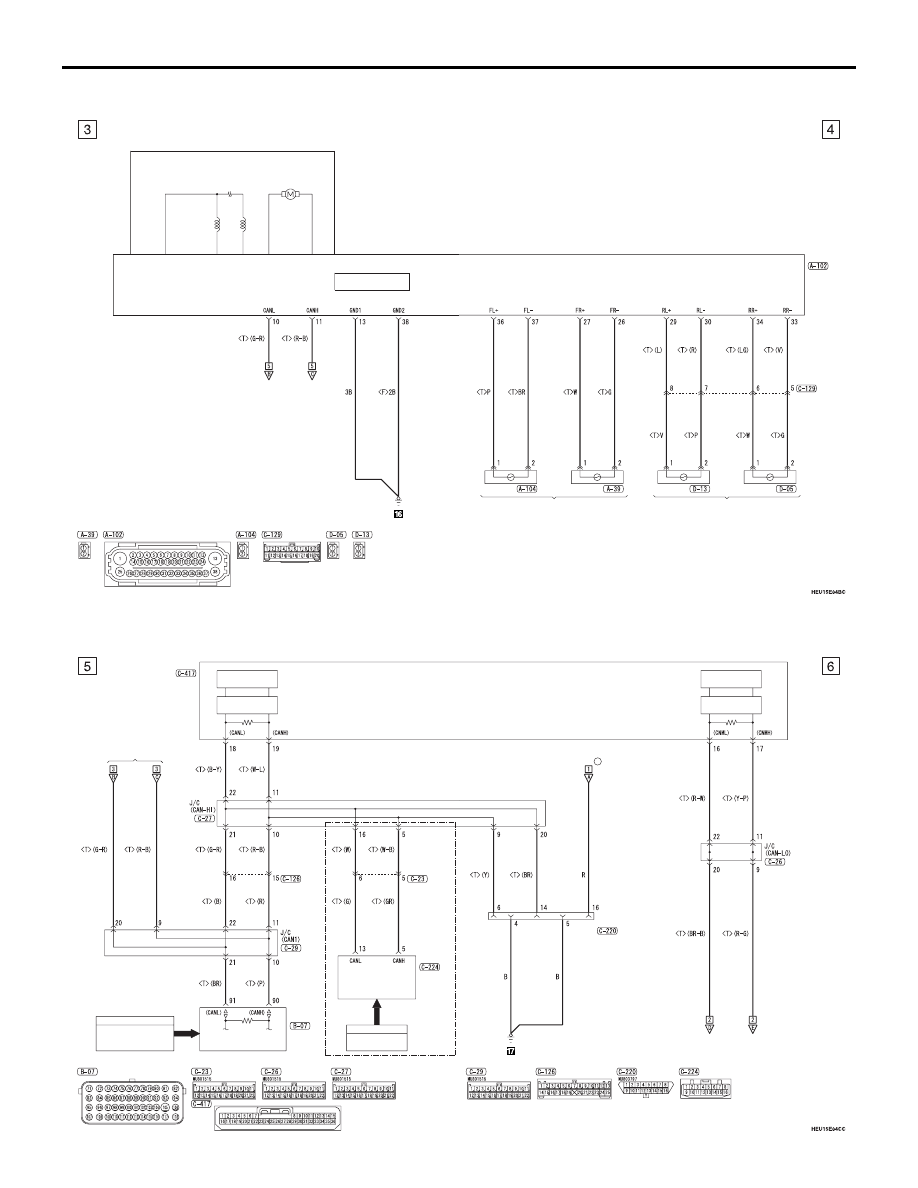

ABS, ASC AND HSA (CONTINUED)

ASC-ECU

ENGINE-
ECU

INPUT SIGNAL

ACCELERATOR PEDAL
POSITION SENSOR

SOLENOID VALVE

HYDRAULIC UNIT

MOTOR

G AND YAW
RATE SENSOR

PRESSURE
SENSOR

(LH)

(RH)

FRONT WHEEL SPEED SENSOR

REAR WHEEL SPEED SENSOR

Wire colour code
B : Black LG : Light green G : Green L : Blue W : White Y : Yellow SB : Sky blue
BR : Brown O : Orange GR : Grey R : Red P : Pink V : Violet PU : Purple SI : Silver

INHIBITOR SWITCH

CVT-ECU

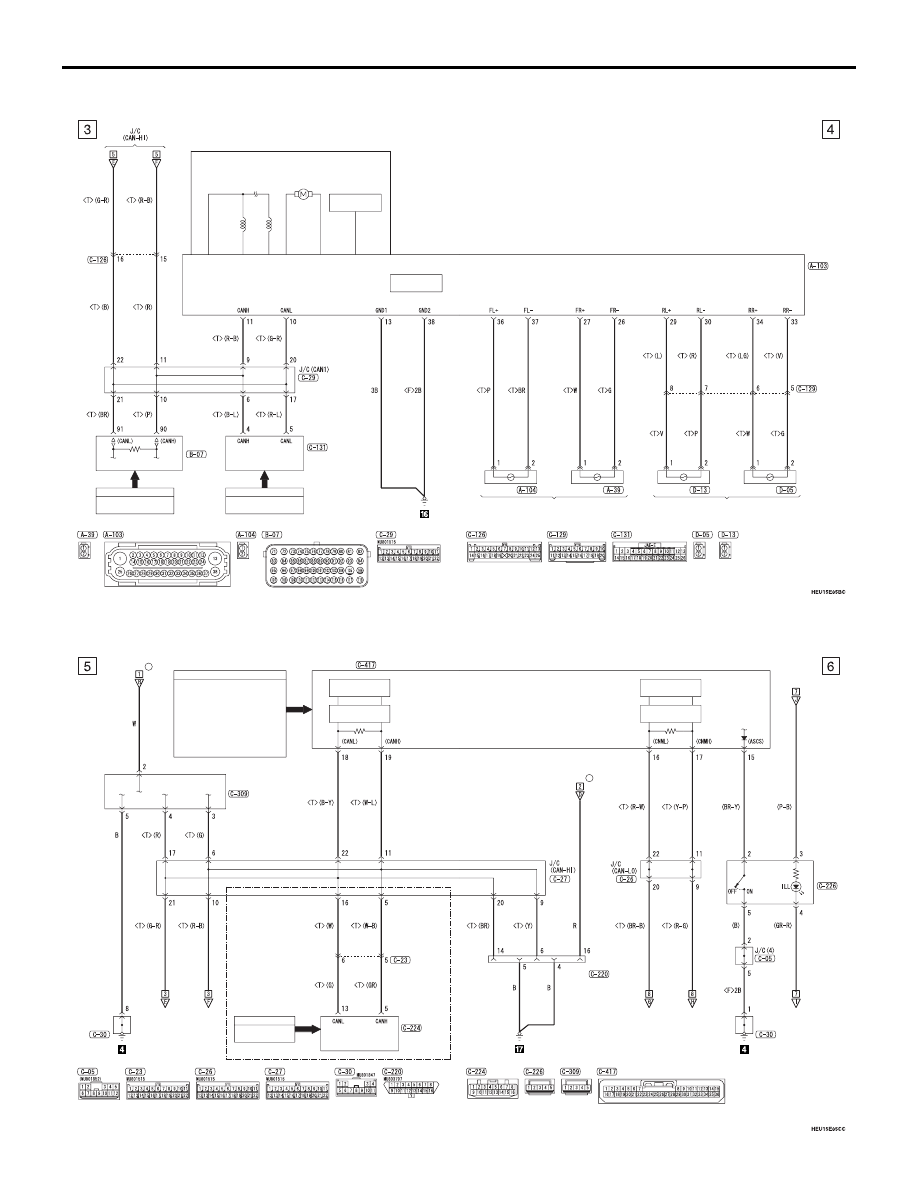

ABS, ASC AND HSA (CONTINUED)

Wire colour code
B : Black LG : Light green G : Green L : Blue W : White Y : Yellow SB : Sky blue
BR : Brown O : Orange GR : Grey R : Red P : Pink V : Violet PU : Purple SI : Silver

ETACS-ECU

INTERFACE
CIRCUIT

CAN DRIVE
CIRCUIT

INTERFACE
CIRCUIT

CAN DRIVE
CIRCUIT

STEERING
WHEEL SENSOR

ASC
OFF
SWITCH

DIAGNOSIS
CONNECTOR

FRONT SIDE

ETACS-ECU

HEATER
CONTROLLER
ASSEMBLY
(A/C-ECU)

(FUSE )

EARTH J/C
(DASH)

INPUT SIGNAL

4WD SWITCH

4WD-ECU

<4WD>

INPUT SIGNAL

·COLUMN SWITCH
(LIGHTING SWITCH)
·LIGHTING CONTROL SENSOR
<VEHICLES WITH AUTO LAMP
AND RAIN SENSITIVE AUTO
WIPER>
·PHOTO SENSOR
<VEHICLES WITH AUTO LAMP
WITHOUT RAIN SENSITIVE
AUTO WIPER>

ABS, ASC AND HSA

CIRCUIT DIAGRAMS

90-127

ABS, ASC AND HSA (CONTINUED)

Wire colour code
B : Black LG : Light green G : Green L : Blue W : White Y : Yellow SB : Sky blue
BR : Brown O : Orange GR : Grey R : Red P : Pink V : Violet PU : Purple SI : Silver

RHEOSTAT

CPU

HIGH SIDE
DRIVE CIRCUIT

LOW SIDE
DRIVE CIRCUIT

HEATER
CONTROLLER
ASSEMBLY
(A/C-ECU)

CAN TRANSCEIVER
CIRCUIT

(FUSE )

INTERFACE
CIRCUIT

ASC OFF
SWITCH

ETACS-ECU

(FUSE )

LCD

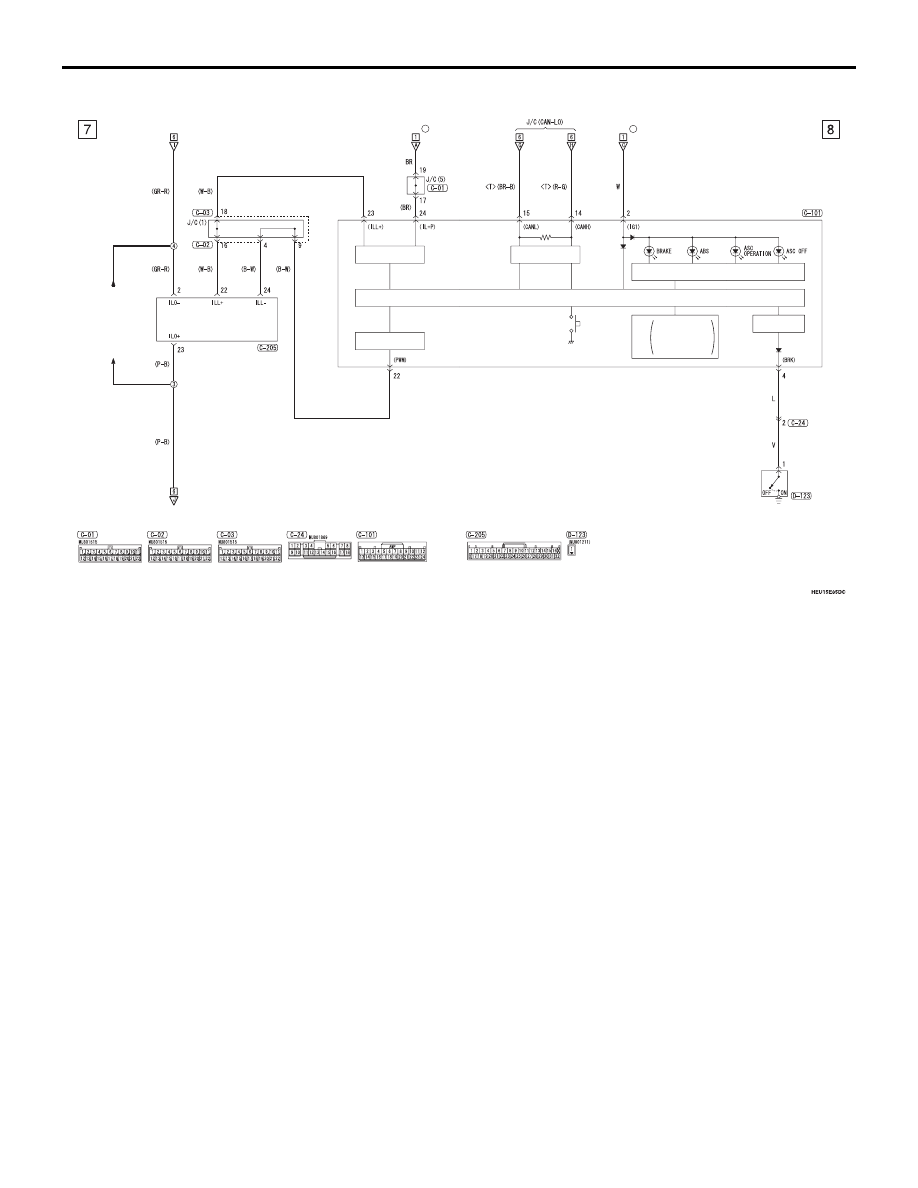

·ABS
·ASC OFF
·ASC OPERATION
·ASC WARNING
·BRAKE

PARKING
BRAKE
SWITCH

COMBINATION METER

LED DRIVE CIRCUIT

·4WD SWITCH
·DOWNLIGHT
·HAZARD INDICATOR
ASSEMBLY
·HEADLAMP MANUAL
LEVELLING SWITCH
·HEATED SEAT SWITCH
·J/C (2)
·METER INFORMATION
SWITCH
·SONAR SWITCH
