HEADLAMP

CIRCUIT DIAGRAMS

90-36

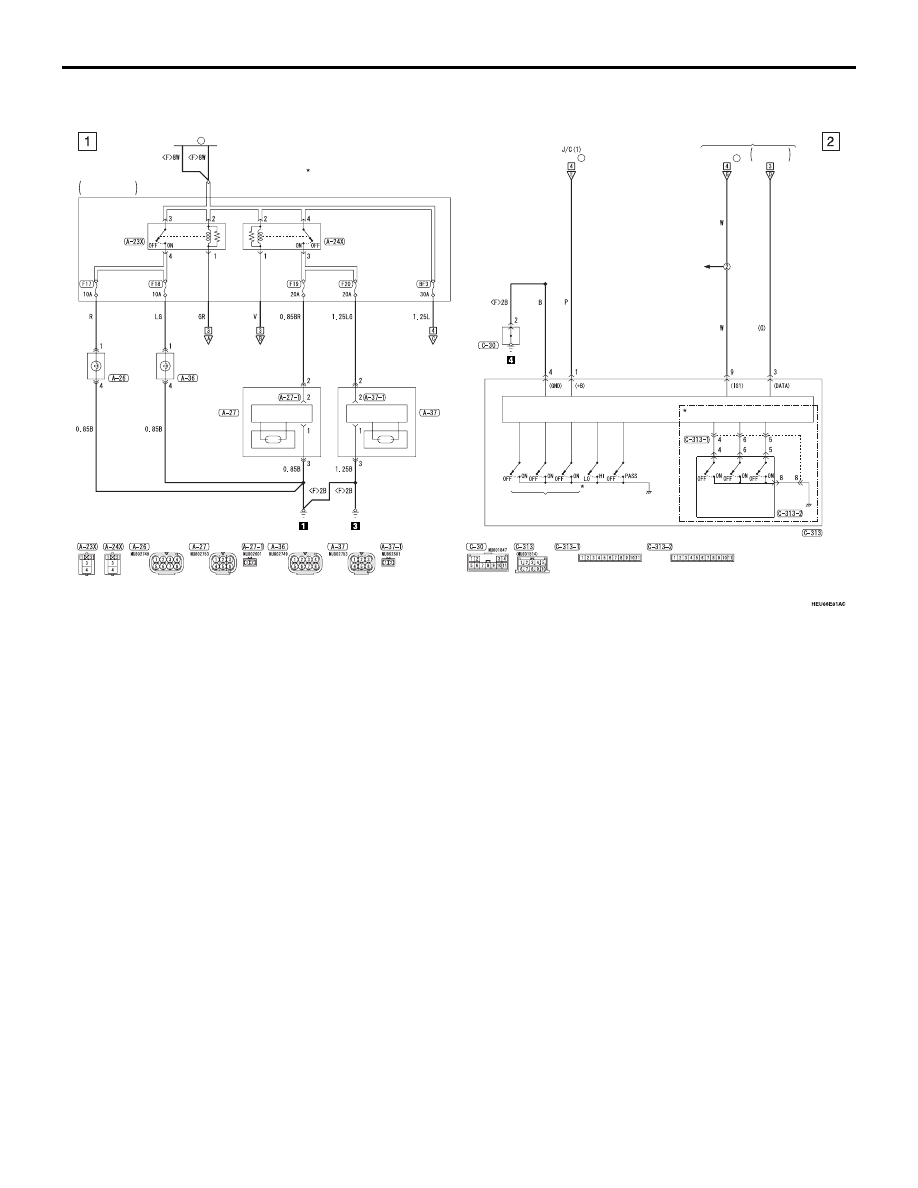

HEADLAMP <DISCHARGE TYPE>

M1901001507869

EARTH J/C
(DASH)

UPPER
SIDE

UPPER
SIDE

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple     SI : Silver

COLUMN SWITCH

COLUMN-ECU

(HEAD)

(TAIL)

LIGHTING
SWITCH

WINDSHIELD
WIPER SWITCH

DIMMER
SWITCH

PASSING
SWITCH

(AUTO)

(HI)

(LO)

(INT)

(FUSE     )

15

ETACS-ECU

LIN DRIVE
CIRCUIT

·ABS-ECU
·ASC-ECU
·COMBINATION
 METER
·CORNER SENSOR/
 BACK SENSOR-ECU
·CVT CONTROL RELAY
·EPS-ECU
·HAZARD INDICATOR
 ASSEMBLY
·HEATED SEAT RELAY
·HEATER CONTROLLER
 ASSEMBLY (A/C-ECU)
·KOS-ECU
·SELECTOR LEVER
 ASSEMBLY
·SONAR SWITCH
·STEERING WHEEL
 SENSOR
·SUNROOF MOTOR
 ASSEMBLY

(FUSE     )

18

RELAY BOX

ENGINE
COMPARTMENT

HEADLAMP
CONTROL UNIT

HEADLAMP
CONTROL UNIT

HEADLAMP
ASSEMBLY
(LH)

HEADLAMP
RELAY (HI)

HEADLAMP
RELAY (LO)

HEADLAMP
ASSEMBLY
(RH)

HEADLAMP
ASSEMBLY
(HI: RH)

HEADLAMP
ASSEMBLY
(HI: LH)

HEADLAMP (LO)

HEADLAMP (LO)

FUSIBLE
LINK

4

NOTE

: VEHICLES WITH AUTO LAMP WITHOUT

RAIN SENSITIVE AUTO WIPER

HEADLAMP

CIRCUIT DIAGRAMS

90-37

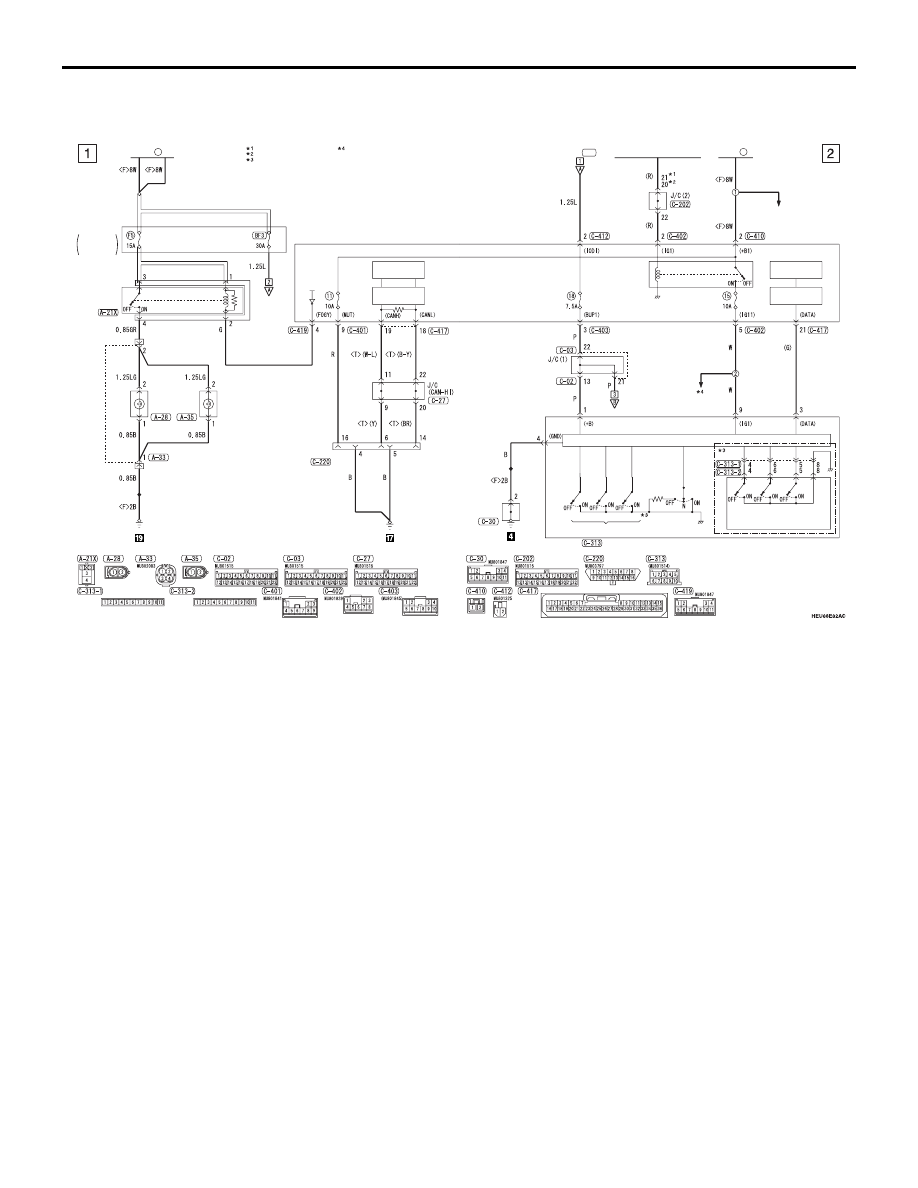

HEADLAMP <DISCHARGE TYPE> (CONTINUED)

IGNITION
CONTROL
CIRCUIT

HEADLAMP
BACK-UP CIRCUIT

LIN DRIVE
CIRCUIT

ANALOG
INTERFACE
CIRCUIT

INTERFACE
CIRCUIT

ETACS-ECU

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple     SI : Silver

RELAY BOX
(PASSENGER
COMPARTMENT)
FUSIBLE LINK AND
FUSE

IG1
RELAY

LIGHTING
CONTROL
SENSOR

NO
CONNECTION

<VEHICLES WITH AUTO LAMP AND
 RAIN SENSITIVE AUTO WIPER>

SUNROOF

RELAY BOX

BF3

(FUSE         )

IGNITION SWITCH (IG1)
OR OSS-ECU (IG1)

IGNITION SWITCH (ACC)
OR OSS-ECU (ACC)

NOTE

: VEHICLES WITHOUT KOS
: VEHICLES WITH KOS

FUSIBLE
LINK

2

HEADLAMP
RELAY (LO)

HEADLAMP
RELAY (HI)

NO CONNECTION

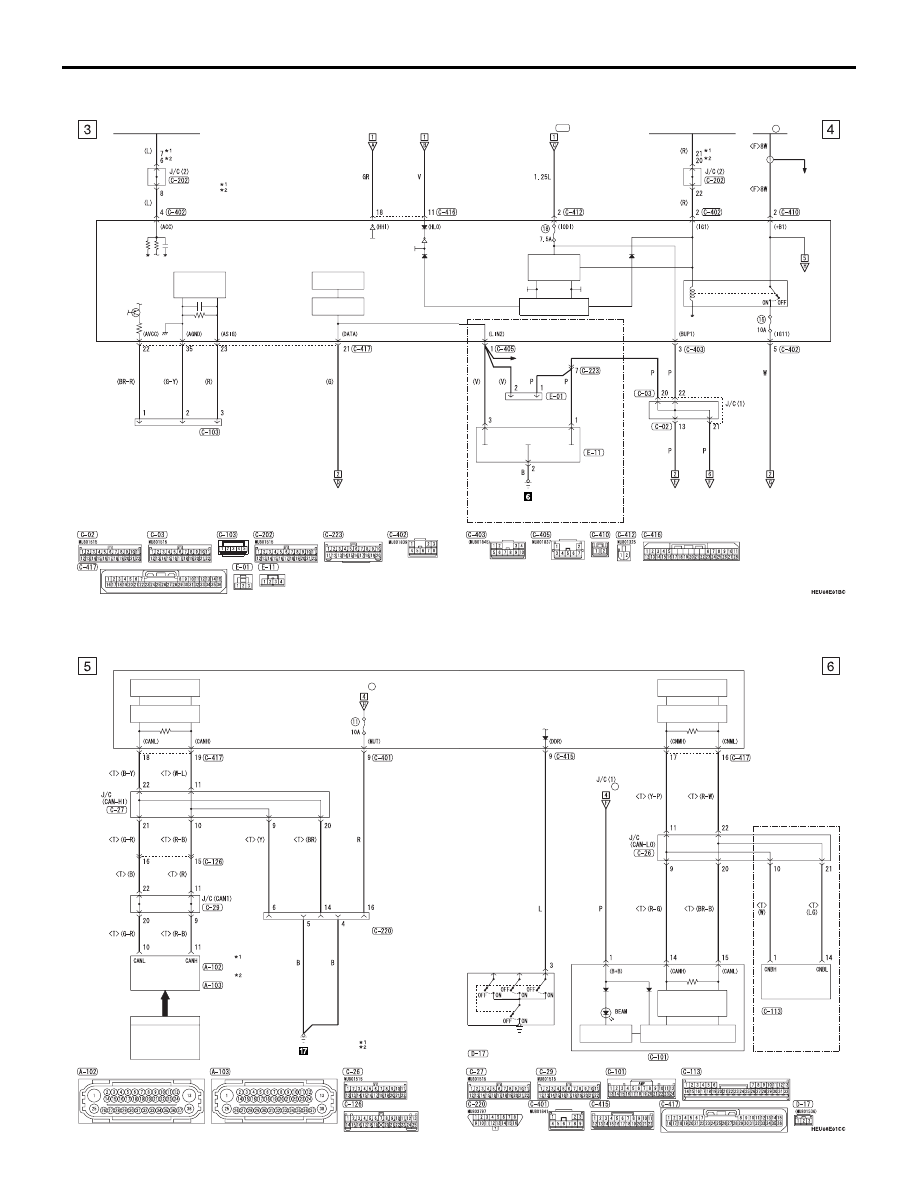

HEADLAMP <DISCHARGE TYPE> (CONTINUED)

INTERFACE
CIRCUIT

CAN DRIVE
CIRCUIT

CAN
TRANSCEIVER
CIRCUIT

<VEHICLES WITH KOS>

LED DRIVE
CIRCUIT

CPU

OSS-ECU

INTERFACE
CIRCUIT

CAN DRIVE
CIRCUIT

ETACS-ECU

FRONT DOOR SWITCH
(LH)

DIAGNOSIS
CONNECTOR

COMBINATION METER

FRONT SIDE

·FRONT WHEEL
 SPEED SENSOR
·REAR WHEEL
 SPEED SENSOR

INPUT SIGNAL

(FUSE     )

NOTE

: VEHICLES WITHOUT ASC
: VEHICLES WITH ASC

ABS-ECU

ASC-ECU

18

FUSIBLE
LINK

2

FRONT FOG LAMP

CIRCUIT DIAGRAMS

90-38

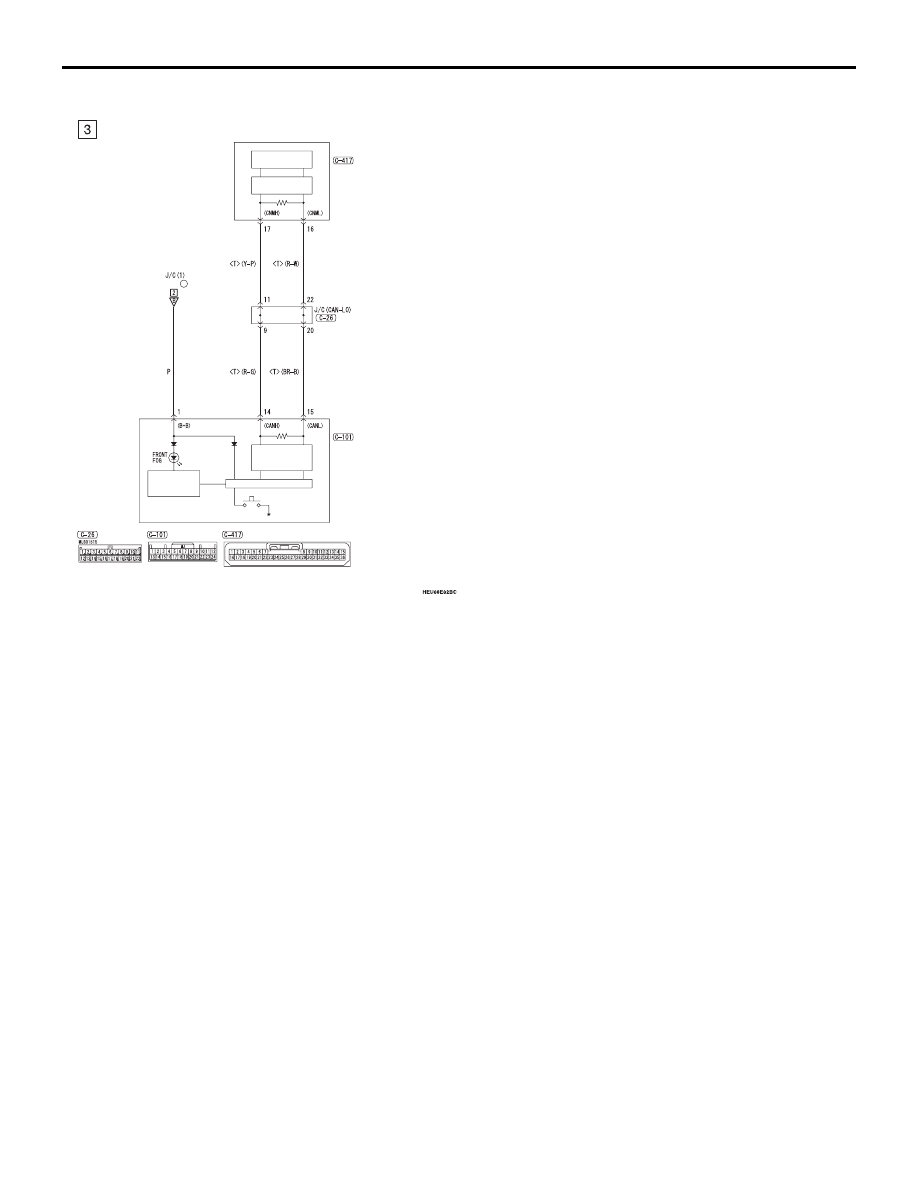

FRONT FOG LAMP

M1901011902818

: VEHICLES WITHOUT KOS
: VEHICLES WITH KOS
:

NOTE

COLUMN
SWITCH

EARTH J/C
(DASH)

LIGHTING SWITCH

COLUMN-ECU

LIN DRIVE
CIRCUIT

INTERFACE
CIRCUIT

CAN DRIVE
CIRCUIT

INTERFACE
CIRCUIT

IG1
RELAY

(HEAD)

(TAIL)

(AUTO)

(FOG)

FRONT SIDE

UPPER
SIDE

UPPER
SIDE

DIAGNOSIS
CONNECTOR

FRONT
FOG LAMP
RELAY

FRONT
FOG LAMP

(LH)

(RH)

RELAY BOX
(PASSENGER
COMPARTMENT)
FUSIBLE LINK AND
FUSE

RELAY BOX

ETACS-ECU

(HI)

(LO)

(INT)

WINDSHIELD
WIPER SWITCH

VEHICLES WITH AUTO
LAMP WITHOUT RAIN
SENSITIVE AUTO WIPER

:

FUSIBLE
LINK

4

·ABS-ECU
·ASC-ECU
·COMBINATION METER
·CORNER SENSOR/ BACK SENSOR-ECU
·CVT CONTROL RELAY
·EPS-ECU
·HAZARD INDICATOR ASSEMBLY
·HEATED SEAT RELAY
·HEATER CONTROLLER ASSEMBLY
 (A/C-ECU)
·KOS-ECU
·SELECTOR LEVER ASSEMBLY
·SONAR SWITCH
·STEERING WHEEL SENSOR
·SUNROOF MOTOR ASSEMBLY

RELAY BOX

BF3

(FUSE         )

IGNITION SWITCH (IG1)
OR OSS-ECU (IG1)

Wire colour code
B : Black     LG : Light green
G : Green     L : Blue
W : White     Y : Yellow
SB : Sky blue     BR : Brown
O : Orange     GR : Grey
R : Red     P : Pink
V : Violet     PU : Purple
SI : Silver

FUSIBLE
LINK

2

ENGINE
COMPART-
MENT

FRONT FOG LAMP

CIRCUIT DIAGRAMS

90-39

FRONT FOG LAMP (CONTINUED)

CAN
TRANSCEIVER
CIRCUIT

LED DRIVE
CIRCUIT

CPU

CAN DRIVE
CIRCUIT

INTERFACE
CIRCUIT

COMBINATION
METER

ETACS-
ECU

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple     SI : Silver

RHEOSTAT

(FUSE     )

18
