TROUBLESHOOTING

CONTROLLER AREA NETWORK (CAN)

54C-52

diagnose by using the M.U.T.-III.

ACC00053

M.U.T.

: Red section on screen

JC

ETACS

KOS

AUDIO

SRS

OSS

ABS/ASC

CVT

ENGINE

EPS

SAS

AWC

MMCS

A/C

ETG

METER

Corner

JC

JC

AB

(2) Diagnose CAN-C-Mid, and check if M.U.T.-III

screen is as shown in the illustration.

Q: Does M.U.T.-III screen correspond to the

illustration?
YES :

Repair the wiring harness between joint

connector (CAN-LO) and the radio and CD
player connector.

NO :

Check the radio and CD player connector,
and repair if necessary. If the radio and CD
player connector is in good condition, go to
Step 14.

STEP 14. M.U.T.-III CAN bus diagnostics (retest
the system)
Diagnose CAN-C-Mid, and check if M.U.T.-III screen
shows normal state.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction ).

NO :

Check the radio and CD player connector,
and repair if necessary. If the radio and CD
player connector is in good condition,
replace the radio and CD player.

STEP 15. Check the CAN-C-Mid between joint
connector (CAN-LO) and the CAN box unit.
Resistance measurement at joint connector
(CAN-LO).

NOTE: Steps 15 to 17 are only for vehicles with
MMCS. On vehicles without it, go to Step 18.

CAUTION

A digital multimeter should be used. For details
refer to

P.54C-5

.

CAUTION

The test wiring harness should be used. For
details refer to

P.54C-5

.

(1) Disconnect joint connector (CAN-LO), and

measure at the wiring harness side.

CAUTION

When measuring the resistance, disconnect the
negative battery terminal. For details refer to

P.54C-5

.

(2) Ensure that the negative battery terminal is

disconnected.

(3) Resistance between joint connector (CAN-LO)

terminal No.3 (CAN_H) and body earth

OK: 1 k

 or more

(4) Resistance between joint connector (CAN-LO)

terminal No.14 (CAN_L) and body earth

OK: 1 k

 or more

CAUTION

Strictly observe the specified wiring harness
repair procedure. For details refer to

P.54C-5

.

Q: Is the check result normal?

YES :

<1 k

Ω or more> Go to Step 18.

NO :

<Less than 1 k

Ω > Go to Step 16.

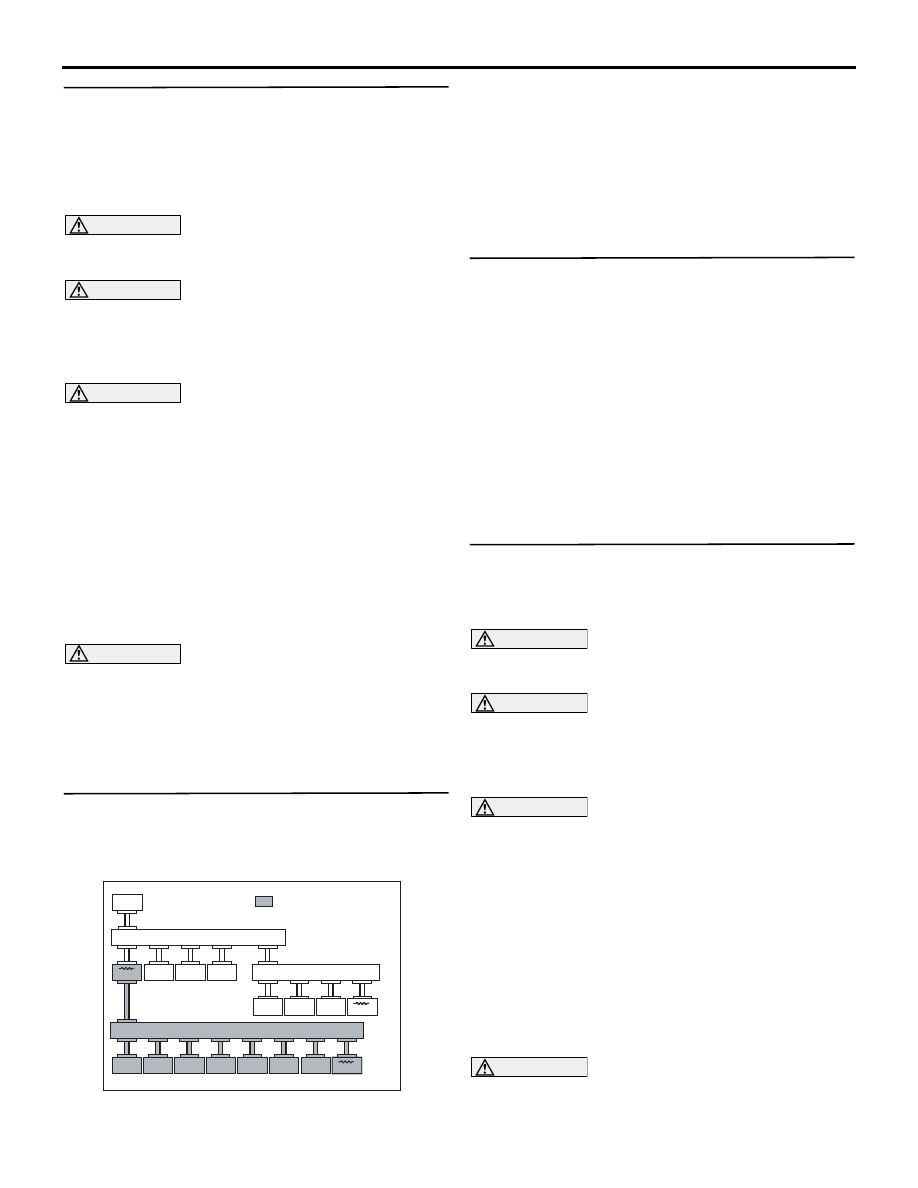

STEP 16. M.U.T.-III CAN bus diagnostics [CAN
box unit connector disconnected]
(1) Disconnect CAN box unit connector, and

diagnose by using the M.U.T.-III.

ACC00053

M.U.T.

: Red section on screen

JC

ETACS

KOS

AUDIO

SRS

OSS

ABS/ASC

CVT

ENGINE

EPS

SAS

AWC

MMCS

A/C

ETG

METER

Corner

JC

JC

AB

(2) Diagnose CAN-C-Mid, and check if M.U.T.-III

screen is as shown in the illustration.

TROUBLESHOOTING

CONTROLLER AREA NETWORK (CAN)

54C-53

Q: Does M.U.T.-III screen correspond to the

illustration?
YES :

Repair the wiring harness between joint

connector (CAN1) and the CAN box unit
connector.

NO :

Check the CAN box unit connector, and
repair if necessary. If the CAN box unit
connector is in good condition, go to Step
17.

STEP 17. M.U.T.-III CAN bus diagnostics (retest
the system)
Diagnose CAN-C-Mid, and check if M.U.T.-III screen
shows normal state.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction ).

NO :

Check the CAN box unit connector, and
repair if necessary. If the CAN box unit
connector is in good condition, replace the
CAN box unit.

STEP 18. Check the CAN-C-Mid between joint
connector (CAN-LO) and the OSS-ECU.
Resistance measurement at joint connector
(CAN-LO).

NOTE: Steps 18 to 20 are only for vehicles with
OSS. On vehicles without it, go to Step 21
.

CAUTION

A digital multimeter should be used. For details
refer to

P.54C-5

.

CAUTION

The test wiring harness should be used. For
details refer to

P.54C-5

.

(1) Disconnect joint connector (CAN-LO), and

measure at the wiring harness side.

CAUTION

When measuring the resistance, disconnect the
negative battery terminal. For details refer to

P.54C-5

.

(2) Ensure that the negative battery terminal is

disconnected.

(3) Resistance between joint connector (CAN-LO)

terminal No.10 (CAN_H) and body earth

OK: 1 k

 or more

(4) Resistance between joint connector (CAN-LO)

terminal No.21 (CAN_L) and body earth

OK: 1 k

 or more

CAUTION

Strictly observe the specified wiring harness
repair procedure. For details refer to

P.54C-5

.

Q: Is the check result normal?

YES :

<1 k

Ω or more> Go to Step 21.

NO :

<Less than 1 k

Ω > Go to Step 19.

STEP 19. M.U.T.-III CAN bus diagnostics
[OSS-ECU connector disconnected]
(1) Disconnect OSS-ECU connector, and diagnose

by using the M.U.T.-III.

ACC00053

M.U.T.

: Red section on screen

JC

ETACS

KOS

AUDIO

SRS

OSS

ABS/ASC

CVT

ENGINE

EPS

SAS

AWC

MMCS

A/C

ETG

METER

Corner

JC

JC

AB

(2) Diagnose CAN-C-Mid, and check if M.U.T.-III

screen is as shown in the illustration.

Q: Does M.U.T.-III screen correspond to the

illustration?
YES :

Repair the wiring harness between joint

connector (CAN-LO) and the OSS-ECU
connector.

NO :

Check the OSS-ECU connector, and repair
if necessary. If the OSS-ECU connector is in
good condition, go to Step 20.

STEP 20. M.U.T.-III CAN bus diagnostics (retest
the system)
Diagnose CAN-C-Mid, and check if M.U.T.-III screen
shows normal state.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction ).

NO :

Check the OSS-ECU connector, and repair
if necessary. If the OSS-ECU connector is in
good condition, replace the OSS-ECU.

TROUBLESHOOTING

CONTROLLER AREA NETWORK (CAN)

54C-54

STEP 21. Check the CAN-C-Mid between joint
connector (CAN-LO) and the KOS-ECU.
Resistance measurement at joint connector
(CAN-LO).

NOTE: Steps 21 to 23 are only for vehicles with
KOS. On vehicles without it, go to Step 24
.

CAUTION

A digital multimeter should be used. For details
refer to

P.54C-5

.

CAUTION

The test wiring harness should be used. For
details refer to

P.54C-5

.

(1) Disconnect joint connector (CAN-LO), and

measure at the wiring harness side.

CAUTION

When measuring the resistance, disconnect the
negative battery terminal. For details refer to

P.54C-5

.

(2) Ensure that the negative battery terminal is

disconnected.

(3) Resistance between joint connector (CAN-LO)

terminal No.5 (CAN_H) and body earth

OK: 1 k

 or more

(4) Resistance between joint connector (CAN-LO)

terminal No.16 (CAN_L) and body earth

OK: 1 k

 or more

CAUTION

Strictly observe the specified wiring harness
repair procedure. For details refer to

P.54C-5

.

Q: Is the check result normal?

YES :

<1 k

Ω or more> Go to Step 24.

NO :

<Less than 1 k

Ω > Go to Step 22.

STEP 22. M.U.T.-III CAN bus diagnostics
[KOS-ECU connector disconnected]
(1) Disconnect KOS-ECU connector, and diagnose

by using the M.U.T.-III.

ACC00053

M.U.T.

: Red section on screen

JC

ETACS

KOS

AUDIO

SRS

OSS

ABS/ASC

CVT

ENGINE

EPS

SAS

AWC

MMCS

A/C

ETG

METER

Corner

JC

JC

AB

(2) Diagnose CAN-C-Mid, and check if M.U.T.-III

screen is as shown in the illustration.

Q: Does M.U.T.-III screen correspond to the

illustration?
YES :

Repair the wiring harness between joint

connector (CAN-LO) and the KOS-ECU
connector.

NO :

Check the KOS-ECU connector, and repair
if necessary. If the KOS-ECU connector is in
good condition, go to Step 23.

STEP 23. M.U.T.-III CAN bus diagnostics (retest
the system)
Diagnose CAN-C-Mid, and check if M.U.T.-III screen
shows normal state.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction ).

NO :

Check the KOS-ECU connector, and repair
if necessary. If the KOS-ECU connector is in
good condition, replace the KOS-ECU.

STEP 24. Check the CAN-C-Mid between joint
connector (CAN-LO) and the combination meter.
Resistance measurement at joint connector
(CAN-LO).

CAUTION

A digital multimeter should be used. For details
refer to

P.54C-5

.

CAUTION

The test wiring harness should be used. For
details refer to

P.54C-5

.

(1) Disconnect joint connector (CAN-LO), and

measure at the wiring harness side.

CAUTION

When measuring the resistance, disconnect the
negative battery terminal. For details refer to

P.54C-5

.

(2) Ensure that the negative battery terminal is

disconnected.

(3) Resistance between joint connector (CAN-LO)

terminal No.9 (CAN_H) and body earth

OK: 1 k

 or more

(4) Resistance between joint connector (CAN-LO)

terminal No.20 (CAN_L) and body earth

OK: 1 k

 or more

CAUTION

Strictly observe the specified wiring harness
repair procedure. For details refer to

P.54C-5

.

Q: Is the check result normal?

TROUBLESHOOTING

CONTROLLER AREA NETWORK (CAN)

54C-55

YES :

<1 k

Ω or more> Repair intermediate

connector C-26.

NO :

<Less than 1 k

Ω > Repair the wiring

harness between joint connector (CAN-LO)
and the combination meter connector.

STEP 25. M.U.T.-III CAN bus diagnostics
[combination meter connector disconnected]
(1) Disconnect combination meter connector, and

diagnose by using the M.U.T.-III.

ACC00053

M.U.T.

: Red section on screen

JC

ETACS

KOS

AUDIO

SRS

OSS

ABS/ASC

CVT

ENGINE

EPS

SAS

AWC

MMCS

A/C

ETG

METER

Corner

JC

JC

AB

(2) Diagnose CAN-C-Mid, and check if M.U.T.-III

screen is as shown in the illustration.

Q: Does M.U.T.-III screen correspond to the

illustration?
YES :

Go to Step 27

NO :

Check the combination meter connector,
and repair if necessary. If the combination
meter connector is in good condition, go to
Step 26.

STEP 26. M.U.T.-III CAN bus diagnostics (retest
the system)
Diagnose CAN-C-Mid, and check if M.U.T.-III screen
shows normal state.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction ).

NO :

Check the combination meter connector,
and repair if necessary. If the combination
meter connector is in good condition,
replace the combination meter.

STEP 27. M.U.T.-III CAN bus diagnostics
[ETACS-ECU connector disconnected]
(1) Disconnect ETACS-ECU connector, and

diagnose by using the M.U.T.-III.

ACC00053

M.U.T.

: Red section on screen

JC

ETACS

KOS

AUDIO

SRS

OSS

ABS/ASC

CVT

ENGINE

EPS

SAS

AWC

MMCS

A/C

ETG

METER

Corner

JC

JC

AB

(2) Diagnose CAN-C-Mid, and check if M.U.T.-III

screen is as shown in the illustration.

Q: Does M.U.T.-III screen correspond to the

illustration?
YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction ).

NO :

Check the ETACS-ECU connector, and
repair if necessary. If the ETACS-ECU
connector is in good condition, go to Step
28.

STEP 28. M.U.T.-III CAN bus diagnostics (retest
the system)
Diagnose CAN-C-Mid, and check if M.U.T.-III screen
shows normal state.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction ).

NO :

Check the ETACS-ECU connector, and
repair if necessary. If the ETACS-ECU
connector is in good condition, replace the
ETACS-ECU.















Content   ..  727  728  729  730   ..
