HANDS FREE ECU

CHASSIS ELECTRICAL

54A-253

The voice recognition operation cannot be performed.



The communication voice cannot be heard by the other party.

Cause

Solution

During the conversation, the
microphone unit is set to
mute.

During the conversation, press the speech switch and set to mute off by
voice recognition. Perform Inspection Procedure 3: When the speech switch
is pressed, the voice guide is output, but the voice recognition is not
performed. (Refer to

P.54A-260

.)

The hands free-ECU cannot
recognize the speech voice
because of noise or others.

Minimize the noise by turning off the A/C, closing the window, and stopping
the engine, and then clearly speak up near the microphone unit.

The microphone unit , or the
connection has a problem.

The microphone unit may have a problem. Perform Inspection Procedure 3:
When the speech switch is pressed, the voice guide is output, but the voice
recognition is not performed. (Refer to

P.54A-260

.) The connection with the

microphone unit can be checked by the microphone check result on the
diagnosis mode. (Refer to

P.54A-254

 <Vehicles with 1CD audio> or

P.54A-256

 <Vehicles with display audio>.)

The speech switch, or the
connection has a problem.

If the voice guide is not output when the speech switch is operated, the
speech switch has a problem. Perform the Inspection Procedure 4: When the
speech switch is pressed, the voice guide is not output. (Refer to

P.54A-260

.)

A call cannot be received when the OFF HOOK switch is pressed.



The voice guide cannot be output from the speaker.

Cause

Solution

The Bluetooth

® connection

is not made between the
hands free-ECU and cellular
phone.

Connect the cellular phone to the hands free-ECU via Bluetooth

®.

The OFF HOOK switch,
speech switch, or the
connection has a problem.

If the voice guide is not output when the speech switch is operated, the
speech switch has a problem. Perform the Inspection Procedure 4: When the
speech switch is pressed, the voice guide is not output. (Refer to

P.54A-260

.)

Voice guide "Unable to obtain vehicle speed. Please try again or contact your dealer for service" is
sent from the speaker.

Cause

Solution

The hands free-ECU cannot
receive the vehicle speed
signal from the radio and CD
player.

If the vehicle speed signal the hands free-ECU receives has a problem, the
vehicle speed signal of radio and CD player or the hands free-ECU may have
a problem. Perform the Inspection Procedure 8: Voice guide "Unable to
obtain vehicle speed. Please try again or contact your dealer for service" is
sent from the speaker. (Refer to

P.54A-262

.)

STANDARD FLOW OF DIAGNOSTIC
TROUBLESHOOTING

M1540203800453

Refer to GROUP 00

− Contents of troubleshooting .

communication error
between the hands
free-ECU and the radio and
CD player.

Check if the data of music file sent to the hands free-ECU can be replayed. If
there are no problems, the communication between the hands free-ECU and
the radio and CD player may have a problem.

Cause

Solution

HANDS FREE ECU

CHASSIS ELECTRICAL

54A-254

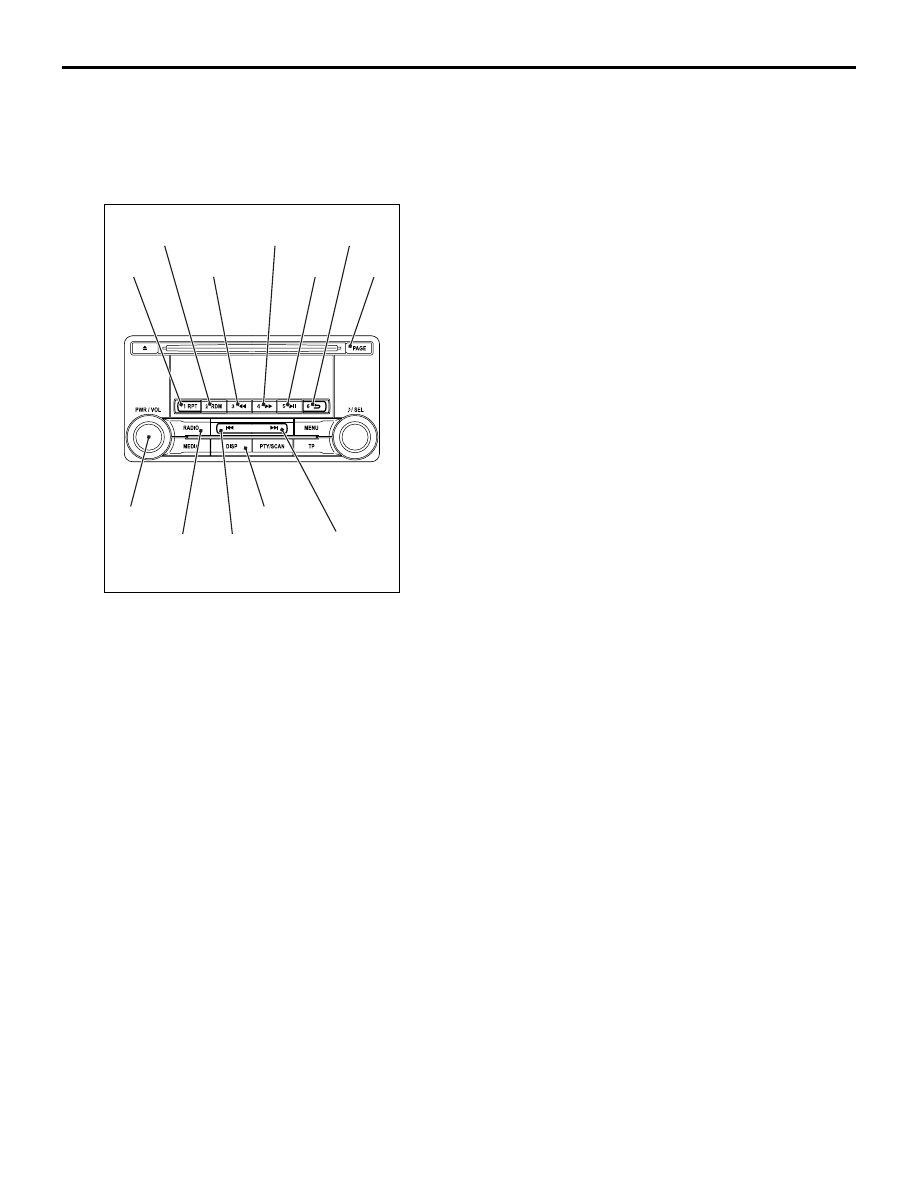

DIAGNOSIS MODE <VEHICLES WITH 1CD AUDIO>

M1544404800430

Enter the diagnosis mode according to the following
steps:
1. Turn the Ignition switch to the "ACC" or "ON"

position and switch off the radio and CD player.

ACC00428

[CH1]

[CH4]

[CH3]

DISP

[CH2]

[CH6]

[CH5]

PAGE

Fast-forward

Rewind

Power

Mode change

AB

2. Press the following buttons in that order within

sixty seconds from step (1).

(1)  [CH1] button.
(2) Rewind button.
(3) Fast-forward button.
(4) [CH4] button.

NOTE:

.

•

When the "Power" button of the radio and CD
player is pressed during the diagnosis mode, the
diagnosis mode will be cancelled, thus switching
off the radio and CD player. However, if the
"Power" button is pressed while the hands
free-ECU is being updated, the update will not be
cancelled.

•

When the "Mode change" button is pressed dur-
ing diagnosis mode except the hands free-ECU
update, the diagnosis mode will be cancelled and
relevant operation will be carried out.

•

When an invalid button is pressed during diagno-
sis mode except the hands free-ECU update, the
diagnosis mode will be cancelled, thus switching
off the radio and CD player.

•

During the diagnosis mode, voice which is input
through the microphone unit is played through a
relevant loudspeaker.

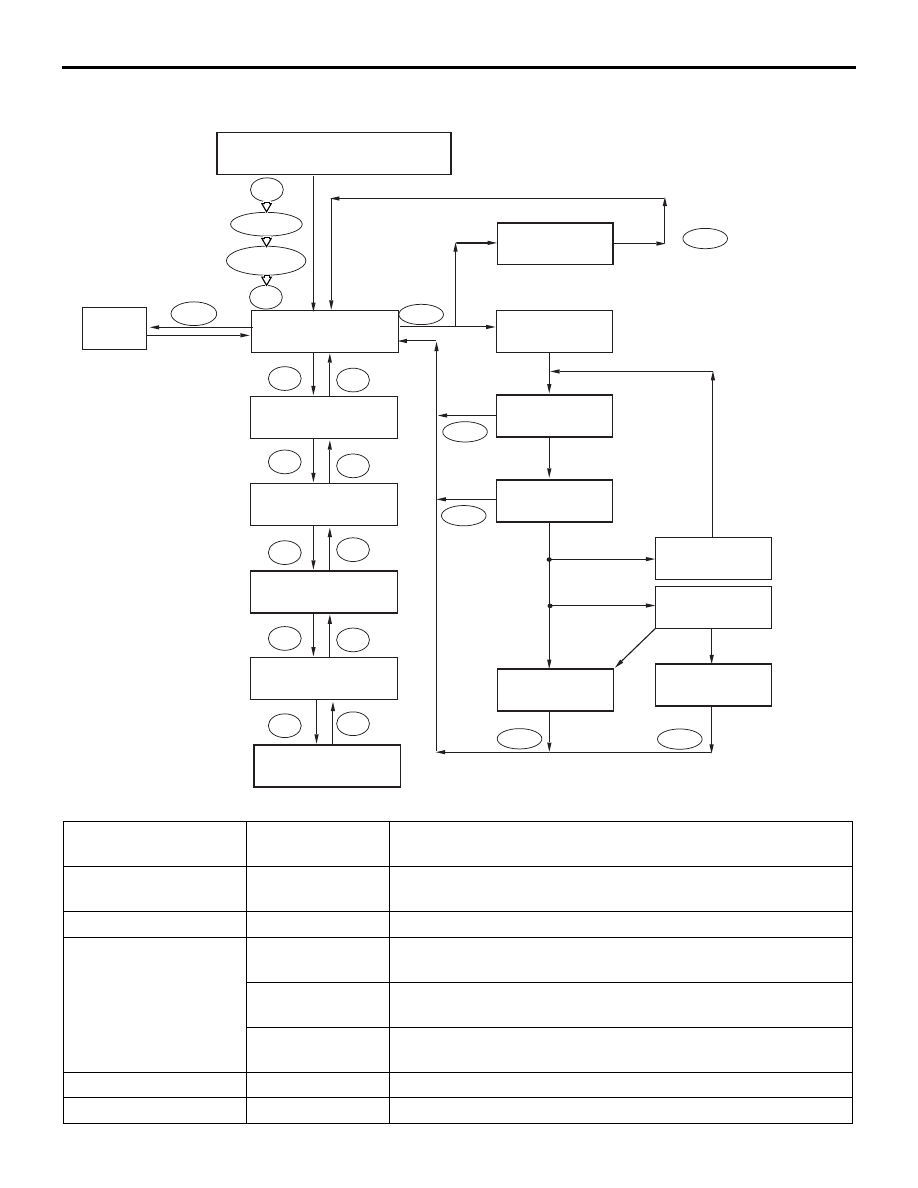

3. "HFM DIAG" is displayed.

AC904648

Radio and CD player OFF

CH4

CH1

Rewind

Fast-forward

DISP

UNLOCK

3 seconds

HFM DIAG

H/W Ver.

S/W Ver.

CH4

CH4

CH4

CH4

CH4

CH3

CH3

CH3

CH3

CH3

HFM UPDATE

CODE_

CODEXXXX

UPDATE XX%

UPDATE FAIL

CODE WRONG

NO FILE

PAGE

NG

OK

3 seconds

PAGE

PAGE

3 seconds

PAGE

3 seconds
      or

PAGE

Code OK

Code NG

PAGE

AE

Microphone check
result

Part Number

Self-check Result

ECU
Malfunction

Abnormal
End

UPDATE
COMPLETE

3 seconds

HANDS FREE ECU

CHASSIS ELECTRICAL

54A-255

Description in the
illustrations

Actual display

Condition

UNLOCK

UNLOCK

Four-digit password, which has been set by the security
function, will be erased.

HFM DIAG

HFM DIAG

Displayed when the diagnosis mode is being entered.

Result of microphone
check

MIC Short

Displayed when the line between the microphone and the
hands free-ECU is short-circuited.

MIC Open

Displayed when the line between the microphone and the
hands free-ECU is open-circuited.

MIC OK

Normal status (the line between the microphone and the
hands free-ECU is not open/short-circuited)

Part number

PN XXXXXXXX

Eight-digit part number is displayed.

H/W Ver.

H/W XX

Two-digit hardware version is displayed.

HANDS FREE ECU

CHASSIS ELECTRICAL

54A-256

DIAGNOSIS MODE <VEHICLES WITH DISPLAY AUDIO>

M1544404800429

As a diagnosis mode for the hands free-ECU, ver-
sion information of the hands free-ECU and diagnos-
tic results of the hands free-ECU and the microphone
unit can be displayed by the service mode of the
radio and CD player.

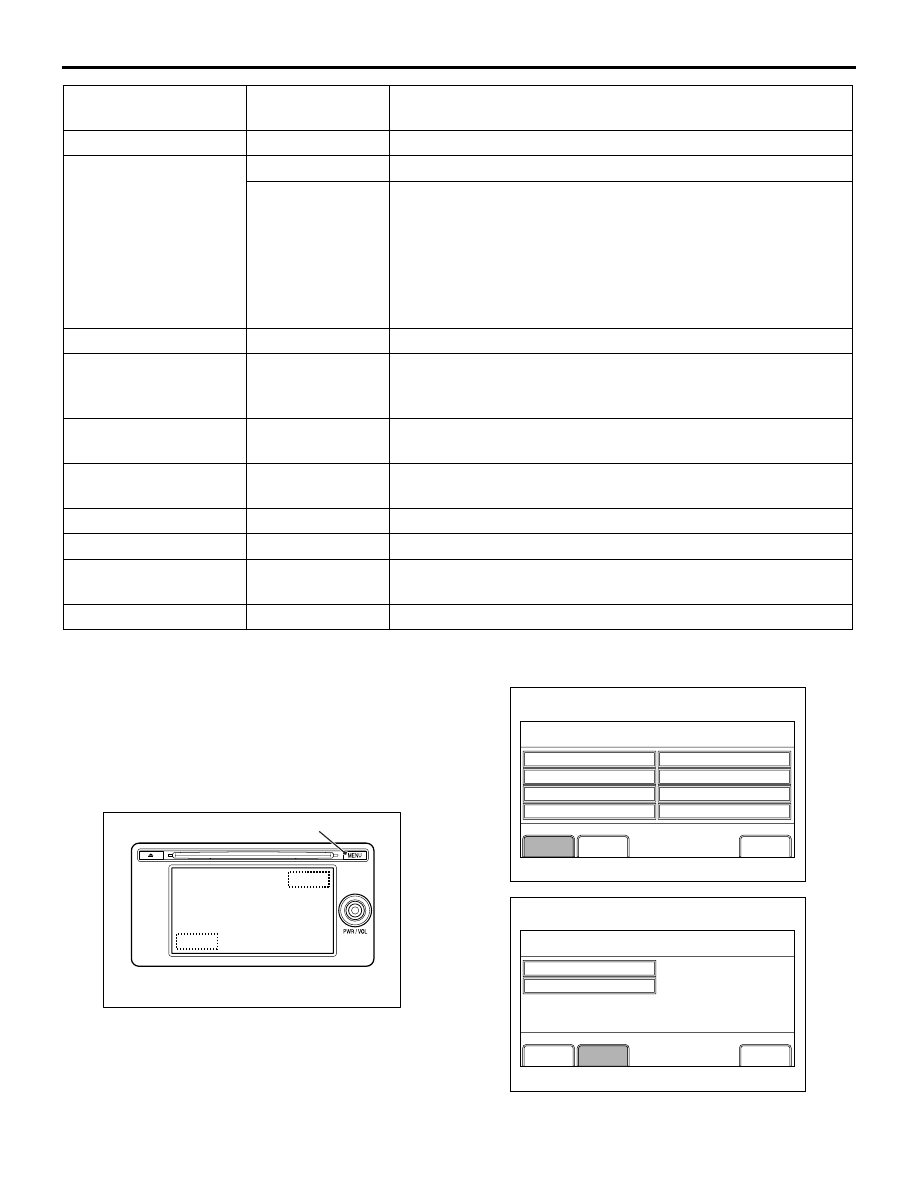

HOW TO INITIATE THE SERVICE MODE

ACC00328

AB

MENU button

A

B

1. While pressing the "MENU" button, press "A"

portion (shown in the illustration) on the display
briefly. Then press "B" portion for at least two
seconds.

Unit Diagnosis

Versions Indication

Monitor Adjustment

Serial Number Information

System Language Setting

Hands Free Module

Vehicle Setting

Memory Initialization

Back

Next

Previous

12:00

Service

ACC00176

Service Data Log

CAN Comm Confirmation

Back

Next

Previous

12:00

Service

ACC00177

2. The service mode will be initiated. Then "Service"

screen will be displayed.

S/W Ver.

S/W XXXXXXX

Seven-digit software version is displayed.

Self-check result

HFM OK

Displayed when the hands free-ECU is not defective.

HFM Error

Displayed when the hands free-ECU is suspected to be
defective.

NOTE: Turn the ignition switch to the "OFF" position once
when "ERROR" is displayed. Enter the diagnosis mode by
turning the ignition switch to the "ON" position again. If the
self-check result shows "ERROR" again, the hands free-ECU
is determined to be defective.

NO FILE

NO file

A USB device stores no data.

HFM UPDATE

HFM Update

Displayed when the hands free-ECU update file is found, at
the transition to the hands free-ECU update mode, in the USB
memory that is connected to the USB adapter.

CODE_

CODE_

Input four-digit code for update. Use the "CH" button when a
code is input.

CODE XXXX

Code XXXX

XXXX after Code shows the numbers from 1 to 6,
corresponding to the buttons "CH1" to "CH6".

CODE WRONG

Code wrong

The code, which has been input, is wrong.

UPDATING XX%

Updating XX%

Displayed when updating is carried out.

UPDATING
COMPLETE

Update complete

The updating mode is complete.

UPDATE FAIL

Update fail

Displayed when the update of the hands free-ECU fails.

Description in the
illustrations

Actual display

Condition
