Mitsubishi Outlander (2013+). Manual - part 679





COLUMN SWITCH

CHASSIS ELECTRICAL

54A-201

COLUMN SWITCH

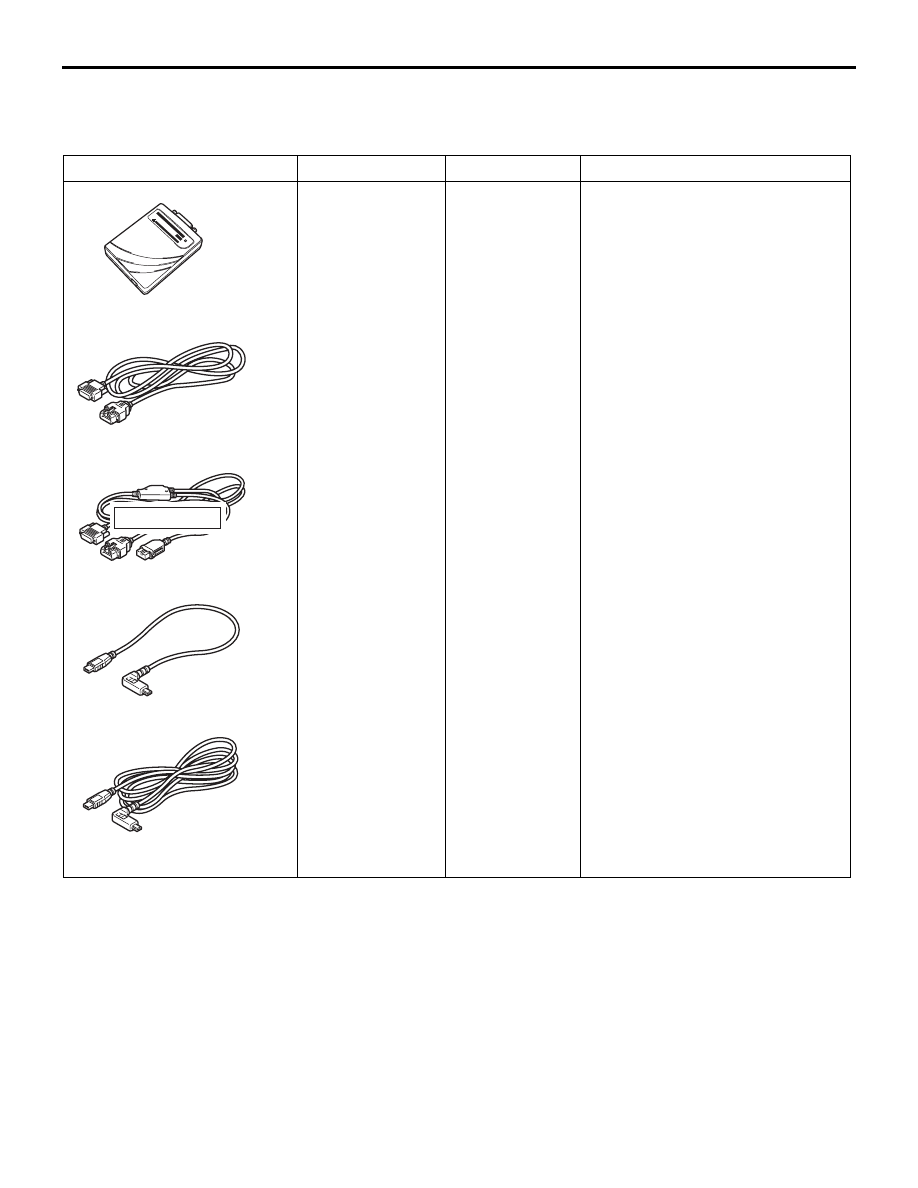

SPECIAL TOOLS

M1543100200346

Tool

Number

Name

Use

ACB05421

MB992745

MB992746

MB992744

MB992747

MB992748

a

b

c

d

e

DO NOT USE

AB

a. MB992744
b. MB992745
c. MB992746
d. MB992747
e. MB992748

a. Vehicle

communicatio

interface-Lite
(V.C.I.-Lite)

b. V.C.I.-Lite

main harness
A (for vehicles
with CAN
communicatio
n)

c. V.C.I.-Lite

main harness
B (for vehicles
without CAN
communicatio
n)

d. V.C.I.-Lite

USB cable
short

e. V.C.I.-Lite

USB cable
long

Diagnosis code, service data and
actuator test check.

MB991910

MB991826

MB991955

MB991911

MB991824

MB991827

MB991825

a

b

c

d

e

f

DO NOT USE

COLUMN SWITCH

CHASSIS ELECTRICAL

54A-202

MB991955

a. MB991824
b. MB991827
c. MB991910
d. MB991911
e. MB991825
f. MB991826

M.U.T.-III
sub-assembly

a. Vehicle

Communicati
on Interface
(V.C.I.)

b. M.U.T.-III

USB cable

c. M.U.T.-III

main harness
A (Vehicles
with CAN
communicatio
n system)

d. M.U.T.-III

main harness
B (Vehicles
without CAN
communicatio
n system)

e. M.U.T.-III

measure
adapter

f. M.U.T.-III

trigger
harness

CAUTION

For vehicles with CAN
communication, use M.U.T.-III
main harness A to send
simulated vehicle speed. If you
connect M.U.T.-III main harness B
instead, the CAN communication
does not function correctly.
Diagnosis code, service data and
actuator test check.

MB991223

a

d

c

b

DO NOT USE

BA

MB991223

a. MB991219
b. MB991220
c. MB991221
d. MB991222

Harness set

a. Check

harness

b. LED harness
c. LED harness

adapter

d. Probe

Continuity check and voltage
measurement at harness wire or
connector

a. For checking connector pin

contact pressure

b. For checking power supply

circuit

c. For checking power supply

circuit

d. For connecting a locally sourced

tester

Tool

Number

Name

Use

MB992006

COLUMN SWITCH

CHASSIS ELECTRICAL

54A-203

TROUBLESHOOTING

STANDARD FLOW OF DIAGNOSTIC
TROUBLESHOOTING

M1543101200134

Refer to GROUP 00

− Contents of troubleshooting .

DIAGNOSIS FUNCTION

M1543101300119

HOW TO READ DIAGNOSIS CODE

GROUP 00

− Diagnosis function .

HOW TO ERASE DIAGNOSIS CODE

GROUP 00

− Diagnosis function .

DIAGNOSIS CODE TABLE

M1543100300387

NOTE: The ETACS-ECU sets a diagnosis code.

Diagnosis code No.

Diagnostic item

Reference page

B2350

Lighting switch malfunction

P.54A-203

B2351

Wiper/washer switch malfunction

DIAGNOSIS CODE PROCEDURES

Code No.B2350 Lighting switch malfunction



Code No.B2351 Wiper/washer switch malfunction

CAUTION

• Before replacing the ECU, ensure that the

power supply circuit, the earth circuit and the
communication circuit are normal.

• When the ETACS-ECU of vehicles without

KOS is replaced, the encrypted code of the
ignition key needs to be registered to the
ETACS-ECU. (If the encrypted code is not reg-
istered, the engine cannot be started. Regis-
ter the encrypted code as described in
Immobilizer System

 How to Register Key ID

P.54A-33

.)

TROUBLE JUDGEMENT

The ETACS-ECU receives the signals related to
lighting and wiper/washer from the column switch. If
the fail information data is included in the signal from
column switch, the diagnosis code No. B2350 (light-
ing switch) or B2351 (wiper/washer switch) is stored.

COMMENTS ON TROUBLE SYMPTOM

The lighting switch, wiper/washer switch or the
ETACS-ECU may have a problem.

PROBABLE CAUSES

• Malfunction of lighting switch (with built-in col-

umn-ECU)

• Malfunction of wiper/washer switch

• Malfunction of the ETACS-ECU

DIAGNOSIS PROCEDURE

STEP 1. Check whether the diagnosis code is
reset.
Check again if the diagnosis code is set to the
ETACS-ECU.
(1) Erase the diagnosis code.
(2) Turn the ignition switch from "LOCK" (OFF)

position to "ON" position.

(3) Check if the diagnosis code No. B2350 or B2351

is set.

Q: Is the diagnosis code set?

MB992006

Extra fine probe

Continuity check and voltage
measurement at harness wire or
connector

Tool

Number

Name

Use

COLUMN SWITCH

CHASSIS ELECTRICAL

54A-204

Code No. B2351 is set. :

Go to Step 2.

Code No. B2350 is set. :

Go to Step 3.

No diagnosis code is set. :

The trouble can be an

intermittent malfunction (GROUP 00

− How

to Cope with Intermittent Malfunction ).

STEP 2. Check whether the diagnosis code is
reset.
Check again if the diagnosis code is set to the
ETACS-ECU.
(1) Replace the wiper/washer switch.
(2) Erase the diagnosis code.
(3) Turn the ignition switch from "LOCK" (OFF)

position to "ON" position.

(4) Check if diagnosis code is set.

Q: Is the diagnosis code set?

YES :

Go to Step 3.

NO :

The diagnosis is complete.

STEP 3. Check whether the diagnosis code is
reset.
Check again if the diagnosis code is set to the
ETACS-ECU.
(1) Replace the lighting switch (with built-in

column-ECU).

(2) Erase the diagnosis code.
(3) Turn the ignition switch from "LOCK" (OFF)

position to "ON" position.

(4) Check if diagnosis code is set.

Q: Is the diagnosis code set?

YES :

Replace the ETACS-ECU.

NO :

The diagnosis is complete.

COLUMN SWITCH

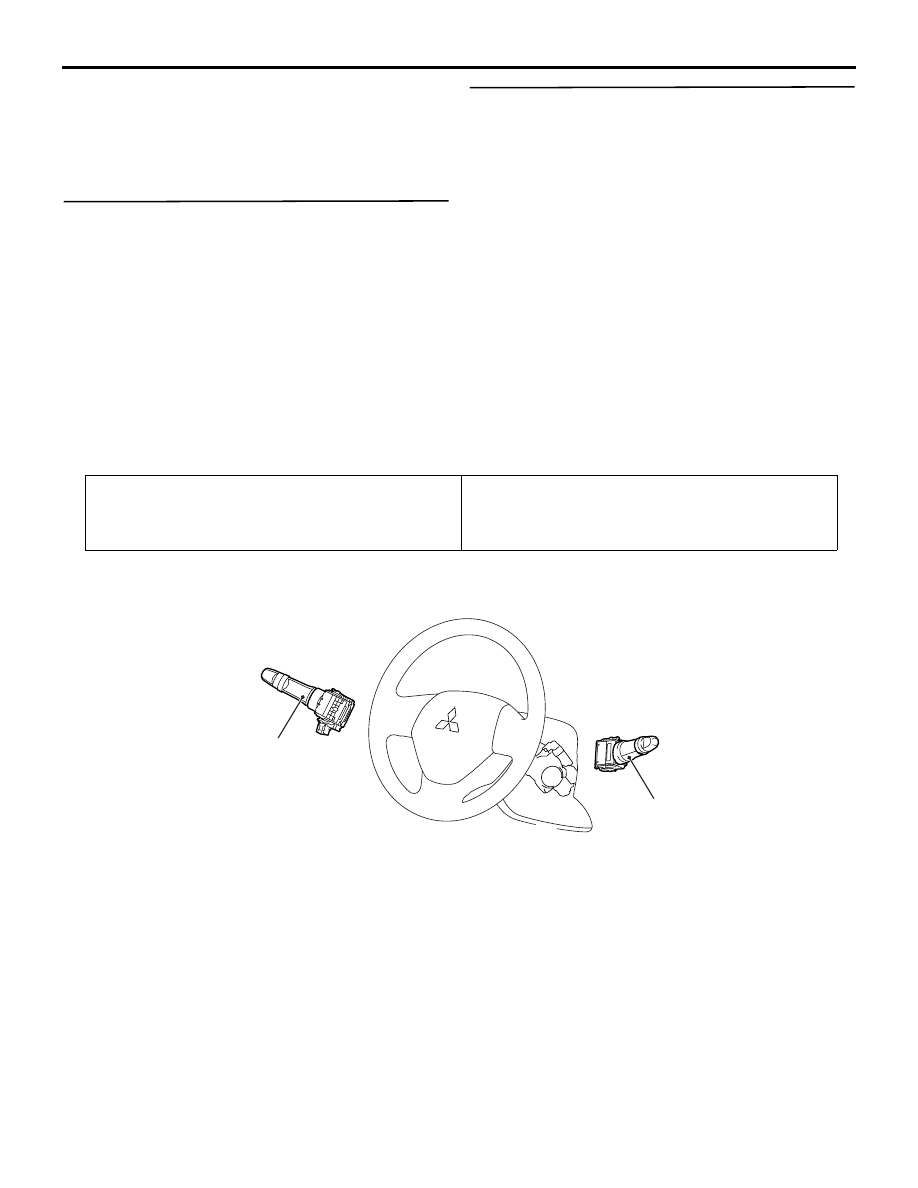

REMOVAL AND INSTALLATION

M1543100700761

LIGHTING SWITCH, WIPER/WASHER SWITCH

Pre-removal Operation
• Steering Column Lower Cover and Steering Column

Upper Cover Removal (Refer to GROUP 37

− Steering

Shaft ).

Post-installation Operation
• Steering Column Lower Cover and Steering Column

Upper Cover Installation (Refer to GROUP 37

− Steering

Shaft ).

ACB05748

AB

1

2

Removal steps

1.

Lighting switch (with built-in
column-ECU)

2.

Wiper/washer switch
