FOG LAMP

CHASSIS ELECTRICAL

54A-153

• Tail lamp switch

• Headlamp switch

• Fog lamp switch

• Option coding information

COMMENTS ON TROUBLE SYMPTOM

When the rear fog lamps do not illuminate normally,
the mentioned input signal circuit(s) or ETACS-ECU
may be defective.

PROBABLE CAUSES

• Malfunction of column switch

• Malfunction of the ETACS-ECU

• Damaged harness wires and connectors

DIAGNOSIS PROCEDURE

STEP 1. ETACS-ECU coding data check
(1) Operate the M.U.T.-III to read the ETACS-ECU

option coding information (Refer to GROUP 00

−

Coding List ).

(2) Check that the "Rear fog lamp" is set to

"Present."

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Operate the M.U.T.-III to set the option
coding "Rear fog lamp" to "Present," and
check the trouble symptom.

STEP 2. Check the operation of the position
lamps and the headlamps.
Check that the position lamps and the headlamps
illuminate normally.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Check the position lamps and the
headlamps (Refer to trouble symptom chart

P.54A-96

).

STEP 3. M.U.T.-III diagnosis code
Check if diagnosis code is set to the ETACS-ECU.

Q: Is the diagnosis code set?

YES :

Troubleshoot the ETACS-ECU. Refer to

P.54A-281

.

NO :

Go to Step 4.

STEP 4. M.U.T.-III data list
Use the ETACS-ECU service data to check the sig-
nal related to the operation of rear fog lamp function.

•

Item No.

Item name

Normal
condition

Item 345

Fog lamp ON

ON

Turn the fog lamp switch to ON.

OK: Normal condition is displayed.

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Troubleshoot the ETACS-ECU. Refer to
Inspection Procedure 11 "The column
switch signal is not received"

P.54A-321

.

STEP 5. Check the bulb of the rear fog lamp
Check the bulb of the defective lamp.

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Replace the bulb of the defective lamp.

STEP 6. Resistance measurement at the rear fog
lamp connector (earth terminal).
(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Measure the resistance between the rear fog

lamp connector (earth terminal) and body earth.

OK: Continuity exists (2

Ω or less)

Q: Is the check result normal?

YES :

Go to Step 8.

NO :

Go to Step 7.

STEP 7. Check of open circuit in earth line
between the rear fog lamp connector and body
earth.

Q: Is the check result normal?

YES :

Go to Step 8.

NO :

Repair the connector(s) or wiring harness.

STEP 8. Check of open circuit in RFOG line
between the rear fog lamp connector and
ETACS-ECU connector.

Q: Is the check result normal?

YES :

Go to Step 9.

NO :

Repair the connector(s) or wiring harness.

STEP 9. Retest the system
Check that the rear fog lamp illuminate normally.

Q: Is the check result normal?

FOG LAMP

CHASSIS ELECTRICAL

54A-154

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction ).

NO :

Replace the ETACS-ECU.

Inspection Procedure 5: The rear fog lamp indicator does not illuminate normally.

CAUTION

• Before replacing the ECU, ensure that the

power supply circuit, the earth circuit and the
communication circuit are normal.

• When the ETACS-ECU of vehicles without

KOS is replaced, the encrypted code of the
ignition key needs to be registered to the
ETACS-ECU. (If the encrypted code is not reg-
istered, the engine cannot be started. Regis-
ter the encrypted code as described in
Immobilizer System

− How to Register Key ID

P.54A-33

.)

COMMENTS ON TROUBLE SYMPTOM

If the rear fog lamp indicator does not illuminate nor-
mally, connector(s), wiring harness in the CAN bus
lines, the ETACS-ECU or the combination meter may
be defective.

PROBABLE CAUSES

• Malfunction of the ETACS-ECU

• Malfunction of the combination meter

• Damaged harness wires and connectors

DIAGNOSIS PROCEDURE

STEP 1. Check the rear fog lamp
When the rear fog lamp switch is operated, check
that the rear fog lamps illuminate/go off normally.

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

First, repair the rear fog lamp (Refer to
trouble symptom chart

P.54A-149

).

STEP 2. M.U.T.-III CAN bus diagnostics
Use the M.U.T.-III to diagnose the CAN bus lines.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Repair the CAN bus line (Refer to GROUP
54C

− Troubleshooting ).

STEP 3. M.U.T.-III diagnosis code
Check if diagnosis code is set to the ETACS-ECU.

Q: Is the diagnosis code set?

YES :

Troubleshoot the ETACS-ECU. Refer to

P.54A-281

.

NO :

Go to Step 4.

STEP 4. M.U.T.-III other system special function
Using M.U.T.-III, select "Test" from the special func-
tion of the combination meter. Execute the following
item to check the rear fog lamp indicator. (Refer to
Combination Meter

P.54A-64

)

• Item 5: Illumination (AUTO)

• Item 6: Indicator (AUTO)

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Troubleshoot the combination meter. Refer
to

P.54A-53

.

STEP 5. Retest the system
Check that the rear fog lamp indicator illuminate nor-
mally.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction ).

NO :

Replace the ETACS-ECU.

FOG LAMP

CHASSIS ELECTRICAL

54A-155

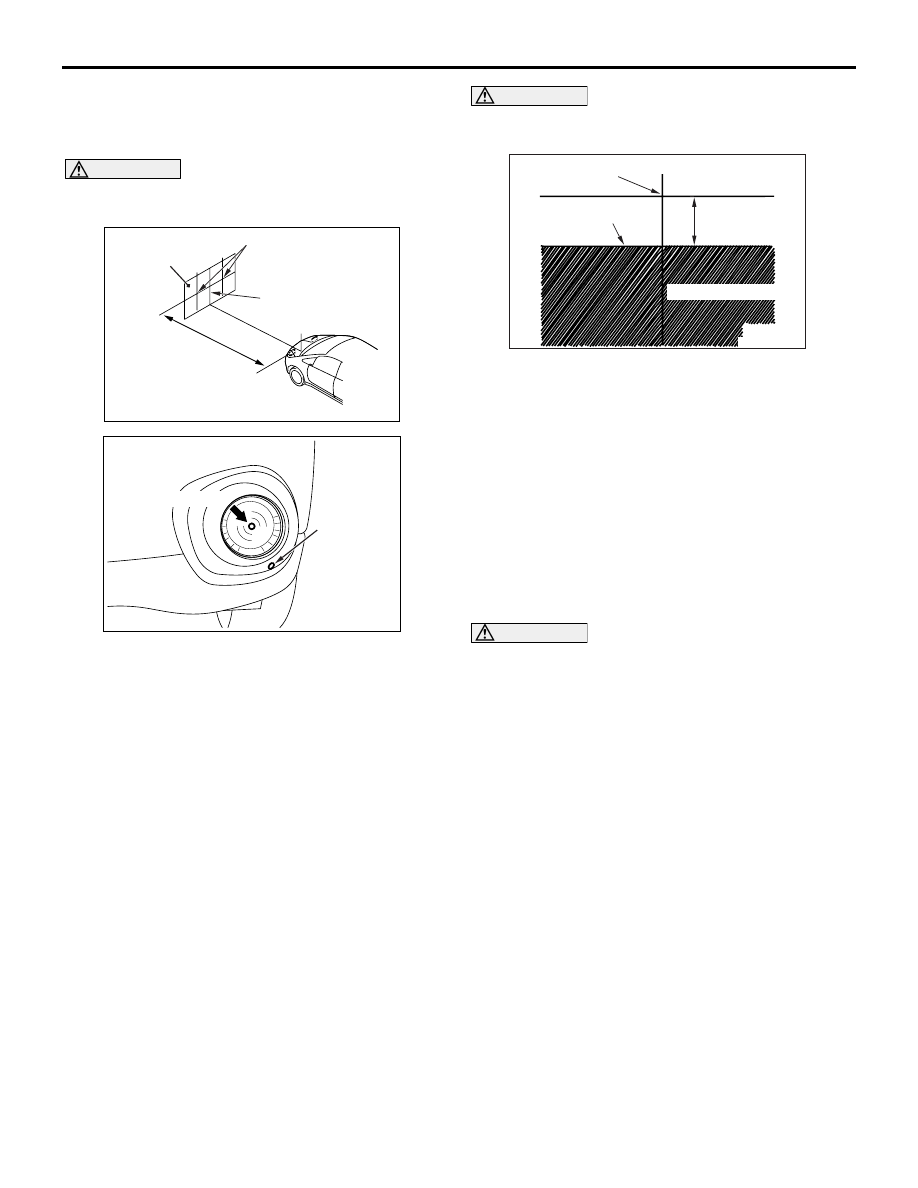

ON-VEHICLE SERVICE

FRONT FOG LAMP AIMING

M1540400300806

CAUTION

When marking the aiming adjustment, be sure to
mask those lamps which are not being adjusted.

AC804645

AB

Screen

3 m

Fog lamp centre

Vehicle centre line

ACB05774 AB

Lamp centre

Service hole

1. Measure the centre of the front fog lamps, as

shown in the illustration.

2. Set the distance between the screen and the

centre of the front fog lamps as shown in the
illustration.

3. Inflate the types to the specified pressures and

there should be no other load in the vehicles other
than driver or substituted weight of approximately
75 kg placed in the driver’s position.

4. With the engine running at 2,000 r/min, aim the

front fog lamp.

5. Insert a Phillips screwdriver into the service hole

and place it on the adjusting screw.

CAUTION

Be sure to adjust the aiming adjustment screw in
the tightening direction.

AC312871AB

Vertical direction

V

H

Lamp centre

Cut off line

High intensity zone

6. Adjust the cut off line (boundary between light and

dark) position to the standard value with the
adjusting screw.

Standard value:
Vertical direction; 60 mm (1.15

°) below hori-

zontal (H)

Limit:
Vertical direction; 39 mm (0.75

°) to 89 mm

(1.7

°) below the horizontal (H)

NOTE: The horizontal direction is non-adjustable.

REPLACE THE FRONT FOG LAMP BULB

M1540400400803

CAUTION

Don't touch the bulb surface with bare hands or
dirty gloves. If the bulb surface (glass part) gets
dirty, clean it with alcohol or thinner immediately
and dry well, and then install it.
For the replacement procedures, refer to

P.54A-156

.

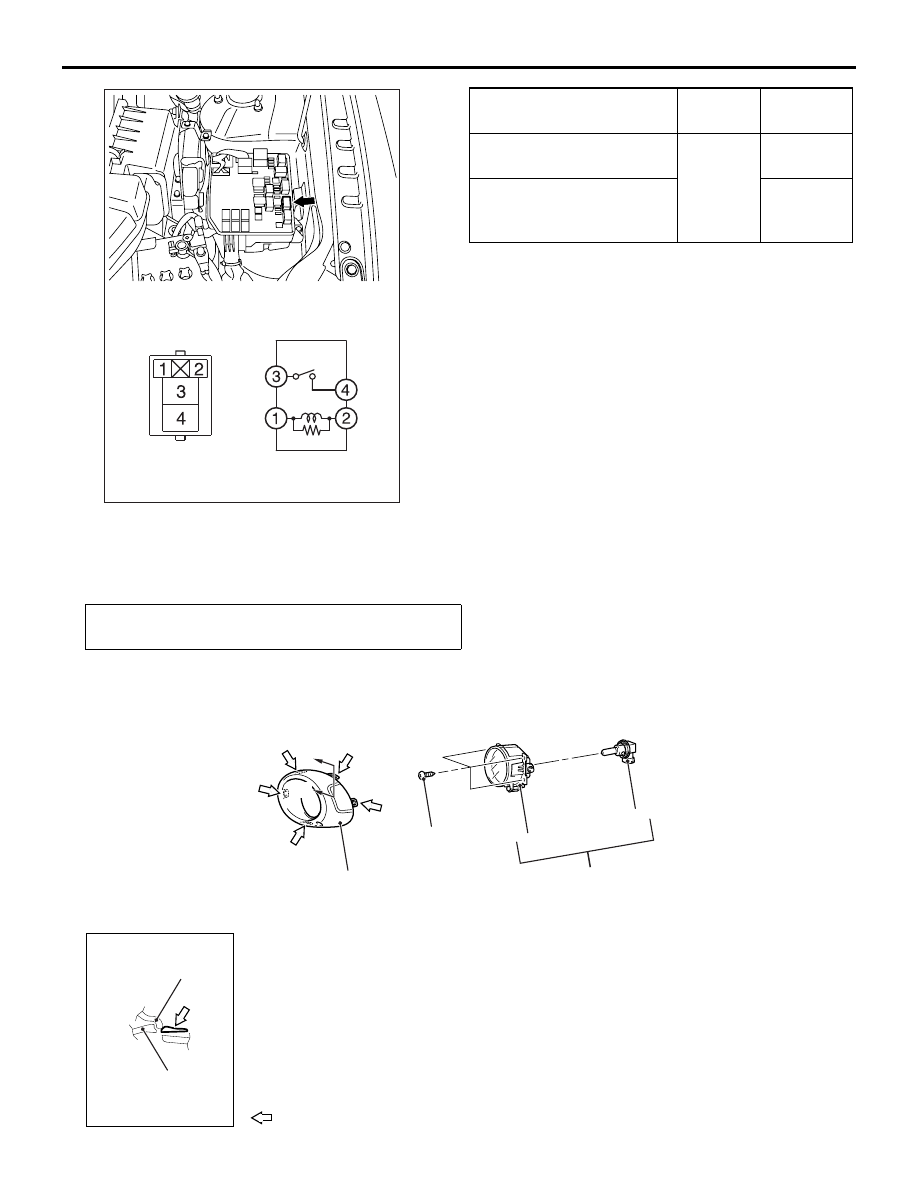

FRONT FOG LAMP RELAY CHECK

M1540402800227

ACB05794

ACB04408

AB

Battery voltage

Terminal
number

Normal
condition

At no energisation

3

− 4

No
continuity

With current supply
[terminal 1 (+), terminal 2
(

−)]

Continuity
exists (2

Ω

or less)

FOG LAMP

CHASSIS ELECTRICAL

54A-156

FOG LAMP

REMOVAL AND INSTALLATION

M1540402600557

FRONT FOG LAMP

Post-installation Operation
• Front Fog Lamp Aiming Adjustment (Refer to

P.54A-155

).

ACB05648

ACB05839

1.2 ± 0.7 N·m

1

4

3

2

AB

Section A – A

1

Front bumper

A

NOTE
       : Claw positions

A
