Mitsubishi Outlander (2013+). Manual - part 662





HEADLAMP AUTOMATIC LEVELLING SYSTEM

CHASSIS ELECTRICAL

54A-133

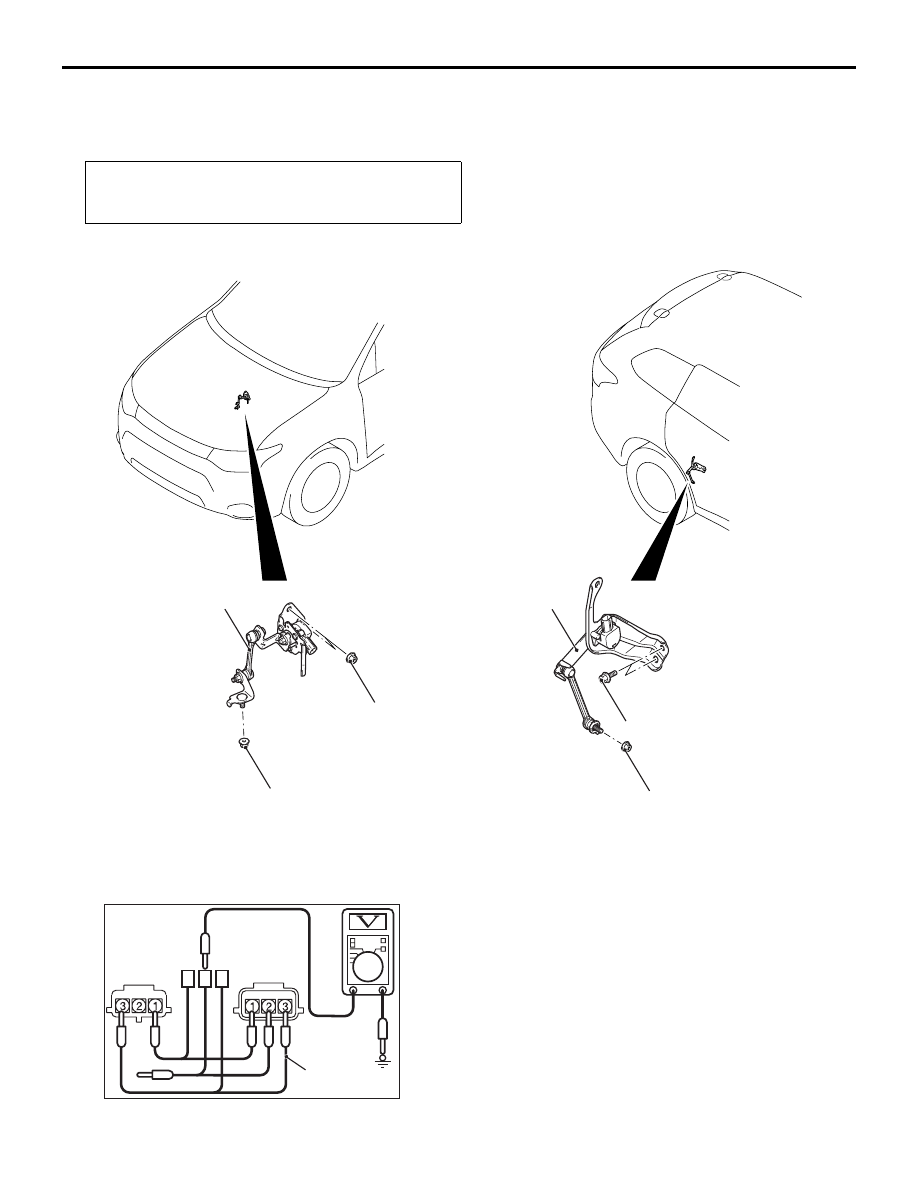

HEIGHT SENSOR

REMOVAL AND INSTALLATION

M1540302700427

Post-installation operation
• Initialisation of ETACS-ECU (Refer to

P.54A-131

).

• Headlamp Aiming Adjustment (Refer to

P.54A-111

).

ACB05682 AB

12 ± 3 N·m

9.5 ± 2.5 N·m

9.5 ± 2.5 N·m

Rear height sensor

Front height sensor

12 ± 3 N·m

HEIGHT SENSOR CHECK

M1540302600323

FRONT HEIGHT SENSOR CHECK

AC809168

Harness
side

Sensor side

AB

MB991658

1. Disconnect the sensor connector and connect

special tool test harness (MB991658) as shown.

2. Turn the ignition switch to the "ON" position.

3. Measure the voltage of sensor connector terminal

No. 2.

AC507192

4.5

2.5

0.5

60 45 30 15

0

15

30

45

60

Operation angle of sensor (degree)

50 degrees

AB

(-) angle

(+) angle

45.8 degrees

Voltage (V)

Base point line
of sensor
(0 degree point)

HEADLAMP AUTOMATIC LEVELLING SYSTEM

CHASSIS ELECTRICAL

54A-134

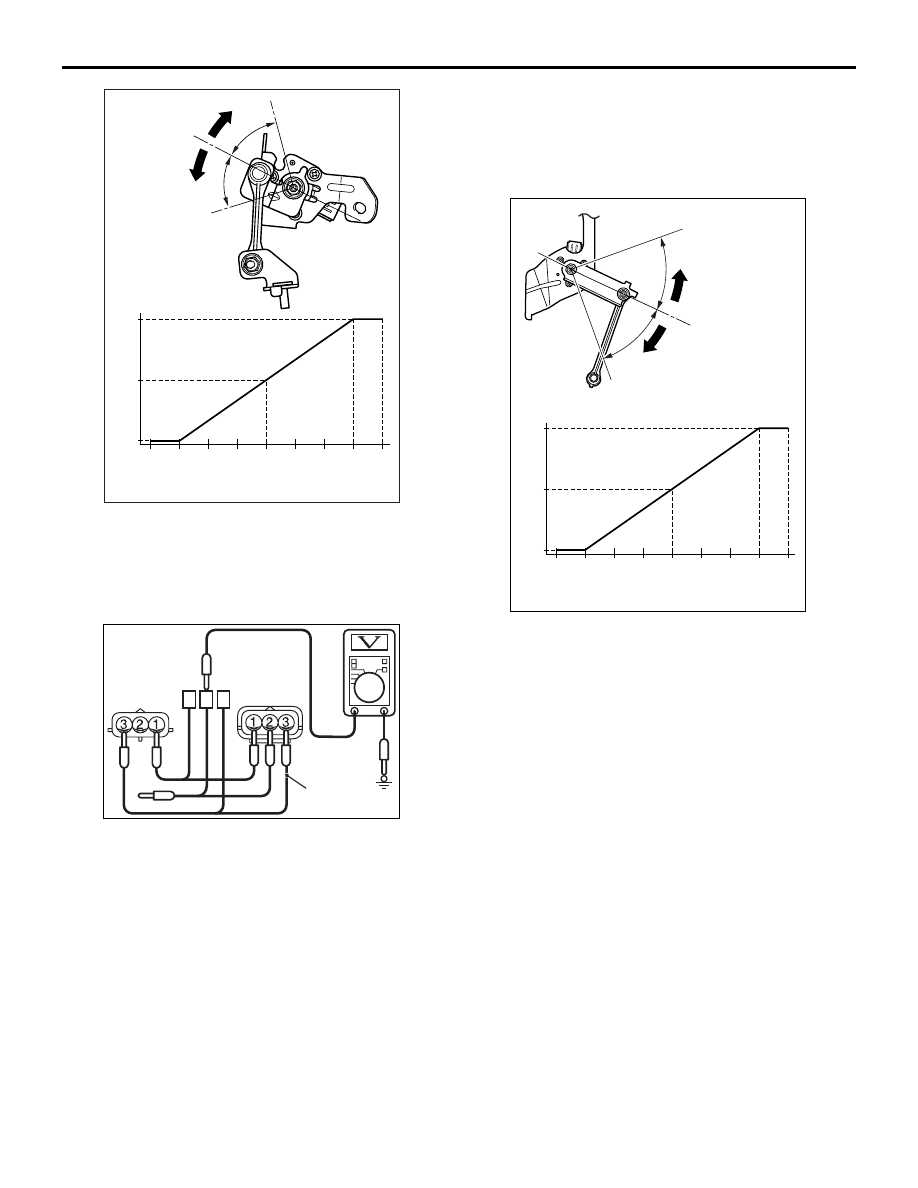

4. Check that voltages show the values described in

the graph according to the sensor operation
angle.

REAR HEIGHT SENSOR CHECK

ACB05768

Harness
side

Sensor side

AB

MB991658

1. Disconnect the sensor connector and connect

special tool test harness (MB991658) as shown.

2. Turn the ignition switch to the "ON" position.

3. Measure the voltage of sensor connector terminal

No. 2.

ACB05771

4.5

2.5

0.5

60 45 30 15

0

15

30

45

60

45.0 degrees

AB

(-) angle

(+) angle

45.0 degrees

Voltage (V)

Operation angle of sensor (degree)

Base point line
of sensor
(0 degree point)

4. Check that voltages show the values described in

the graph according to the sensor operation
angle.

REAR COMBINATION LAMP

CHASSIS ELECTRICAL

54A-135

REAR COMBINATION LAMP

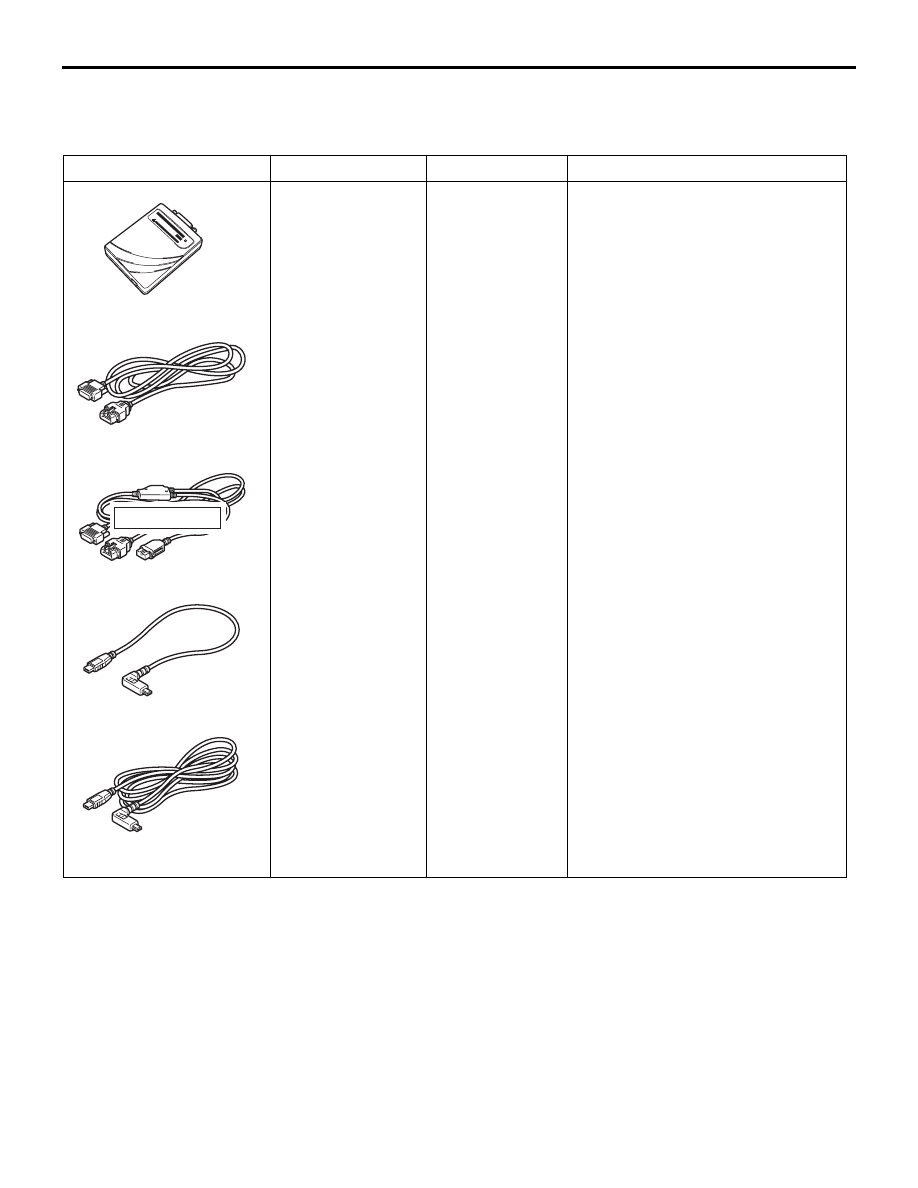

SPECIAL TOOLS

M1541400100344

Tool

Number

Name

Use

ACB05421

MB992745

MB992746

MB992744

MB992747

MB992748

a

b

c

d

e

DO NOT USE

AB

a. MB992744
b. MB992745
c. MB992746
d. MB992747
e. MB992748

a. Vehicle

communication
interface-Lite
(V.C.I.-Lite)

b. V.C.I.-Lite

main harness
A (for vehicles
with CAN
communication
)

c. V.C.I.-Lite

main harness
B (for vehicles
without CAN
communication
)

d. V.C.I.-Lite USB

cable short

e. V.C.I.-Lite USB

cable long

Diagnosis code, service data and
actuator test check.

MB991910

MB991826

MB991955

MB991911

MB991824

MB991827

MB991825

a

b

c

d

e

f

DO NOT USE

REAR COMBINATION LAMP

CHASSIS ELECTRICAL

54A-136

MB991955

a. MB991824
b. MB991827
c. MB991910
d. MB991911
e. MB991825
f. MB991826

M.U.T.-III
sub-assembly

a. Vehicle

Communicatio
n Interface
(V.C.I.)

b. M.U.T.-III USB

cable

c. M.U.T.-III main

harness A
(Vehicles with
CAN
communication
system)

d. M.U.T.-III main

harness B
(Vehicles
without CAN
communication
system)

e. M.U.T.-III

measure
adapter

f. M.U.T.-III

trigger harness

CAUTION

For vehicles with CAN
communication, use M.U.T.-III
main harness A to send simulated
vehicle speed. If you connect
M.U.T.-III main harness B instead,
the CAN communication does not
function correctly.
Diagnosis code, service data and
actuator test check.

MB991223

a

d

c

b

DO NOT USE

BA

MB991223

a. MB991219
b. MB991220
c. MB991221
d. MB991222

Harness set

a. Check harness
b. LED harness
c. LED harness

adapter

d. Probe

Continuity check and voltage
measurement at harness wire or
connector

a. For checking connector pin

contact pressure

b. For checking power supply circuit
c. For checking power supply circuit
d. For connecting a locally sourced

tester

Tool

Number

Name

Use
