Mitsubishi Outlander (2013+). Manual - part 658





HEADLAMP

CHASSIS ELECTRICAL

54A-117

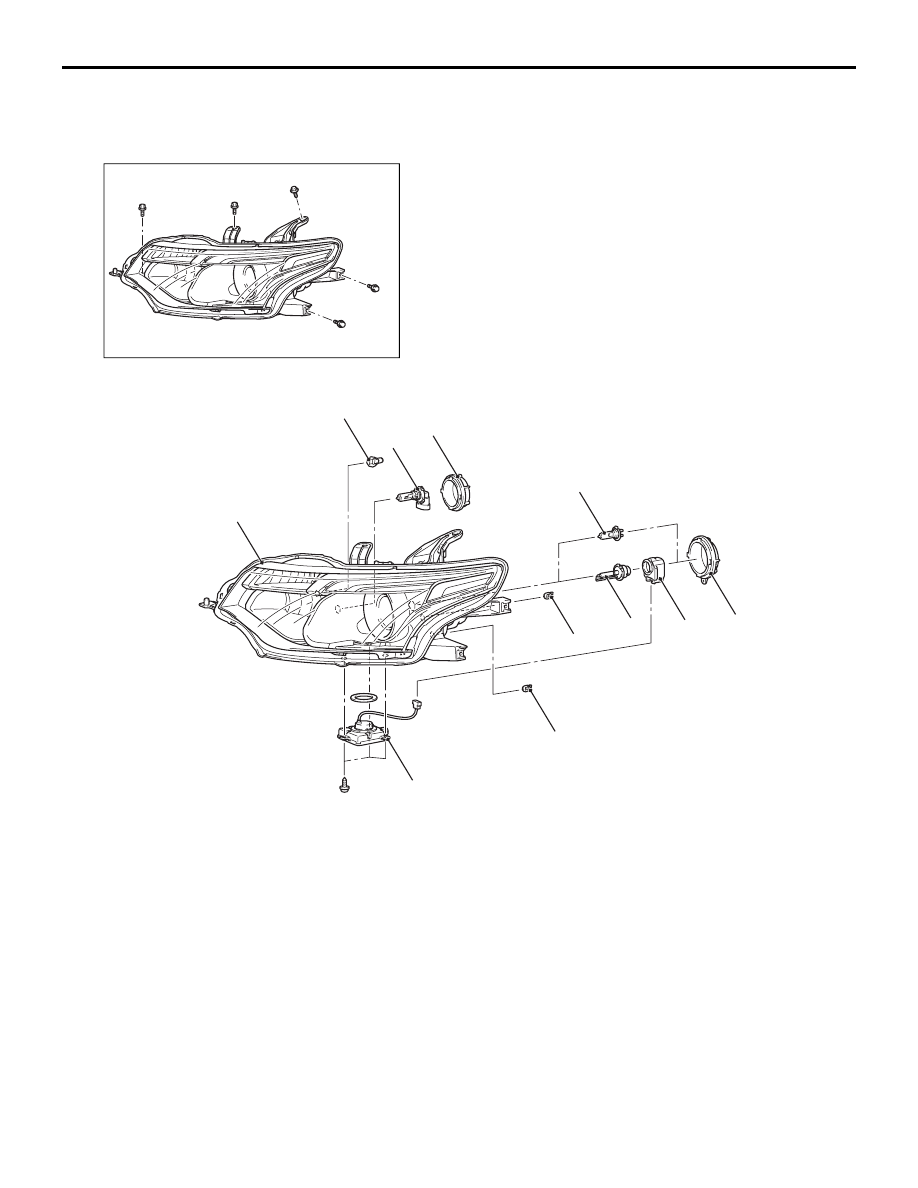

INSTALLATION SERVICE POINT

>>A<< HEADLAMP ASSEMBLY INSTAL-
LATION

ACB05894

1

5

4

3

2

AB

Tighten the mounting screw and bolts to the specified
torque in the order shown.

Tightening torque:

Screw: 1.5

± 0.3 Nm

Bolt: 4.5

± 1.5 Nm

DISASSEMBLY AND REASSEMBLY

M1540104800073

ACB05558AB

9

8

7

5

3

2

1

10

11

4

6

Disassembly steps <Halogen
type>

1.

Front turn-signal lamp bulb

2.

Socket cover



<<

A

>>

3.

Headlamp bulb (high-beam)

5.

Socket cover

6.

Position lamp bulb



<<

A

>>

7.

Headlamp bulb (low-beam)

11. Headlamp body

Disassembly steps <Discharge
type>

1.

Front turn-signal lamp bulb

2.

Socket cover



<<

A

>>

3.

Headlamp bulb (high-beam)

4.

Position lamp bulb

5.

Socket cover



<<

B

>>

8.

Headlamp control unit (socket)



<<

B

>>

9.

Headlamp bulb (low-beam)

10. Headlamp control unit
11. Headlamp body

HEADLAMP

CHASSIS ELECTRICAL

54A-118

DISASSEMBLY SERVICE POINTS

<<A>> HEADLAMP BULB REMOVAL

CAUTION

Do not touch the bulb surface with bare hands or
dirty gloves. If the bulb surface (glass part) gets
dirty, immediately clean it with alcohol or thinner.
After drying completely, install the bulb.

 <<B>> HEADLAMP CONTROL UNIT
(SOCKET) / HEADLAMP BULB REMOVAL

1. Twist the socket anticlockwise to disconnect it

from the bulb.

CAUTION

Do not touch the bulb surface with bare hands or
dirty gloves. If the bulb surface (glass part) gets
dirty, immediately clean it with alcohol or thinner.
After drying completely, install the bulb.

2. Raise the fastener securing the bulb, and then

remove the bulb.

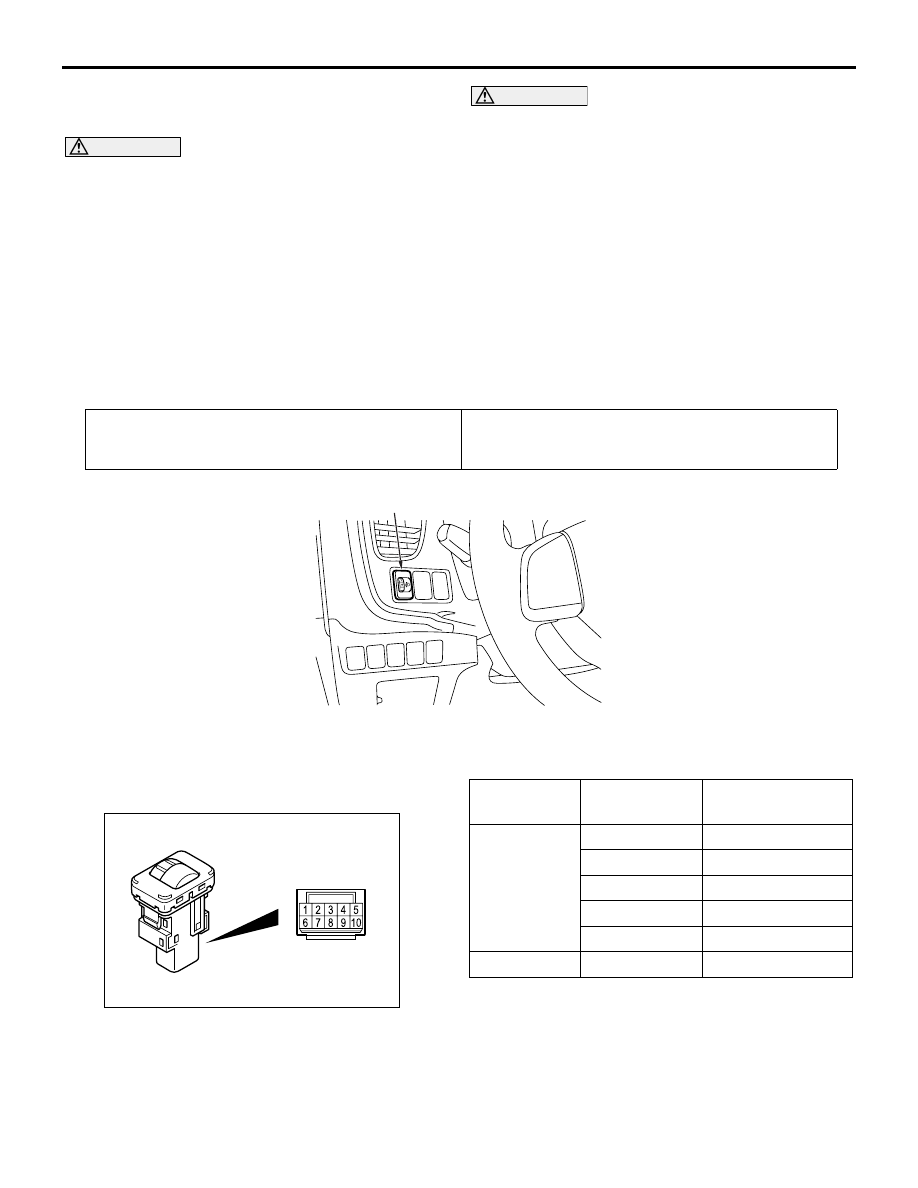

HEADLAMP LEVELLING SWITCH
<VEHICLES WITH HEADLAMP
MANUAL LEVELLING SYSTEM>

REMOVAL AND INSTALLATION

M1540105200267

Pre-removal Operation
• Side Air Outlet Panel Assembly Removal (Refer to

GROUP 52A

− Instrument Panel Assembly ).

Post-installation Operation
• Side Air Outlet Panel Assembly Installation (Refer to

GROUP 52A

− Instrument Panel Assembly ).

ACB05545

AB

Headlamp levelling
switch

HEADLAMP LEVELLING SWITCH CHECK

M1540101300392

ACB05546

Measured
terminals

Switch
position

Resistance

− 9

0

750

1

1, 110

2

1, 470

3

1, 830

4

2, 190

− 10

0, 1, 2, 3, 4

2, 810

HEADLAMP

CHASSIS ELECTRICAL

54A-119

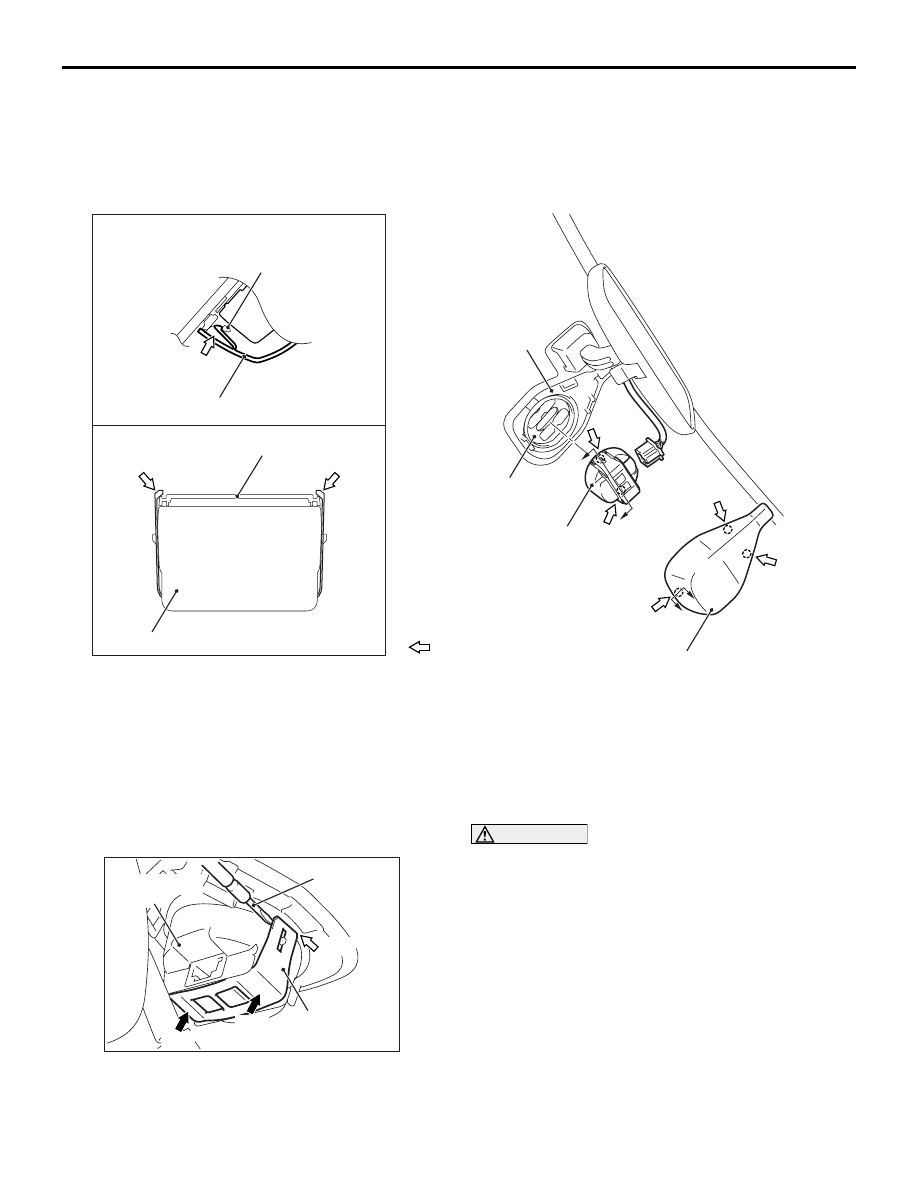

LIGHTING CONTROL SENSOR

REMOVAL AND INSTALLATION

M1540108500290

ACB05899

A

B

NOTE
       : Claw positions

A

B

Section A – A

Section B – B

AB

1

2

Optical coupler

Lighting control sensor
bracket

Optical coupler

Lighting control sensor
bracket

2

1

Removal steps

1.

Lighting control sensor cover

<<

A

>>

>>

A

<<

2.

Lighting control sensor

REMOVAL SERVICE POINT

<<A>> LIGHTING CONTROL SENSOR
REMOVAL

AC700066

Flat-tipped
Screwdriver

AI

Claw

Clamp

Push

Push

Lighting control
sensor

While pushing the clamp to the windshield side, pry
up the clamp to disengage the right and left claws
using the flat-tipped screwdriver, and then remove
the lighting control sensor.

INSTALLATION SERVICE POINT

>>A<< LIGHTING CONTROL SENSOR
INSTALLATION

1. Mount the lighting control sensor onto the optical

coupler, and then connect the connector.

CAUTION

After executing the lighting control sensor (rain
sensor) adaptation, do not touch the lighting
control sensor (or do not move it from the fixed
position).

2. When reusing the lighting control sensor or when

the lighting control sensor is pushed to check the
installation condition, install the connector and the
lighting control sensor cover and wipe the
windshield thoroughly. When the windshield is dry,
execute the lighting control sensor (rain sensor)
adaptation [Refer to GROUP 51

− Lighting Control

Sensor (Rain Sensor) Adaptation ].

HEADLAMP AUTOMATIC LEVELLING SYSTEM

CHASSIS ELECTRICAL

54A-120

NOTE: Be careful not to touch the lighting control
sensor receiver. (The lighting control sensor
receiver has limited resistance to oil).

HEADLAMP AUTOMATIC LEVELLING SYSTEM

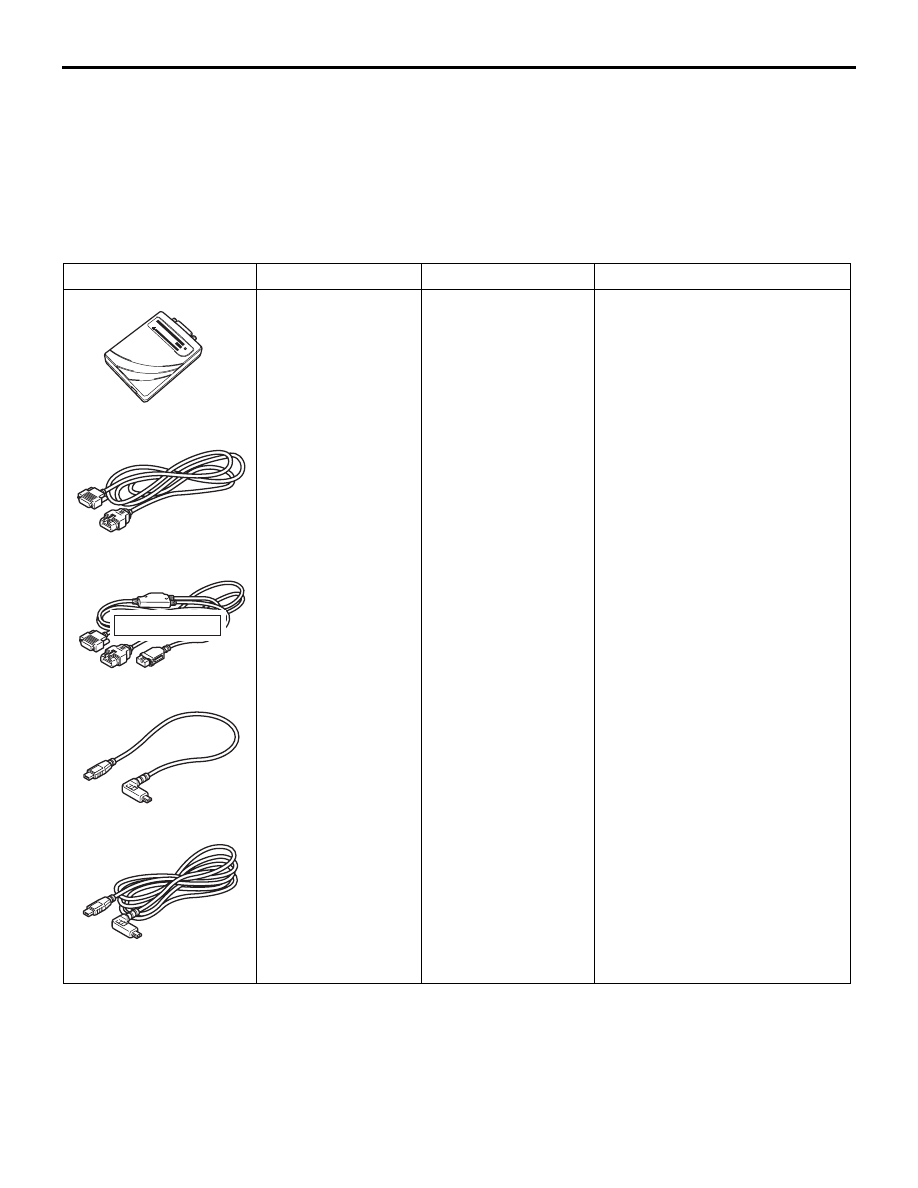

SPECIAL TOOLS

M1540300200318

Tool

Number

Name

Use

ACB05421

MB992745

MB992746

MB992744

MB992747

MB992748

a

b

c

d

e

DO NOT USE

AB

a. MB992744
b. MB992745
c. MB992746
d. MB992747
e. MB992748

a. Vehicle

communication
interface-Lite
(V.C.I.-Lite)

b. V.C.I.-Lite main

harness A (for
vehicles with CAN
communication)

c. V.C.I.-Lite main

harness B (for
vehicles without
CAN
communication)

d. V.C.I.-Lite USB

cable short

e. V.C.I.-Lite USB

cable long

Diagnosis code check.
