COMBINATION METER

CHASSIS ELECTRICAL

54A-81

Schedule table

Schedule

Contents of schedule

Normal

Elapsed time (month)

Every 12 elapsed months

Driving distance (miles)

Every 12,500 miles of driving distance

Driving distance (km)

Every 20,000 km of driving distance

HOW TO INACTIVATE THE SERVICE
REMINDER FUNCTION

By setting to "OFF Display" or "Function OFF" when
the schedule is set, the service reminder function can
be inactivated.

When "OFF Display" is selected

• Even if the service reminder screen is displayed

by operating the meter information switch, "OFF"
is displayed.

When "Function OFF" is selected

• Even when the check warning period is reached,

the service reminder display is not displayed.

• Even with the meter information switch operation,

the service reminder screen is not displayed.

COMBINATION METER

CHASSIS ELECTRICAL

54A-82

COMBINATION METER

REMOVAL AND INSTALLATION

M1540201700513

CAUTION

If the combination meter needs to be replaced, the current driving distance and elapsed days must be
entered into the meter after the replacement in order to be used for service reminder function. There-
fore, read "Integrated mileage for reminder," "Integrated days for reminder," "Mileage until Extra
reminder," "Months until Extra reminder," and "Current schedule" from the meter before the replace-
ment using the special function of M.U.T.-III, and note them. For the operation method of M.U.T.-III,
refer to On-vehicle service

P.54A-76

. If "Integrated mileage for reminder" or "Integrated days for

reminder" cannot be read from the meter using M.U.T.-III, use the following method.

• As for the driving distance for check warning, use the driving distance displayed on the multi

information display.

•

Pre-removal Operation
• Centre Panel Assembly and Side Air Outlet Panel Assem-

bly Removal (Refer to GROUP 52A

− Instrument Panel

Assembly ).

Post-installation Operation
• Centre Panel Assembly and Side Air Outlet Panel Assem-

bly Installation (Refer to GROUP 52A

− Instrument Panel

Assembly ).

ACB05515

ACB05834

1

2

AB

2.5 ± 0.5 N·m

3

NOTE
       : Clip positions
       : Claw positions

Section A – A

Section B – B

A

A

B

B

1, 2

1

Instrument panel

Instrument panel

As for the elapsed days for check warning, calculate the number of elapsed days from the delivery
date to the customer (service reminder function start date) and current date.

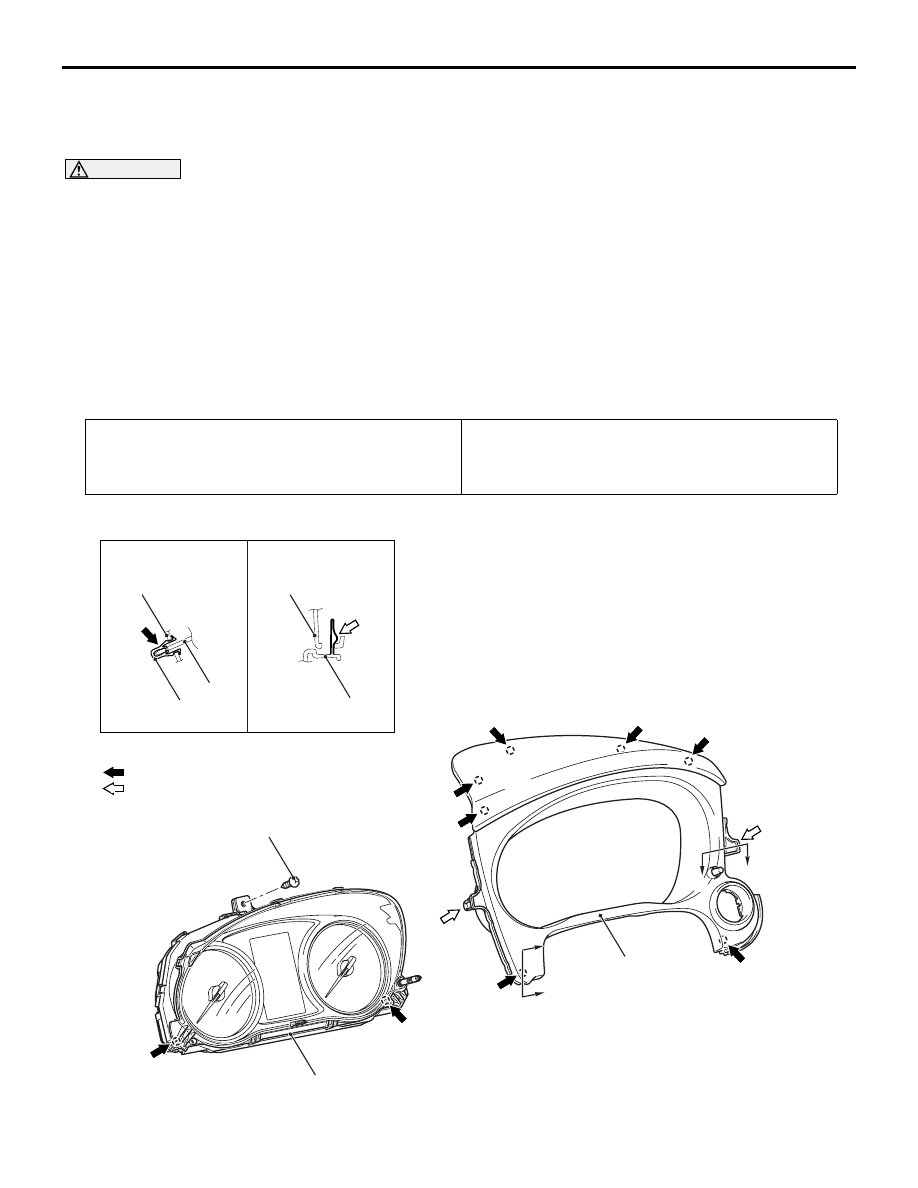

Removal steps

1.

Combination meter bezel

2.

Combination meter assembly

3.

Clip

HEADLAMP

CHASSIS ELECTRICAL

54A-83

METER INFORMATION SWITCH

REMOVAL AND INSTALLATION

M1540213800012

Pre-removal Operation
• Side Air Outlet Panel Assembly Removal (Refer to

GROUP 52A

− Instrument Panel Assembly ).

Post-installation Operation
• Side Air Outlet Panel Assembly Installation (Refer to

GROUP 52A

− Instrument Panel Assembly ).

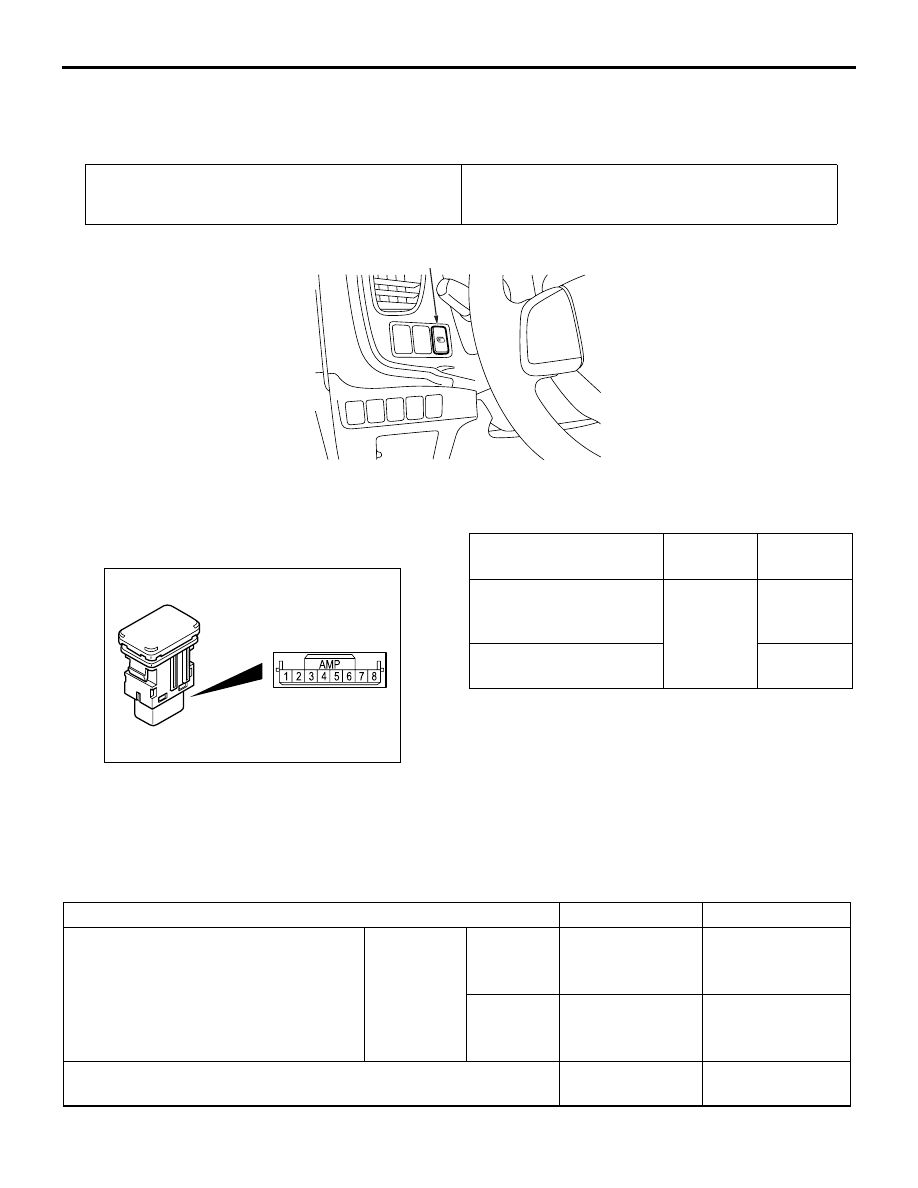

ACB05543

AB

Meter information
switch

METER INFORMATION SWITCH CHECK

M1540202000238

ACB05544

Switch position

Terminal
number

Normal
condition

ON (switch pushed)

3

− 6

Continuity
exists (2

Ω

or less)

OFF (switch released)

No
continuity

HEADLAMP

SERVICE SPECIFICATIONS

M1540100200369

Item

Standard value

Limit

Headlamp aiming

Low-beam

Vertical
direction

36 mm (0.69

°)

below horizontal
(H)

±15 mm (±0.29°)
from the horizontal
cut-off line

Horizontal
direction

Elbow point
intersects the
vertical line (V)

± 26 mm (± 0.5°)
from the vertical
line (V)

Headlamp luminous intensity measurement cd
(When a screen is set 25 m ahead of the vehicle)

−

30,000 cd or more

HEADLAMP

CHASSIS ELECTRICAL

54A-84

PRECAUTIONS ON HOW TO USE THE HEADLAMP ASSEMBLY

Be careful with the following items as resin lenses
are used in the headlamp assembly.

• Don't illuminate the headlamp for three minutes

or more when the headlamp is covered with
scratch protector.

• Don't tape the outer lens.

• Don't scratch the outer lens surface with a sharp

edged special tool.

• Use the specified genuine bulb.

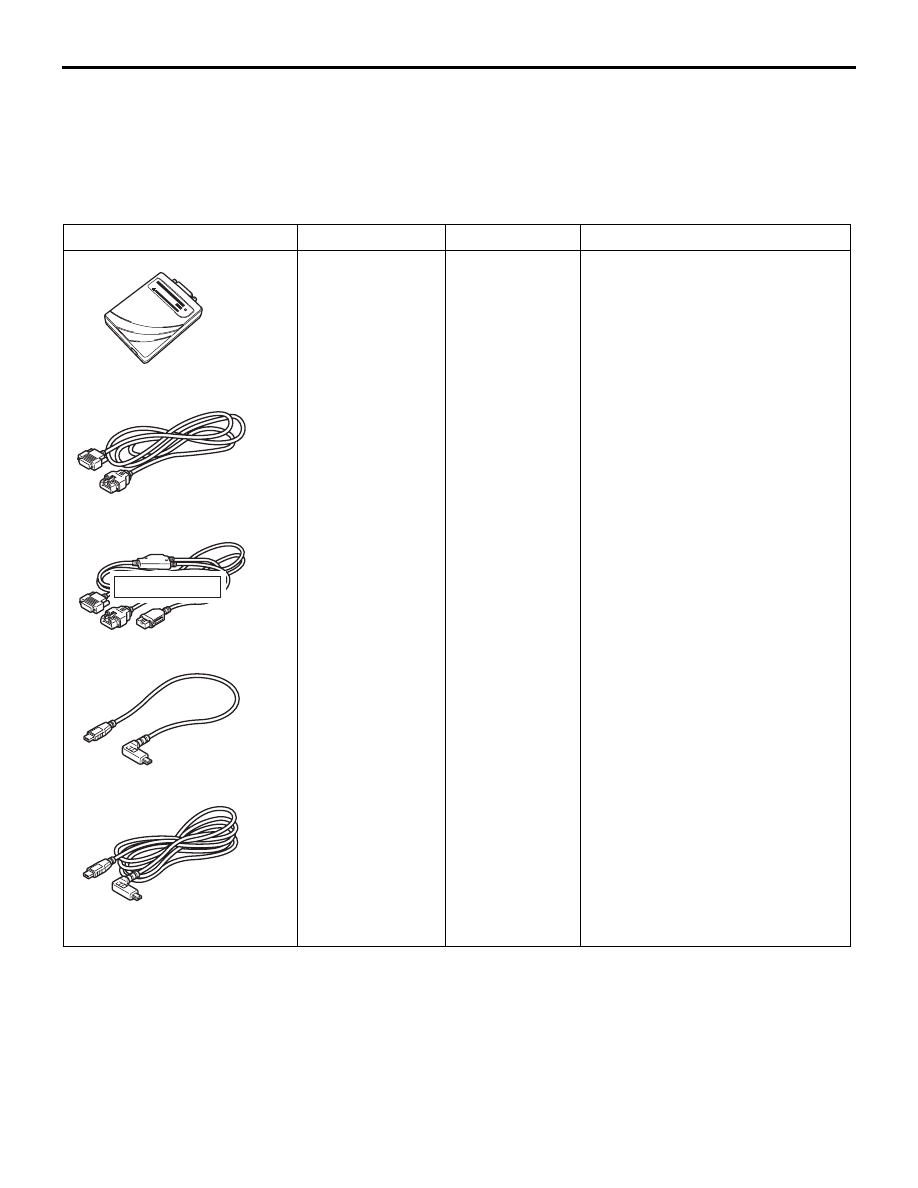

SPECIAL TOOLS

M1540104400365

Tool

Number

Name

Use

ACB05421

MB992745

MB992746

MB992744

MB992747

MB992748

a

b

c

d

e

DO NOT USE

AB

a. MB992744
b. MB992745
c. MB992746
d. MB992747
e. MB992748

a. Vehicle

communicatio
n
interface-Lite
(V.C.I.-Lite)

b. V.C.I.-Lite

main harness
A (for vehicles
with CAN
communicatio
n)

c. V.C.I.-Lite

main harness
B (for vehicles
without CAN
communicatio
n)

d. V.C.I.-Lite

USB cable
short

e. V.C.I.-Lite

USB cable
long

Diagnosis code, service data and
actuator test check.
