AC809620

COMBINATION METER

CHASSIS ELECTRICAL

54A-69

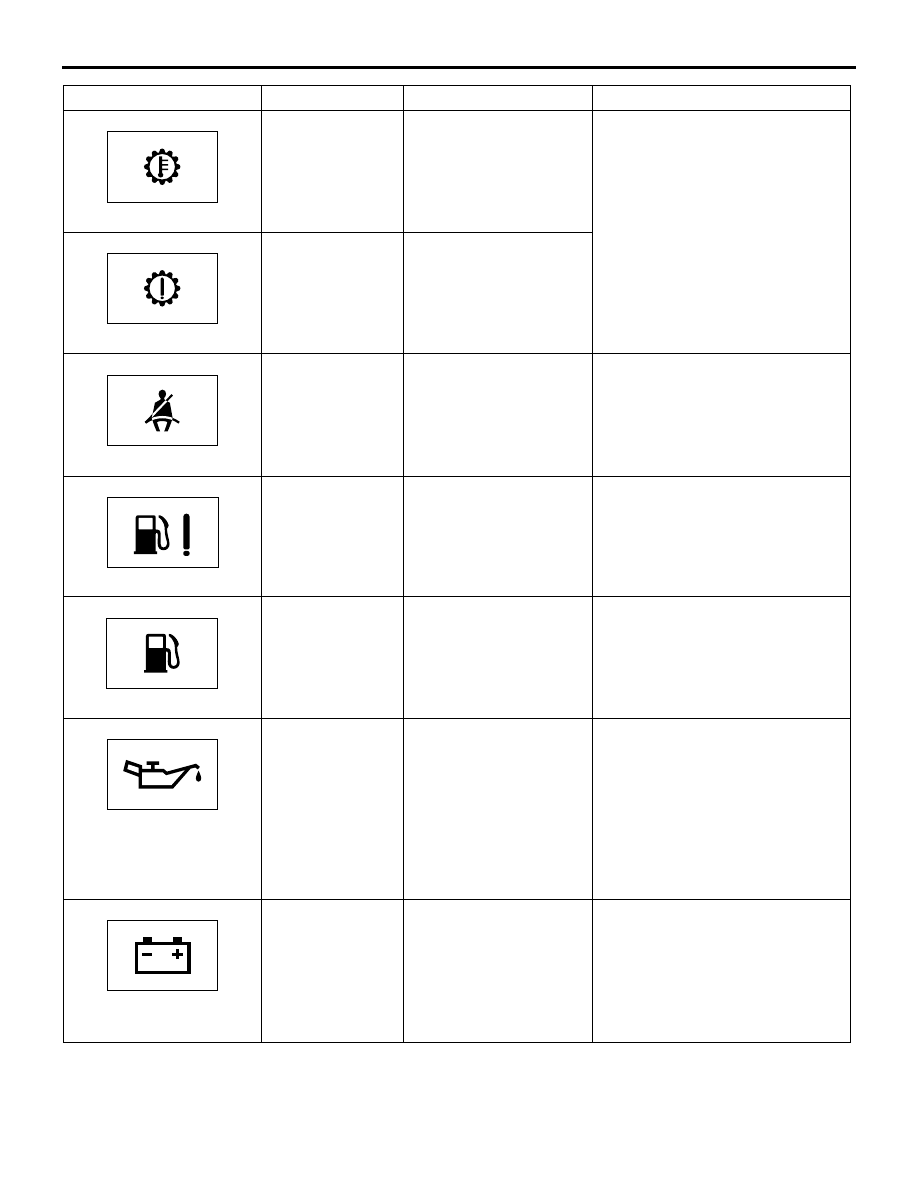

TRANSMISSION
OVERHEATING
SLOW DOWN

Displayed when the
transmission oil
temperature becomes
high.

If the warning screen is not
displayed normally or if the screen
continues to be displayed, check
the CVT diagnosis code. Refer to
GROUP 23A

− Diagnosis Code

Chart .

AC809621

TRANSMISSION
SERVICE
REQUIRED

Displayed when there is
a malfunction to the
CVT.

AC809622

FASTEN SEAT
BELT

Displayed when the
ignition switch is turned
ON without the driver's
seat belt fastened.

If the warning screen is not
displayed normally or if the screen
continues to be displayed,
perform the troubleshooting for
the seat belt reminder warning
lamp. Refer to

P.54A-59

.

ACC00473

FUEL SYSTEM
SERVICE
REQUIRED

Displayed when there is
a malfunction to the fuel
system.

If the warning screen is not
displayed normally or if the screen
continues to be displayed, check
the combination meter diagnosis
code. Refer to

P.54A-59

.

AC809623

REFUEL

Displayed when the
remaining fuel amount is
small.

If the warning screen is not
displayed normally or if the screen
continues to be displayed, refuel
immediately.

AC809624

LOW OIL
PRESSURE

Displayed when there is
a malfunction to the
engine oil circulation
system.

If the warning screen is not
displayed normally or if the screen
continues to be displayed, check
the oil pressure. (Refer to GROUP
12

− On-vehicle Service .) Then if

the oil pressure is normal, perform
the troubleshooting for the engine.
(Refer to GROUP 13A

− Trouble

symptom chart .)

AC809625

CHARGING
SYSTEM
SERVICE
REQUIRED

Displayed when there is
a malfunction to the
charging system.

If the warning screen is not
displayed normally or if the screen
continues to be displayed, check
the charging system. Refer to
GROUP 16

− On-vehicle service −

Output current test  and
Regulated voltage test .

Display content

Message

Factor

Action procedure

AC809626

COMBINATION METER

CHASSIS ELECTRICAL

54A-70

OTHER SCREENS

The screen displays the operation state of each sys-
tem, periodic checkup timing, or timing for taking a
rest during driving. If the screen display differs from
the actual system operation state or if the screen is
not displayed at the set timing, take measures
according to the action procedure.

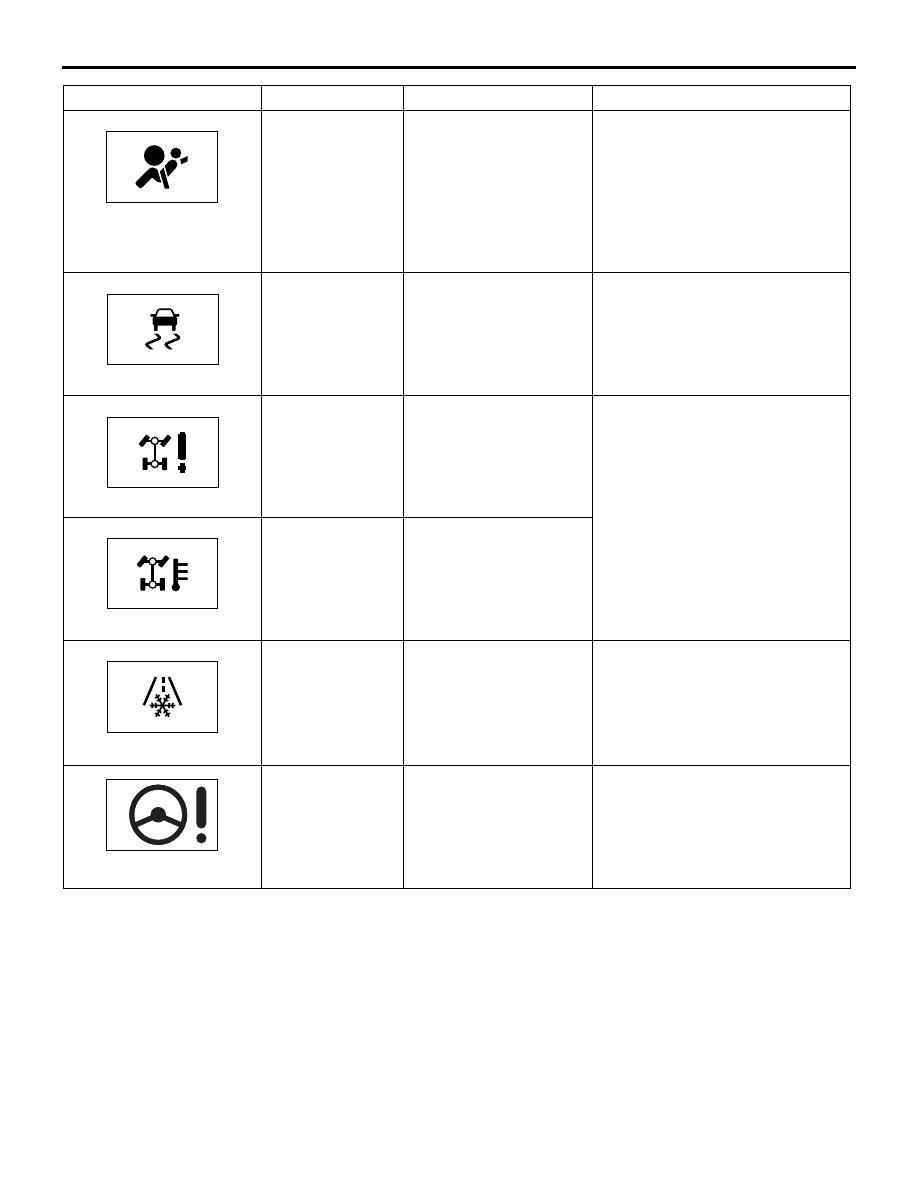

AIRBAG
SYSTEM
SERVICE
REQUIRED

Displayed when there is
a malfunction to the
SRS air bag or to the
pre-tensioner
mechanism.

If the warning screen is not
displayed normally or if the screen
continues to be displayed,
perform the troubleshooting for
the SRS air bag/pre-tensioner
mechanism warning lamp. Refer
to GROUP 52B

− Trouble

symptom chart .

AC809630

ASC SYSTEM
SERVICE
REQUIRED

Displayed when there is
a malfunction to the
ASC.

If the warning screen is not
displayed normally or if the screen
continues to be displayed,
perform the troubleshooting for
the ASC. Refer to GROUP 35C

−

Trouble symptom chart .

AC809631

4WD SYSTEM
SERVICE
REQUIRED

Displayed when there is
a malfunction to the
electronically-controlled
4WD system.

If the warning screen is not
displayed normally or if the screen
continues to be displayed,
perform the troubleshooting for
the electronically-controlled 4WD
system. Refer to GROUP 27C

−

Trouble symptom chart .

AC809642

4WD SYSTEM
OVERHEATING
SLOW DOWN

Displayed when there is
a malfunction to the
electronically-controlled
4WD differential
temperature is high.

AC809632

POSSIBLE ICY
ROADS

Displayed with the
sounding of buzzer
when the ambient
temperature is 3

°C or

less.

If the warning buzzer does not
sound when the combination
meter displays 3

°C, perform the

troubleshooting for the freeze
warning buzzer. Refer to

P.54A-57

.

ACB05896

POWER
STEERING
SERVICE
REQUIRED

Displayed when there is
a malfunction to the
EPS.

If the warning screen is not
displayed normally or if the screen
continues to be displayed,
perform the troubleshooting for
the EPS. Refer to GROUP 37

−

Trouble symptom chart .

Display content

Message

Factor

Action procedure

Display content

Message

Factor

Action procedure

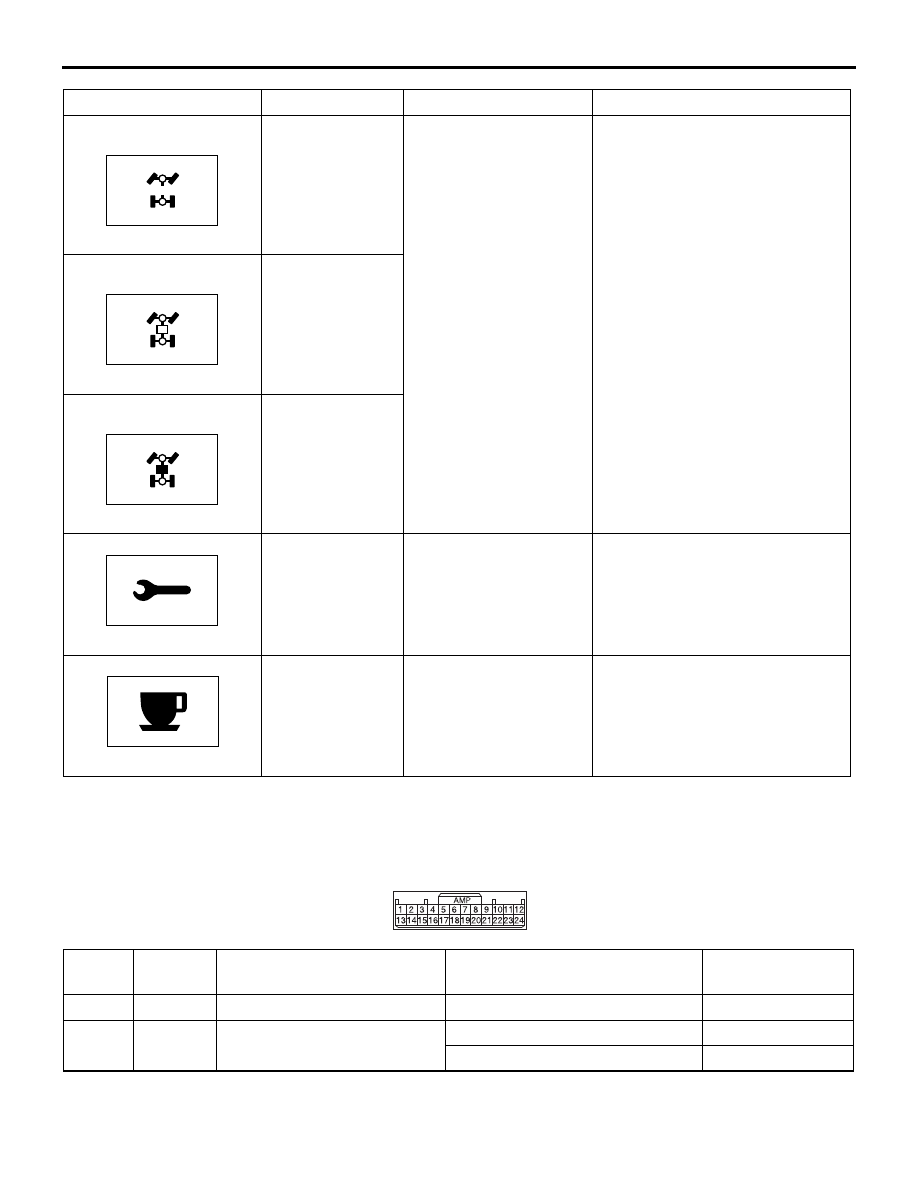

a

ACC00060

ECO

4WD ECO

Displayed in accordance
with operation state of
the 4WD switch.

a. "4WD ECO" mode is

selected.

b. "4WD AUTO" mode

is selected.

c. "4WD LOCK" mode

is selected.

If the 4WD switch position and
screen do not agree with each
other, perform the troubleshooting
for the 4WD. Refer to GROUP
27C

− Trouble symptom chart .

b

ACC00058

4WD AUTO

c

ACC00059

4WD LOCK

AC809637

ROUTINE
MAINTENANCE
REQUIRED

Displayed when the set
period elapses.

−

AC809638

REST
REMINDER

Displayed when the set
time elapses.

−

COMBINATION METER

CHASSIS ELECTRICAL

54A-71

CHECK AT COMBINATION METER
TERMINALS

M1540201200671

ACB04735AC

Termin
al No.

Terminal
code

Check item

Check condition

Normal condition

1

B+B

ECU power supply (battery)

Always

System voltage

2

IG1

ECU power supply (Ignition
switch: IG1)

Ignition switch: ON

System voltage

Ignition switch: OFF

1 V or less

COMBINATION METER

CHASSIS ELECTRICAL

54A-72

3

MODE

Multi information display
switch input

Multi information display switch:
ON

1 V or less

Multi information display switch:
OFF

System voltage

4

BRK

Parking brake switch input

Parking brake switch: ON

1 V or less

Parking brake switch: OFF

System voltage

5

SBDS

Seat belt switch (driver’s side)
input

Seat belt switch (driver’s side):
ON

1 V or less

Seat belt switch (driver’s side):
OFF

System voltage

6 to 12

−

−

−

−

13

GND

Earth (sensor)

Always

1 V or less

14

CANH

CAN-C-Mid_H

−

−

15

CANL

CAN-C-Mid_L

−

−

16

SBAS

Seat belt switch (passenger’s
side) input

Seat belt switch (passenger’s
side): ON

1 V or less

Seat belt switch (passenger’s
side): OFF

System voltage

17

−

−

−

−

18

F/G

Input of fuel gauge

Fuel: FULL (Approximately 1 V at
system voltage)

13.5 V

Fuel: EMPTY (Approximately 8 V
at system voltage)

13.5 V

19

BWLP

Seat belt reminder
(passenger’s side) indicator
lamp output

Seat belt switch (passenger’s
side): ON

1V or less

Seat belt switch (passenger’s
side): OFF

System voltage

20

SPEED

Vehicle speed signal output

Vehicle speed: Approximately 40
km/h

Approximately
28Hz

Vehicle speed change

In accordance with
the vehicle speed,
a pulse is
generated.

21

GND1

Earth (ECU)

Always

1 V or less

22

PWM

Illumination (

−) output

Always

1 V or less (day
time: at 100% of
duty value)

23

ILL+

Illumination (+) output

With lighting control

System voltage

24

IL+P

Illumination (power supply)

Always

System voltage

Termin
al No.

Terminal
code

Check item

Check condition

Normal condition
