COMBINATION METER
CHASSIS ELECTRICAL
54A-65
TEST
Item No.
Item name
Test content
2
LCD (AUTO)
The multi information display screen changes by looping in the
following order.
<Standard meter>
1. All the segments are displayed.
2. Number 2 of the segments are displayed.
3. All the segments except some segments are displayed.
<High contrast meter>
1. The version information is displayed.
2. A white full screen is displayed.
3. A screen with Red, Green, Black and white gradation is
displayed.
4. A black full screen is displayed.
3
Buzzer (AUTO)
The buzzer sounds.
4
Pointer (AUTO)
Makes the speedometer and tachometer sweep from zero to full
scale.
5
Illumination (AUTO)
Makes the meter needles, the instrument face plate, the
variable-dimming LED indicator and the LCD screen back light
sweep 0% to 100% and vice versa.
6
Indicator (AUTO)
Toggles all of the LED indicators ON and OFF.
TURN-SIGNAL SOUND CUSTOMIZATION
Item No.
Item name
Test content
1
Signal sound setting
Customising turn-signal sound
CHECK PROCEDURE FOR EACH MULTI
INFORMATION DISPLAY SCREEN <HIGH
CONTRAST METER>
M1540201901220
CAUTION
When there are TV towers, substations, or broad-
casting stations which emit strong radio waves
in proximity, on rare occasions, a warning is dis-
played on the multi information screen for a few
seconds. This is caused by the reception of
strong radio waves, and there is no functional
problem.

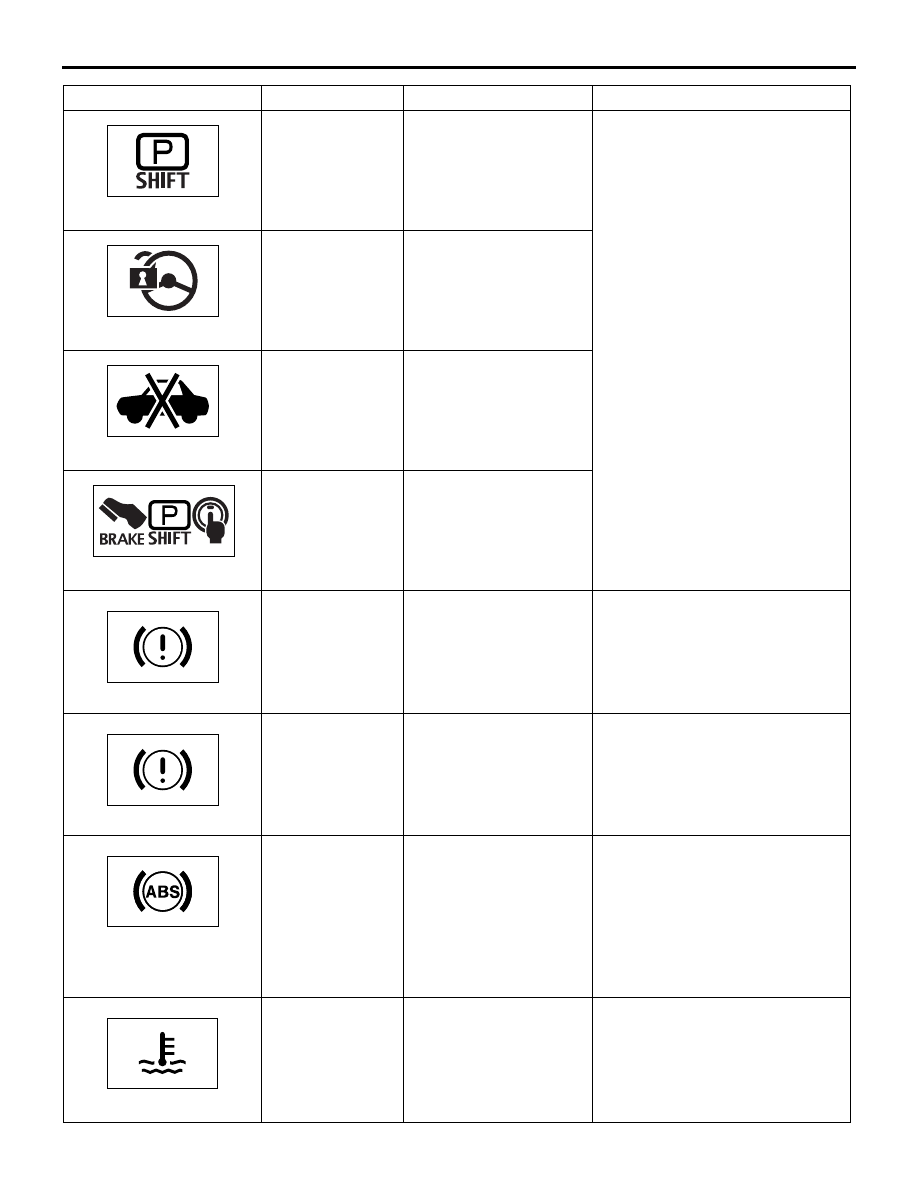

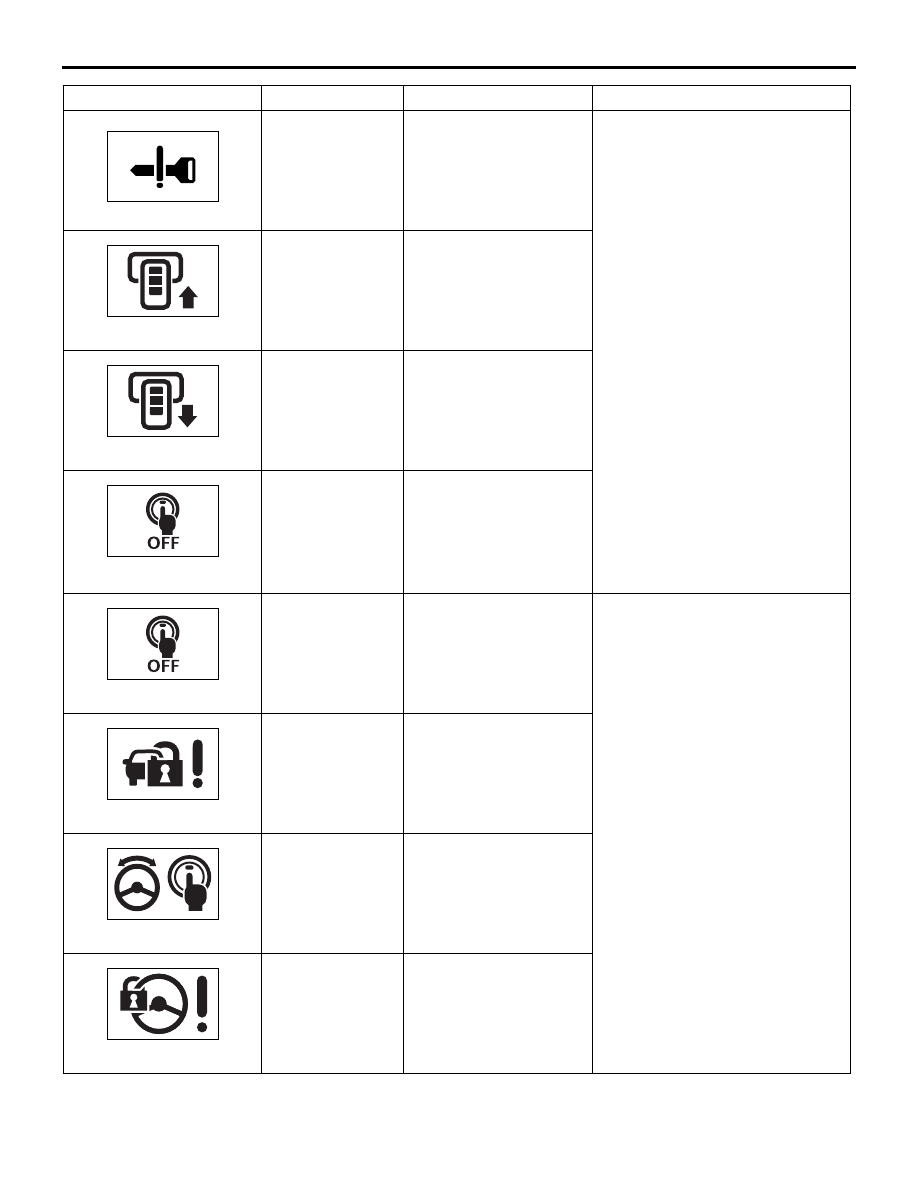

WARNING SCREEN
When malfunctions occur to the vehicle, the following
warning screens are displayed. If these screens are
not displayed normally or if they continue to be dis-
played even after the factor is eliminated, take meas-
ures according to the action procedure.
