Mitsubishi Outlander (2013+). Manual - part 633





IGNITION SWITCH <Vehicles without keyless operation system>

CHASSIS ELECTRICAL

54A-17

Inspection Procedure 3: Even when the selector lever is in the P position, the ignition switch cannot
be turned to the LOCK (OFF) position. /When the selector lever is in other than the P position, the
ignition switch can be turned to the LOCK (OFF) position.

COMMENTS ON TROUBLE SYMPTOM

The mechanical steering lock controls the steering
lock solenoid, so that the steering lock cylinder turns
from ACC to LOCK only when the selector lever is in
the P position. If the steering lock cylinder does not
turn from ACC to LOCK even when the selector lever
is in the P position, or if the steering lock cylinder
turns from ACC to LOCK when the selector lever is in
other than the P position, the steering lock solenoid,
selector lever assembly, wiring harness, or connector
may have a problem.

PROBABLE CAUSES

• Steering lock solenoid malfunction

• Selector lever assembly malfunction

• Damaged harness wires and connectors

DIAGNOSIS PROCEDURE

STEP 1. M.U.T.-III other system service data

Item No.

Item name

Normal
condition

Item 288

ACC switch

ON

Turn the ignition switch to the ACC position, and
check the ETACS-ECU service data.

OK: Normal conditions are displayed for
item.

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Troubleshoot the ETACS-ECU. Refer to
Inspection Procedure 1 "The ignition switch
(ACC) signal is not received"

P.54A-312

.

STEP 2. Voltage measurement at selector lever
assembly connector
(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Turn the ignition switch from "ACC" position.
(3) Check the voltage between the selector lever

assembly connector (power supply terminal) and
body earth.

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Go to Step 3.

STEP 3. Check of short to power supply, short to
earth, and open circuit in ACC1 line between
selector lever assembly connector and
ETACS-ECU connector

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction ).

NO :

Repair the connector(s) or wiring harness.

STEP 4. Resistance measurement at selector
lever assembly connector.
(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Measure the resistance between the selector

lever assembly connector (earth terminal) and
body earth.

OK: Continuity exists (2

 or less)

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Go to Step 5.

STEP 5. Check of open circuit in earth line
between selector lever assembly connector and
body earth.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction ).

NO :

Repair the connector(s) or wiring harness.

STEP 6. Steering lock solenoid check
Refer to GROUP 37

− Steering column shaft assem-

bly .

Q: Is the check result normal?

YES :

Go to Step 7.

NO :

Replace the steering lock solenoid.

STEP 7. Resistance measurement at steering
lock solenoid connector.
(1) Disconnect the connector, and measure at the

wiring harness side.

IGNITION SWITCH <Vehicles without keyless operation system>

CHASSIS ELECTRICAL

54A-18

(2) Measure the resistance between the steering

lock solenoid connector (earth terminal) and body
earth.

OK: Continuity exists (2

 or less)

Q: Is the check result normal?

YES :

Go to Step 9.

NO :

Go to Step 8.

STEP 8. Check of open circuit in earth line
between steering lock solenoid connector and
body earth.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction ).

NO :

Repair the connector(s) or wiring harness.

STEP 9. Check of short to power supply, short to
earth, and open circuit in signal line between
selector lever assembly connector and steering
lock solenoid connector.

Q: Is the check result normal?

YES :

Go to Step 10.

NO :

Repair the connector(s) or wiring harness.

STEP 10. Retest the system
Check that the ignition switch can be turned to the
LOCK (OFF) position when the selector lever is in
the P position. Or, check that the ignition switch can-
not be turned to the LOCK (OFF) position when the
selector lever is in other than the P position.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction ).

NO :

Replace the selector lever assembly.

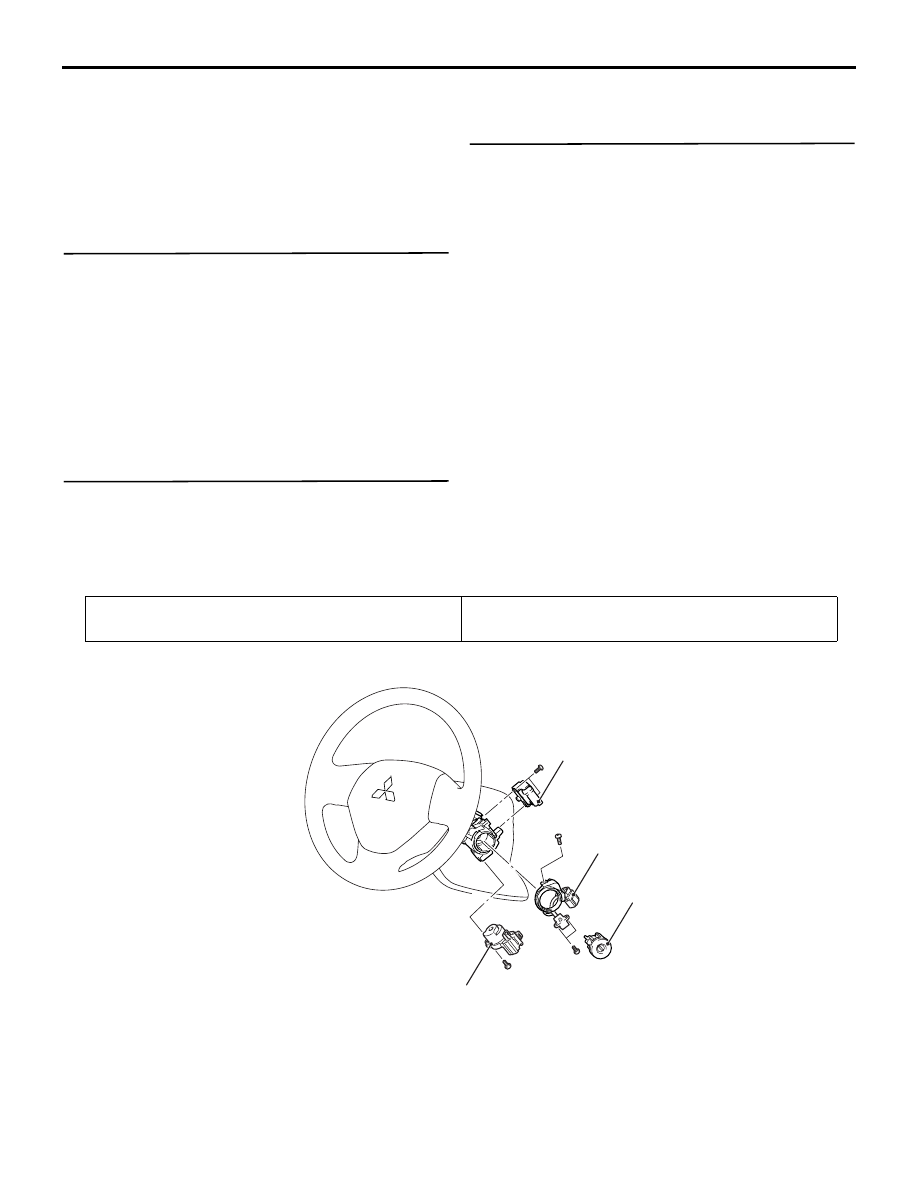

IGNITION SWITCH

REMOVAL AND INSTALLATION

M1541200300872

Pre-removal Operation
• Wiper/Washer Switch Removal (Refer to

P.54A-204

).

Post-installation Operation
• Wiper/Washer Switch Installation (Refer to

P.54A-204

).

ACB05510

AB

3

1

4

2

Removal Steps

1.

Ignition switch

2.

Steering lock solenoid

<<

A

>>

3.

Steering lock cylinder

4.

Key reminder switch and key ring
antenna assembly

Removal Steps (Continued)

IGNITION SWITCH <Vehicles without keyless operation system>

CHASSIS ELECTRICAL

54A-19

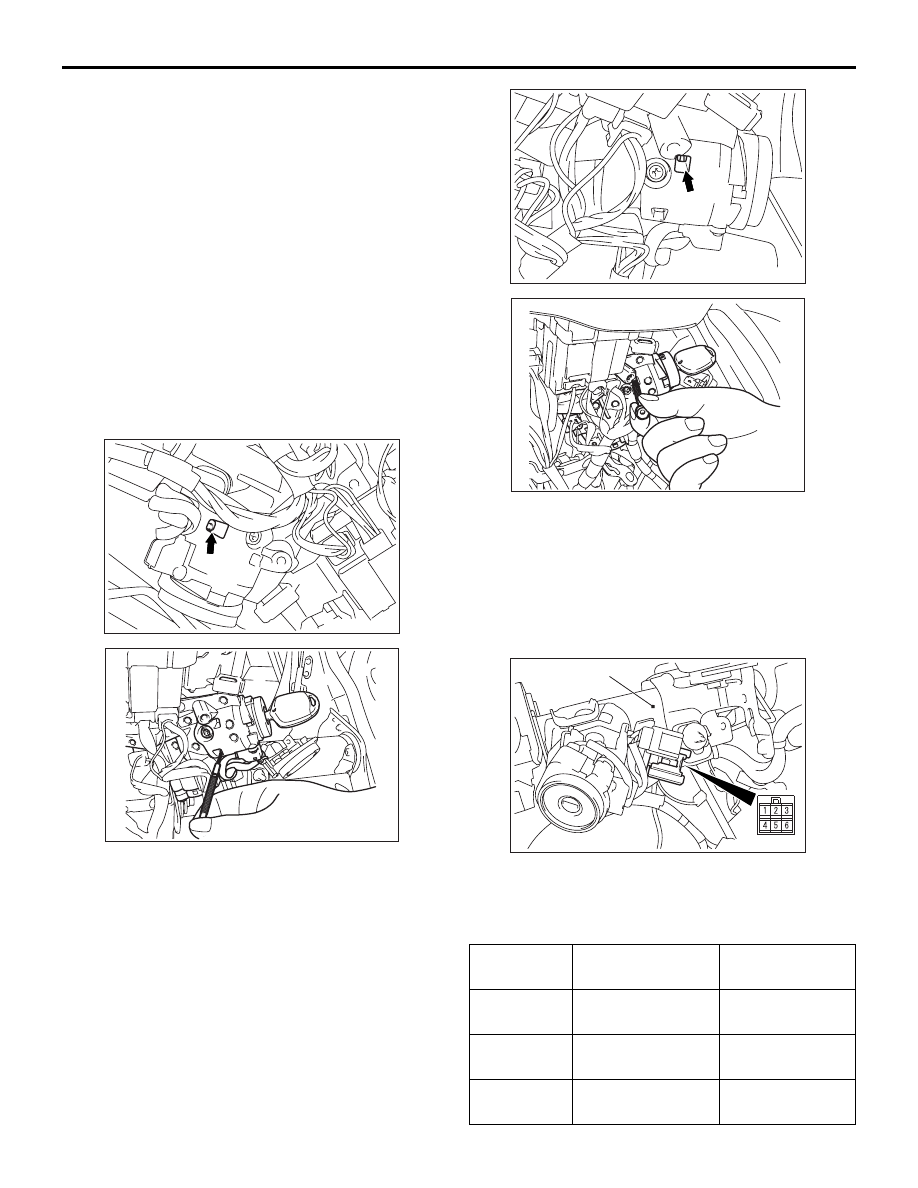

NOTE: Other than the single unit supplying of key
reminder switch and key ring antenna assembly as
well as of ignition switch, they are also supplied as
the mechanical steering lock assembly (mechanical
steering lock, steering lock bracket, steering lock
bolt, key reminder switch and key ring antenna
assembly, and ignition switch are supplied as a set).
For how to remove the mechanical steering lock,
steering lock bracket, and steering lock bolt, refer to
GROUP 37

 Steering Shaft Disassembly and Reas-

sembly .

REMOVAL SERVICE POINT

<<A>> STEERING LOCK CYLINDER
REMOVAL

1. Insert the key into the steering lock cylinder, and

turn the ignition key to the "ACC" position.

AC905067AB

Part A

AC905241

2. Using a flat-tipped precision screwdriver or similar

tool, press the lock button located at the part "A"
shown in the figure.

AC905066AB

Part B

AC905221

3. Subsequently, using a flat-tipped precision

screwdriver or similar tool, press the step
generated at the part "B" toward the direction of
front passenger's seat. Then, pull out the ignition
key, and then remove the steering lock cylinder.

IGNITION SWITCH CHECK

M1541200400307

AC905069

Steering column
shaft

AB

With the ignition switch mounted to the vehicle, dis-
connect the ignition switch connection connector,
and then perform the continuity check in each igni-
tion key position.

Ignition key
position

Terminal number Normal

condition

LOCK

− 2, 1 − 4, 1 − 5,

− 6

No continuity

ACC

− 6

Continuity exists
(2

Ω or less)

ON

− 2 − 4 − 6

Continuity exists
(2

Ω or less)

IGNITION SWITCH <Vehicles without keyless operation system>

CHASSIS ELECTRICAL

54A-20

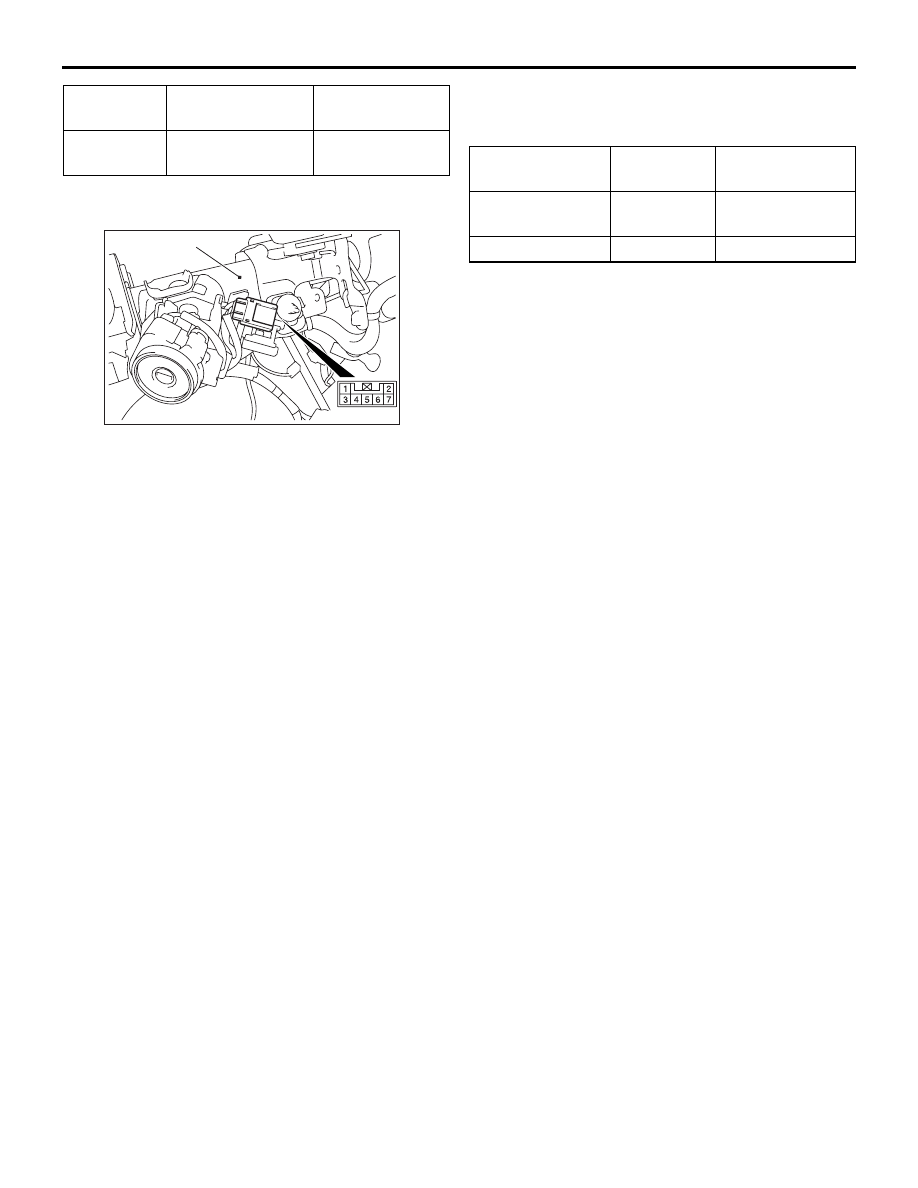

KEY REMINDER SWITCH CHECK

M1541200500315

AC905068 AB

Steering column
shaft

With the key reminder switch mounted to the vehicle,
disconnect the key reminder switch connection con-
nector, and then perform the continuity check.

Key status

Terminal
number

Normal
condition

Key removed

− 6

Continuity exists
(2

Ω or less)

Key inserted

− 6

No continuity

START

− 2 − 5

Continuity exists
(2

Ω or less)

Ignition key
position

Terminal number Normal

condition
