Mitsubishi Outlander (2013+). Manual - part 628

ACX01315 AD

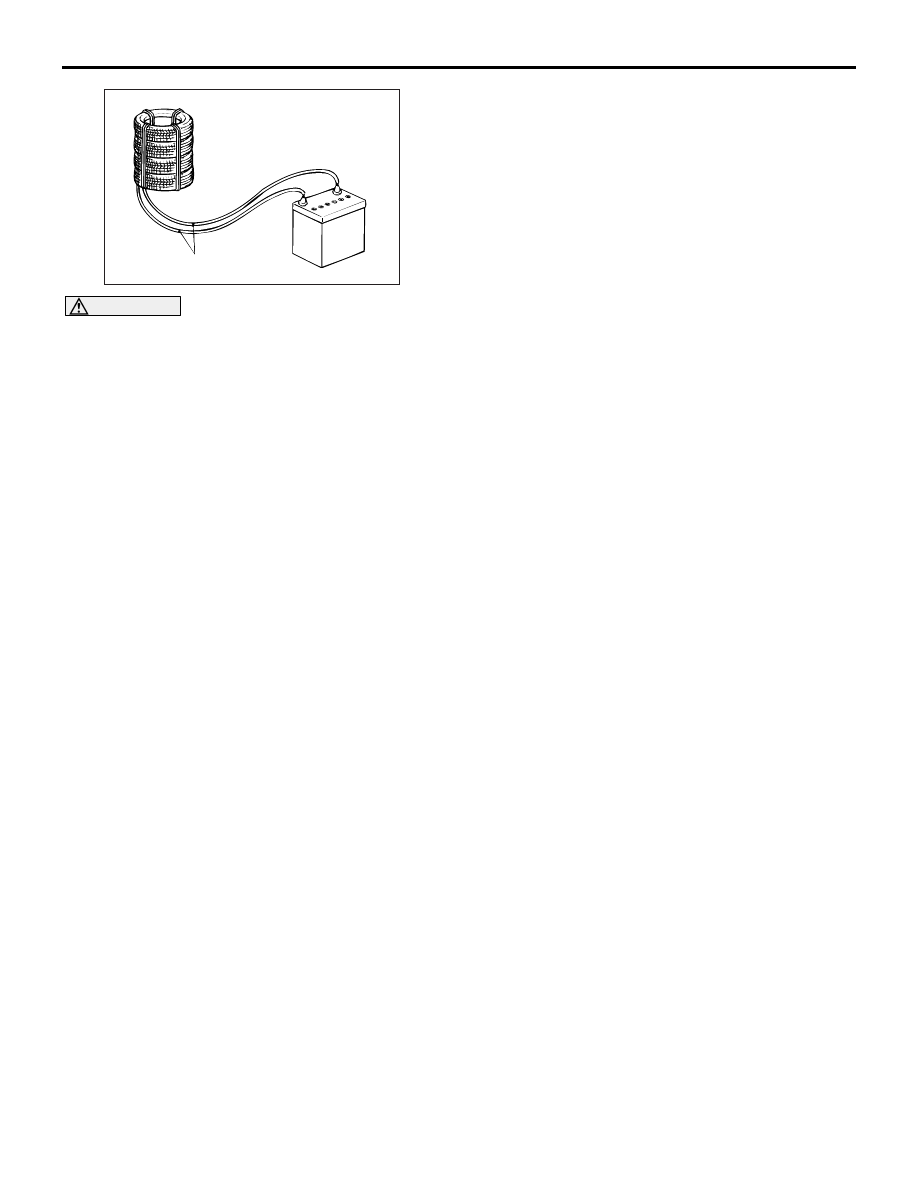

Deployment wires

SEAT BELT PRE-TENSIONER DISPOSAL PROCEDURES

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-163

CAUTION

• Make sure that no one is present near the

inflator before the activation.

• Immediately after the inflator activation, the

inflator is extremely hot. Thus, before han-
dling, leave the inflator for 30 minutes or more
to cool.

• If the inflator does not activate, consult with

your distributor.

9. Disconnect the deployment wire connection at a

place as far as possible from the inflator. Then,
connect the wires to the removed vehicle battery
to activate the inflator.

10.Discard the activated inflator according to the

disposal procedures (Refer to

P.52B-163

DISCARD OF DEPLOYED AIR BAG MOD-
ULE

After deployment and operation, the air bag module
and seat belt pre-tensioner should be disposed of in
the same manner as any other scrap parts, adhering
to local laws and/or legislation. Observe the following
precautions during air bag or seat belt pre-tensioner
disposal:
1. Immediately after the air bag deployment, the

inflator is extremely hot. Thus, before handling,
leave the inflator for 30 minutes or more to cool.

2. Do not pour water or oil onto the deployed air bag

module.

3. To the deployed air bag module, substances that

irritate eyes and skin may be deposited.
Therefore, wear gloves and protective glasses
when handling the module. When the substance
comes in contact with eyes or skin, flush with a
large amount of water.

4. Place the air bag module in the sturdy plastic bag,

and seal the bag for disposal.

5. After the work, be sure to wash your hands with

water.

SEAT BELT PRE-TENSIONER DISPOSAL PROCEDURES

M1524004400465

When discarding the seat belt with pre-tensioner or a
vehicle which is equipped with seat belts with
pre-tensioner, be sure to deploy the pre-tensioner in
advance as specified in the service procedure that
follows.

SEAT BELT PRE-TENSIONER DISPOSAL PROCEDURES

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-164

UNDEPLOYED SEAT BELT WITH
PRE-TENSIONER DISPOSAL

CAUTION

• If the vehicle is to be scrapped or otherwise

disposed of, operate the seat belt pre-ten-
sioner and lap pre-tensioner inside the vehi-
cle.

• When replacing the seat belt with pre-ten-

sioner, the seat belt pre-tensioner and lap
pre-tensioner of old parts must be operated
outside the vehicle.

• Since a large amount of smoke is produced

when the seat belt pre-tensioner and lap
pre-tensioner is operated, avoid residential
areas whenever possible. Also, do not per-
form the operation near the smoke detector.

• Since there is substantial report when the

seat belt pre-tensioner and lap pre-tensioner
pre-tensioner is operated, avoid residential
areas whenever possible. If anyone is nearby,
give warning of the impending noise.

• Suitable ear protection must be put on by per-

sonnel performing these procedures or by
people in the immediate area.

SEAT BELT PRE-TENSIONER
DEPLOYMENT INSIDE THE VEHICLE

1. Move the vehicle to flat and isolated spot.

CAUTION

Before starting the work, wait for 60 seconds or
more after the disconnection of the battery cable.
(Refer to the item 5

P.52B-7

of Service Precau-

tions).

2. Disconnect the (

−) and (+) terminals of battery

cable, and then remove the battery from the
vehicle.

3. Remove the centre pillar trim lower (Refer to

GROUP 52A

− Interior Trim ).

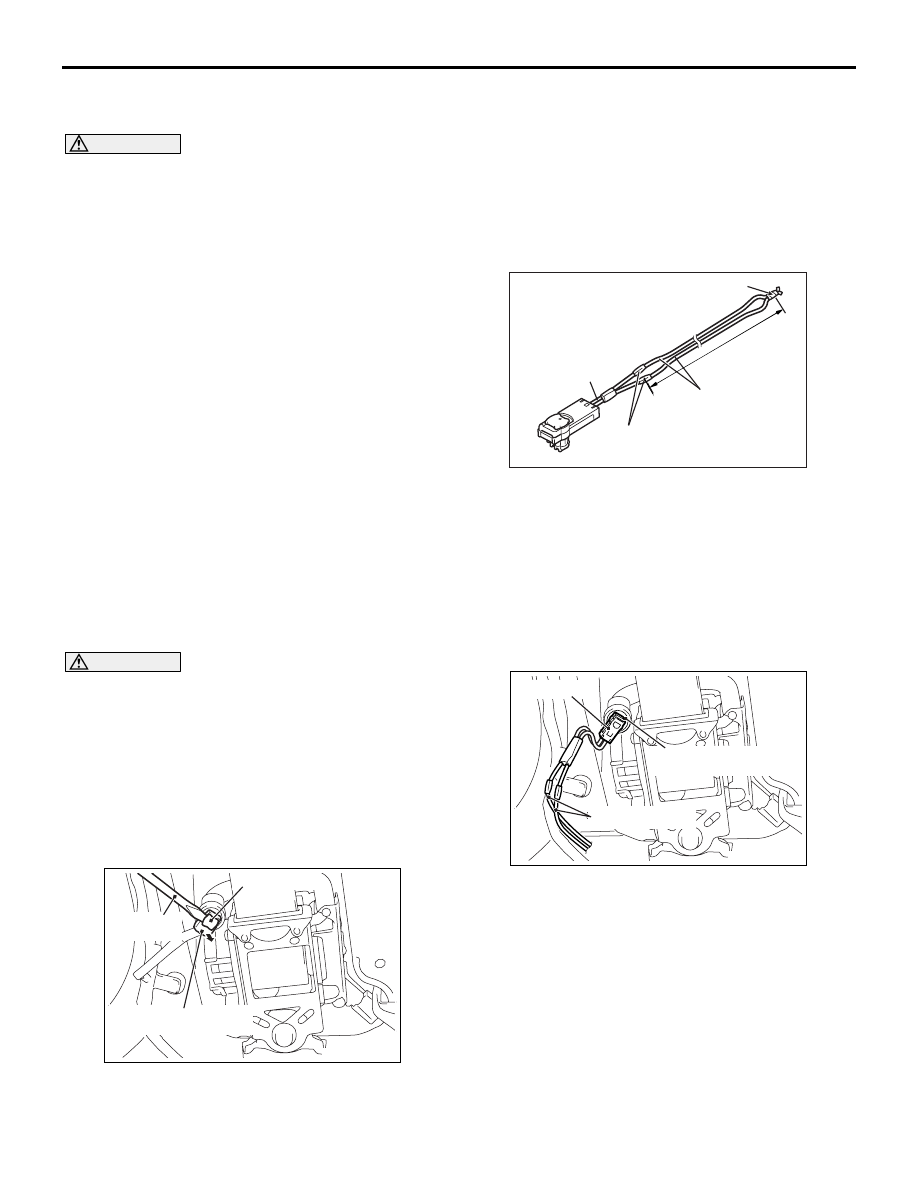

ACC00046AB

Locking button

Flat-tipped
screwdriver

Seat belt pre-tensioner
harness side connector

4. Use the flat-tipped screwdriver to pull out the

locking button of floor harness connector. After
releasing the lock, disconnect the connector.

NOTE: When the floor harness connector is dis-
connected from the seat belt pre-tensioner, the
two pins of the seat belt pre-tensioner connector
are automatically shorted. This prevents the unin-
tentional deployment of the seat belt pre-ten-
sioner caused by the static or others.

AC103480

MB991885

Connection

Deployment wires

Insulator tape

6 m or longer

5. Connect the deployment wires of 6 m or more to

each of the two wiring harnesses of special tool
adapter harness (MB991885), and cover the
connection areas with insulation tape. Keep the
other ends of deployment wires connected to
each other (shorted).

NOTE: This prevents the unintentional deploy-
ment of seat belt pre-tensioner caused by the
static or others.

ACC00080

ACC00046

Seat belt pre-tensioner
connector

Deployment wire

MB991885

6. Connect the adapter harness (MB991885) to the

2-pin connector of seat belt pre-tensioner, and
then pull out the deployment wire to outside the
vehicle.

7. In order to suppress the operation sound as much

as possible, fully close all the door windows and
close the doors.

SEAT BELT PRE-TENSIONER DISPOSAL PROCEDURES

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-165

CAUTION

• Make sure that no one is present inside or

near the vehicle before the deployment.

• Immediately after the pre-tensioner deploy-

ment, the inflator is extremely hot. Thus,
before handling, leave the inflator for 30 min-
utes or more to cool.

• If the seat belt pre-tensioner does not deploy,

consult with your distributor.

8. Disconnect the deployment wire connection at a

place as far as possible from the vehicle. Then,
connect the wires to the removed vehicle battery
to deploy the seat belt pre-tensioner.

9. Discard the deployed seat belt pre-tensioner

according to the disposal procedures (Refer to

P.52B-166

SEAT BELT PRE-TENSIONER
DEPLOYMENT OUTSIDE THE VEHICLE

CAUTION

• Deploy the seat belt pre-tensioner in the wide

open, flat place with a distance of 6 m or more
from obstacles and people.

• When deploying in the open space, do not

deploy when the strong wind is blowing. Even
with a slight breeze, ignite at the windward of
the seat belt pre-tensioner.

CAUTION

Before starting the work, wait for 60 seconds or
more after the disconnection of the battery cable.
(Refer to the item 5

P.52B-7

of Service Precau-

tions).

1. Disconnect the (

−) and (+) terminals of battery

cable, and then remove the battery from the
vehicle.

CAUTION

When the connector is disconnected, the two
pins of seat belt pre-tensioner is automatically
shorted to prevent the unintentional deployment
caused by the static or others.

2. Remove the seat belt with pre-tensioner from the

vehicle (Refer to

P.52B-147

AC103480

MB991885

Connection

Deployment wires

Insulator tape

6 m or longer

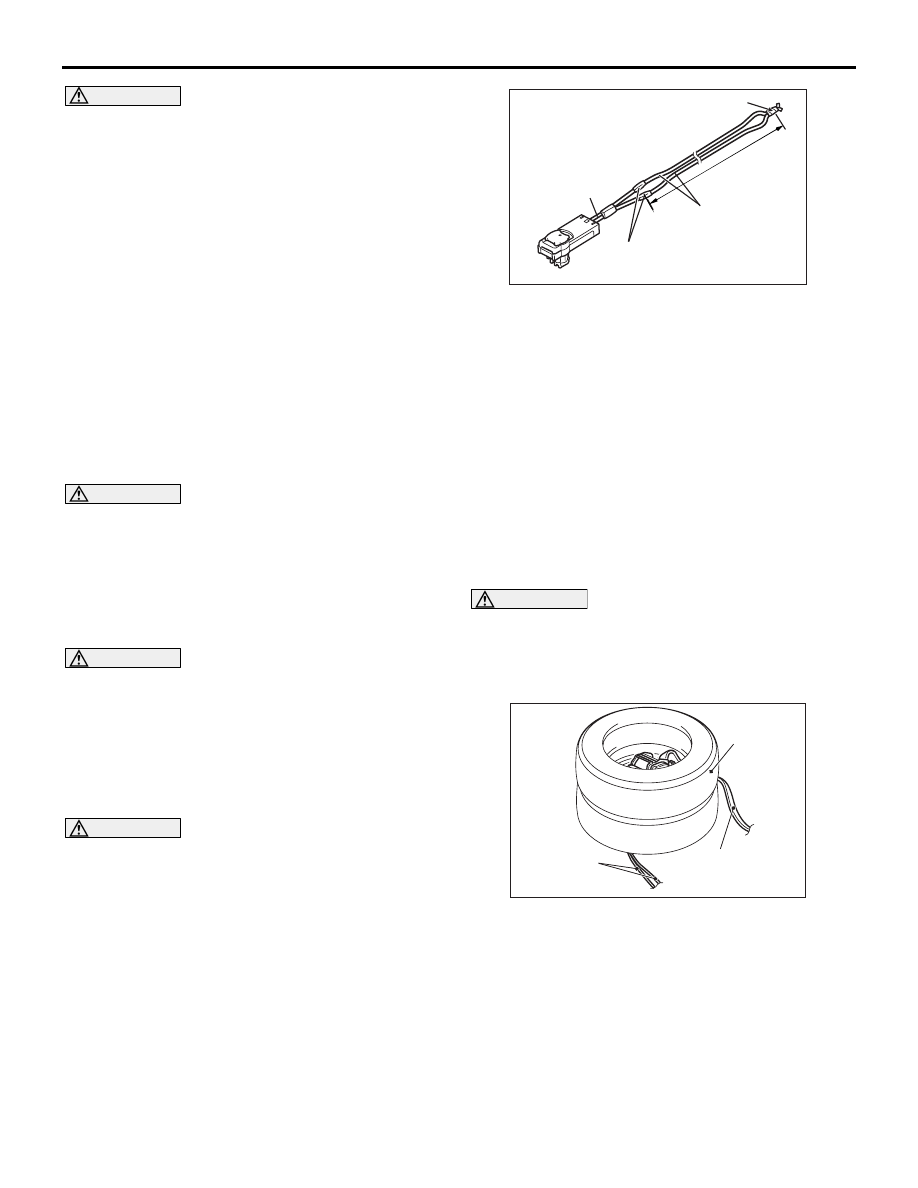

3. Connect the deployment wires of 6 m or more to

NOTE: This prevents the unintentional deploy-
ment of seat belt pre-tensioner the static or oth-
ers.

4. Pass a thick wire through the seat belt

pre-tensioner bracket hole, and attach it to the old
tyre with wheel.

5. Connect the adapter harness to the seat belt

pre-tensioner connector. (Retractor side)

CAUTION

Set so that the connector of pre-tensioner
adapter harness does not get pinched between
the tyres when deployed.

6. Pull out the seat belt to outside the tyre.

AC105388 AC

Tyres
without
wheels

Seat belt

Deployment
wires

7. Place an old tyre without wheel onto the seat belt

with pre-tensioner.

AC004294 AC

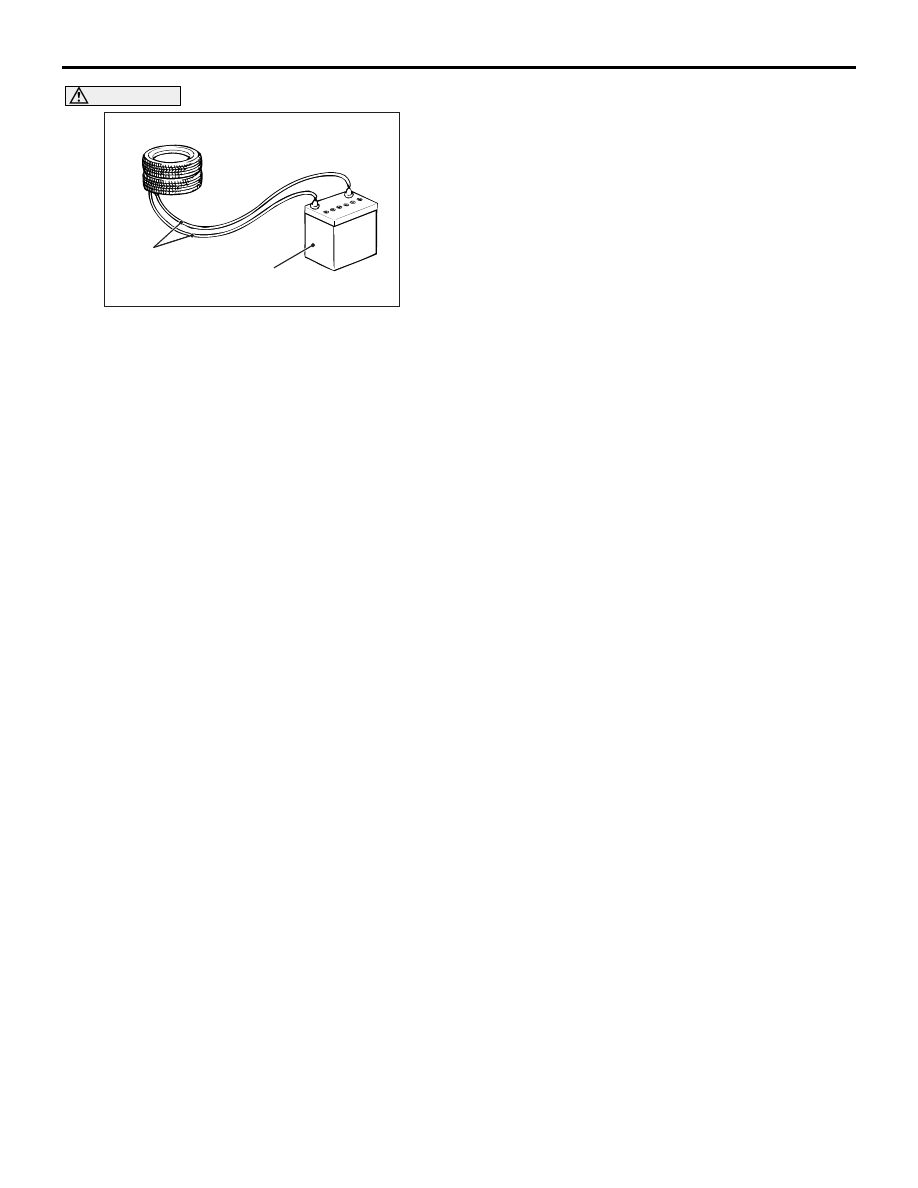

Vehicle battery

Deployment wires

SEAT BELT PRE-TENSIONER DISPOSAL PROCEDURES

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-166

CAUTION

• Make sure that no one is present near the seat

belt with pre-tensioner before the deploy-
ment.

• Immediately after the seat belt pre-tensioner

deployment, the inflator is extremely hot.
Thus, before handling, leave the inflator for 30
minutes or more to cool.

• If the seat belt pre-tensioner does not deploy,

consult with your distributor.

8. Disconnect the deployment wire connection at a

place as far as possible from the seat belt with
pre-tensioner. Then, connect the wires to the
removed vehicle battery to deploy the seat belt
pre-tensioner.

9. Discard the deployed seat belt with pre-tensioner

according to the disposal procedures (Refer to

P.52B-166

DISCARD OF DEPLOYED SEAT BELT
WITH PRE-TENSIONER

the inflator is extremely hot. Thus, before
handling, leave the inflator for 30 minutes or more
to cool.

2. Do not pour water or oil onto the deployed

pre-tensioner.

3. To the deployed pre-tensioner, substances that

irritate eyes and skin may be deposited.
Therefore, wear gloves and protective glasses
when handling. When the substance comes in
contact with eyes or skin, flush with a large
amount of water.

4. Place the seat belt with pre-tensioner in the sturdy

plastic bag, and seal the bag for disposal.

5. After the work, be sure to wash your hands with

water.
