Mitsubishi Outlander (2013+). Manual - part 627

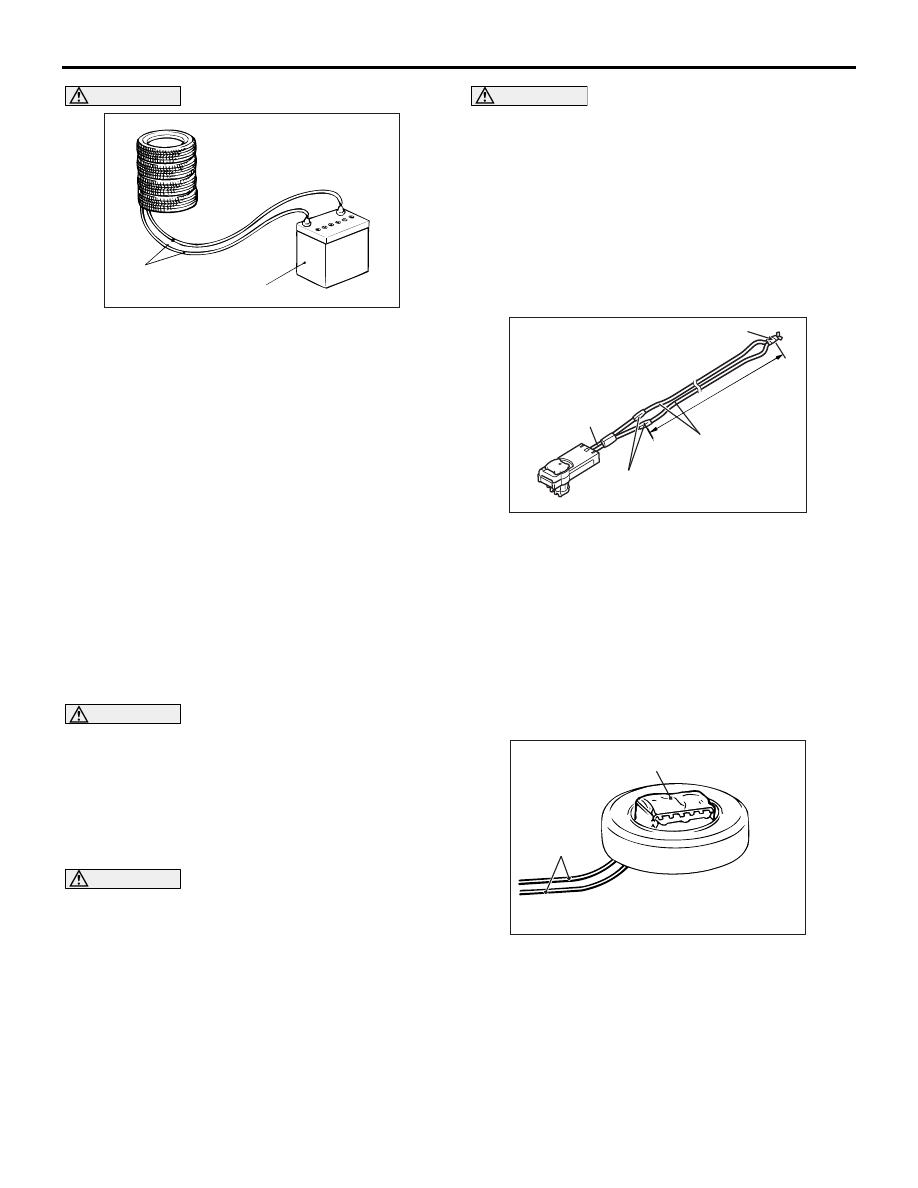

ACX01313 AD

Deployment wires

Vehicle battery

AIR BAG MODULE DISPOSAL PROCEDURES

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-159

CAUTION

• Make sure that no one is present near the air

bag module before deploying the air bag.

• Immediately after the air bag deployment, the

inflator is extremely hot. Thus, before han-
dling, leave the inflator for 30 minutes or more
to cool.

• If the air bag module does not deploy, consult

with your distributor.

9. Disconnect the deployment wire connection at a

place as far as possible from the air bag module.
Then, connect the wires to the removed vehicle
battery to deploy the air bag module.

10.Discard the deployed air bag module according to

the disposal procedures (Refer to

P.52B-163

      ).

PASSENGER'S (FRONT) AIR BAG
MODULE DEPLOYMENT OUTSIDE THE
VEHICLE

CAUTION

• Deploy the air bag in the wide open, flat place

with a distance of 6 m or more from obstacles
and people.

• When deploying the air bag in the open

space, do not deploy when the strong wind is
blowing. Even with a slight breeze, ignite at
the windward of the air bag module.

CAUTION

Before starting the work, wait for 60 seconds or
more after the disconnection of the battery cable.
(Refer to the item 5

P.52B-7

 of Service Precau-

tions.)

1. Disconnect the (

−) and (+) terminals of battery

cable, and then remove the battery from the
vehicle.

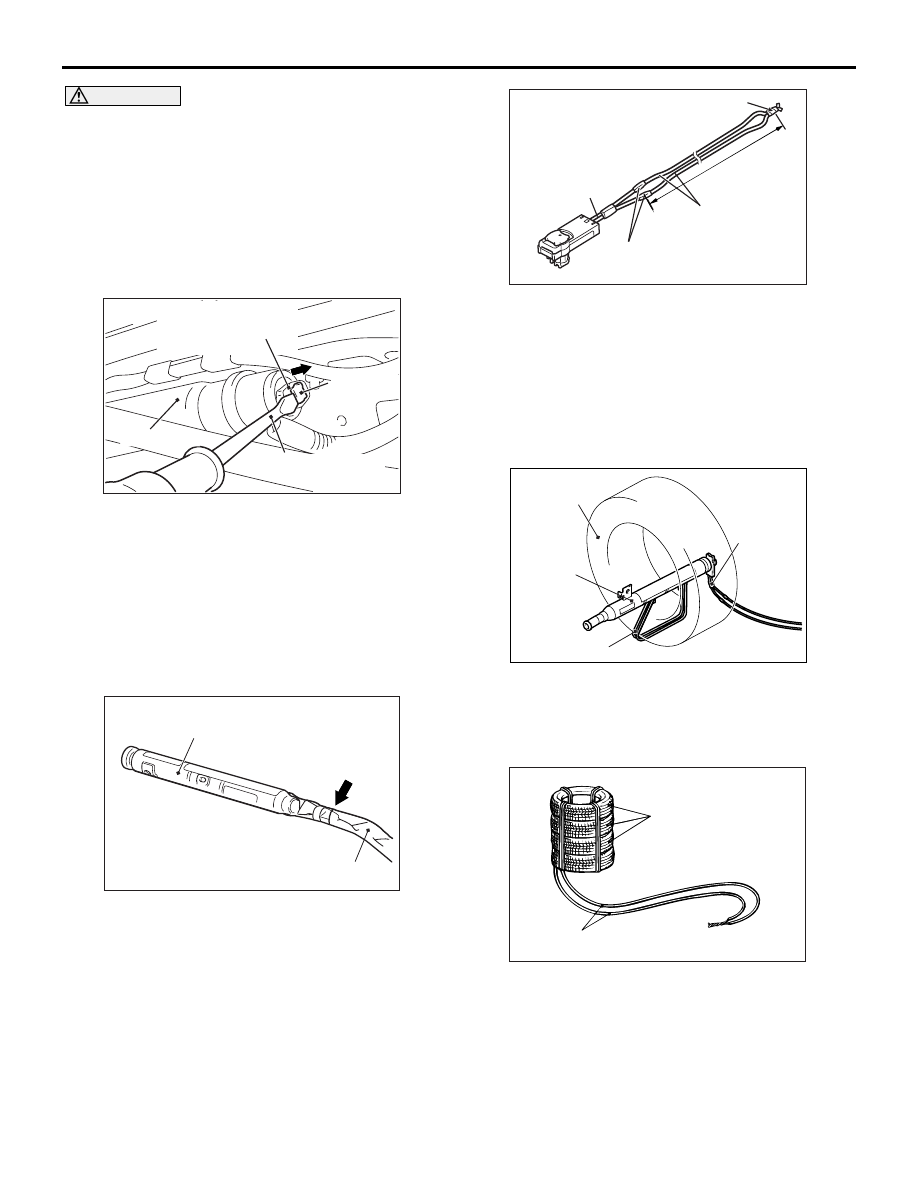

CAUTION

When the connector is disconnected, the two
pins of air bag module are automatically shorted
to prevent the unintentional deployment caused
by the static or others. However, in preparation
for the accidental deployment, store the air bag
module on a flat place with the deployment sur-
face facing upward. Also, do not put anything on
it.

2. Remove the passenger's (front) air bag module

from the vehicle (Refer to

P.52B-136

).

AC103480

MB991885

AJ

Connection

Deployment wires

Insulator tape

6 m or longer

3. Connect the deployment wires of 6 m or more to

each of the two wiring harnesses of special tool
adapter harness (MB991885), and cover the
connection areas with insulation tape. Keep the
other ends of deployment wires connected to
each other (shorted).

NOTE: This prevents the unintentional activation
of inflator caused by the static or others.

4. Connect the adapter harness to the passenger's

(front) air bag module.

AC300520AC

Passenger's (front) air bag module

Deployment
wires

5. Pass a thick wire through the hole of air bag

module bracket. Then, with the air bag module
deployment surface facing upward, fix the module
to the old tyre with wheel.

ACX00611 AC

Old tyres
without wheels

Deployment wires

AIR BAG MODULE DISPOSAL PROCEDURES

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-160

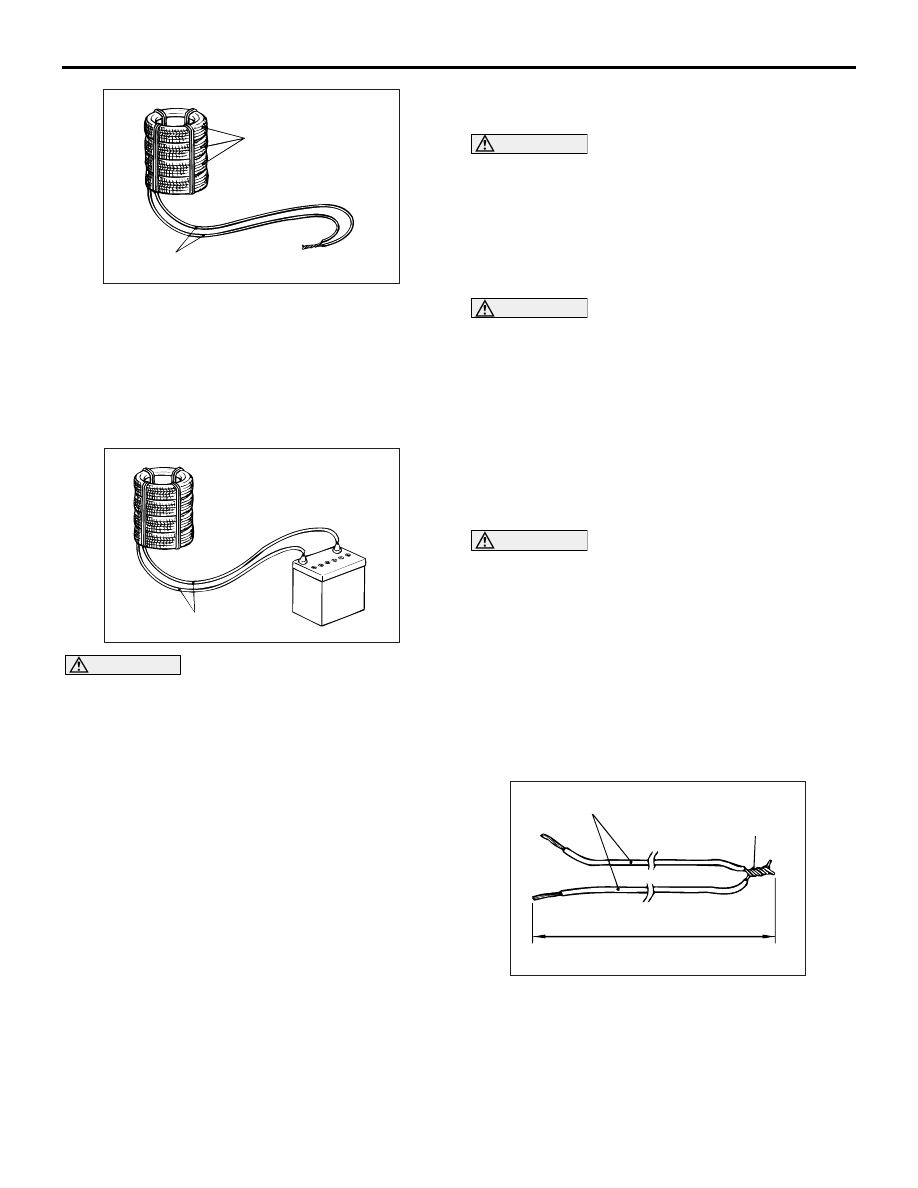

6. Place three old tyres without wheel onto the tyre

to which the air bag module is fixed. Then, tie and
fix all the tyres with rope (4 positions).

NOTE: The passenger's (front) air bag has a
larger deployment volume than the driver's air
bag. Therefore, it is necessary to tie the tyres with
rope.

ACX01315 AD

Deployment wires

CAUTION

• Make sure that no one is present near the air

bag module before deploying the air bag.

• Immediately after the air bag deployment, the

inflator is extremely hot. Thus, before han-
dling, leave the inflator for 30 minutes or more
to cool.

• If the air bag module does not deploy, consult

with your distributor.

7. Disconnect the deployment wire connection at a

place as far as possible from the air bag module.
Then, connect the wires to the removed vehicle
battery to deploy the air bag module.

8. Discard the deployed air bag module according to

the disposal procedures (Refer to

P.52B-163

     ).

SIDE-AIRBAG MODULE DEPLOYMENT
OUTSIDE THE VEHICLE

CAUTION

• Deploy the air bag in the wide open, flat place

with a distance of 6 m or more from obstacles
and people.

• When deploying the air bag in the open

space, do not deploy when the strong wind is
blowing. Even with a slight breeze, ignite at
the windward of the air bag module.

CAUTION

Before starting the work, wait for 60 seconds or
more after the disconnection of the battery cable.
(Refer to the item 5

P.52B-7

 of Service Precau-

tions.)

1. Disconnect the (

−) and (+) terminals of battery

cable, and then remove the battery from the
vehicle.

2. Remove the front seat assembly incorporated in

side-airbag from the vehicle (GROUP 52A

− Front

Seat Assembly ).

CAUTION

When the connector is disconnected, the two
pins of side-airbag module are automatically
shorted to prevent the unintentional deployment
caused by the static or others. However, in prepa-
ration for the accidental deployment, store the air
bag module on a flat place with the deployment
surface facing upward. Also, do not put anything
on it.

3. Remove the side-airbag module from the front

seat assembly incorporated in the side-airbag
(Refer to

P.52B-142

).

AC100450 AC

Connection

Deployment wires

6 m or longer

4. Prepare two deployment wires of 6 m or more,

and keep the terminal at one end connected to
that of the other wire (shorted).

NOTE: This prevents the air bags from uninten-
tional deployment caused by static.

AIR BAG MODULE DISPOSAL PROCEDURES

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-161

CAUTION

The following procedures are intended to prevent
the unintentional deployment caused by the
static. Therefore, make sure to perform the pro-
cedures.

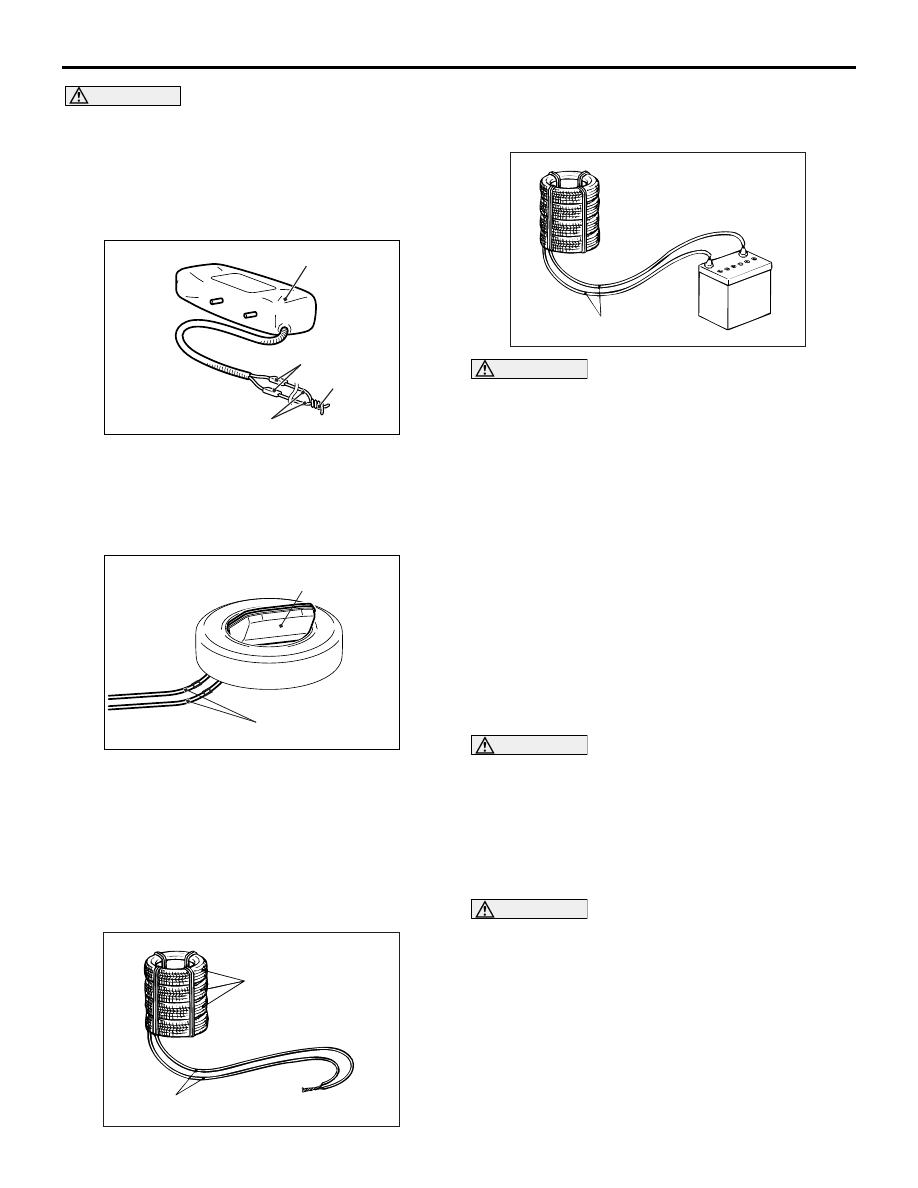

5. Touch the vehicle body with bare hands to release

the charged static.

AC406391AD

Connection

Deployment wires

Insulator tape

Side-airbag module

6. Cut off the side-airbag module wiring harness

connector from the wiring harness with nippers.
Connect the deployment wire to each of the two
cut wiring harnesses, and cover the connection
areas with insulation tape.

AC300990

AJ

Side-air bag module

Deployment wires

7. Pass the deployment wire under the tyre with

wheel, and connect it to the side-airbag module
connector.

8. Install a surplus nut to the side-airbag module

bolt. Then, tie a thick wire for fixing the wheel to
the bolt. Fix the side-airbag module to the wheel
of old tyre with the module deployment surface
facing upward.

ACX00611 AC

Old tyres
without wheels

Deployment wires

9. Place three old tyres without wheel onto the tyre

to which the side-airbag module is fixed. Then, tie
and fix all the tyres with rope. (4 positions)

ACX01315 AD

Deployment wires

CAUTION

• Make sure that no one is present near the air

bag module before deploying the air bag.

• Immediately after the air bag deployment, the

inflator is extremely hot. Thus, before han-
dling, leave the inflator for 30 minutes or more
to cool.

• If the air bag module does not deploy, consult

with your distributor.

10.Disconnect the deployment wire connection at a

place as far as possible from the air bag module.
Then, connect the wires to the removed vehicle
battery to deploy the air bag module.

11.Discard the deployed air bag module according to

the disposal procedures (Refer to

P.52B-163

    ).

CURTAIN AIR BAG INFLATOR
ACTIVATION OUTSIDE THE VEHICLE

CAUTION

• Activate the inflator in the wide open, flat

place with a distance of 6 m or more from
obstacles and people.

• When deploying in the open space, do not

deploy when the strong wind is blowing. Even
with a slight breeze, ignite at the windward of
the inflator.

CAUTION

Before starting the work, wait for 60 seconds or
more after the disconnection of the battery cable.
(Refer to the item 5

P.52B-7

 of Service Precau-

tions.)

1. Disconnect the (

−) and (+) terminals of battery

cable, and then remove the battery from the
vehicle.

AIR BAG MODULE DISPOSAL PROCEDURES

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-162

CAUTION

When the connector is disconnected, the two
pins of inflator are automatically shorted to pre-
vent the unintentional activation caused by the
static or others. However, in preparation for the
accidental activation, store the air bag module on
a flat place with the activation surface facing
upward. Also, do not put anything on it.

2. Remove the headlining (Refer to GROUP 52A -

Headlining ).

AC506711AC

Curtain air bag wiring
harness connector
 (2-pin, black)

Locking
button

Flat-tipped screwdriver

Inflator

3. Use the flat-tipped screwdriver to pull out the

locking button of curtain air bag harness
connector. After releasing the lock, disconnect the
connector.

NOTE: When the harness connector is discon-
nected from the inflator, the two pins of inflator
connector are automatically shorted. This pre-
vents the unintentional activation of inflator
caused by the static or others.

AC303536AB

Inflator

Air bag

4. Cut the inflator from the air bag as shown in the

figure using a cutter or a similar tool.

AC103480

MB991885

AJ

Connection

Deployment wires

Insulator tape

6 m or longer

5. Connect the deployment wires of 6 m or more to

each of the two wiring harnesses of special tool
adapter harness (MB991885), and cover the
connection areas with insulation tape. Keep the
other ends of deployment wires connected to
each other (shorted).

NOTE: This prevents the unintentional activation
of inflator caused by the static or others.

AC303641

MB991885

AD

Inflator

Wire

Old tyre
without wheel

6. Feed a thick wire through the bracket of the

inflator, and connect it to an old tyre with a wheel.

7. Connect the adapter harness to the inflator

connector.

ACX00611 AC

Old tyres
without wheels

Deployment wires

8. Place the tyre to which the inflator is fixed onto the

two stacked tyres. Then, place 1 or more old tyres
without wheel onto the stacked tyres, and tie and
fix all the tyres with rope. (4 positions)
