TROUBLESHOOTING

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

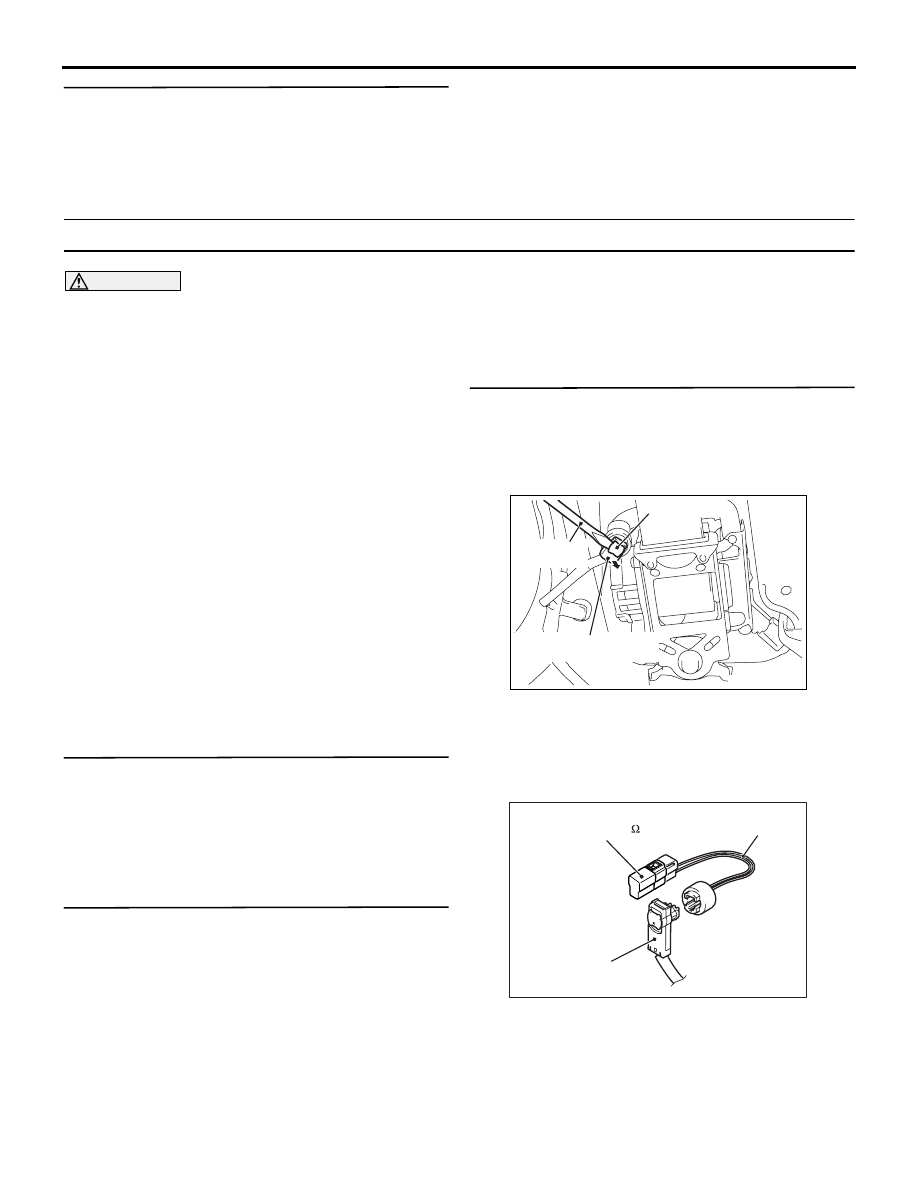

52B-87

STEP 6. Check whether the diagnosis code is
reset.

Q: Is the diagnosis code No. B1603 set?

YES :

Replace SRS-ECU (Refer to

P.52B-129

).

NO :

Intermittent malfunction (Refer to GROUP
00

− How to Use

Troubleshooting/Inspection Service Points

−

How to Cope with Intermittent Malfunction ).

Code No.B1604 Seat belt pre-tensioner (driver’s side) (squib) system (open circuit of squib circuit)

CAUTION

If the diagnosis code B1604 is set to SRS-ECU,
be sure to diagnose the CAN bus line.

OPERATION

Only when the frontal impact exceeding the threshold
is simultaneously detected (turned ON) by the front
impact sensor as well as by the analogue G-sensor
and safing G-sensor in SRS-ECU, the electric cur-
rent is supplied from SRS-ECU to the seat belt
pre-tensioner (squib).

TROUBLE JUDGEMENT

The code is set when the open circuit occurs to the
SRS-ECU seat belt pre-tensioner (driver’s side)
(squib) circuit.

PROBABLE CAUSES

• Open circuit to seat belt pre-tensioner (driver’s

side) (squib) circuit

• Damaged wiring harness and connector

• Malfunction of SRS-ECU

DIAGNOSIS PROCEDURE

STEP 1. M.U.T.-III CAN bus diagnostics.
Use M.U.T.-III to diagnose the CAN bus lines.

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Repair the CAN bus line (Refer to GROUP
54C

− Troubleshooting ).

STEP 2. Check whether the diagnosis code is
reset.
(1) Connect the negative battery terminal.
(2) After erasing the diagnosis code memory, check

the diagnosis code again.

(3) Disconnect the negative battery terminal.

Q: Is the diagnosis code No. B1604 set?

YES :

Go to Step 3.

NO :

Intermittent malfunction (Refer to GROUP
00

− How to Use

Troubleshooting/Inspection Service Points

−

How to Cope with Intermittent Malfunction ).

STEP 3. Diagnosis check by dummy resistor
connection.
(1) Check that the negative battery terminal is

disconnected. If the negative battery terminal is
connected, disconnect it.

ACC00046AB

Locking button

Flat-tipped
screwdriver

Seat belt pre-tensioner
harness side connector

(2) Use the flat-tipped screwdriver to pull out the

locking button of harness side connector. After
releasing the lock, disconnect the seat belt
pre-tensioner (driver's side) harness side
connector.

AC301553DR

Harness side
connector

MB991865

(Dummy resistor: 3    )

MB991884

(Resistor harness)

(3) Connect special tool dummy resistor (MB991865)

to special tool resistor harness (MB991884).

(4) Connect the special tool resistor harness to the

seat belt pre-tensioner (driver's side) harness
side connector.

(5) Connect the negative battery terminal.
(6) After erasing the diagnosis code memory, check

TROUBLESHOOTING

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

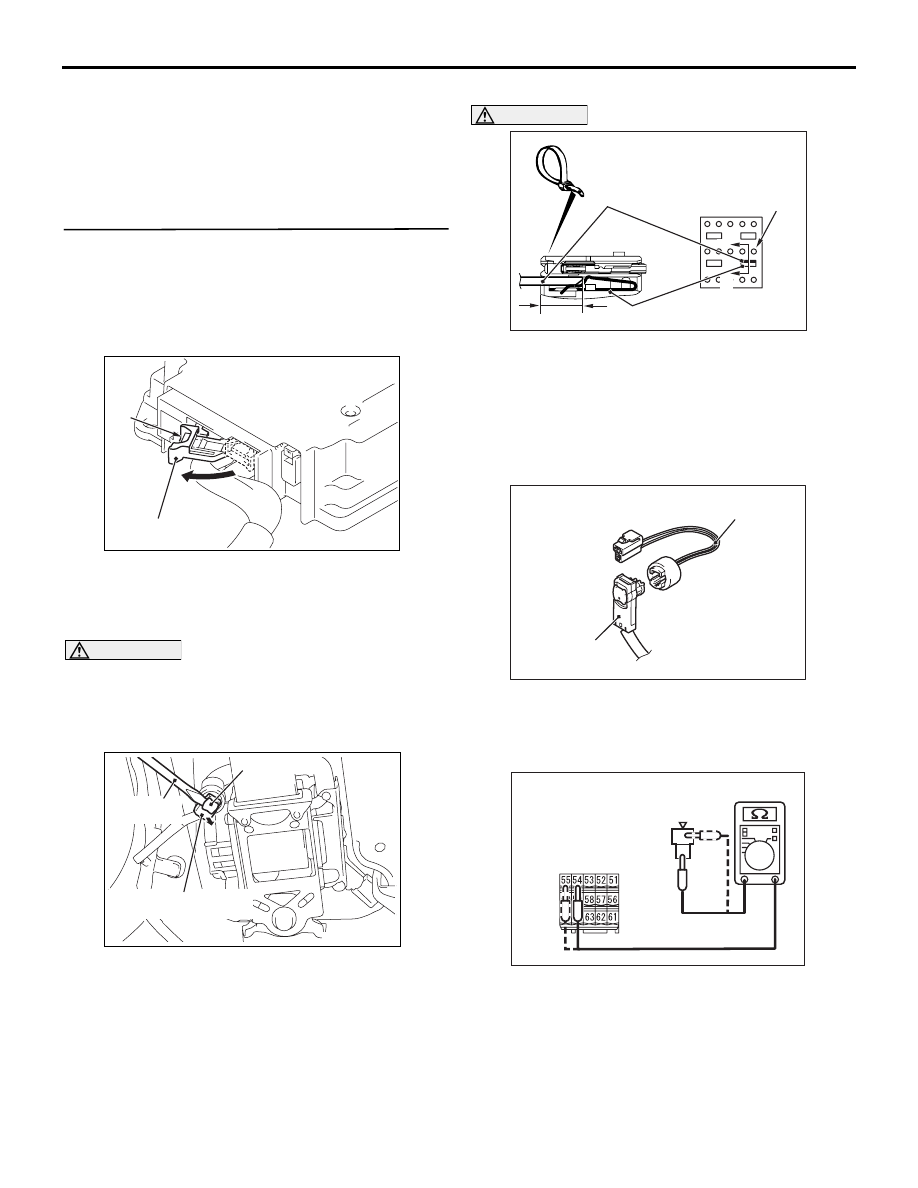

52B-88

the diagnosis code again.

(7) Disconnect the negative battery terminal.

Q: Is the diagnosis code No. B1604 set?

YES :

Go to Step 4.

NO :

Replace the seat belt with pre-tensioner
(driver’s side) (Refer to

P.52B-147

).

STEP 4. Resistance measurement at the
SRS-ECU connector and the seat belt
pre-tensioner (driver's side) connector.
(1) Check that the negative battery terminal is

disconnected. If the negative battery terminal is
connected, disconnect it.

AC905015

A

AC

Lock lever

(2) While pushing the part "A" indicated in the figure

of the harness side connector, turn the lock lever
to the direction of the arrow to release the lock
lever, and disconnect the SRS-ECU connector.

DANGER

To release the SRS-ECU connector short
spring in the following operations, discon-
nect this seat belt pre-tensioner connector,
and keep the squib circuit shorted.

ACC00046AB

Locking button

Flat-tipped
screwdriver

Seat belt pre-tensioner
harness side connector

(3) Use the flat-tipped screwdriver to pull out the

locking button of harness side connector. After
releasing the lock, disconnect the seat belt
pre-tensioner (driver's side) harness side

connector.

AC905468AU

A

A

Harness side
connector (front view)

Section
A - A

Cable tie

Short spring

4 mm or more

Terminal

CAUTION

The short spring may not be released due to the
insufficient insertion. Therefore, insert the insu-
lator for 4 mm or more.
(4) Insert an insulator (width: 3 mm, thickness: 0.5

mm) such as cable tie between the PTD-, PTD+
line the short spring, and release the short spring.

AC201287 GJ

MB991884

(Resistor harness)

Harness side
connector

(5) Connect special tool resistor harness

(MB991884) to the removed seat belt
pre-tensioner (driver's side) harness side
connector.

AC506985FH

2

1

SRS-ECU
harness side
connector (front view)

Resistor harness side

connector (front view)

(6) Take the measurements below at the resistor

harness and SRS-ECU harness side connector.

• Continuity PTD- line between SRS-ECU con-

nector and resistor harness connector

• Continuity PTD+ line between SRS-ECU con-

nector and resistor harness connector

OK: Continuity (less than 2

Ω)

Q: Is the check result normal?

TROUBLESHOOTING

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-89

YES :

Go to Step 5.

NO :

Repair the wiring harness PTD-, PTD+ line
between the SRS-ECU connector and the
seat belt pre-tensioner (driver's side)
connector.

STEP 5. Check whether the diagnosis code is
reset.

Q: Is the diagnosis code No. B1604 set?

YES :

Replace SRS-ECU (Refer to

P.52B-129

).

NO :

Intermittent malfunction (Refer to GROUP
00

− How to Use

Troubleshooting/Inspection Service Points

−

How to Cope with Intermittent Malfunction ).

Code No.B1605 Seat belt pre-tensioner (driver’s side) (squib) system (shorted to squib circuit earth)

CAUTION

If the diagnosis code B1605 is set to SRS-ECU,
be sure to diagnose the CAN bus line.

OPERATION

Only when the frontal impact exceeding the threshold
is simultaneously detected (turned ON) by the front
impact sensor as well as by the analogue G-sensor
in SRS-ECU, the electric current is supplied from
SRS-ECU to the seat belt pre-tensioner (squib).

TROUBLE JUDGEMENT

The code is set when the input terminal of SRS-ECU
seat belt pre-tensioner (driver’s side) (squib) is
shorted to earth

PROBABLE CAUSES

• Damaged wiring harness and connector

• Seat belt pre-tensioner (driver’s side) (squib) har-

ness shorted to earth.

• Malfunction of SRS-ECU

DIAGNOSIS PROCEDURE

STEP 1. M.U.T.-III CAN bus diagnostics.
Use M.U.T.-III to diagnose the CAN bus lines.

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Repair the CAN bus line (Refer to GROUP
54C

− Troubleshooting ).

STEP 2. Check whether the diagnosis code is
reset.
(1) Connect the negative battery terminal.
(2) After erasing the diagnosis code memory, check

the diagnosis code again.

(3) Disconnect the negative battery terminal.

Q: Is the diagnosis code No. B1605 set?

YES :

Go to Step 3.

NO :

Intermittent malfunction (Refer to GROUP
00

− How to Use

Troubleshooting/Inspection Service Points

−

How to Cope with Intermittent Malfunction ).

STEP 3. Diagnosis check by dummy resistor
connection.
(1) Check that the negative battery terminal is

disconnected. If the negative battery terminal is
connected, disconnect it.

ACC00046AB

Locking button

Flat-tipped
screwdriver

Seat belt pre-tensioner
harness side connector

(2) Use the flat-tipped screwdriver to pull out the

locking button of harness side connector. After
releasing the lock, disconnect the seat belt
pre-tensioner (driver's side) harness side
connector.

AC301553DR

Harness side
connector

MB991865

(Dummy resistor: 3    )

MB991884

(Resistor harness)

(3) Connect special tool dummy resistor (MB991865)

to special tool resistor harness (MB991884).

(4) Connect special tool resistor harness to the seat

TROUBLESHOOTING

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

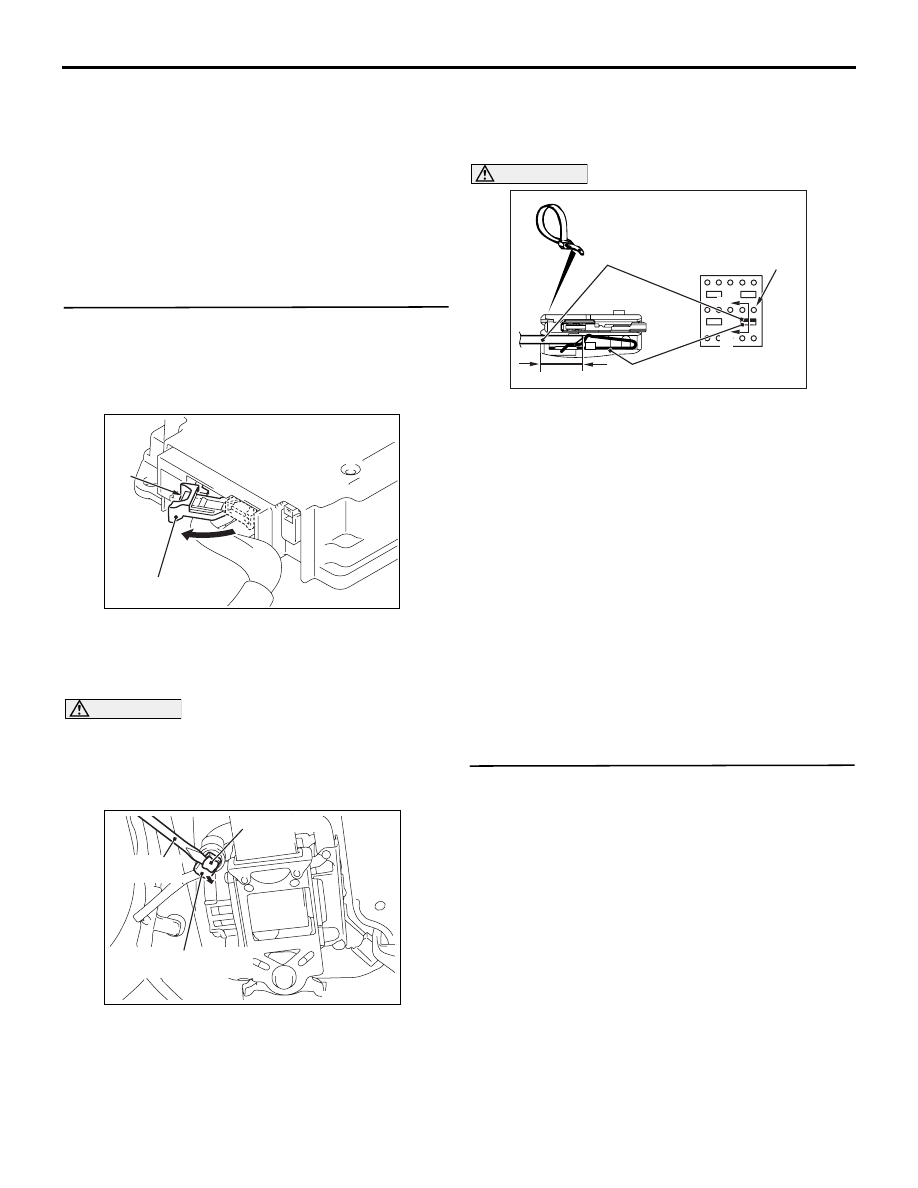

52B-90

belt pre-tensioner (driver's side) harness side
connector.

(5) Connect the negative battery terminal.
(6) After erasing the diagnosis code memory, check

the diagnosis code again.

(7) Disconnect the negative battery terminal.

Q: Is the diagnosis code No. B1605 set?

YES :

Go to Step 4.

NO :

Replace the seat belt with pre-tensioner
(driver’s side) (Refer to

P.52B-147

).

STEP 4. Resistance measurement at the
SRS-ECU connector.
(1) Check that the negative battery terminal is

disconnected. If the negative battery terminal is
connected, disconnect it.

AC905015

A

AC

Lock lever

(2) While pushing the part "A" indicated in the figure

of the harness side connector, turn the lock lever
to the direction of the arrow to release the lock
lever, and disconnect the SRS-ECU connector.

DANGER

To release the SRS-ECU connector short
spring in the following operations, discon-
nect this seat belt pre-tensioner connector,
and keep the squib circuit shorted.

ACC00046AB

Locking button

Flat-tipped
screwdriver

Seat belt pre-tensioner
harness side connector

(3) Use the flat-tipped screwdriver to pull out the

locking button of harness side connector. After
releasing the lock, disconnect the seat belt
pre-tensioner (driver's side) harness side
connector.

AC905468AU

A

A

Harness side
connector (front view)

Section
A - A

Cable tie

Short spring

4 mm or more

Terminal

CAUTION

The short spring may not be released due to the
insufficient insertion. Therefore, insert the insu-
lator for 4 mm or more.
(4) Insert an insulator (width: 3 mm, thickness: 0.5

mm) such as cable tie between the PTD-, PTD+
line the short spring, and release the short spring.

(5) Take the measurements below at the SRS-ECU

harness side connector.

• Continuity between PTD-, PTD+ line and

body earth

OK: No continuity

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Repair the wiring harness PTD-, PTD+ line
between the SRS-ECU connector and the
seat belt pre-tensioner (driver's side)
connector.

STEP 5. Check whether the diagnosis code is
reset.

Q: Is the diagnosis code No. B1605 set?

YES :

Replace SRS-ECU (Refer to

P.52B-129

).

NO :

Intermittent malfunction (Refer to GROUP
00

− How to Use

Troubleshooting/Inspection Service Points

−

How to Cope with Intermittent Malfunction ).
