TROUBLESHOOTING

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-79

wiring harness side connectors.

• Continuity GND2 line between SRS-ECU wir-

ing harness side connector and body earth

OK: Continuity (less than 2

Ω)

Q: Is the check result normal?

YES :

Go to Step 7.

NO :

Repair the wiring harness GND2 line
between the SRS-ECU connector and the
earth.

STEP 7. Voltage measurement at the SRS-ECU
connector.
(1) Check that the negative battery terminal is

disconnected. If the negative battery terminal is
connected, disconnect it.

AC905015

A

AC

Lock lever

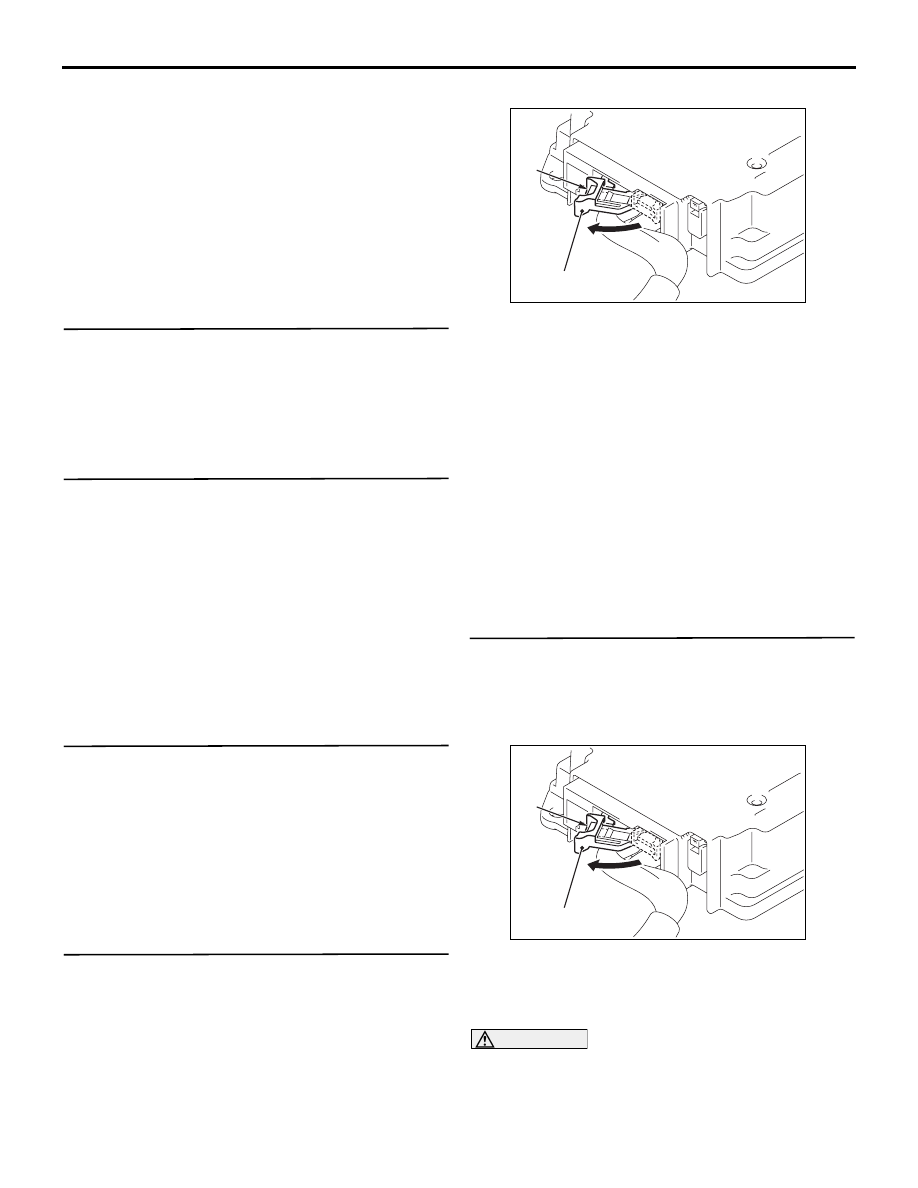

(2) While pushing the part "A" indicated in the figure

of the harness side connector, turn the lock lever
to the direction of the arrow to release the lock
lever, and disconnect the SRS-ECU connector.

(3) Connect the negative battery terminal.
(4) Ignition switch: ON
(5) Take the measurements below at the SRS-ECU

harness side connector.

• Voltage between terminal IG1A line and body

earth

OK: 9 V or more

(6) Disconnect the negative battery terminal.

Q: Is the check result normal?

YES :

Go to Step 9.

NO :

Go to Step 8.

STEP 8. Resistance measurement at the
SRS-ECU connector.
(1) Check that the negative battery terminal is

disconnected. If the negative battery terminal is
connected, disconnect it.

(2) Disconnect the ETACS-ECU connector.

AC905015

A

AC

Lock lever

(3) While pushing the part "A" indicated in the figure

of the harness side connector, turn the lock lever
to the direction of the arrow to release the lock
lever, and disconnect the SRS-ECU connector.

• Continuity IG1A line between ETACS-ECU

connector and SRS-ECU connector

OK: Continuity (less than 2

Ω)

Q: Is the check result normal?

YES :

Replace the ETACS-ECU (Refer to GROUP

54A

− ETACS-ECU ).

NO :

Repair the wiring harness IG1A line
between the ETACS-ECU connector and
the SRS-ECU connector.

STEP 9. Check whether the diagnosis code is
reset.

Q: Is diagnosis code No. B1476 set?

YES :

Replace SRS-ECU (Refer to

P.52B-129

).

NO :

Intermittent malfunction (Refer to GROUP
00

− How to Use

Troubleshooting/Inspection Service Points

−

How to Cope with Intermittent Malfunction ).

Code No. B1488 Passenger's air bag OFF indicator lamp (short circuited)

CAUTION

If the diagnosis code B1488 is set in the
SRS-ECU, be sure to diagnose the CAN bus line

OPERATION

• Power for the passenger’s air bag OFF indicator

lamp is supplied from the fusible link (2).

• The passenger’s air bag OFF indicator lamp illu-

minates when the ignition switch is turned to the
"ON" position and goes out after approximately 6
to 8 seconds if there is not a malfunction in the
SRS system.

TROUBLESHOOTING

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-80

TROUBLE JUDGEMENT

This code will be set if the passenger’s air bag OFF
indicator lamp driving circuit is short to earth.

PROBABLE CAUSES

• Damaged wiring harnesses or connectors

• Malfunction of the SRS-ECU

• Malfunction of the passenger’s air bag OFF indi-

cator lamp

DIAGNOSIS PROCEDURE

STEP 1. M.U.T.-III CAN bus diagnostics.
Use M.U.T.-III to diagnose the CAN bus lines.

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Repair the CAN bus line (Refer to GROUP
54C

− Troubleshooting ).

STEP 2. Check whether the diagnosis code is
reset.
(1) Connect the negative battery terminal.
(2) After erasing the diagnosis code memory, check

the diagnosis code again.

(3) Disconnect the negative battery terminal.

Q: Is the diagnosis code No. B1488 set?

YES :

Go to Step 3.

NO :

Intermittent malfunction (Refer to GROUP
00

− How to Use

Troubleshooting/Inspection Service Points

−

How to Cope with Intermittent Malfunction ).

STEP 3. Check the passenger’s air bag OFF
indicator lamp.
It is checked whether passenger’s air bag OFF indi-
cator lamp is normal (Refer to

P.52B-152

).

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Replace hazard indicator assembly (Refer
to GROUP 52A

− Instrument Panel

Assembly ).

STEP 4. Resistance measurement at the
SRS-ECU connector.
(1) Check that the negative battery terminal is

disconnected. If the negative battery terminal is

connected, disconnect it.

AC905015

A

AC

Lock lever

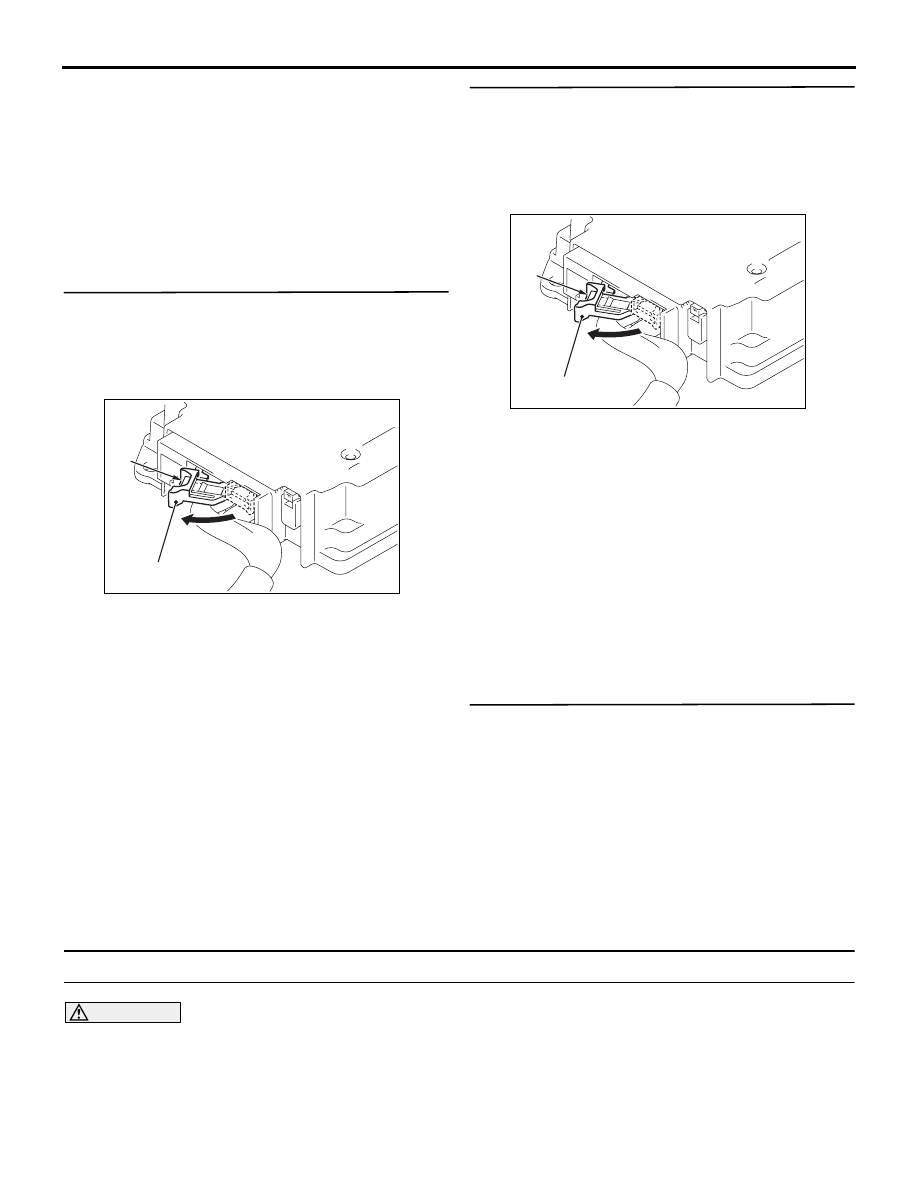

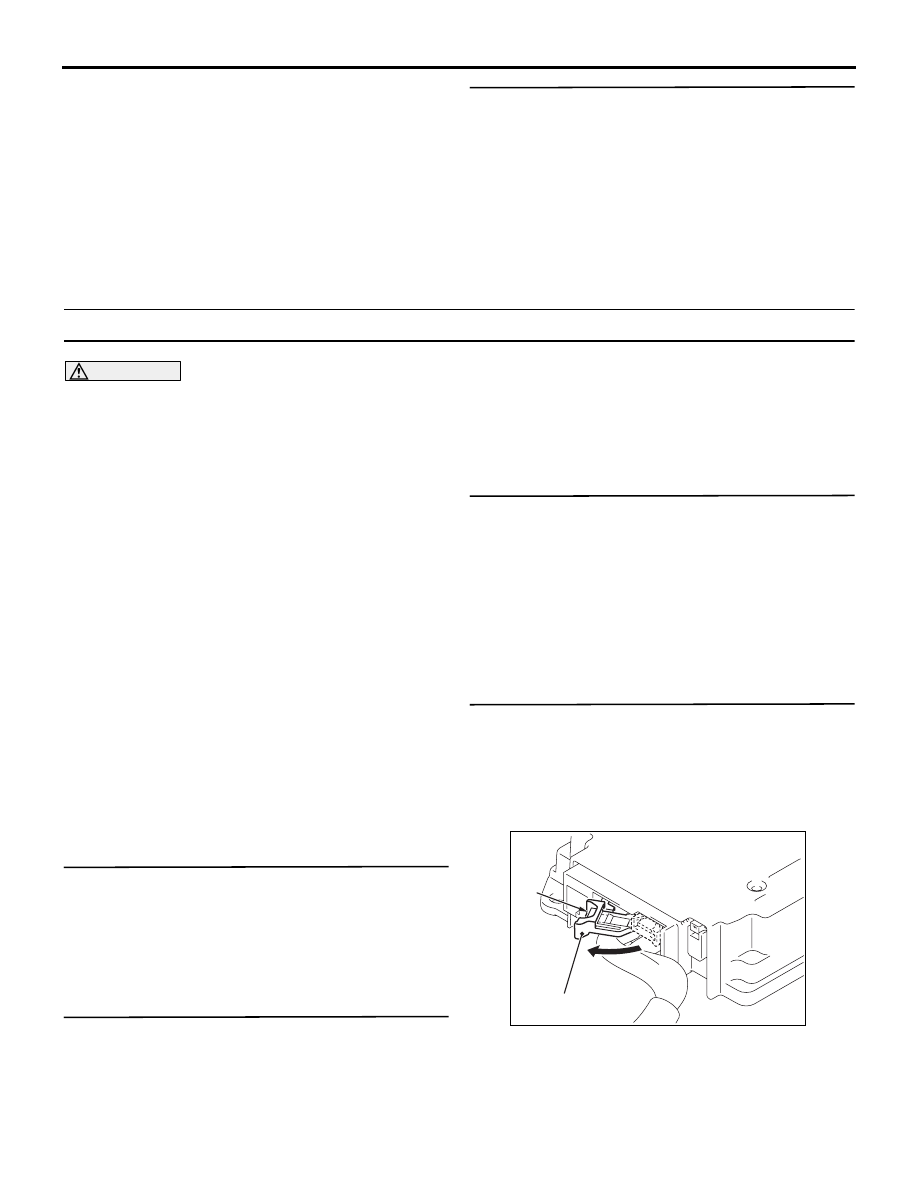

(2) While pushing the part "A" indicated in the figure

of the harness side connector, turn the lock lever
to the direction of the arrow to release the lock
lever, and disconnect the SRS-ECU connector.

(3) Disconnect the hazard indicator assembly

connector.

(4) Take the measurements below at the SRS-ECU

connector.

• Continuity between OFLP line and body earth

OK: No continuity

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Repair the wiring harnesses OFLP line
between the SRS-ECU connector and the
hazard indicator assembly connector.

STEP 5. Resistance measurement at the hazard
indicator assembly connector.
(1) Check that the negative battery terminal is

disconnected. If the negative battery terminal is
connected, disconnect it.

AC905015

A

AC

Lock lever

(2) While pushing the part "A" indicated in the figure

of the harness side connector, turn the lock lever
to the direction of the arrow to release the lock
lever, and disconnect the SRS-ECU connector.

CAUTION

Do not insert a test probe into the terminal from
its front side directly as the connector contact
pressure may be weakened.
(3) Take the following measurements at the backside

TROUBLESHOOTING

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-81

of the hazard indicator assembly side connector
(harness side).

• Continuity between LP line and body earth

OK: No continuity

Q: Is the check result normal?

YES :

Go to Step 6

NO :

Repair the wiring harnesses LP line
between the hazard indicator assembly
connector and the body earth.

STEP 6. Check whether the diagnosis code is
reset.

Q: Is the diagnosis code No. B1488 set?

YES :

Replace SRS-ECU (Refer to

P.52B-129

).

NO :

Intermittent malfunction (Refer to GROUP
00

− How to Use

Troubleshooting/Inspection Service Points

−

How to Cope with Intermittent Malfunction ).

CODE NO. B1489 Passenger’s air bag OFF indicator lamp (open circuit)

CAUTION

If the diagnosis code B1489 is set in the
SRS-ECU, be sure to diagnose the CAN bus line

OPERATION

• Power for the passenger’s air bag OFF indicator

lamp is supplied from the fusible link (2).

• The passenger’s air bag OFF indicator lamp illu-

minates when the ignition switch is turned to the
"ON" position and goes out after approximately 6
to 8 seconds if there is not a malfunction in the
SRS system.

TROUBLE JUDGEMENT

This code will be set if an open circuit has occurred
in the wiring harness between the passenger’s air
bag OFF indicator lamp and the SRS-ECU.

PROBABLE CAUSES

• Damaged wiring harnesses or connectors

• Malfunction of the SRS-ECU

• Malfunction of the passenger’s air bag OFF indi-

cator lamp

DIAGNOSIS PROCEDURE

STEP 1. M.U.T.-III CAN bus diagnostics.
Use M.U.T.-III to diagnose the CAN bus lines.

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Repair the CAN bus line (Refer to GROUP
54C

− Troubleshooting ).

STEP 2. Check whether the diagnosis code is
reset.
(1) Connect the negative battery terminal.
(2) After erasing the diagnosis code memory, check

the diagnosis code again.

(3) Disconnect the negative battery terminal.

Q: Is the diagnosis code No. B1489 set?

YES :

Go to Step 3.

NO :

Intermittent malfunction (Refer to GROUP
00

− How to Use

Troubleshooting/Inspection Service Points

−

How to Cope with Intermittent Malfunction ).

STEP 3. Check the passenger’s air bag OFF
indicator lamp.
It is checked whether passenger’s air bag OFF indi-
cator lamp is normal (Refer to

P.52B-152

).

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Replace hazard indicator assembly (Refer
to GROUP 52A

− Instrument Panel

Assembly ).

STEP 4. Resistance measurement at the
SRS-ECU connector and the hazard indicator
assembly connector.
(1) Check that the negative battery terminal is

disconnected. If the negative battery terminal is
connected, disconnect it.

AC905015

A

AC

Lock lever

(2) While pushing the part "A" indicated in the figure

of the harness side connector, turn the lock lever
to the direction of the arrow to release the lock
lever, and disconnect the SRS-ECU connector.

(3) Disconnect the hazard indicator assembly

TROUBLESHOOTING

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-82

connector.

(4) Take the measurements below at the SRS-ECU

and hazard indicator assembly wiring harness
side connectors.

• Continuity OFLP line between SRS-ECU con-

nector and hazard indicator assembly con-
nector

OK: Continuity (less than 2

Ω)

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Repair the wiring harnesses OFLP line
between the SRS-ECU connector and the
hazard indicator assembly connector.

STEP 5. Measure the voltage at the hazard
indicator assembly connector.
(1) Disconnect the hazard indicator assembly

connector.

(2) Connect the negative battery terminal.
(3) Ignition switch: ON

(4) Measure the voltage between the hazard

indicator assembly harness side connector and
the body earth.

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Repair the wiring harness IG+ line between
the ETACS-ECU connector and the hazard
indicator assembly connector.

STEP 6. Check whether the diagnosis code is
reset.

Q: Is the diagnosis code No. B1489 set?

YES :

Replace SRS-ECU (Refer to

P.52B-129

).

NO :

Intermittent malfunction (Refer to GROUP
00

− How to Use

Troubleshooting/Inspection Service Points

−

How to Cope with Intermittent Malfunction ).

Code No. B1499: Air bag deployment determined by SRS-ECU

CAUTION

If diagnosis code B1499 is set in the SRS-ECU,
always diagnose the CAN main bus line.

TROUBLE JUDGMENT

This diagnosis code is set after the air bag has
deployed. If this diagnosis code is set before the air
bag has deployed, the cause is probably a malfunc-
tion inside the SRS-ECU.

PROBABLE CAUSES

Malfunction of the SRS-ECU

Code No. B1570: Passenger's air bag cut off switch malfunction



Code No. B1573: Passenger's air bag cut off switch circuit (power supply side) shorted



Code No. B1574: Passenger's air bag cut off switch circuit open



Code No. B1575: Passenger's air bag cut off switch circuit (earth side) shorted

CAUTION

If diagnosis code B1570, B1573, B1574 or B1575
are set in the SRS-ECU, always diagnose the
CAN bus lines.

OPERATION

According to the passenger’s air bag cut off switch
connecting position, the SRS-ECU judges the
deployment and non-deployment of passenger’s
(front) air bag.

DIAGNOSIS CODE SET CONDITIONS

Diagnosis code is set when the resistance between
input terminals of the passenger’s air bag cut off
switch is without the standard value.
Cause of trouble in each diagnosis code is as fol-
lows.

Code No.

Symptom

B1570

Malfunction of passenger’s air bag
cut off switch

B1573

Short to the power supply in the
common terminal harness
