Mitsubishi Outlander (2013+). Manual - part 593





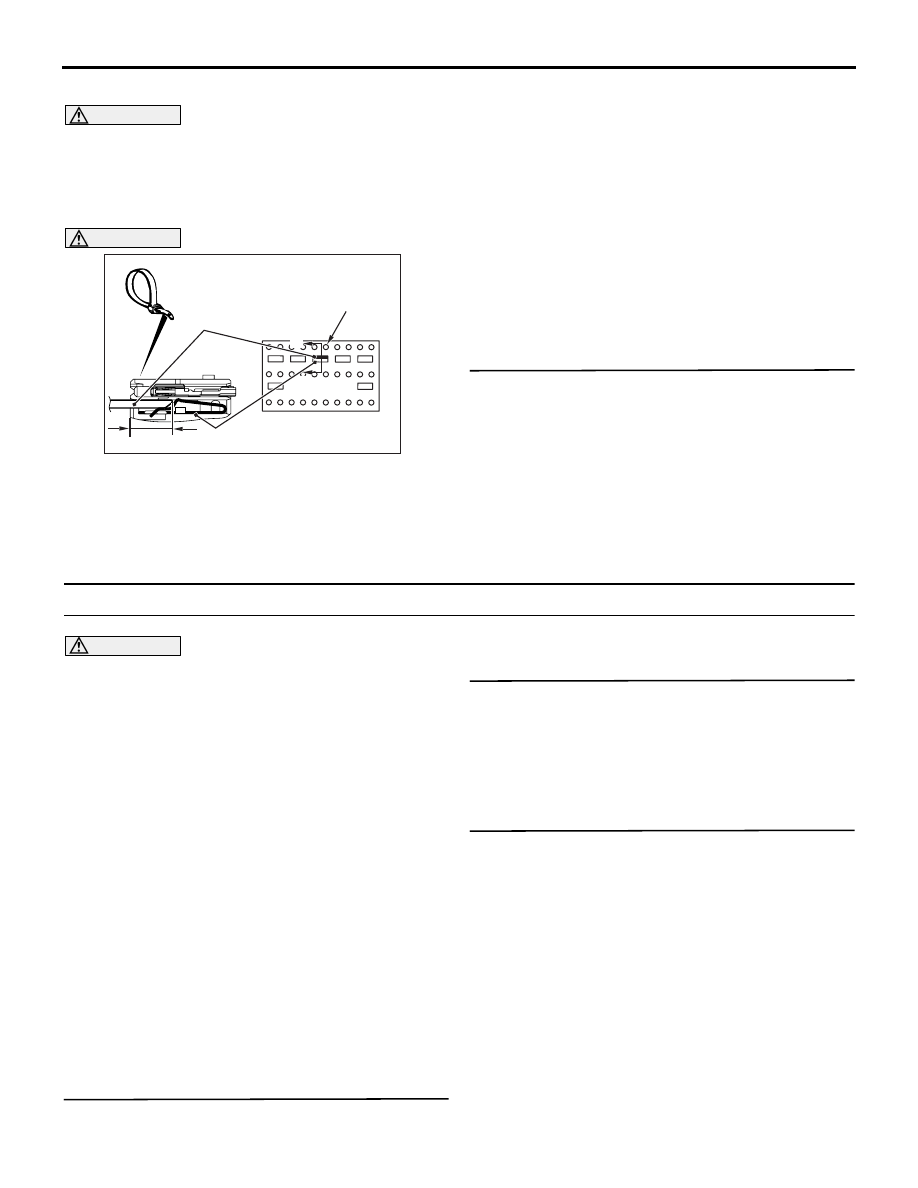

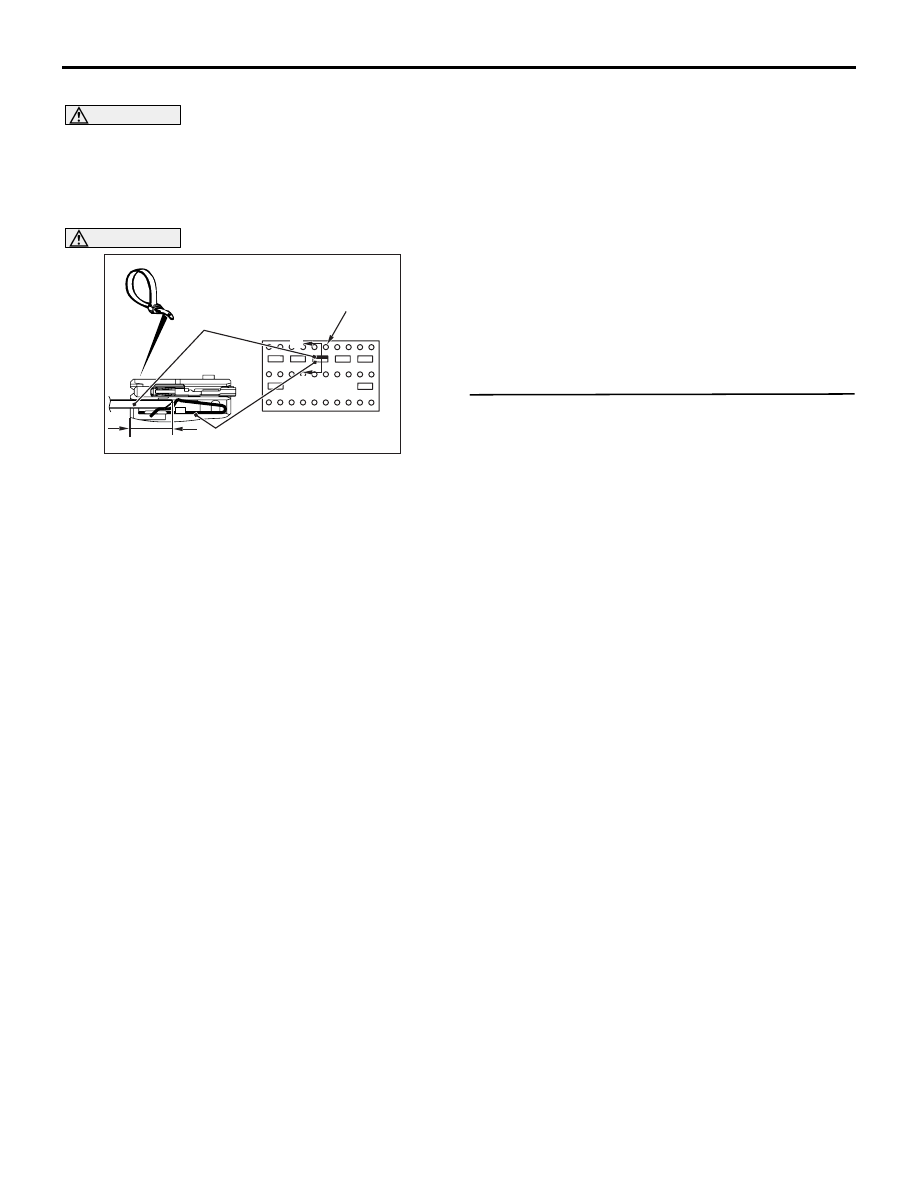

TROUBLESHOOTING

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-23

lever, and disconnect the SRS-ECU connector.

CAUTION

To release SRS-ECU connector short spring in
the following operations, disconnect this clock
spring connector, and keep the squib circuit
shorted.
(3) Disconnect the clock spring connector.

AC905150 AO

A

A

Harness side
connector (front view)

Section
A - A

Cable tie

Short spring

4 mm or more

Terminal

CAUTION

The short spring may not be released due to the
insufficient insertion. Therefore, insert the insu-
lator for 4 mm or more.
(4) Insert the insulator (width: 3 mm, thickness: 0.5

mm) such as cable tie between the DQ1-, DQ1+
line, and then release the short spring.

(5) Take the measurements below at the SRS-ECU

harness side connector.
Continuity between DQ1-, DQ1+ line and body
earth

OK: No continuity

Q: Is the check result normal?

YES :

Go to Step 6

NO :

Repair the wiring harnesses DQ1-, DQ1+
line between the clock spring connector and
the SRS-ECU connector.

STEP 6. Check whether the diagnosis code is
reset.

Q: Is the diagnosis code No. B1402 set?

YES :

Replace SRS-ECU (Refer to

P.52B-129

).

NO :

Intermittent malfunction (Refer to GROUP
00

− How to Use

Troubleshooting/Inspection Service Points

−

How to Cope with Intermittent Malfunction ).

Code No.B1403 Driver's air bag module (squib) system (shorted to squib circuit power supply)

CAUTION

If the diagnosis code B1403 is set to SRS-ECU,
be sure to diagnose the CAN bus line.

OPERATION

Only when the frontal impact exceeding the threshold
is simultaneously detected (turned ON) by the front
impact sensor as well as by the analogue G-sensor
and safing G-sensor in SRS-ECU, the electric cur-
rent is supplied from SRS-ECU to the driver's air bag
module (squib).

TROUBLE JUDGEMENT

The code is set when the input terminal of SRS-ECU
driver's air bag module (squib) shorted to power sup-
ply.

PROBABLE CAUSES

• Damaged clock spring

• Damaged wiring harness and connectors

• Driver's air bag module (squib) harness shorted

to power supply

• Malfunction of SRS-ECU

DIAGNOSIS PROCEDURE

STEP 1. M.U.T.-III CAN bus diagnostics.
Use M.U.T.-III to diagnose the CAN bus lines.

Q: Is the check result normal?

YES :

Go to Step 2

NO :

Repair the CAN bus line (Refer to GROUP
54C

− Troubleshooting ).

STEP 2. Check whether the diagnosis code is
reset.
(1) Connect the negative battery terminal.
(2) After erasing the diagnosis code memory, check

the diagnosis code again.

(3) Disconnect the negative battery terminal.

Q: Is the diagnosis code No. B1403 set?

YES :

Go to Step 3

NO :

Intermittent malfunction (Refer to GROUP
00

− How to Use

Troubleshooting/Inspection Service Points

−

How to Cope with Intermittent Malfunction ).

STEP 3. Diagnosis check by dummy resistor
connection.

(1) Check that the negative battery terminal is

disconnected. If the negative battery terminal is

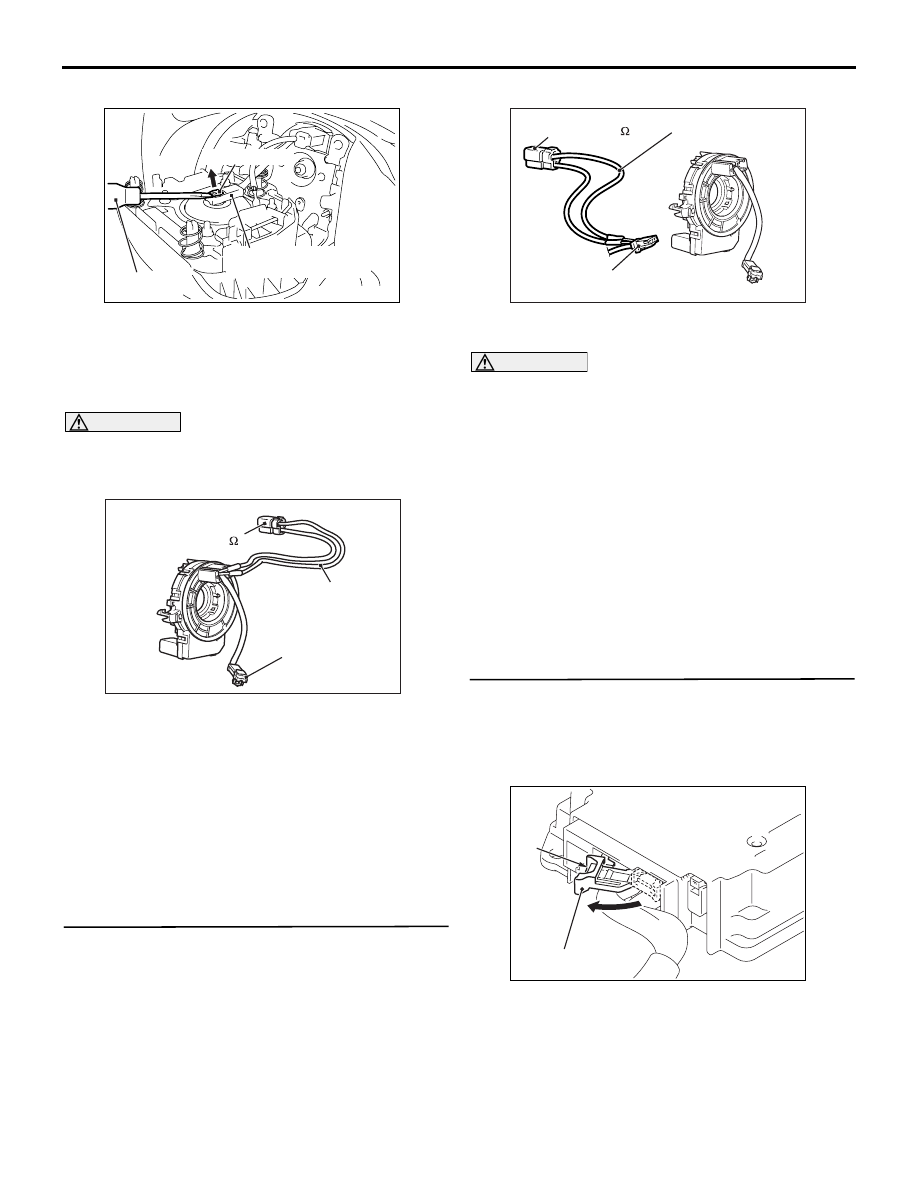

TROUBLESHOOTING

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-24

connected, disconnect it.

ACB04316 AB

Driver's air bag module
harness side connector

Locking button

Flat-tipped
screwdriver

(2) Use the flat-tipped screwdriver to pull out the

locking button of wiring harness side connector,
and release the lock.

(3) Connect special tool dummy resistor (MB991865)

to special tool resistor harness (MB991866).

CAUTION

Do not insert a probe directly into the terminal
from the connector front side as the connector
contact pressure may be weakened.

AC905251 AC

MB991865
(Dummy resistor: 3   )

MB991866
(Resistor harness)

Air bag
module connector

(4) Insert the resistor harness probe (special tool) as

shown.

(5) Connect the negative battery terminal.
(6) After erasing the diagnosis code memory, check

the diagnosis code again.

(7) Disconnect the negative battery terminal.

Q: Is the diagnosis code No. B1403 set?

YES :

Go to Step 4

NO :

Replace the driver's air bag module (Refer
to

P.52B-131

).

STEP 4. Diagnosis check by dummy resistor
connection.
(1) Check that the negative battery terminal is

disconnected. If the negative battery terminal is
connected, disconnect it.

(2) Disconnect the clock spring connector.

AC905254 AC

MB991865
(Dummy resistor: 3   )

MB991866
(Resistor harness)

Clock spring
connector

(3) Connect special tool dummy resistor (MB991865)

to special tool resistor harness (MB991866).

CAUTION

Do not insert a probe directly into the terminal
from the connector front side as the connector
contact pressure may be weakened.
(4) Insert the resistor harness probe from the back of

clock spring harness side connector DQ1-, DQ1+
line.

(5) Connect the negative battery terminal.
(6) After erasing the diagnosis code memory, check

the diagnosis code again.

(7) Disconnect the negative battery terminal.

Q: Is the diagnosis code No. B1403 set?

YES :

Go to Step 5

NO :

Replace the clock spring (Refer to

P.52B-131

).

STEP 5. Voltage measurement at the SRS-ECU
connector.
(1) Check that the negative battery terminal is

disconnected. If the negative battery terminal is
connected, disconnect it.

AC905015

A

AC

Lock lever

(2) While pushing the part "A" indicated in the figure

of the harness side connector, turn the lock lever
to the direction of the arrow to release the lock

TROUBLESHOOTING

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-25

lever, and disconnect the SRS-ECU connector.

CAUTION

To release SRS-ECU connector short spring in
the following operations, disconnect this clock
spring connector, and keep the squib circuit
shorted.
(3) Disconnect the clock spring connector.

AC905150 AO

A

A

Harness side
connector (front view)

Section
A - A

Cable tie

Short spring

4 mm or more

Terminal

CAUTION

The short spring may not be released due to the
insufficient insertion. Therefore, insert the insu-
lator for 4 mm or more.
(4) Insert the insulator (width: 3 mm, thickness: 0.5

mm) such as cable tie between the DQ1-, DQ1+

line, and then release the short spring.

(5) Connect the negative battery terminal.
(6) Ignition switch: ON
(7) Take the measurements below at the SRS-ECU

harness side connector.

• Voltage between DQ1-, DQ1+ line and body

earth

OK: 1 V or less

(8) Disconnect the negative battery terminal.

Q: Is the check result normal?

YES :

Go to Step 6

NO :

Repair the wiring harnesses DQ1-, DQ1+
line between the clock spring connector and
the SRS-ECU connector.

STEP 6. Check whether the diagnosis code is
reset.

Q: Is the diagnosis code No. B1403 set?

YES :

Replace SRS-ECU (Refer to

P.52B-129

).

NO :

Intermittent malfunction (Refer to GROUP
00

− How to Use

Troubleshooting/Inspection Service Points

−

How to Cope with Intermittent Malfunction ).

TROUBLESHOOTING

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-26

Code No.B1404: Driver's air bag module (squib) activating circuit short-circuited



Code No.B1405: Driver's air bag module (squib) activating circuit open-circuited



Code No.B1414: Passenger's (front) air bag module (1st squib) activating circuit short-circuited



Code No.B1415: Passenger's (front) air bag module (1st squib) activating circuit open-circuited



Code No.B1424: Right side-airbag module (squib) activating circuit short-circuited



Code No.B1425: Right side-airbag module (squib) activating circuit open-circuited



Code No.B1434: Left side-airbag module (squib) activating circuit short-circuited



Code No.B1435: Left side-airbag module (squib) activating circuit open-circuited



Code No.B1444: Right curtain air bag module (squib) activating circuit short-circuited



Code No.B1445: Right curtain air bag module (squib) activating circuit open-circuited



Code No.B1454: Left curtain air bag module (squib) activating circuit short-circuited



Code No.B1455: Left curtain air bag module (squib) activating circuit open-circuited



Code No.B1466: Analog G-sensor malfunction



Code No.B1478: SRS-ECU backup capacitor circuit voltage too High



Code No.B1479: SRS-ECU backup capacitor circuit voltage too Low



Code No.B1494: Passenger's (front) air bag (2nd squib) activating circuit short-circuited



Code No.B1495: Passenger's (front) air bag (2nd squib) activating circuit open-circuited



Code No.B1496: SRS-ECU non-volatile memory (EEPROM)



Code No.B1497: SRS-ECU application specific integrated circuit (for frontal activation)



Code No.B1498: SRS-ECU abnormal condition in ROM or RAM



Code No.B1547: Passenger’s air bag cut off activating circuit



Code No.B1557: SRS-ECU application specific integrated circuit



Code No.B1588: SRS-ECU backup capacitor system (Up converter unit)



Code No.B1589: SRS-ECU backup capacitor system (Down converter unit)



Code No.B1590: SRS-ECU backup capacitor system (capacitance big)



Code No.B1591: SRS-ECU backup capacitor system (capacitance small)



Code No.B1607: Seat belt pre-tensioner (driver’s side) activating circuit short-circuited



Code No.B1608: Seat belt pre-tensioner (driver’s side) activating circuit open-circuited



Code No.B1613: Seat belt pre-tensioner (passenger’s side) (squib) activating circuit short-circuited



Code No.B1614: Seat belt pre-tensioner (passenger’s side) (squib) activating circuit open-circuited



Code No.B1635: Driver's knee air bag (squib) activating circuit short-circuited



Code No.B1636: Driver's knee air bag module (squib) activating circuit open-circuited

CAUTION

If diagnosis codes is set in the SRS-ECU, always
diagnose the CAN main bus line.

DIAGNOSIS CODE SET CONDITIONS

• These diagnosis code are set when a fault is

detected in the SRS-ECU. The most likely
causes for this code to be set are shown in the
table below:

PROBABLE CAUSE

• Malfunction of the SRS-ECU

Code No. Part/Circuit integral to SRS-ECU

Trouble causes

B1404

Driver's air bag module (squib ignition
drive circuit)

• Short circuit in the squib ignition drive circuit

B1405

• Open circuit in the squib ignition drive circuit

B1414

Passenger's (front) air bag module
(1st squib ignition drive circuit)

• Short circuit in the squib ignition drive circuit

B1415

• Open circuit in the squib ignition drive circuit

B1424

Side-airbag module (RH) (squib
ignition drive circuit)

• Short circuit in the squib ignition drive circuit

B1425

• Open circuit in the squib ignition drive circuit

B1434

Side-airbag module (LH) (squib
ignition drive circuit)

• Short circuit in the squib ignition drive circuit

B1435

• Open circuit in the squib ignition drive circuit
