Mitsubishi Outlander (2013+). Manual - part 580





OUTSIDE MIRROR

EXTERIOR

51-79

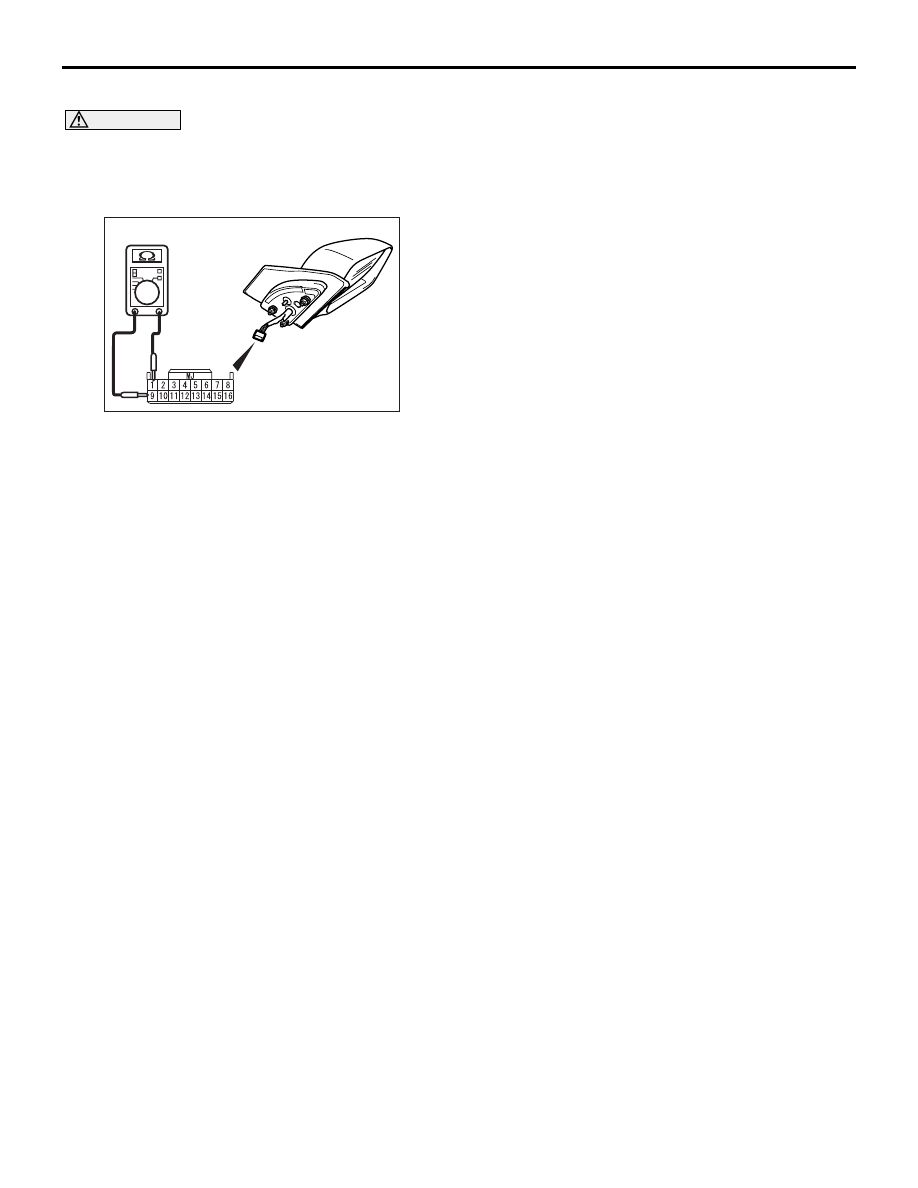

HEATED DOOR MIRROR CHECK

CAUTION

When relocating the car between locations with
extremely different temperatures (warm and
cold), leave the car in the location for a while to
adapt to the temperature prior to checking it.

AC900574 AI

Check that the resistance value between the connec-
tor terminals is at the standard value.

Standard value: 7.2

± 1.4  at 25°C

52A-1

GROUP 52A

INTERIOR

CONTENTS

SERVICE SPECIFICATIONS. . . . . . .

52A-2

SPECIAL TOOL . . . . . . . . . . . . . . . . .

52A-2

INSTRUMENT PANEL ASSEMBLY  .

52A-2

REMOVAL AND INSTALLATION . . . . . . . .

52A-2

DISASSEMBLY AND ASSEMBLY . . . . . . .

52A-6

FLOOR CONSOLE ASSEMBLY . . . .

52A-7

FRONT FLOOR CONSOLE ASSEMBLY . .

52A-7

REMOVAL AND INSTALLATION . . . . . . . .

52A-7

REAR FLOOR CONSOLE ASSEMBLY . . .

52A-8

REMOVAL AND INSTALLATION . . . . . . . .

52A-8

TRIMS. . . . . . . . . . . . . . . . . . . . . . . . .

52A-9

INTERIOR TRIM . . . . . . . . . . . . . . . . . . . . .

52A-9

REMOVAL AND INSTALLATION . . . . . . . .

52A-9

DOOR TRIM . . . . . . . . . . . . . . . . . . . . . . . .

52A-11

REMOVAL AND INSTALLATION . . . . . . . .

52A-11

TAILGATE TRIM . . . . . . . . . . . . . . . . . . . . .

52A-14

REMOVAL AND INSTALLATION . . . . . . . .

52A-14

HEADLINING . . . . . . . . . . . . . . . . . . .

52A-16

REMOVAL AND INSTALLATION  . . . . . . . .

52A-16

INSIDE REAR VIEW MIRROR . . . . . .

52A-18

ADHESIVE  . . . . . . . . . . . . . . . . . . . . . . . . .

52A-18

REMOVAL AND INSTALLATION  . . . . . . . .

52A-18

SEAT ASSEMBLY  . . . . . . . . . . . . . . .

52A-19

FRONT SEAT ASSEMBLY . . . . . . . . . . . . .

52A-19

REMOVAL AND INSTALLATION  . . . . . . . .

52A-19

INSPECTION. . . . . . . . . . . . . . . . . . . . . . . .

52A-20

DISASSEMBLY AND REASSEMBLY . . . . .

52A-21

INSPECTION. . . . . . . . . . . . . . . . . . . . . . . .

52A-23

SECOND SEAT ASSEMBLY  . . . . . . . . . . .

52A-24

REMOVAL AND INSTALLATION  . . . . . . . .

52A-24

DISASSEMBLY AND REASSEMBLY . . . . .

52A-25

SEAT BELT. . . . . . . . . . . . . . . . . . . . .

52A-28

FRONT SEAT BELT  . . . . . . . . . . . . . . . . . .

52A-28

REMOVAL AND INSTALLATION  . . . . . . . .

52A-28

INSPECTION. . . . . . . . . . . . . . . . . . . . . . . .

52A-28

REAR SEAT BELT  . . . . . . . . . . . . . . . . . . .

52A-29

REMOVAL AND INSTALLATION  . . . . . . . .

52A-29

SERVICE SPECIFICATIONS

INTERIOR

52A-2

SERVICE SPECIFICATIONS

M1521000300393

SEAT CUSHION HEATER

Item

Measured terminals

Standard value

Seat cushion heater (interior
temperature 20

°C)

Seat cushion heater (terminal
No.1)

− Seat cushion  heater

(terminal No.2)

4.32 to 5.28

Seat cushion heater (terminal
No.1)

− Seatback heater (terminal

No.1)

4.61 to 5.63

SEATBACK HEATER

Item

Measured terminals

Standard value

Seatback heater (interior
temperature 20

°C)

Seatback heater (terminal No.1)

−

Seatback heater (terminal No.2)

4.90 to 5.98

SPECIAL TOOL

M1521000600480

Tool

Number

Name

Use

MB990784

MB990784

Ornament remover

Removal of switches and trims

INSTRUMENT PANEL ASSEMBLY

REMOVAL AND INSTALLATION

M1521001703133

The following bolts and screws are used for installing
the instrument panel: The bolts and screws are indi-
cated by symbols in the illustrations in sections
"REMOVAL AND INSTALLATION" and "DISASSEM-
BLY AND ASSEMBLY."

Name

Symbol

Size (D

× L) mm

Colour

Shape

Tapping screw

a

× 14

AC104436

b

× 16

AC104450

INSTRUMENT PANEL ASSEMBLY

INTERIOR

52A-3

CAUTION

• For the removal of the front passenger's air bag module, refer to GROUP 52B  Service Precau-

tions , Driver's and Front Passenger's Air Bag Module, and Clock Spring  before operation.

ACB05036 AB

1

2

14

6

5

10

16

7

17

19

20

11

9

c

c

b

c

c

21

11

e

4

18

b

b

b

a

f

8

3

12

13

b

a

b

c

c

b

c

b

14

c

15

b

Do not subject SRS-ECU to any shocks when removing or installing the instrument panel.

Bolt with washer

c

× 16

AC104429

Name

Symbol

Size (D

× L) mm

Colour

Shape

Removal steps

1.

Steering column upper cover

2.

Steering column lower cover

3.

Ignition key cover

4.

Centre panel assembly

5.

Radio and CD player assembly

6.

Hazard indicators assembly

7

Heater controller assembly (Refer
to GROUP 55

− Heater control unit

.)

8.

Side air outlet panel assembly

9.

Combination meter bezel

10. Bottom cover assembly (driver's

side)

11. Side cover
12. Instrument panel lower LH

<Vehicles with Knee air bag>

13. Centre lower panel assembly

Removal steps (Continued)
