REAR WIPER AND WASHER

EXTERIOR

51-51

STEP 4. M.U.T.-III data list

• Check the input signal related to the rear wiper

operation.

• Ignition switch: ACC or ON

•

Item No.

Item name

Normal
condition
s

Item 292

Rear wiper auto stop
switch

ON

When rear wiper is operating

NOTE: Confirm that the M.U.T.-III displays from "ON"
to "OFF" when rear wiper stops at the predetermined
park position.

OK: Normal condition is displayed.

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

− How to Use

Troubleshooting/Inspection Service Points -
How to Cope with Intermittent Malfunction ).

NO :

Replace the ETACS-ECU.

INSPECTION PROCEDURE 3: When the selector lever is moved to "R" position during the rear wiper
operation, the rear wiper does not operate at the continuous mode.

CAUTION

Whenever ECU is replaced, ensure that the input and output signal circuits are normal.

COMMENTS ON TROUBLE SYMPTOM

If the rear wiper does not operate continuously when
the selector lever is moved to the R position during
the rear wiper operation, the shift position signal
input circuit or the ETACS-ECU may be defective.

PROBABLE CAUSES

• Malfunction of the inhibitor switch

• Malfunction of ETACS-ECU

• Malfunctions of the wiring harness and connec-

tors

DIAGNOSIS PROCEDURE

STEP 1. Check the operation of the rear wiper.
Check that the rear wiper system works normally by
operating the rear wiper switch.

Q: Is the check result normal?

YES :

Go to Step 2

NO :

Refer to Inspection Procedure 1 "Rear wiper
does not work at all

P.51-49

."

STEP 2. M.U.T.-III data list

• Check the input signal related to the rear wiper

operation.

• Ignition switch: ON

• Move the selector lever to the "R" (reverse) posi-

tion.

Item No.

Item name

Normal
condition
s

Item 289

Backup lamp or shift
reveres SW

ON

OK: Normal condition is displayed.

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

− How to Use

Troubleshooting/Inspection Service Points -
How to Cope with Intermittent Malfunction ).

NO :

Go to Step 3

STEP 3. Check of short to power supply, short to
earth, and open circuit in BLP1 line between
ETACS-ECU connector and inhibitor switch
connector

Q: Is the check result normal?

YES :

Go to Step 4

NO :

Repair the connector(s) or wiring harness.

REAR WIPER AND WASHER

EXTERIOR

51-52

STEP 4. Retest the system.
Check that the rear wiper operates continuously
when the selector lever is moved to the R position
during the rear wiper operation.

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

− How to Use

Troubleshooting/Inspection Service Points -
How to Cope with Intermittent Malfunction ).

NO :

Replace the ETACS-ECU.

INSPECTION PROCEDURE 4: The rear washer does not work normally.

CAUTION

Whenever ECU is replaced, ensure that the input
and output signal circuits are normal.

COMMENTS ON TROUBLE SYMPTOM

The input circuit from the rear washer switch, the
washer motor or ETACS-ECU may be defective.

PROBABLE CAUSES

• Defective washer motor

• Defective column switch

• Malfunction of ETACS-ECU

• Malfunctions of the wiring harness and connec-

tors

DIAGNOSTIC PROCEDURE

STEP 1. Check that the windshield washers work.
Check that the windshield washers work normally.

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Refer to Inspection Procedure 10
"Windshield washer does not work

P.51-33

."

STEP 2. M.U.T.-III diagnosis code
Check if an ETACS-related diagnosis code is set.

Q: Is the diagnosis code set?

YES :

Troubleshoot the ETACS. Refer to .

NO :

Go to Step 3.

STEP 3. M.U.T.-III data list
Check the input signal related to the rear washer
operation.

• Ignition switch: ACC

•

Item No.

Item name

Normal
condition
s

Item 238

Rear washer

ON

Rear washer switch: ON

OK: Normal condition is displayed.

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Refer to GROUP 54A

− ETACS, Inspection

Procedure 11 "The column switch signal is
not received ."

STEP 4. Check the washer motor.
Check that the washer motor works normally (Refer
to

P.51-55

).

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Replace the washer motor.

STEP 5. Retest the system.
Check that the rear washer works normally.

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

− How to Use

Troubleshooting/Inspection Service Points -
How to Cope with Intermittent Malfunction ).

NO :

Replace the ETACS-ECU.

ON-VEHICLE SERVICE

OPERATION CHECK OF REVERSE
GEAR-LINKED OPERATION OF REAR
WIPER

M1511022100169

1. When the selector lever is moved to the "R" posi-

tion with the rear wiper switch at the "INT" posi-

tion, the wiper should operate twice or three
times at low speed after approximately one sec-
ond.

2. If not, carry out the troubleshooting. (Refer to

P.51-51

)

REAR WIPER AND WASHER

EXTERIOR

51-53

CUSTOMISATION FUNCTION

M1511027402309

By operating the M.U.T.-III ETACS system, the fol-
lowing functions can be customised. The pro-
grammed information is held even when the battery
is disconnected.

Adjustment
item (M.U.T.-III
display)

Adjustment item

Adjusting content
(M.U.T.-III display)

Adjusting content

Intermittent time
of rear wiper

Adjustment of rear
wiper interval

0 sec

No wiper interval

4 sec

4 seconds

8 sec

8 seconds (initial condition)

16 sec

16 seconds

Front /rear
wiper washer

Disabling or
enabling
washer-linked wiper
function

Only Washer

No function

Washer & Wiper

With function: Without delayed finishing
wipe function <Initial condition>

With after wipe

With function: With delayed finishing wipe
function

Rear wiper Low
speed mode

Disabling or
enabling rear wiper
continuous
operation

Disable

No function

Enable

With function (initial condition)

Rear wiper
(linked reverse
gear)

Adjustment of
automatic rear
window wiper
operation with
reverse gear
engaged

Enable(R wip.ON)

Operates only when the rear wiper switch
is ON.

Enable(R/F wip.)

Operates only when the front or rear wiper
switch is ON (initial condition).

REAR WIPER AND WASHER

EXTERIOR

51-54

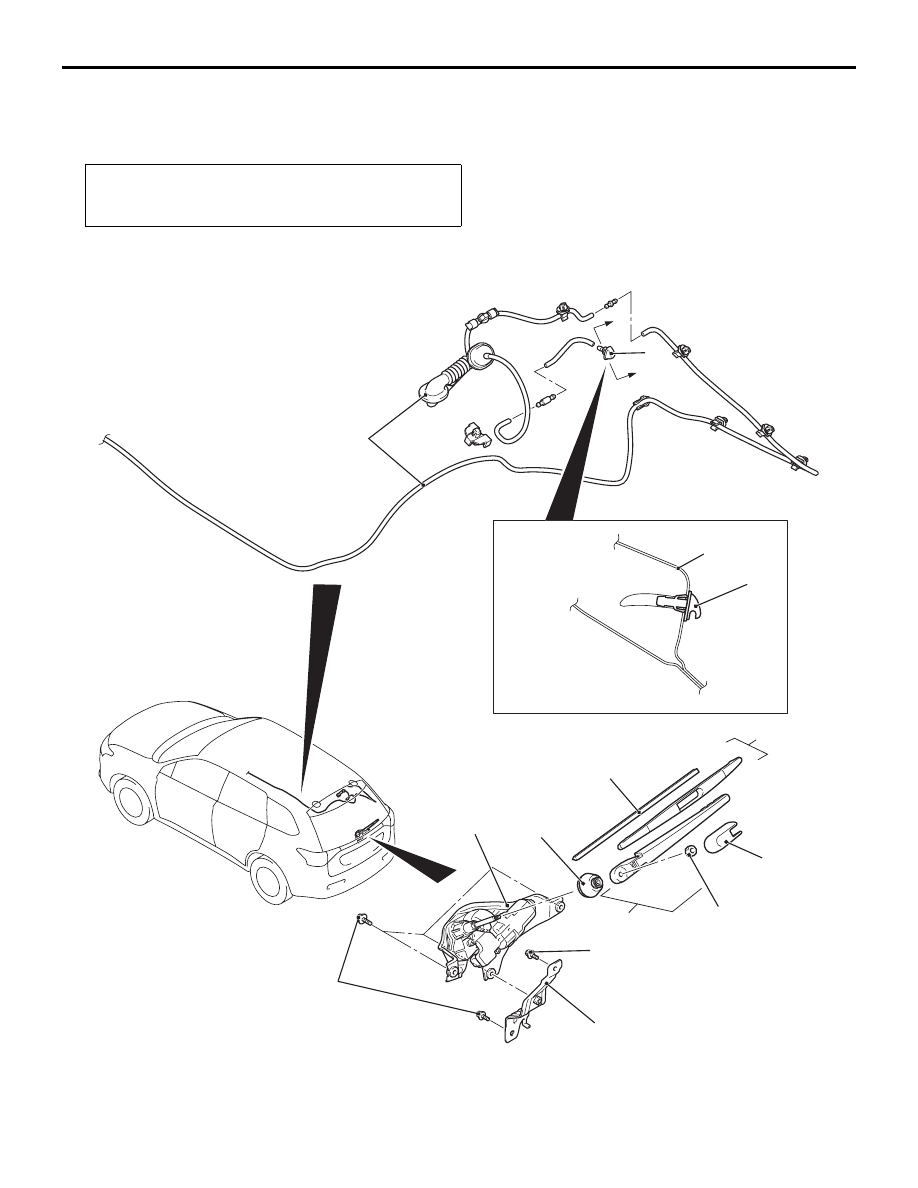

REAR WIPER AND WASHER

REMOVAL AND INSTALLATION

M1511008501069

Pre-removal and post-installation operation
• Washer tank removal and installation (Refer to

P.51-19

.)

• Washer motor removal and installation.)

ACC00121

2

1

7

1

9

4

6

3

AB

5

4.5 ± 1.5 N·m

7.5 ± 1.5 N·m

A

Section A–A

Tailgate
outer panel

A

8

4.5 ± 1.5 N·m

Rear washer nozzle removal
step

1.

Rear washer nozzle assembly

Rear wiper blade removal steps

2.

Rear wiper blade assembly

>>

A

<<

3.

Rear wiper blade
