Mitsubishi Outlander (2013+). Manual - part 566

MB991910

MB991826

MB991955

MB991911

MB991824

MB991827

MB991825

a

b

c

d

e

f

DO NOT USE

WINDSHIELD WIPER AND WASHER

EXTERIOR

51-23

MB991955

a: MB991824
b: MB991827
c: MB991910
d: MB991911
e: MB991825
f: MB991826

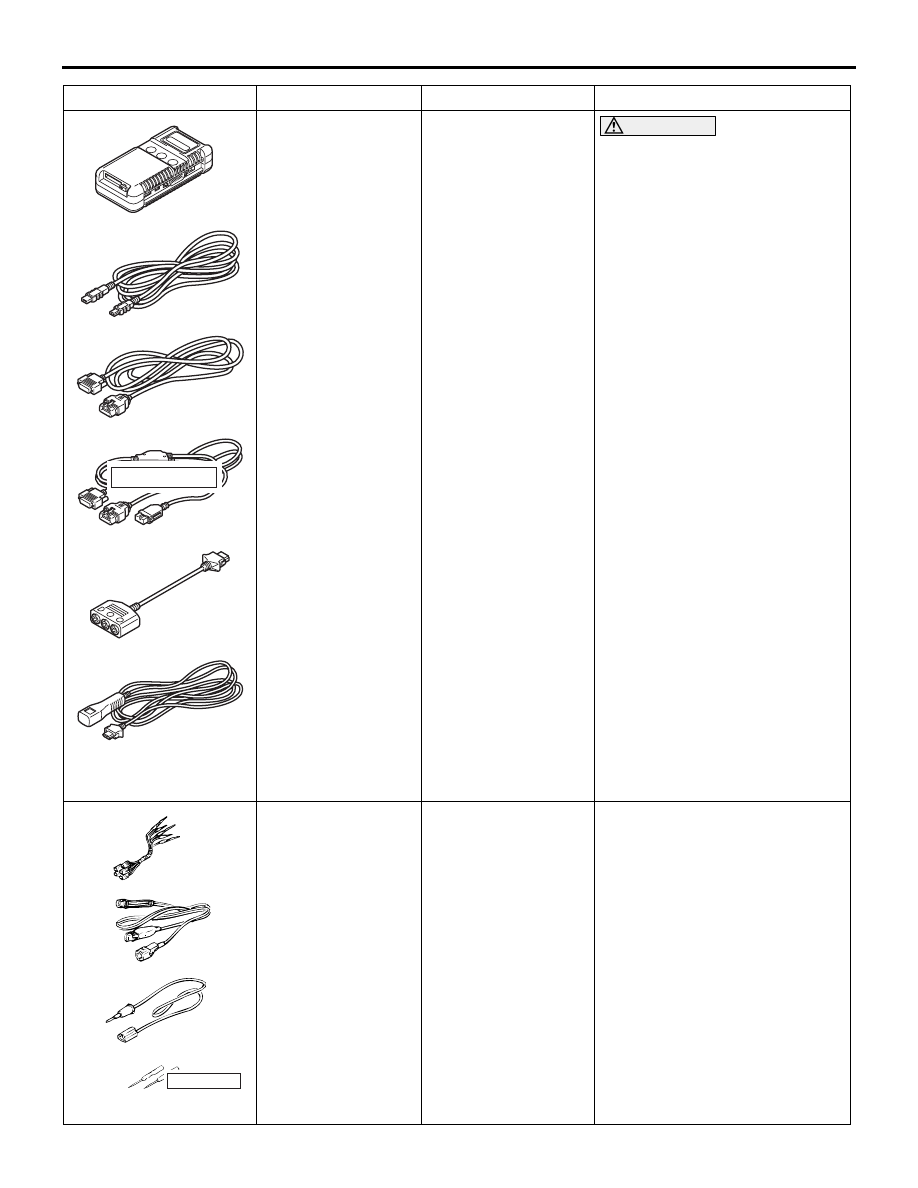

M.U.T.-III
sub-assembly

a: Vehicle

Communication
Interface (V.C.I.)

b: M.U.T.-III USB

cable

c: M.U.T.-III main

harness A
(Vehicles with CAN
communication
system)

d: M.U.T.-III main

harness B
(Vehicles without
CAN
communication
system)

e: M.U.T.-III measure

adapter

f: M.U.T.-III trigger

harness

CAUTION

For vehicles with CAN
communication, use M.U.T.-III
main harness A to send
simulated vehicle speed. If you
connect M.U.T.-III main harness
B instead, the CAN
communication does not
function correctly.
Checking windshield wiper
intermittent time
Lighting control sensor (rain
sensor) adaptation

MB991223

a

d

c

b

DO NOT USE

BF

MB991223

a: MB991219
b: MB991220
c: MB991221
d: MB991222

Harness set

a: Check harness
b: LED harness
c: LED harness

adapter

d: Probe

Continuity check and voltage
measurement at harness wire or
connector

a: For checking connector pin

contact pressure

b: For checking power supply

circuit

c: For checking power supply

circuit

d: For connecting a locally

sourced tester

Tool

Number

Name

Use

MB992006

WINDSHIELD WIPER AND WASHER

EXTERIOR

51-24

TROUBLESHOOTING

STANDARD FLOW OF DIAGNOSTIC
TROUBLESHOOTING

M1511014600802

Refer to GROUP 00

− Contents of Troubleshooting .

TROUBLE SYMPTOM CHART

M1511015002230

TROUBLE SYMPTOM

Inspection
procedure
No.

Reference
page

The windshield wipers do not work at all.

1

P.51-24

The windshield wipers do not work when the wiper switch is at the "INT",
"Washer" or "Mist" position. However, the wipers work at low speed when the
switch is at the "Lo" and "Hi" position.

2

P.51-26

The windshield wipers do not stop at the specified park position.

3

P.51-27

The windshield wipers do not work normally.

4

P.51-27

The windshield intermittent wiper interval cannot be adjusted by operating the
windshield intermittent wiper volume control.

5

P.51-29

The intermittent wiper interval is not changed according to the vehicle speed.

6

P.51-30

The rain sensitive AUTO wiper function does not work at all <Vehicles with
lighting control sensor>.

7

P.51-30

The rain sensitive AUTO wiper function works even though there is no rainfall
<Vehicles with lighting control sensor>.

8

P.51-32

Sometimes the rain sensitive AUTO wiper function works even though there is
no rainfall <Vehicles with lighting control sensor>.

9

P.51-33

The windshield washer does not work.

10

P.51-33

The comfort washing function does not work normally

11

P.51-35

Delayed finishing wipe function does not work normally.

12

P.51-35

NOTE: If the ETACS-ECU failed, the windshield
wiper will operate only at low speed as a fail-safe
measure.

Inspection Procedure 1: The windshield wipers do not work at all.

CAUTION

Whenever ECU is replaced, ensure that the input and output signal circuits are normal.

COMMENTS ON TROUBLE SYMPTOM

The windshield wiper motor, the column switch (col-
umn-ECU) or ETACS-ECU may be defective. Check

the wiper backup circuit (between the column switch
WB/U and the ETACS-ECU WB/U), and repair if nec-
essary.

MB992006

Extra fine probe

Continuity check and voltage
measurement at harness wire or
connector

Tool

Number

Name

Use

WINDSHIELD WIPER AND WASHER

EXTERIOR

51-25

PROBABLE CAUSES

• Defective windshield wiper motor

• Malfunction of ETACS-ECU

• Defective column switch (column-ECU)

• Malfunctions of the wiring harness and connec-

tors

DIAGNOSTIC PROCEDURE

STEP 1. M.U.T.-III diagnosis code
Check if an ETACS-related diagnosis code is set.

Q: Is the diagnosis code set?

YES :

Diagnose the ETACS-ECU (Refer to

GROUP 54A

− ETACS, Trouble Symptom

Chart ).

NO :

Go to Step 2.

STEP 2. M.U.T.-III data list
Check the input signal related to the windshield wiper
operation.

• Turn the ignition switch to the ACC position.

•

Item No.

Item name

Windshield
wiper
switch
position

Normal
condition

Item 235

Front wiper
ACT

LO

ON

HI

INTO

ON and
OFF

MIST

ON

Item 288

ACC switch

ON

Operate the windshield wiper switch at each
switch position.

OK: Normal condition is displayed.

Q: Is the check result normal?

YES <Normal conditions are displayed for all
items> :

Go to Step 3.

NO <Normal condition is not displayed for item No.
235> :

GROUP 54A

− ETACS, Diagnosis -

Inspection Procedure 11 "Column switch
signal is not received." .

NO <Normal condition is not displayed for item No.
288> :

GROUP 54A

− ETACS, Diagnosis -

Inspection Procedure 1 "The ignition switch
(ACC) signal is not received" .

STEP 3. Check the windshield wiper motor.
Check that the windshield wiper motor works nor-
mally. Refer to

P.51-42

.

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Replace the windshield wiper motor.

STEP 4. Measure the resistance at windshield
wiper motor connector.
(1) Disconnect the connector, and measure the

resistance at the wiring harness.

(2) Measure the resistance between the windshield

wiper motor connector earth terminal and body
earth.

OK: Continuity exists (2

Ω or less)

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Go to Step 5.

STEP 5. Check the wiring harness between
windshield wiper motor connector and body
earth.

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

− How to Use

Troubleshooting/Inspection Service Points -
How to Cope with Intermittent Malfunction ).

NO :

Repair the connector(s) or wiring harness.

STEP 6. Measure the voltage at ETACS-ECU
connector.
(1) Disconnect the connector, and measure the

voltage at the wiring harness side.

(2) Measure the voltage between the

ETACS-ECU(+B1 terminal) and the body earth.

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 8.

NO :

Go to Step 7.

STEP 7. Check of open in power supply line
between fusible link and ETACS(+B terminal).

Q: Is the check result normal?

YES :

Intermittent malfunction. Refer to GROUP

00

− How to Use

Troubleshooting/Inspection Service Points,
− How to Cope with Intermittent
Malfunctions .)

NO :

Repair the connector(s) or wiring harness.

STEP 8.Check of open, short circuit in W.LO, HI
line between windshield wiper motor connector
and ETACS-ECU connector

Q: Is the check result normal?

WINDSHIELD WIPER AND WASHER

EXTERIOR

51-26

YES :

Go to Step 9.

NO :

Repair the connector(s) or wiring harness.

STEP 9. Check the trouble symptom.
Check that the windshield wipers work normally.

Q: Is the check result normal?

YES :

Intermittent malfunction. Refer to GROUP

00

− How to Use

Troubleshooting/Inspection Service Points,
− How to Cope with Intermittent
Malfunctions .)

NO :

Replace the ETACS-ECU.

INSPECTION PROCEDURE 2: The windshield wipers do not work when the wiper switch is at the
"INT", "Washer" or "Mist" position. However, the wipers work at low speed when the switch is at the
"Lo" and "Hi" position.

CAUTION

Whenever the ECU is replaced, ensure that the
communication circuit is normal.

COMMENTS ON TROUBLE SYMPTOM

It is assumed that the windshield wipers are in the
fail-safe mode due to the LIN bus lines failure.

PROBABLE CAUSES

• Faulty LIN bus line

• Malfunction of ETACS-ECU

• Defective column switch (column-ECU)

• Malfunctions of the wiring harness and connec-

tors

DIAGNOSTIC PROCEDURE

STEP 1. M.U.T.-III diagnosis code
Check if an ETACS-related diagnosis code is set.

Q: Is the diagnosis code set?

YES :

Troubleshoot the ETACS. Refer to GROUP

54A

− ETACS .

NO :

Go to Step 2.

STEP 2. M.U.T.-III data list
Check the input signal related to the windshield wiper
operation.

• Turn the ignition switch to the ACC position.

•

Item No.

Item name

Windshield
wiper
switch
position

Normal
condition

Item 235

Front wiper
ACT

LO

ON

HI

INTO

ON and
OFF

MIST

ON

Item 236

Front wiper
Lo/Hi

LO

OFF

HI

ON

INTO

OFF

MIST

ON

Operate the windshield wiper switch at each
switch position.

OK: Normal condition is displayed.

Q: Is the check result normal?

YES <Normal conditions are displayed for all
items> :

Go to Step 3.

NO <Normal condition is not displayed for item
Nos. 235 and/or 236> :

Troubleshoot the

ETACS-ECU. Refer to ETACS, Diagnosis -
Inspection Procedure 11 "Column switch
signal is not received." .

STEP 3. Retest the system.
Check that the windshield wipers work normally.

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

− How to Use

Troubleshooting/Inspection Service Points -
How to Cope with Intermittent Malfunction ).

NO :

Replace the ETACS-ECU.
