KEYLESS ENTRY SYSTEM <Vehicles without keyless operation system>

BODY

42A-132

PROBABLE CAUSES

• Malfunction of the keyless entry transmitter

• Malfunction of the ETACS-ECU

• Damaged harness wires and connectors

DIAGNOSIS PROCEDURE

1. Check the operation of the keyless entry system.

2. Check the customise function.

3. Retest the system.

Inspection Procedure 4: Multimode keyless entry system function does not work at all <Vehicles with
electric retractable remote controlled door mirrors>.

CAUTION

Before replacing the ECU, ensure that the power
supply circuit, the earth circuit and the communi-
cation circuit are normal.

COMMENTS ON TROUBLE SYMPTOM

If the electric-folding door mirrors work normally,
ETACS-ECU may be faulty. Also, the door mirror
operation setting is configured for other than the fold-
ing/unfolding interlocked with the keyless entry oper-
ation, using the customisation function.

PROBABLE CAUSES

• Malfunction of keyless entry transmitter

• Malfunction of ETACS-ECU

• Damaged wiring harness and connectors

DIAGNOSIS PROCEDURE

STEP 1. Confirm the transmitter.
Check that the keyless entry system works normally.

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Refer to trouble symptom chart

P.42A-129

.

STEP 2. Check the operation of the
electric-folding door mirror.
Check that the electric folding door mirrors work nor-
mally.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Refer to GROUP 51

− Troubleshooting .

STEP 3. M.U.T.-III diagnosis code
Check if any diagnosis code is set to the keyless
entry system.

Q: Is the diagnosis code set?

YES :

Refer to diagnosis code chart

P.42A-126

.

NO :

Go to Step 4.

STEP 4. Check the customisation function.
Use the customisation function to check that the
"Multi mode" has been set to one of the followings,
not "Disabled."

• D/M: O&C.

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Use the customisation function to set the
"Multi mode" to one of the above, not
"Disabled" (Refer to

P.42A-134

).

STEP 5. Check of the troubles
Check that the multimode keyless entry system
works normally.

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

− How to Use

Troubleshooting/Inspection Service Points

−

How to Cope with Intermittent Malfunction ).

NO :

Replace ETACS-ECU and register the ID
codes (Refer to

P.42A-134

).

Inspection Procedure 5: Power door locks with selective unlocking does not work.

CAUTION

Before replacing the ECU, ensure that the power
supply circuit, the earth circuit and the communi-
cation circuit are normal.

COMMENT ON TROUBLE SYMPTOM

If the keyless entry function works normally and only

the power door locks with selective unlocking does
not work normally, ETACS-ECU may be defective. In
addition, it is possible that the function has been dis-
abled by using the customisation function.

KEYLESS ENTRY SYSTEM <Vehicles without keyless operation system>

BODY

42A-133

PROBABLE CAUSES

• Malfunction of ETACS-ECU

• Damaged wiring harness and connectors

DIAGNOSIS PROCEDURE

STEP 1. Check the customisation

Q: Are the power door locks with selective unlocking

enabled by the customization function?
YES :

Go to Step 2.

NO :

Set the power door locks with selective
unlocking to "Enabled" by using the
customisation function. Refer to

P.42A-134

.

STEP 2. Keyless entry system operation check
Press the unlock switch of the transmitter and check
that only the driver's door is unlocked. Then, press
the unlock switch once again within 2 seconds after
that to check that the front passenger's door, the rear
doors and the tailgate are unlocked.

Q: Does the keyless entry system work normally?

YES :

Go to Step 3.

NO (Only the driver's door is not unlocked.) :

Replace the ETACS-ECU and register the
ID codes (Refer to

P.42A-134

).

NO (The driver's door, front passenger's door, rear
doors and tailgate are not unlocked.) :

Refer to

Inspection Procedure 1: "Keyless entry
system does not work

P.42A-129

."

STEP 3. Check of the troubles
Check that the power door locks with selective
unlocking works normally.

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

− How to Use

Troubleshooting/Inspection Service Points

−

How to Cope with Intermittent Malfunction ).

NO :

Replace ETACS-ECU and register the ID
codes (Refer to

P.42A-134

).

CHECK AT ECU TERMINAL

M1428006600017

Receiver antenna terminal check (Refer to GROUP
54A

− Check at ECU terminal ).

ON-VEHICLE SERVICE

KEYLESS ENTRY SYSTEM INSPECTION

M1428001400449

Check the system as described below. If the system
does not work, carry out troubleshooting. Refer to

P.42A-129

.

• Operate the transmitter to check that the doors

can be locked and unlocked.

• Operate the transmitter to check when the door

locking or unlocking operation is performed that
the hazard warning lamp [lock: flash once,
unlock: flash twice (default setting)] and room
lamp [lock: flash once, unlock: illuminates for 15
seconds (default setting)] answer back operates.
Refer to

P.42A-134

.

NOTE:

.

•

The customisation function allows you to
change the answerback setting as follows.
Prior to that check, confirm which setting is
activated.

•

The hazard warning lamp flash once when
locked and twice when unlocked (default
setting).

•

The hazard warning lamp flash once when
locked and do not flash when unlocked.

•

The hazard warning lamp do not flash
when locked and flash twice when
unlocked.

•

The hazard warning lamp do not flash
when both locked and unlocked.

•

The hazard warning lamp flash twice
when locked and once when unlocked.

•

The hazard warning lamp flash twice
when locked and do not flash when
unlocked.

•

The hazard warning lamp do not flash
when locked and flash once when
unlocked.

KEYLESS ENTRY SYSTEM TIMER LOCK
FUNCTION INSPECTION

M1428004000547

Attempt to unlock the doors by using the transmitter.
If the doors are not locked within 30 seconds, carry
out troubleshooting. Note that the doors will not be
locked if the ignition key is inserted within the 30-sec-
ond period, one of the doors is opened, or the key-
less entry function is triggered. Refer to

P.42A-129

.

NOTE: The customise function allows you to change
the keyless entry system timer lock period from 30
seconds (initial setting) to 60, 120 or 180 seconds.
Prior to the check, confirm which setting is activated.
Refer to

P.42A-134

.

KEYLESS ENTRY SYSTEM <Vehicles without keyless operation system>

BODY

42A-134

MULTIMODE KEYLESS ENTRY
FUNCTION CHECK <Vehicles with
electric retractable remote controlled
door mirrors>

M1428004100254

Operate the transmitter to check that the elec-
tric-folding door mirrors work. If they do not work,
carry out diagnosis. Refer to

P.42A-129

.

NOTE: The settings of the electric-folding door mir-
rors can be changed using the customisation func-
tion. Confirm which settings are activated before
performing diagnosis. Refer to

P.42A-134

.

POWER DOOR LOCKS WITH SELECTIVE
UNLOCKING INSPECTION

M1428006400068

Press the unlock switch on the transmitter once to
unlock only the driver's door. Press the unlock switch
of the transmitter once again within 2 seconds after
the driver's door is unlocked, and check that the front
passenger's door, the rear doors and tailgate are
unlocked. If they are not unlocked, carry out trouble-
shooting. Refer to

P.42A-129

.

NOTE: Press the unlock switch on the transmitter
once to unlock only the driver's door. When the
unlock switch of the transmitter is pressed once
again more than 2 seconds after the driver's door is
unlocked, only the driver's door is unlocked.

NOTE: The setting of the power door locks with
selective unlocking can be changed using the cus-
tomisation function. Confirm which setting is acti-
vated before performing these checks. Refer to

P.42A-134

.

HOW TO REGISTER ENCRYPTED CODE

M1428001001239

For the details of key registration procedure, refer to
the ID registration procedure manual.

CUSTOMISATION FUNCTION

M1428005500255

By operating the M.U.T.-III ETACS system, the fol-
lowing functions can be customised. The pro-
grammed information is held even when the battery
is disconnected.

Adjustment
item (M.U.T.-III
display)

Adjustment item

Adjusting content
(M.U.T.-III display)

Adjusting content

Hazard answer
back

Adjustment of the
number of keyless
hazard warning
lamp answer back
flashes

Lock:1, Unlock:2

LOCK: Flashes once, UNLOCK: Flashes
twice (initial condition)

Lock:1, Unlock:0

LOCK: Flashes once, UNLOCK: No flash

Lock:0, Unlock:2

LOCK: No flash, UNLOCK: Flash twice

Lock:2, Unlock:1

LOCK: Flash twice, UNLOCK: Flash once

Lock:2, Unlock:0

LOCK: Flash twice, UNLOCK: No flash

Lock:0, Unlock:1

LOCK: No flash, UNLOCK: Flash once

Lock:0, Unlock:0

No function

Auto fold mirror

Electric folding door
mirror automatic
unfolding function
<vehicles with
electric retractable
remote controlled
door mirrors>

Not Auto

No synchronised operation

Open Vehicle SPD

Vehicle speed-dependent operation

Open/Close by IG

Ignition switch linked operation

OPN/CLS Keyles

Keyless entry linked operation (initial
condition)

Door unlock
mode

Adjustment of
power door locks
with selective
unlocking

All Doors Unlock

Without function: The first operation of
keyless entry system or unlock operation
by KOS unlocks all doors (initial condition).

Dr Door Unlock

With function: The first operation of
keyless entry system or unlock operation
by KOS unlocks the driver's door only, and
the second unlock operation within 2
seconds after that unlocks all doors.

KEYLESS ENTRY SYSTEM <Vehicles without keyless operation system>

BODY

42A-135

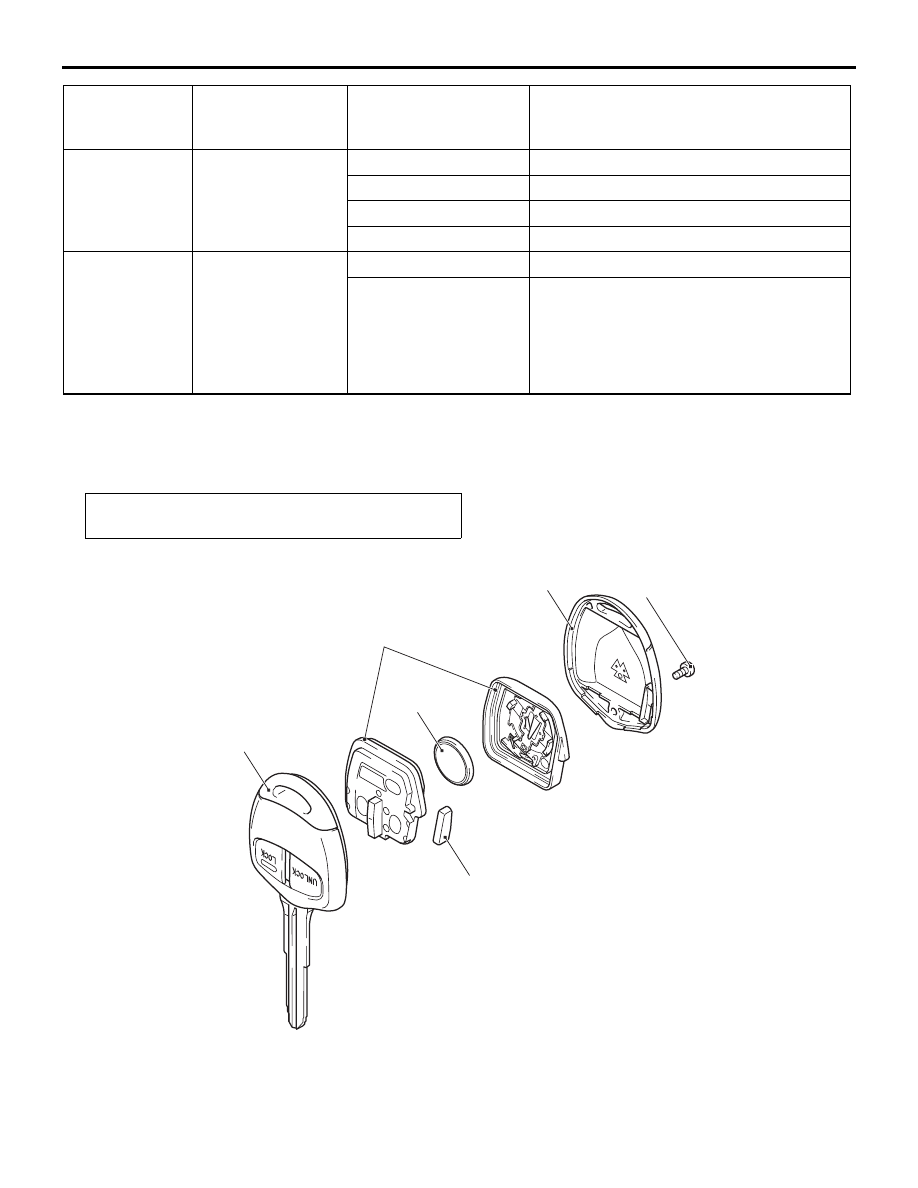

TRANSMITTER

DISASSEMBLY AND REASSEMBLY

M1428002800525

Post-installation operation
• Transmitter operation check

AC310838

AC303199
AC304118

1

2

AI

5

3

4

6

Disassembly steps

1.

Screw

2.

Upper cover

3.

Transponder

4.

Transmitter assembly

<<

A

>>

>>

A

<<

5.

Battery

6.

Master key

Timer lock timer Timer lock period

adjustment

30 sec

30 seconds (initial condition)

60 sec

60 seconds

120 sec

120 seconds

180 sec

180 seconds

Multi mode

Multi-mode keyless
entry function
customisation
<Vehicles with
electric retractable
remote controlled
door mirrors>

Disable

No function

D/M: O&C

Door mirror fold/unfold operation only
(initial condition)

Adjustment
item (M.U.T.-III
display)

Adjustment item

Adjusting content
(M.U.T.-III display)

Adjusting content

Disassembly steps (Continued)
