Mitsubishi Outlander (2013+). Manual - part 525





TAILGATE <VEHICLES WITH ELECTRIC TAILGATE>

BODY

42A-120

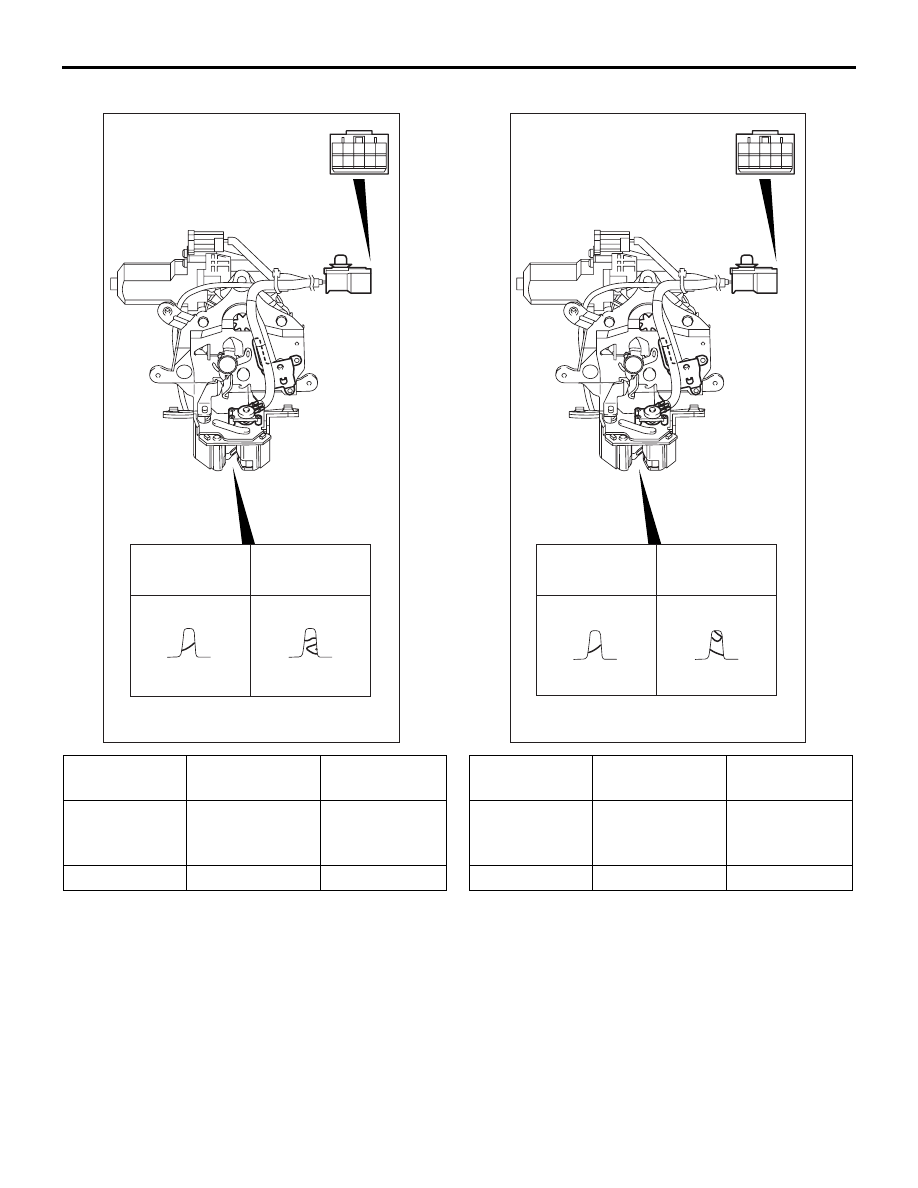

HALF LATCH SWITCH CHECK

1 2 3 4 5

6 7 8 9 10

AC611179AB

ON (door-ajar)

OFF (disengaged)

Claw position Terminal

number

Normal value

ON

− 3

Continuity
exists (2

Ω or

less).

OFF

− 3

No continuity

FULL LATCH SWITCH CHECK

1 2 3 4 5

6 7 8 9 10

AC611180AB

ON (over-run)

OFF (disengaged)

Claw position Terminal

number

Normal value

ON

− 4

Continuity
exists (2

Ω or

less).

OFF

− 4

No continuity

TAILGATE <VEHICLES WITH ELECTRIC TAILGATE>

BODY

42A-121

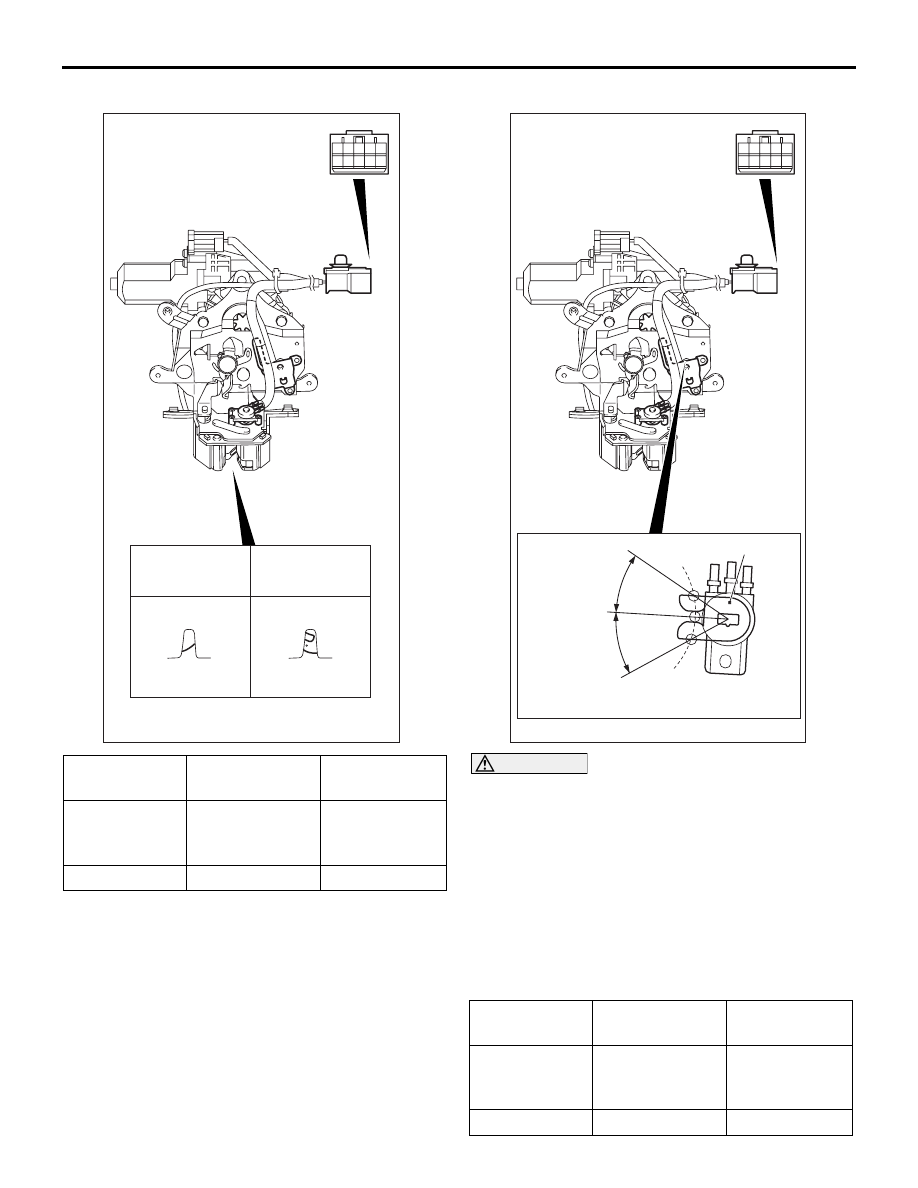

DOOR-AJAR SWITCH CHECK

1 2 3 4 5

6 7 8 9 10

AC611181 AB

ON (fully closed)

OFF (disengaged)

Claw position Terminal

number

Normal value

ON

− 10

Continuity
exists (2

Ω or

less).

OFF

− 10

No continuity

NEUTRAL SWITCH CHECK

1 2 3 4 5

6 7 8 9 10

AC611182AB

ON area
(disengaged)

Lever

OFF area
(engaged)

CAUTION

After checking the neutral switch, operate the
tailgate latch as follows to install it. This avoids
damage to the tailgate latch switch.

1. Connect the positive battery terminal to the

tailgate latch terminal No.1, and the negative
battery terminal to the tailgate latch terminal
No.9 for approximately one second.

2. Connect the positive battery terminal to the

tailgate latch terminal No.9, and the negative
battery terminal to the tailgate latch terminal
No.1 for approximately one second.

Lever position Terminal

number

Normal value

ON

− 8

Continuity
exists (2

Ω or

less).

OFF

− 8

No continuity

TAILGATE <VEHICLES WITH ELECTRIC TAILGATE>

BODY

42A-122

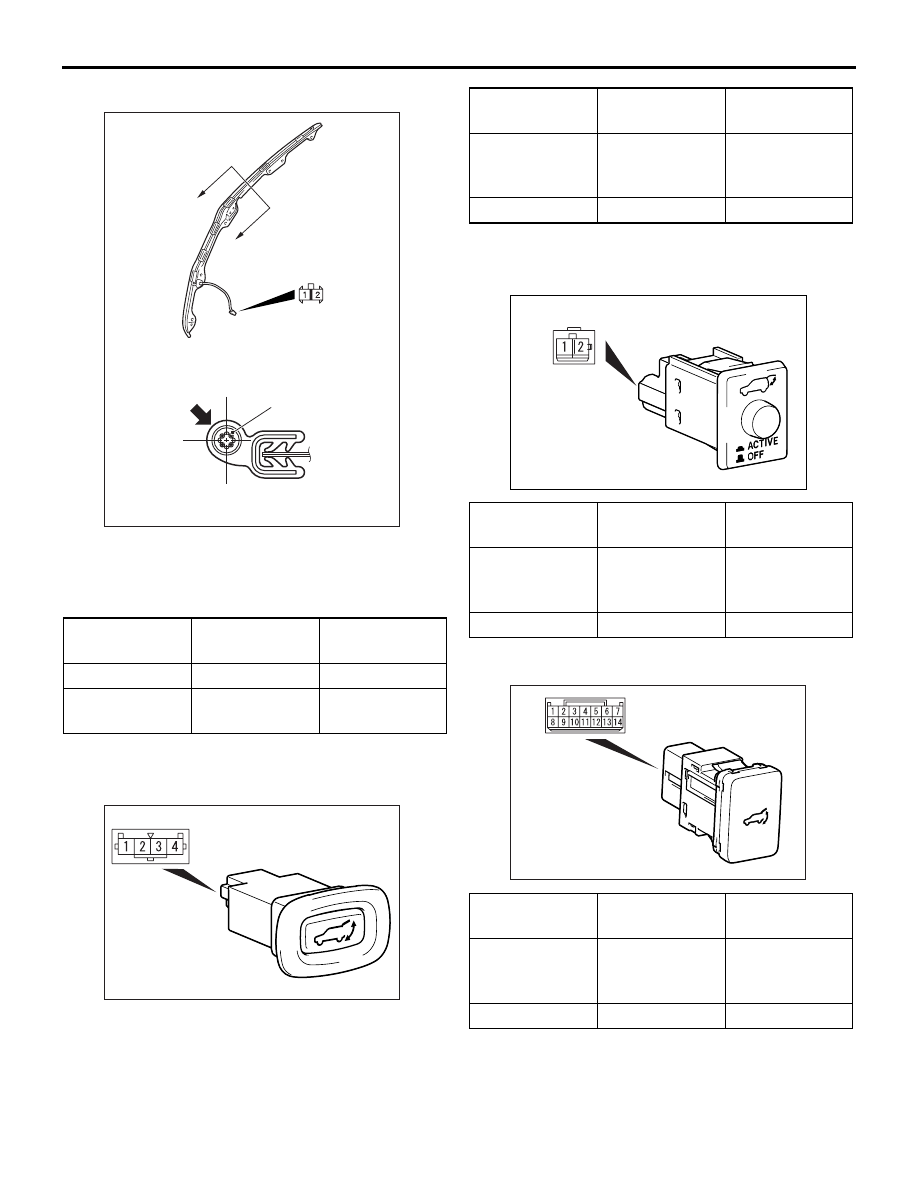

TAILGATE SENSOR CHECK

ACC00087

ACB05431

AC402877

AB

Section A – A

Pressure sensor

Pressure

A

A

When the load is applied to the pressure detection
sensor towards the direction shown in the figure, and
when the sensor is pushed approximately 2.2 mm,
the tailgate sensor turns ON.

Sensor
position

Terminal
number

Normal value

ON

− 2

100

Ω or less

OFF

− 2

Approximately
1k

ELECTRIC TAILGATE CLOSE SWITCH
INSPECTION

ACB05477 AB

Switch
position

Terminal
number

Normal value

ON (Press)

− 2

Continuity
exists (2

Ω or

less)

OFF

− 2

No continuity

ELECTRIC TAILGATE MAIN SWITCH
CHECK

ACB05475 AB

Switch
position

Terminal
number

Normal value

ON (Press)

− 2

Continuity
exists (2

Ω or

less)

OFF

− 2

No continuity

ELECTRIC TAILGATE SWITCH CHECK

ACB05476AB

Switch
position

Terminal
number

Normal value

ON (Press)

10

− 13

Continuity
exists (2

Ω or

less)

OFF

10

− 13

No continuity

TAILGATE <VEHICLES WITH ELECTRIC TAILGATE>

BODY

42A-123

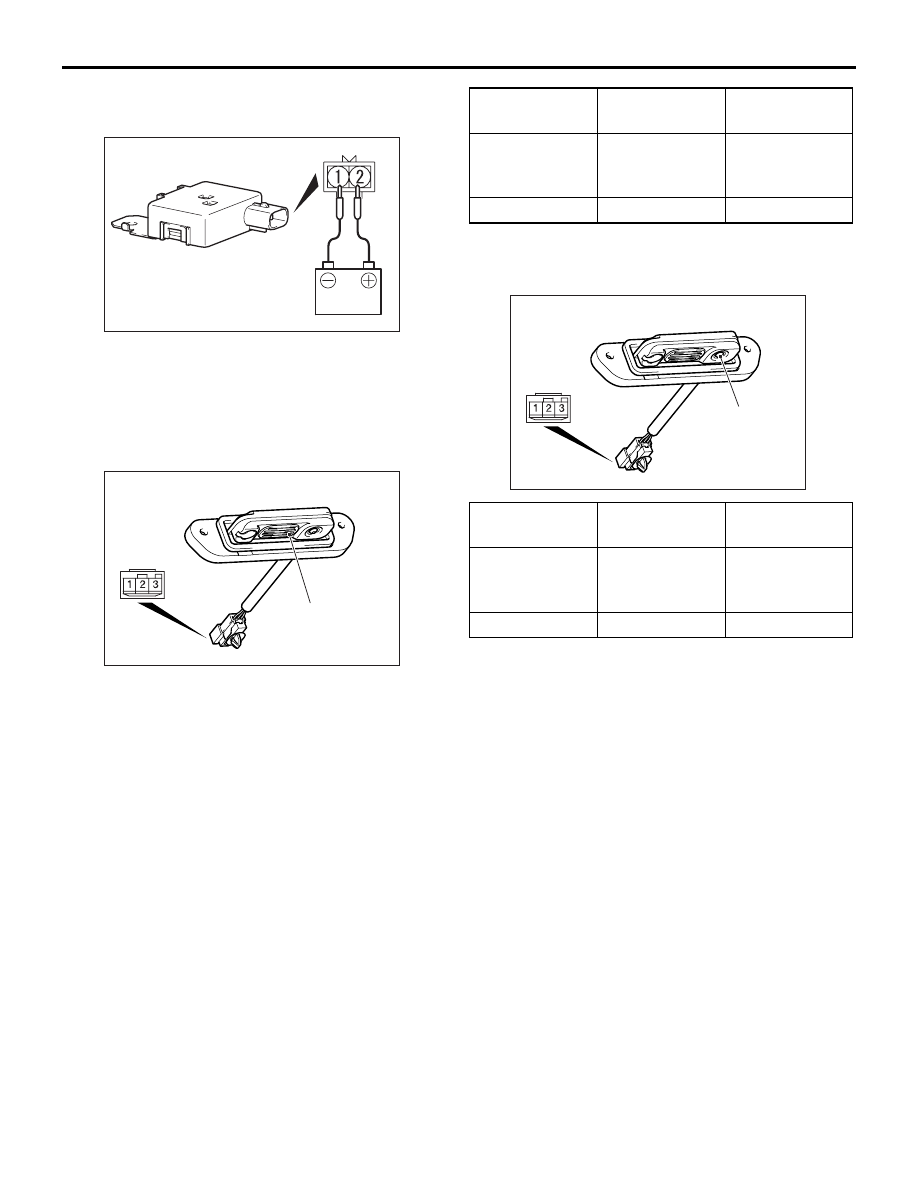

ELECTRIC TAILGATE BUZZER INSPEC-
TION

ACC00291

Check that the electric tailgate buzzer sounds once
when the terminals are connected to the battery as
shown.

TAILGATE LOCK RELEASE HANDLE
(TAILGATE OPEN SWITCH) CHECK

ACA00837AF

Open switch

Switch
position

Terminal
number

Normal value

Push (open)

− 2

Continuity
exists (2

Ω or

less)

Release

− 2

No continuity

TAILGATE LOCK RELEASE HANDLE
(TAILGATE LOCK SWITCH) CHECK

ACA00837AE

Lock switch

Switch
position

Terminal
number

Normal value

Push (lock)

− 3

Continuity
exists (2

Ω or

less)

Release

− 3

No continuity
