ACB05819

ACB05820

ACC00269

Marking

AB

A

A

Section A – A

Marking

TAILGATE <VEHICLES WITH ELECTRIC TAILGATE>

BODY

42A-116

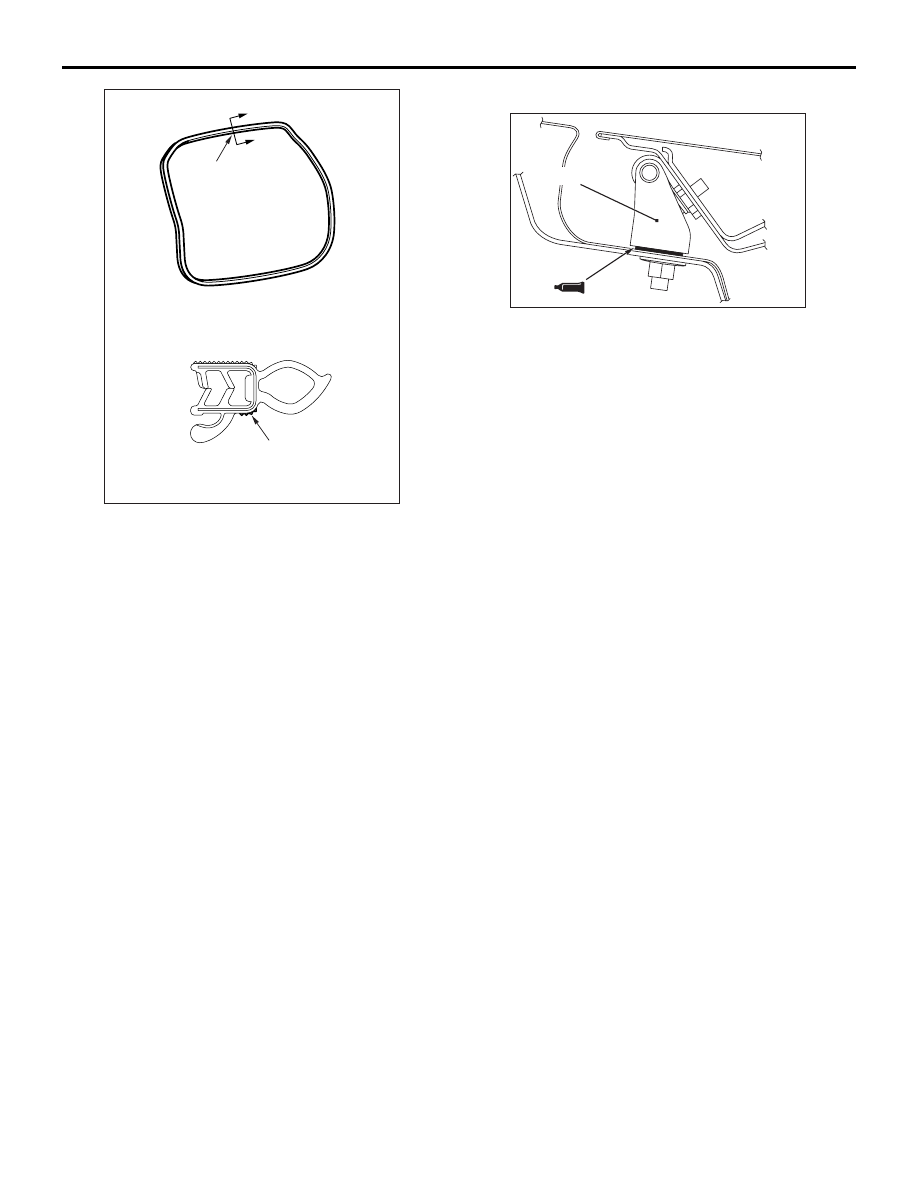

The marking on the tailgate opening weatherstrip
should be positioned at the centre of the body.

>>B<< TAILGATE HINGE INSTALLATION

AC402763AB

Tailgate hinge

Apply the specified sealant to the tailgate hinge
mounting surface, and install the tailgate hinge.

Specified Adhesive: 3M ATD Part No.8531
Heavy drip check sealer, 3M ATD Part
No.8646 Automotive joint and seam sealer or
equivalent

TAILGATE <VEHICLES WITH ELECTRIC TAILGATE>

BODY

42A-117

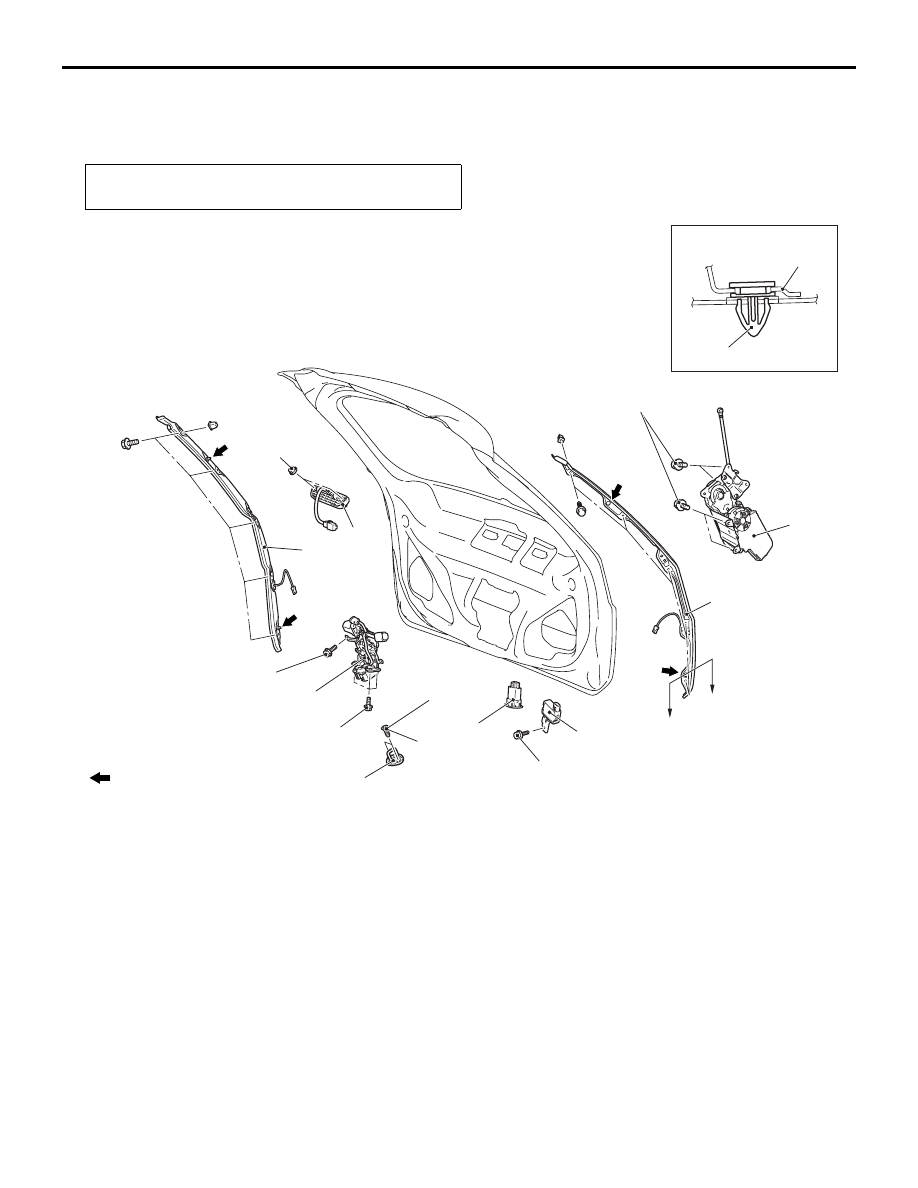

TAILGATE HANDLE AND LATCH

 REMOVAL AND INSTALLATION

M1424001700965

Post-installation operation
• Tailgate alignment (Refer to

P.42A-68

.)

ACC00288

AC403053

ACB05645

1

2

3

22 ± 3 N·m

4

5

7

7

8

AB

9.0 ± 1.0 N·m

9.0 ± 2.0 N·m

Clip

Section A – A

A

A

NOTE
          : Clip positions

5.0 ± 1.0 N·m

7.0 ± 3.0 N·m

5.0 ± 1.0 N·m

7

6

Tailgate close switch removal

1.

Tailgate close switch
Striker removal steps

>>D<<

2.

Striker
Electric tailgate buzzer removal
steps

•

Tailgate trim (Refer to GROUP
52A

− Tailgate Trim .)

3.

Electric tailgate buzzer
Tailgate lock release handle
removal steps

•

Tailgate trim (Refer to GROUP
52A

− Tailgate Trim .)

4.

Tailgate lock release handle

Tailgate latch removal steps

•

Tailgate trim (Refer to GROUP
52A

− Tailgate Trim .)

5.

Earth bolt

>>

C

<<

6.

Tailgate latch assembly
Tailgate sensor removal steps

>>

B

<<

7.

Tailgate sensor
Electric tailgate control unit
removal steps

•

Quarter trim cover (Refer to
GROUP 52A

− Interior Trim .)

>>

A

<<

8.

Electric tailgate control unit
assembly

ACB05532

10

9

AB

9

<Vehicles with knee air bag>

<Vehicles without knee air bag>

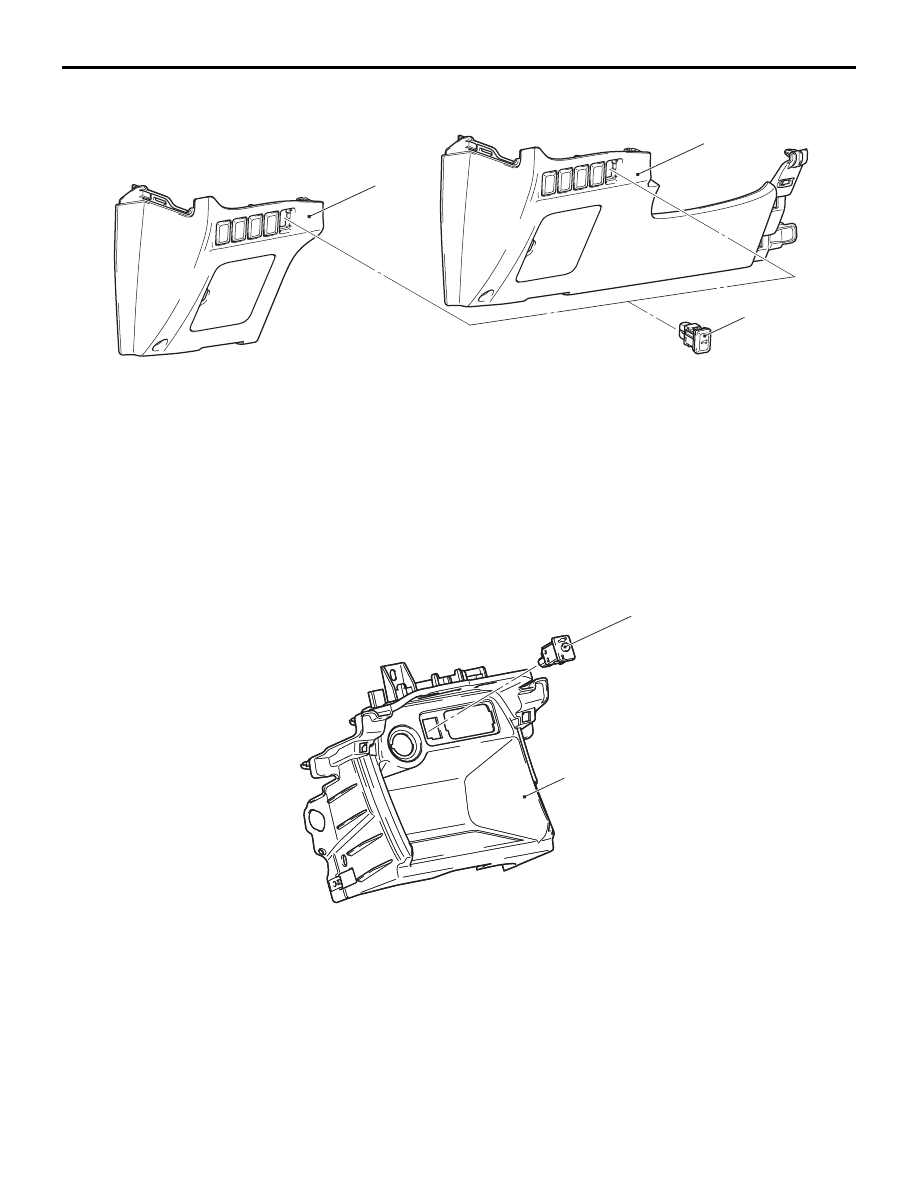

Electric tailgate switch removal
steps

9.

Instrument panel lower LH
<Vehicles with knee air bag> or
Instrument panel lower <Vehicles
without knee air bag> (Refer to
GROUP 52A

− Instrument Panel

Assembly .)

10. Electric tailgate switch

ACTIVE

OFF

ACB05533

11

12

AC

Electric tailgate main switch
removal steps

11. Centre lower box assembly (Refer

to GROUP 52A

− Instrument Panel

Assembly .)

12. Electric tailgate main switch

TAILGATE <VEHICLES WITH ELECTRIC TAILGATE>

BODY

42A-118

TAILGATE <VEHICLES WITH ELECTRIC TAILGATE>

BODY

42A-119

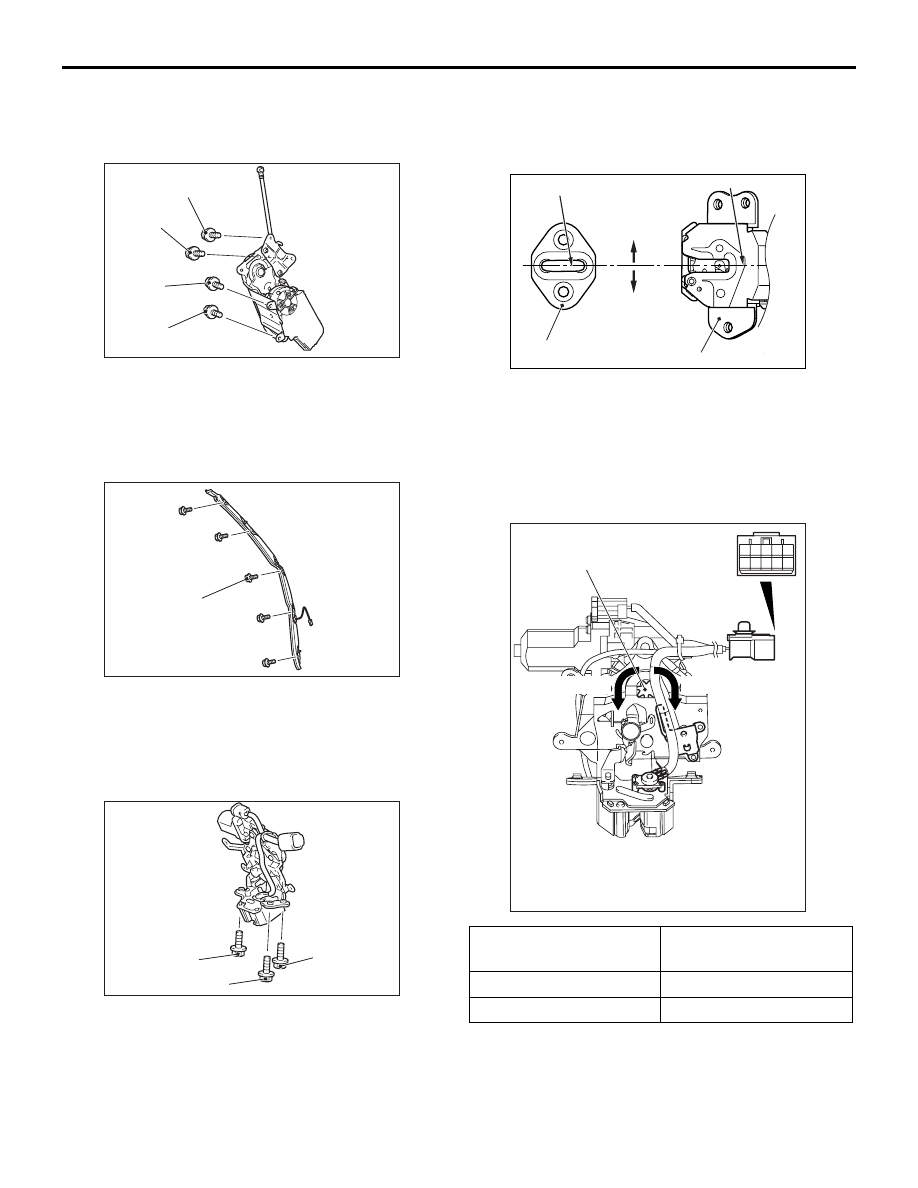

INSTALLATION SERVICE POINTS

>>A<< TAILGATE CONTROL UNIT
ASSEMBLY INSTALLATION

ACC00335AB

1

3

2

4

Install the tailgate control unit assembly mounting
bolts in the numerical order.

>>B<< TAILGATE SENSOR
INSTALLATION

ACC00337 AB

1

Install the tailgate sensor mounting screw in the
numerical order.

>>C<< TAILGATE LATCH ASSEMBLY
INSTALLATION

ACC00336AB

1

3

2

Install the tailgate latch assembly mounting bolts in
the numerical order.

>>D<< STRIKER INSTALLATION

AC402863AB

+1.5 mm

-1.5 mm

Striker centre

Striker

Latch centre

Latch

Install the striker so that the striker centre does not
deviate more than

±1.5 mm from the latch centre.

INSPECTION

M1424001800315

TAILGATE LATCH CHECK

LATCH MOTOR OPERATION CHECK

1 2 3 4 5

6 7 8 9 10

AC611178AB

Gear

Engaged

Disengaged

Battery connecting
terminal number

Gear operation

1 (

−) − 9 (+)

Engaged

→ Disengaged

1 (+)

− 9 (−)

Disengaged

→ Engaged
