DOOR

BODY

42A-56

1. Align the channel guide mounting bolt on the door

window glass with the adjusting hole to remove it.

AC605591AC

MB990480

CAUTION

If any film or the like is applied to a door window
glass, use the window glass holder (Special tool:
MB990480) at the outside of the door glass to
prevent the film from peeling off.
2. Lift the door window glass, and attach the special

tool MB990480 to the glass as shown to prevent
the glass from falling.

3. Slant the door window glass and remove it

upward from the inside of the door <Rear door>.

4. Remove the power window regulator assembly.

INSPECTION

M1429001401423

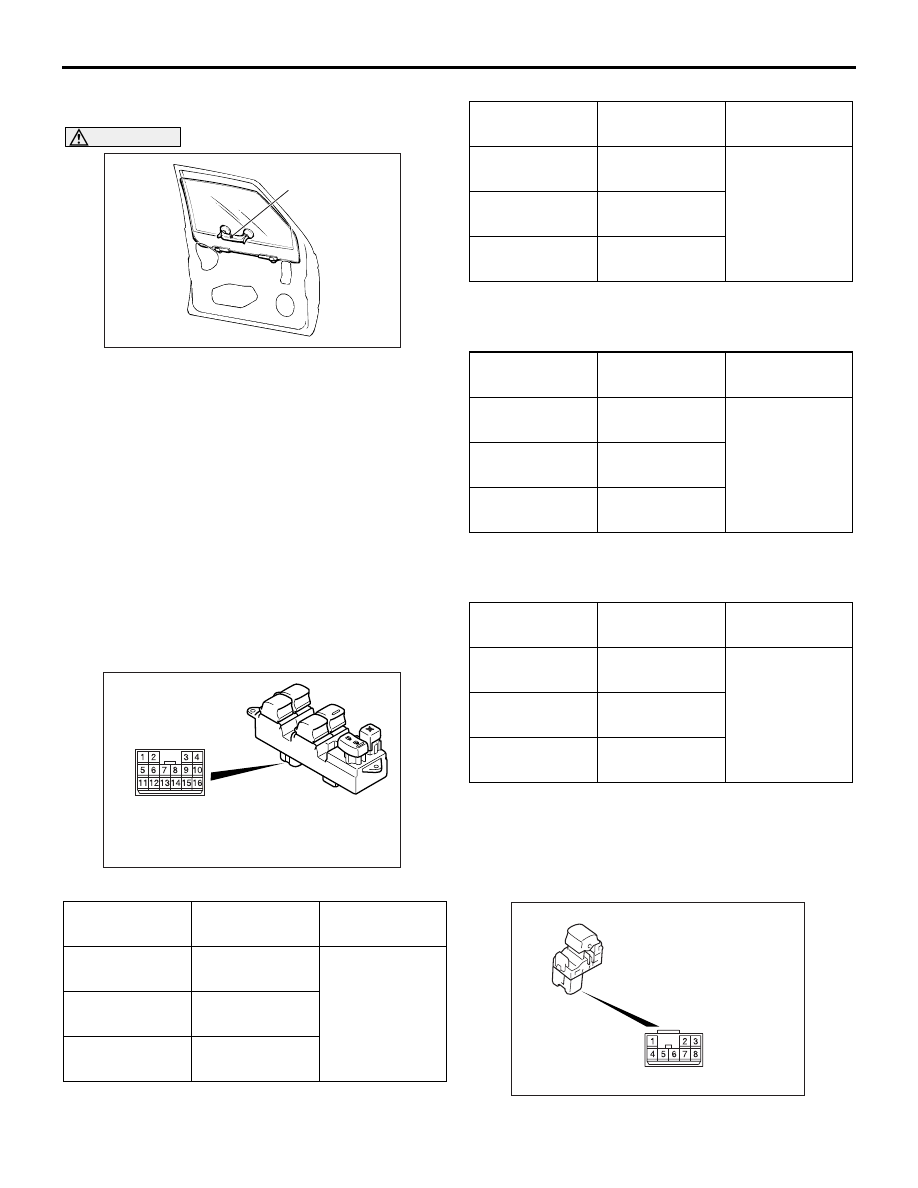

POWER WINDOW MAIN SWITCH CONTI-
NUITY CHECK

ACC00124

AB

<DRIVER’S SWITCH>

Switch
position

Tester
connection

Specified
condition

UP

4

− 5,

3

− 8

Continuity
exists (2

Ω or

less)

OFF

4

− 8,

3

− 8

DOWN

3

− 5,

4

− 8

<FRONT PASSENGER’S SWITCH>

Switch
position

Tester
connection

Specified
condition

UP

2

− 10,

2

− 8*

Continuity
exists (2

Ω or

less)

OFF

2

− 8*,

1

− 8*

DOWN

1

− 10,

1

− 8*

NOTE: *: Set the window lock switch to UNLOCK
position.

<REAR PASSENGER’S LEFT SWITCH>

Switch
position

Tester
connection

Specified
condition

UP

10

− 16,

8*

− 16

Continuity
exists (2

Ω or

less)

OFF

8*

− 15,

8*

− 16

DOWN

10

− 15,

8*

− 15

NOTE: *: Set the window lock switch to UNLOCK
position.

<REAR PASSENGER’S RIGHT SWITCH>

Switch
position

Tester
connection

Specified
condition

UP

10

− 12,

8*

− 12

Continuity
exists (2

Ω or

less)

OFF

8*

− 11,

8*

− 12

DOWN

10

− 11,

8*

− 11

NOTE: *: Set the window lock switch to UNLOCK
position.

POWER WINDOW SUB SWITCH CONTI-
NUITY CHECK

ACB04987AB

Switch
position

Tester
connection

Specified
condition

UP

4

− 5, 6 − 7

Continuity
exists (2

Ω or

less)

OFF

4

− 5, 7 − 8

DOWN

4

− 6, 7 − 8

DOOR

BODY

42A-57

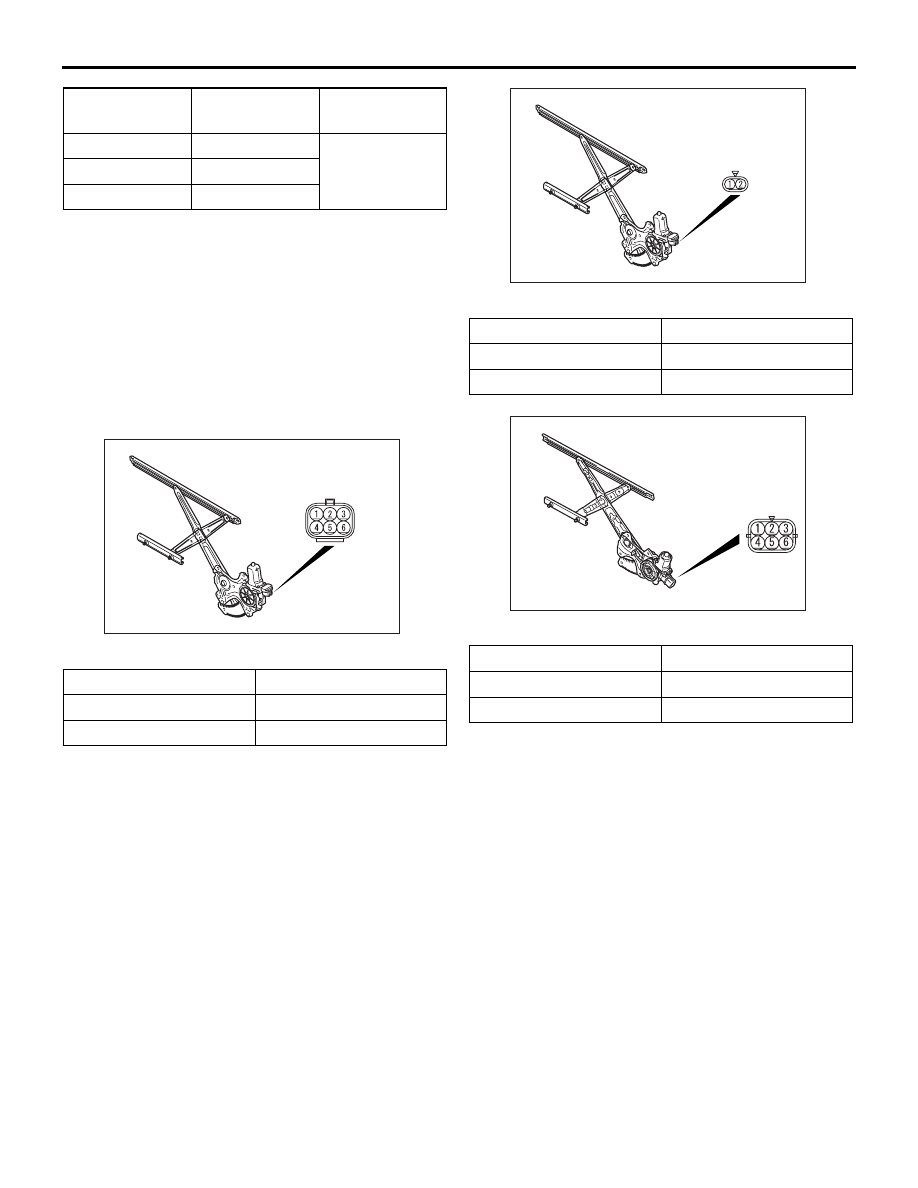

POWER WINDOW MOTOR CONTINUITY
CHECK

Connect a battery to the motor terminals and check

that the motor runs smoothly.

1. Check that the motor runs in the opposite

direction when the battery is connected with the
polarity reversed.

2. If a defect is found, replace the power window

motor assembly.

ACC00371AB

<FRONT DOOR (LH)>

Tester connection

Slider position

1(

−) − 3(+)

UP

1(+)

− 3(−)

DOWN

ACC00371AC

<FRONT DOOR (RH)>

Tester connection

Slider position

1(

−) − 2(+)

UP

1(+)

− 2(−)

DOWN

ACC00372AB

<REAR DOOR>

Tester connection

Slider position

1(

−) − 4(+)

UP

1(+)

− 4(−)

DOWN

DOOR

BODY

42A-58

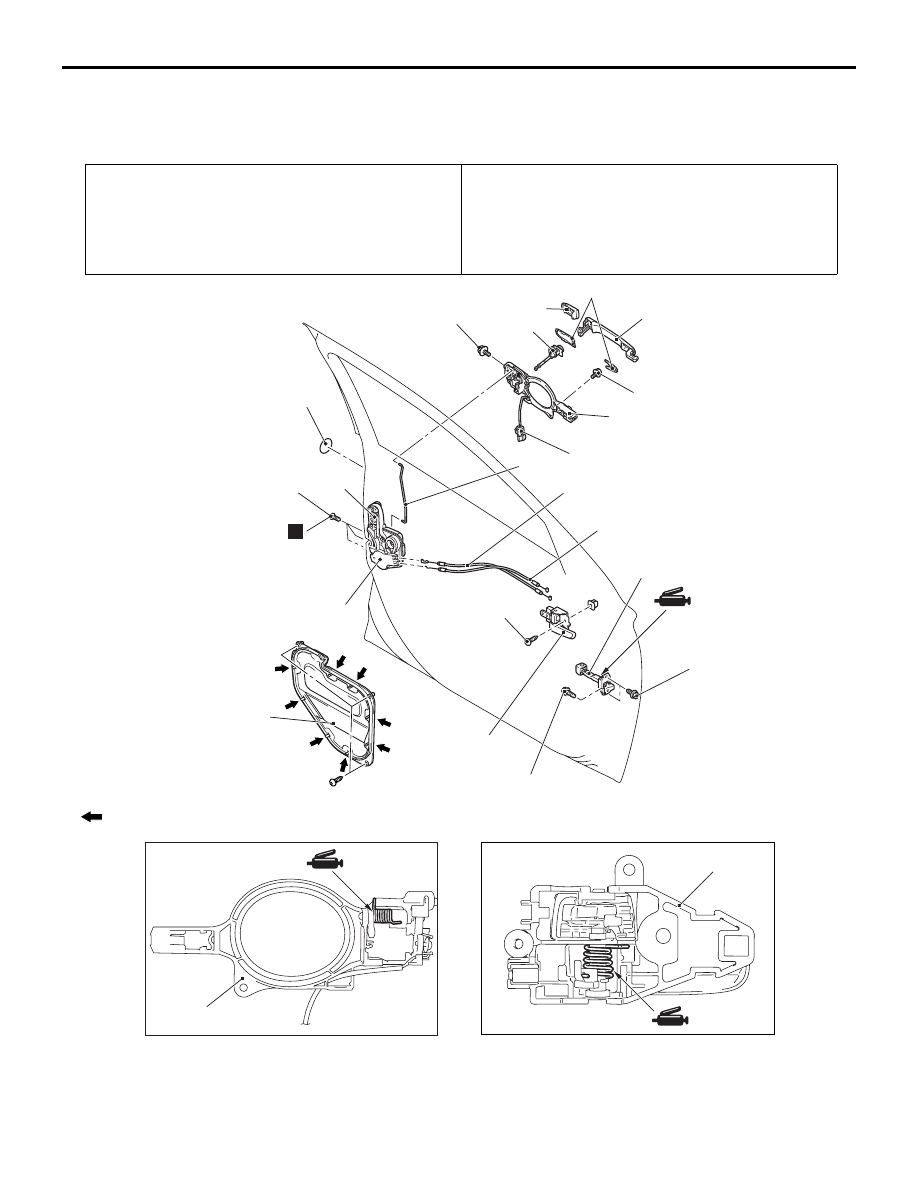

DOOR HANDLE AND LATCH

REMOVAL AND INSTALLATION

M1423004601882

Pre-removal operation
• Door trim assembly removal (Refer to GROUP 52A −

Door Trim .)

• Waterproof film removal (Refer to

P.42A-62

.)

Post-installation operation
• Door inside handle play check (Refer to

P.42A-50

.)

• Door outside handle play check (Refer to

P.42A-49

.)

• Waterproof film installation (Refer to

P.42A-62

.)

• Door trim assembly installation (Refer to GROUP 52A −

Door Trim .)

ACB05780

1

2

12

3

4

5

6

7

8

10

11

13

14

15

16

N

AB

25 ± 4 N·m

7.5 ± 2.5 N·m

4.0 ± 2.0 N·m

4.0 ± 2.0 N·m

5.0 ± 1.0 N·m

9

<Front door>

5.0 ± 1.0 N·m

: Claw positions

AC507354

AC502683

AC506540

1

8

AI

Door inside handle removal

1.

Door inside handle

Door outside handle removal
steps

2.

Plug

3.

Door lock key cylinder (Driver's
side)

DOOR

BODY

42A-59

4.

Door outside handle cover

5.

Door outside handle

6.

Door outside handle gasket

7.

Door outside handle base

8.

Keyless operation switch
Door latch assembly removal
steps

1.

Door inside handle

9.

Door speaker bracket <Vehicles
with audio amplifier>

10. Screw

<<A>>

11. Door lock cover

<<A>>

12. Door latch assembly

>>B<<

13. Door inside lock cable

>>B<<

14. Door inside handle cable
15. Door outside handle rod

Door check removal steps

•

Front door speaker (Refer to
GROUP 54A

− Speaker .)

>>A<<

16. Door check

ACB05781

ACB05781

1

8

12

3

4

5

6

7

10

9

11

13

N

AB

25 ± 4 N·m

7.5 ± 2.5 N·m

4.0 ± 2.0 N·m

5.0 ± 1.0 N·m

4.0 ± 2.0 N·m

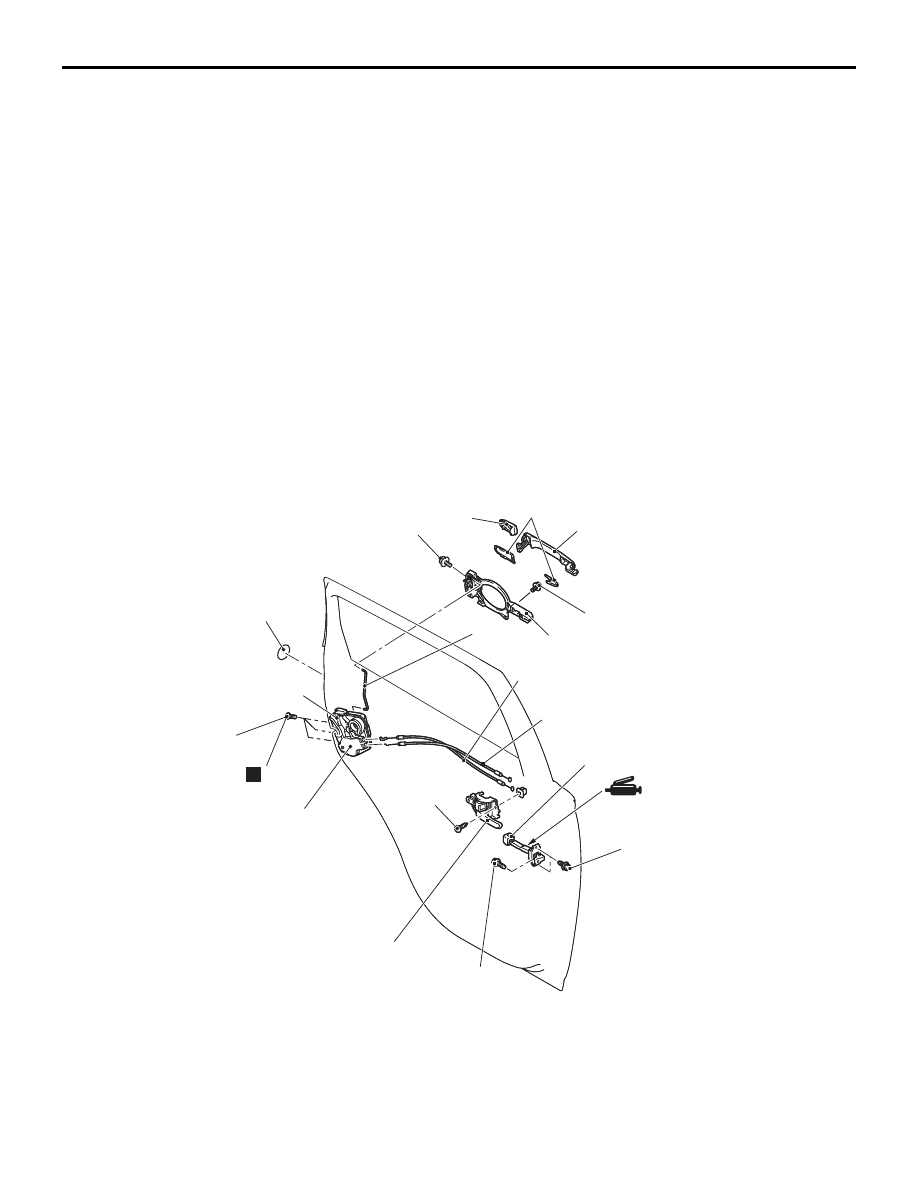

<Rear door>

5.0 ± 1.0 N·m

2

Door outside handle removal
steps  (Continued)
