TRANSMISSION

CONTINUOUSLY VARIABLE TRANSMISSION OVERHAUL

23B-32

IDENTIFICATRION OF NEEDLE BEARINGS

AKA00547AB

B

A

C

D

REASSEMBLY SERVICE POINT

CAUTION

When the outer races of reduction gear bearing
and differential side bearing are removed, meas-
ure the mounting bore diameters of outer race in
the converter housing and transmission case,
and replace the housing case or the CVT assem-
bly if the standard value is not satisfied. The
standard values are listed in "SERVICE SPECIFI-
CATIONS."

CAUTION

• Do not re-use the reverse brake piston.
•

AK502253

Apply CVT fluid when installing the reverse
brake piston.

1. Install the reverse brake piston, while turning it, on

the transmission case.

AK502254AH

Spring

Spring retainer assembly

Protrusion

TRANSMISSION

CONTINUOUSLY VARIABLE TRANSMISSION OVERHAUL

23B-33

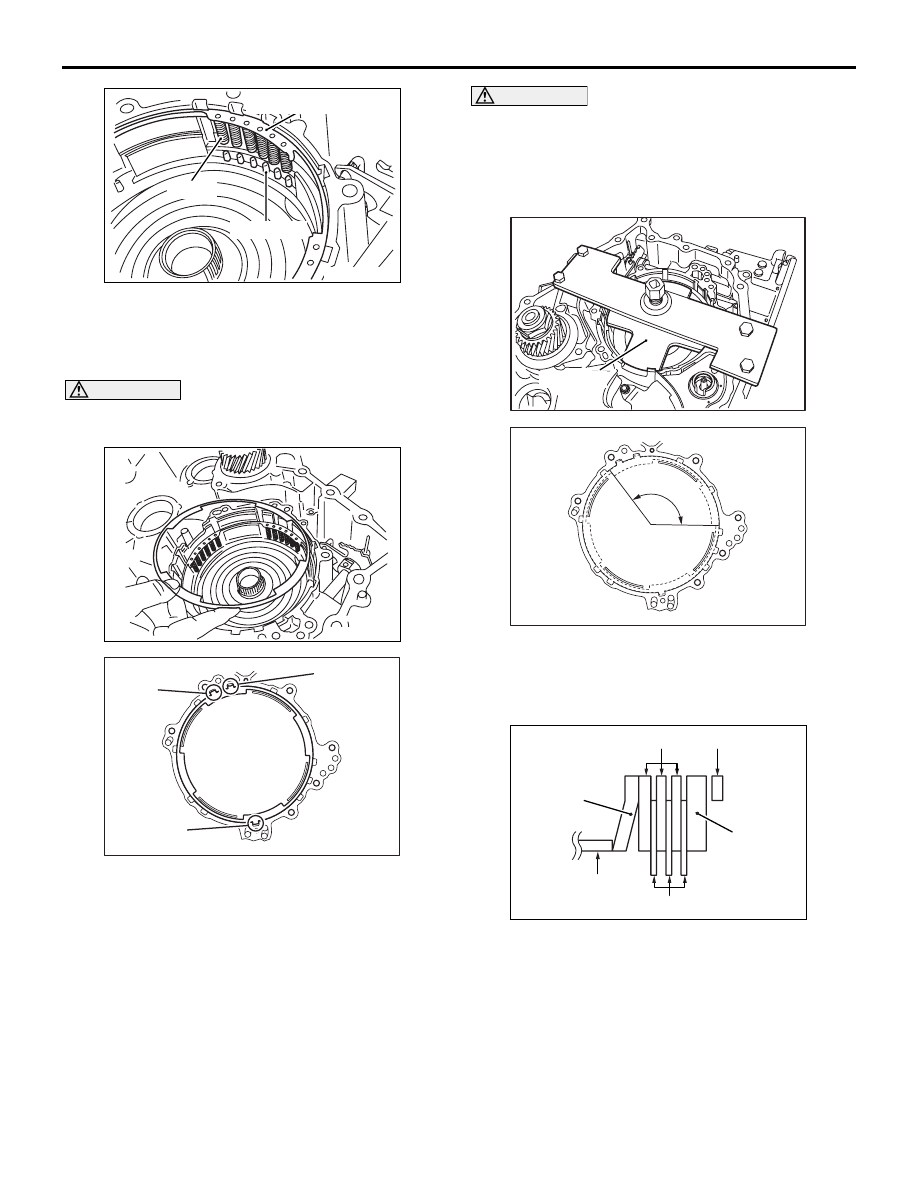

2. Align the spring portion of spring retainer

assembly with the projections of the reverse brake
piston, and install the spring retainer assembly.

CAUTION

When installing the retaining plate, align the
tangs at positions A, B, C in the diagram.

AK502255

AK502770AC

A

C

B

3. Install the retaining plate on the transmission

case.

CAUTION

• Set the spring compressor right on top of the

spring of spring retainer assembly.

• Do not re-use the snap ring.
•

AK502251

MB992139

AD

AK502771

A

AC

When installing the snap ring, make sure that
the joint falls in the area A in the diagram.

4. Using the special tool, Spring compressor

(MB992139), compress the return spring, and
install the snap ring on the transmission case by
means of a flat blade screwdriver etc.

AK502256AC

Dish plate

Retaining plate

Driven plate

Drive plate

Reverse brake
piston

Snap ring

5. Install the reverse brake retaining plate, drive

plate, driven plate, and dish plate on the
transmission case.

TRANSMISSION

CONTINUOUSLY VARIABLE TRANSMISSION OVERHAUL

23B-34

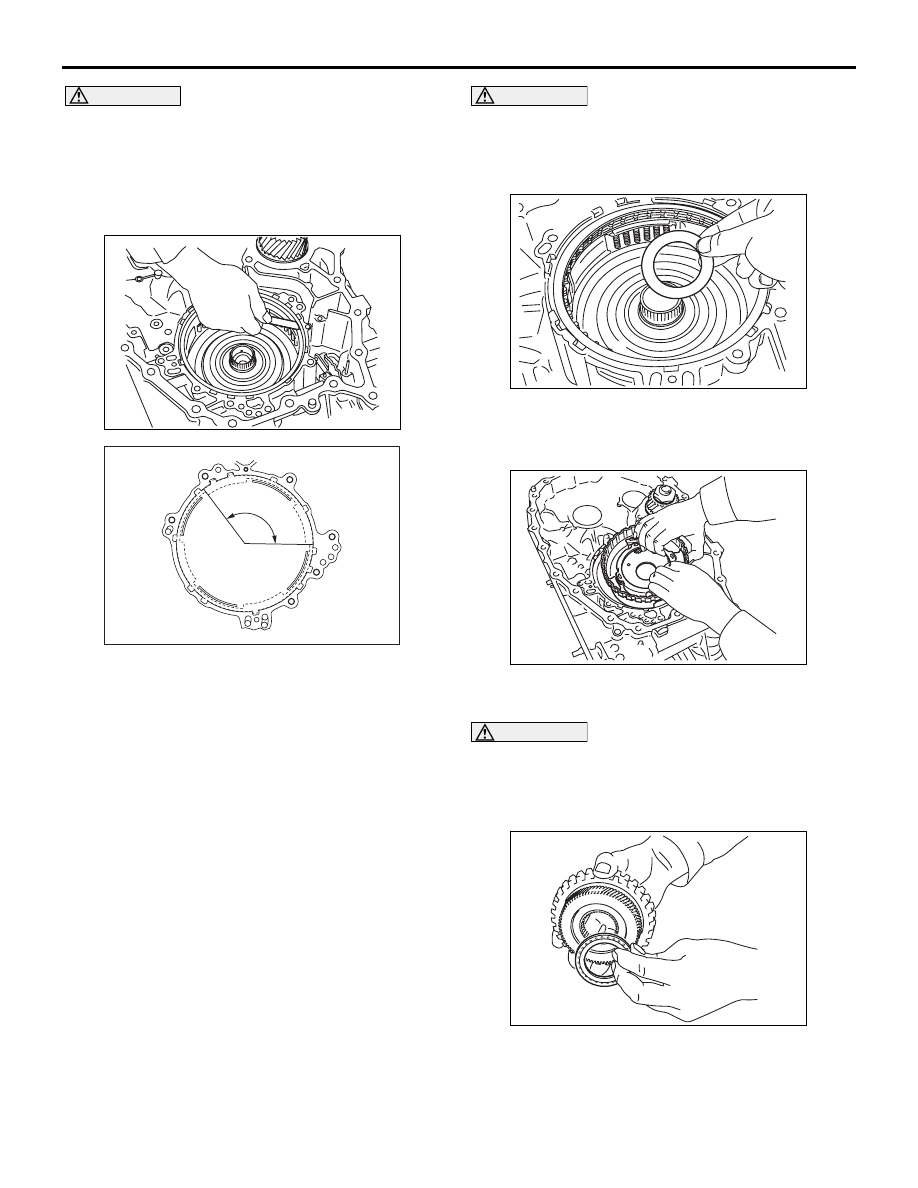

CAUTION

• When conducting measurements, measure

two or more places, and find the average
value.

• Do not re-use the snap ring.
•

AK502257

AK502771

A

AC

When installing the snap ring, make sure that
the joint falls in the area A in the diagram.

6. Using a flat blade screwdriver etc., install the

snap-ring on the transmission case, and measure
clearance between the snap ring and retaining
plate. Select the snap ring so as to obtain
standard value of the clearance. For selection of
the snap ring, refer to "SERVICE
SPECIFICATIONS."

Standard value: 1.2

− 1.5 mm

(For reverse brake clearance)

CAUTION

• Apply vaseline when installing the needle

bearing.

•

AK502258

Be careful to attach the needle bearing in
right direction.

7. Install the needle bearing on the reverse brake

piston. Refer to A in the "IDENTIFICATION OF
NEEDLE BEARINGS" for right direction.

AK502248

8. Install the planet carrier on the reverse brake.

CAUTION

• Apply vaseline when installing the needle

bearing.

•

AK502247

Be careful to attach the needle bearing in
right direction.

9. Install the needle bearing on the primary pulley

side of the sun gear. Refer to B in the
"IDENTIFICATION OF NEEDLE BEARINGS" for
right direction.

AK502246

TRANSMISSION

CONTINUOUSLY VARIABLE TRANSMISSION OVERHAUL

23B-35

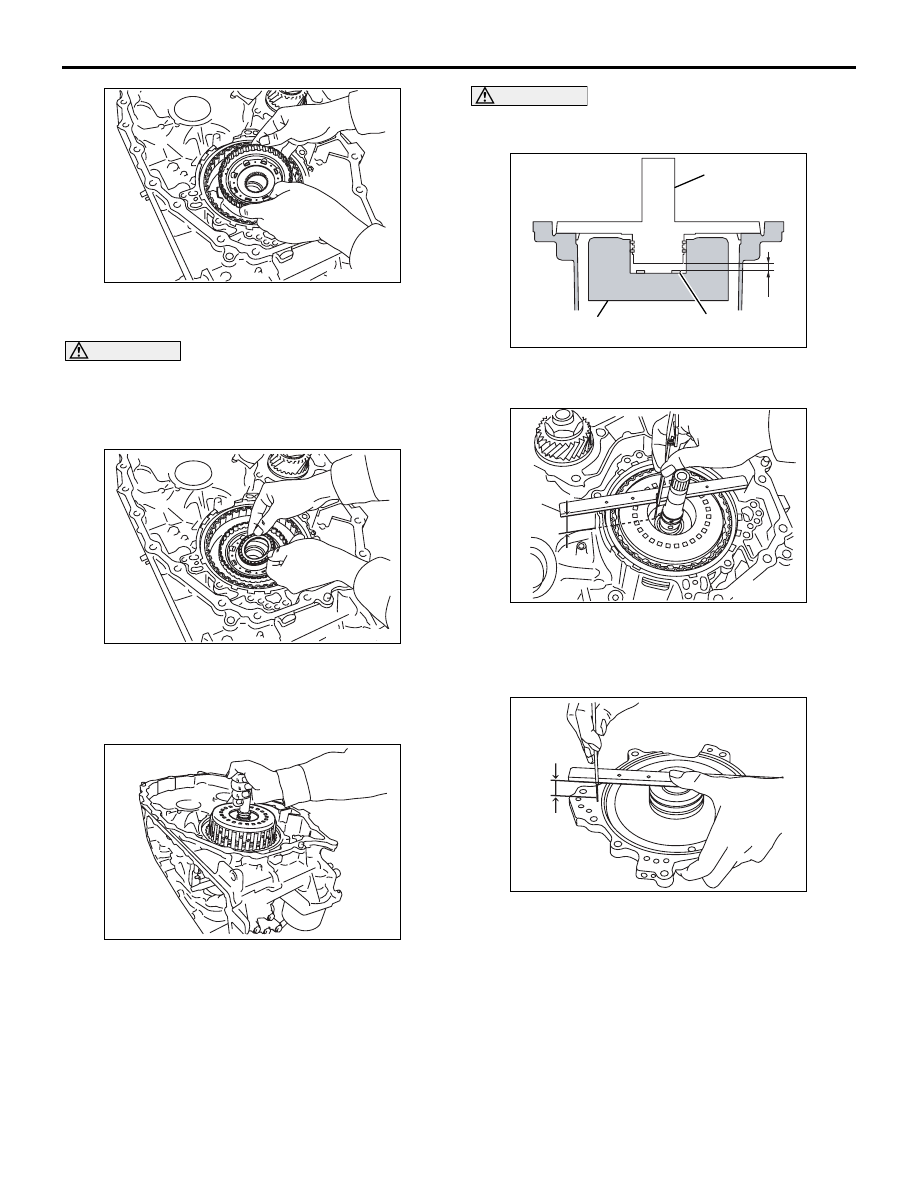

10.Install the sun gear on the planet carrier.

CAUTION

• Apply vaseline when installing the needle

bearing.

•

AK502245

Be careful to attach the needle bearing in
right direction.

11.Install the needle bearing on the forward clutch

drum side of the sun gear. Refer to C in the
"IDENTIFICATION OF NEEDLE BEARINGS" for
right direction.

AK502244

12.Install the forward clutch assembly on the

transmission case.

CAUTION

When conducting measurements, measure two
or more places, and find the average value.

AK502259AC

A

Oil pump cover

Needle bearing

Forward clutch dram

13.Measure the total axial play A in the following

way.

AK502260

M1

AC

(1) Measure the distance M1 from the oil pump

cover mounting surface of the transmission
case to the needle bearing mounting surface
of the forward clutch drum.

AK502261

M2

AC

(2) Measure the distance M2 from the edge of oil

pump cover to the mounting surface on the
transmission case.

(3) Calculate the total axial play by the following

expression. Select the needle bearing so that
the total axial play meets its standard value.

Total axial play = M1

− M2 − bearing thick-

ness
Standard value: 0.25

− 0.55 mm

(For total axial play)
