DETONATION SENSOR CHECK

M1163002900724

Check the detonation sensor circuit if self-diagnosis
code, No. P0327 or No. P0328 is shown.
(Refer to GROUP 13A

− Troubleshooting − Inspec-

tion procedure for diagnosis code

− Code No. P0327

detonation sensor circuit low input .)

(Refer to GROUP 13A

− Troubleshooting − Inspec-

tion procedure for diagnosis code

− Code No. P0328

detonation sensor circuit high input .)

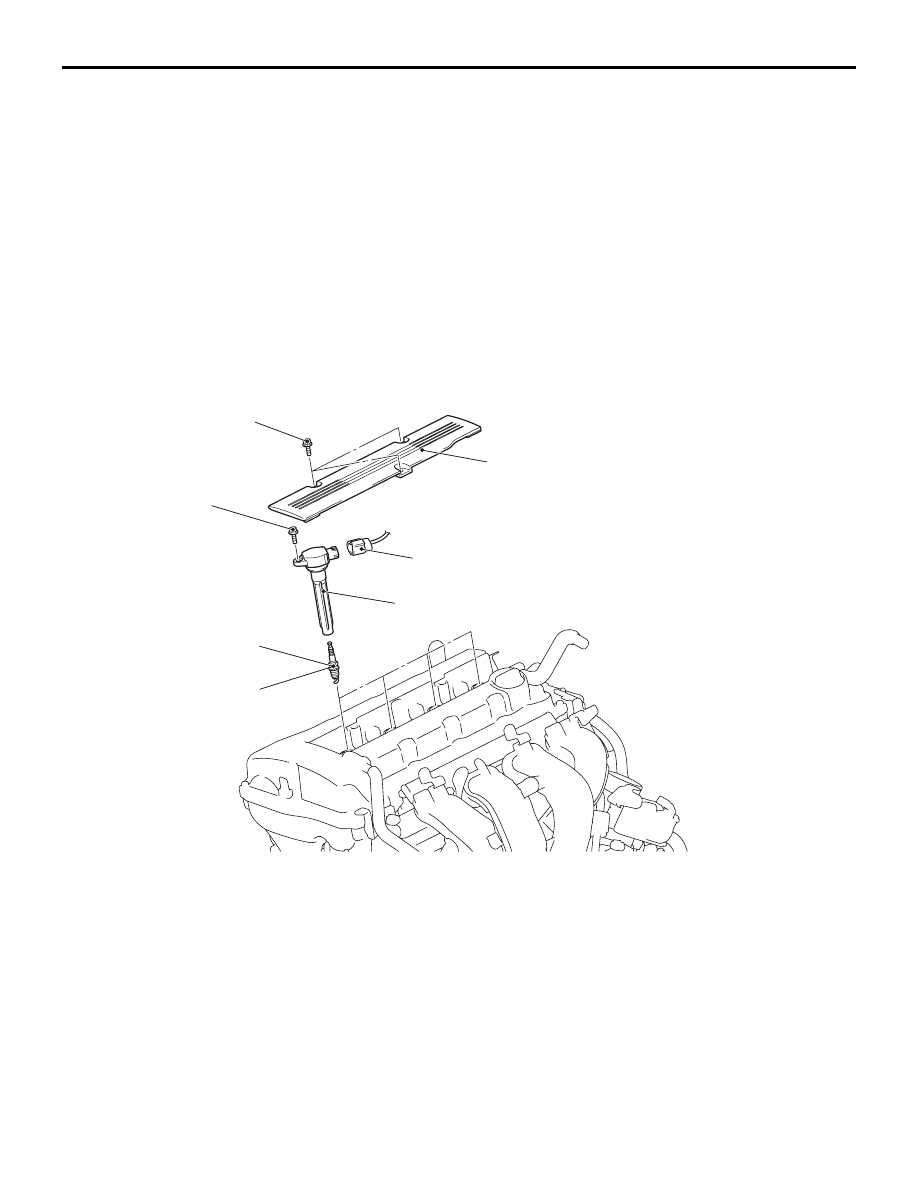

IGNITION COIL

REMOVAL AND INSTALLATION

M1163004002295

ACB05840 AB

3.0 ± 0.5 N·m

10 ± 2 N·m

25 ± 5 N·m

1

2

3

4

Removal steps

1.

Rocker cover centre cover

2.

Ignition coil connector

3.

Ignition coil

4.

Spark plug

Removal steps (Continued)

IGNITION SYSTEM

ENGINE ELECTRICAL

16-33

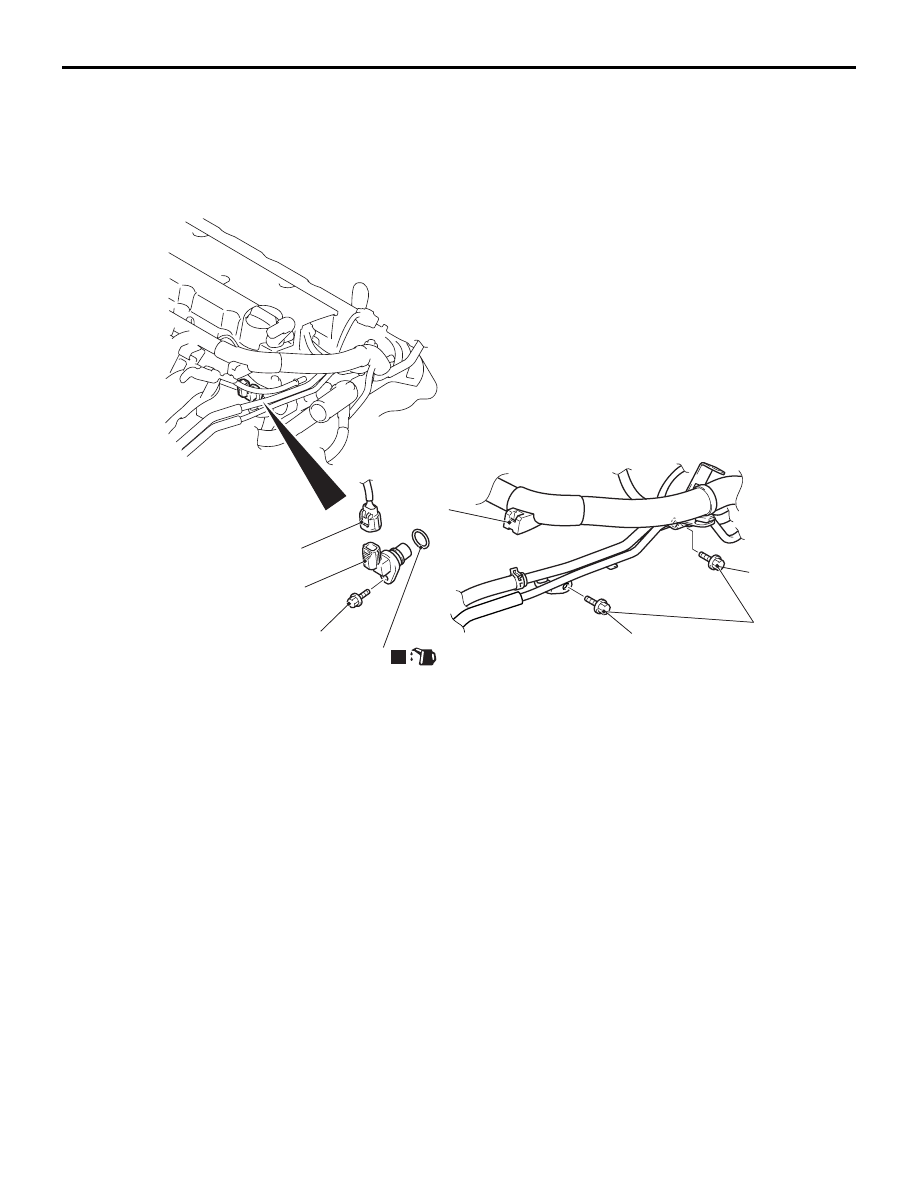

CAMSHAFT POSITION SENSOR

REMOVAL AND INSTALLATION

M1163003402171

ACB01431AB

11 ± 1 N·m

1

2

3

4

5

N

11 ± 1 N·m

11 ± 1 N·m

(Engine oil)

Inlet camshaft position sensor
removal steps

•

Air cleaner cover and air intake
hose (Refer to GROUP 15

− Air

Cleaner )

1.

Control harness clamp
connection

2.

Emission vacuum hose and pipe
assembly mounting bolt

•

Injector protector rear (Refer to
GROUP 13A

− Injector )

3.

Inlet camshaft position sensor
connector

4.

Inlet camshaft position sensor

5.

O-ring

Inlet camshaft position sensor
removal steps (Continued)

IGNITION SYSTEM

ENGINE ELECTRICAL

16-34

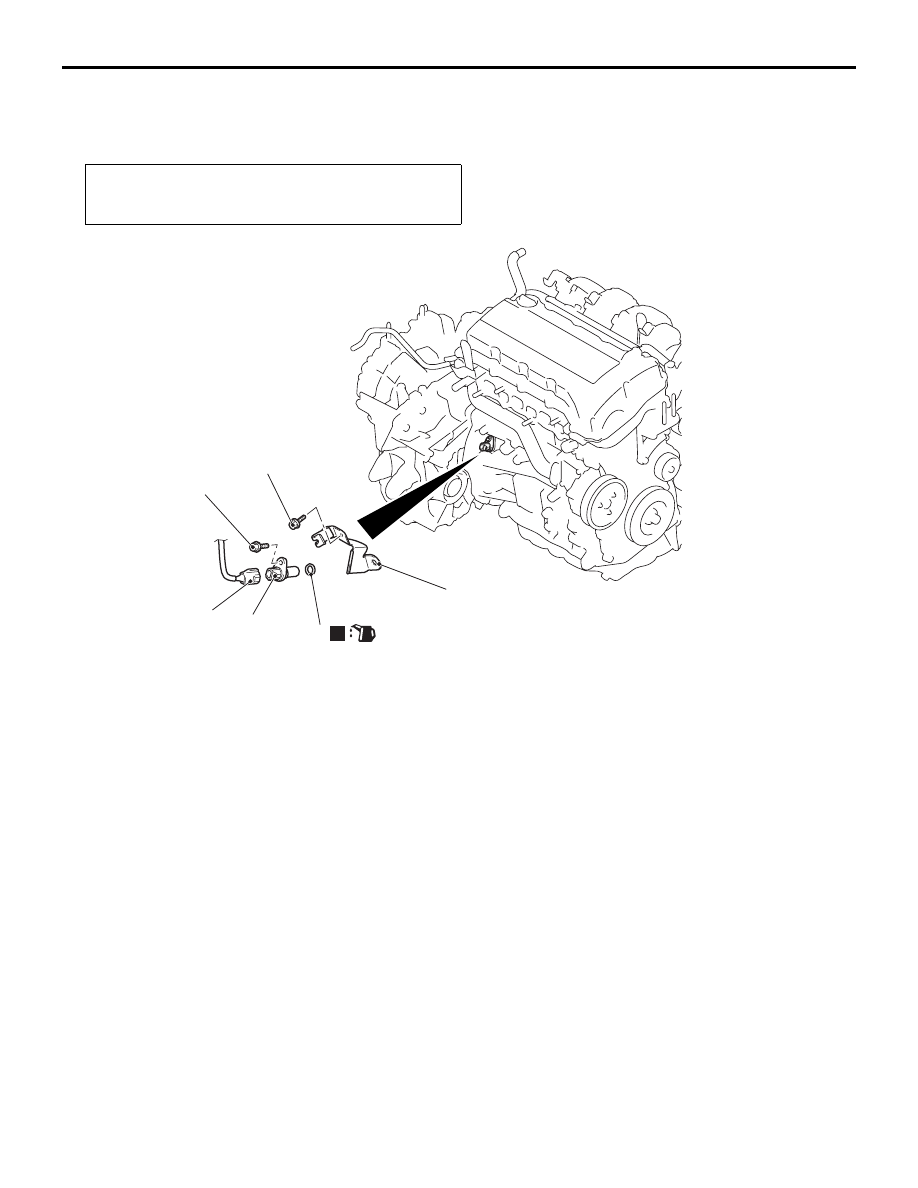

CRANK ANGLE SENSOR

REMOVAL AND INSTALLATION

M1163004801748

Pre-removal and post-installation operation
• Air Cleaner Assembly Removal and Installation (Refer to

GROUP 15

− Air Cleaner ).

ACB05841

1

2

3

4

11 ± 1 N·m

11 ± 1 N·m

N

AB

(Engine oil)

Removal steps

1.

Crank angle sensor connector

2.

Crank angle sensor

3.

O-ring

•

Exhaust manifold bracket (Refer
to GROUP 15

− Exhaust Manifold

).

4.

Crank angle sensor cover

Removal steps (Continued)

IGNITION SYSTEM

ENGINE ELECTRICAL

16-35

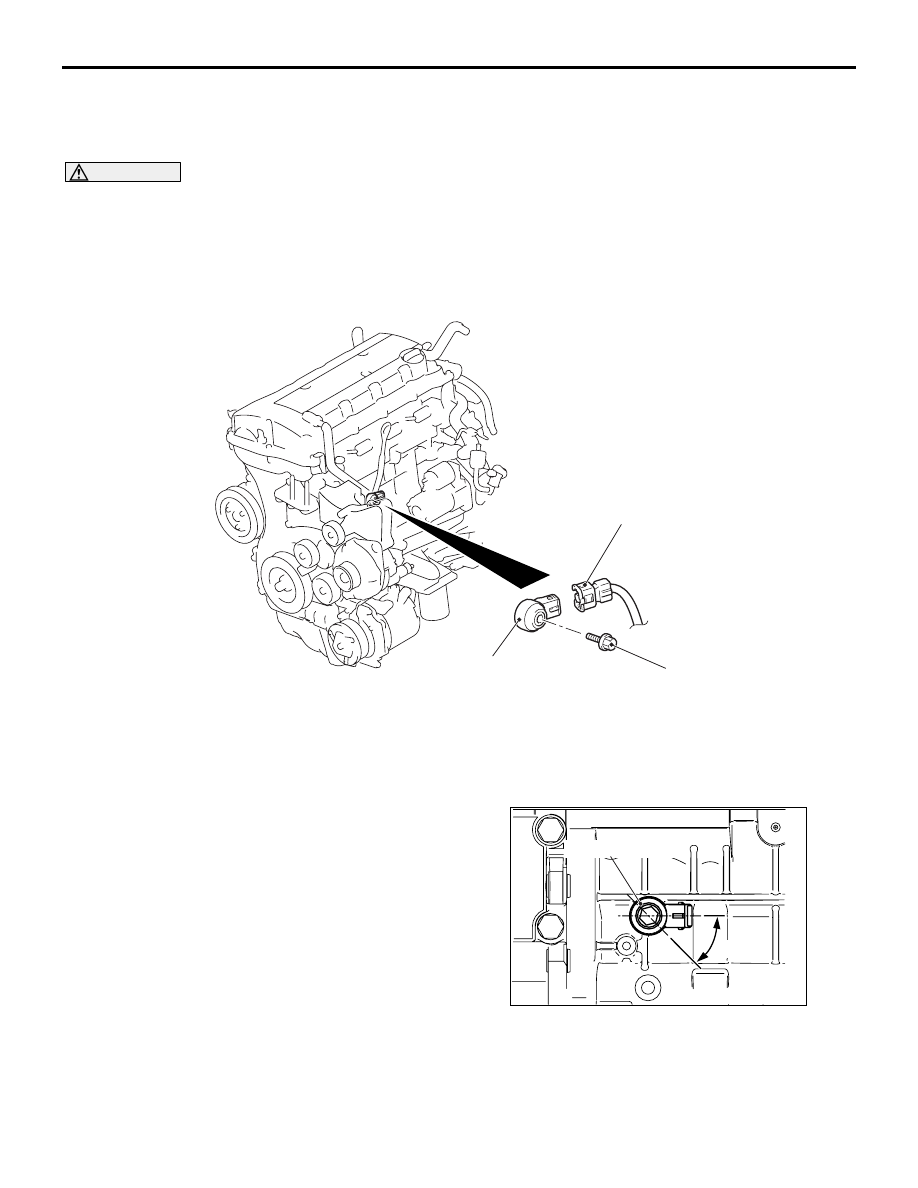

DETONATION SENSOR

REMOVAL AND INSTALLATION

M1163002802927

CAUTION

• When the detonation sensor is replaced, initialise the learned value using M.U.T.-III (Refer to

GROUP 00

− Precautions before Service, Initialisation Procedure for Learning Value in MPI Engine

).

•

ACC00078

1

2

20 ± 2 N·m

AB

Removal steps

<<

A

>>

•

Throttle body assembly (Refer to
GROUP 13A

− Throttle Body

Assembly ) .

1.

Detonation sensor connector

>>

A

<<

2.

Detonation sensor

Do not drop or hit the detonation sensor against other components. Internal damage may result,
and the detonation sensor will need to be replaced.

REMOVAL SERVICE POINT

<<A>> THROTTLE BODY MOUNTING
BOLT REMOVAL

Remove the throttle body mounting bolts and put the
throttle body aside so as not to interfere the detona-
tion sensor connector disconnection.

INSTALLATION SERVICE POINT

>>A<< DETONATION SENSOR INSTALLA-
TION

AC807670 AD

Detonation sensor

45˚

Set the connector of the detonation sensor to the
area shown in the figure, and tighten the detonation
sensor to the specified torque.

Tightening torque: 20

± 2 N⋅m
