CAUTION

Do not clamp the yoke assembly with a vise.
Disconnect the lead from the M terminal of the mag-
netic switch.

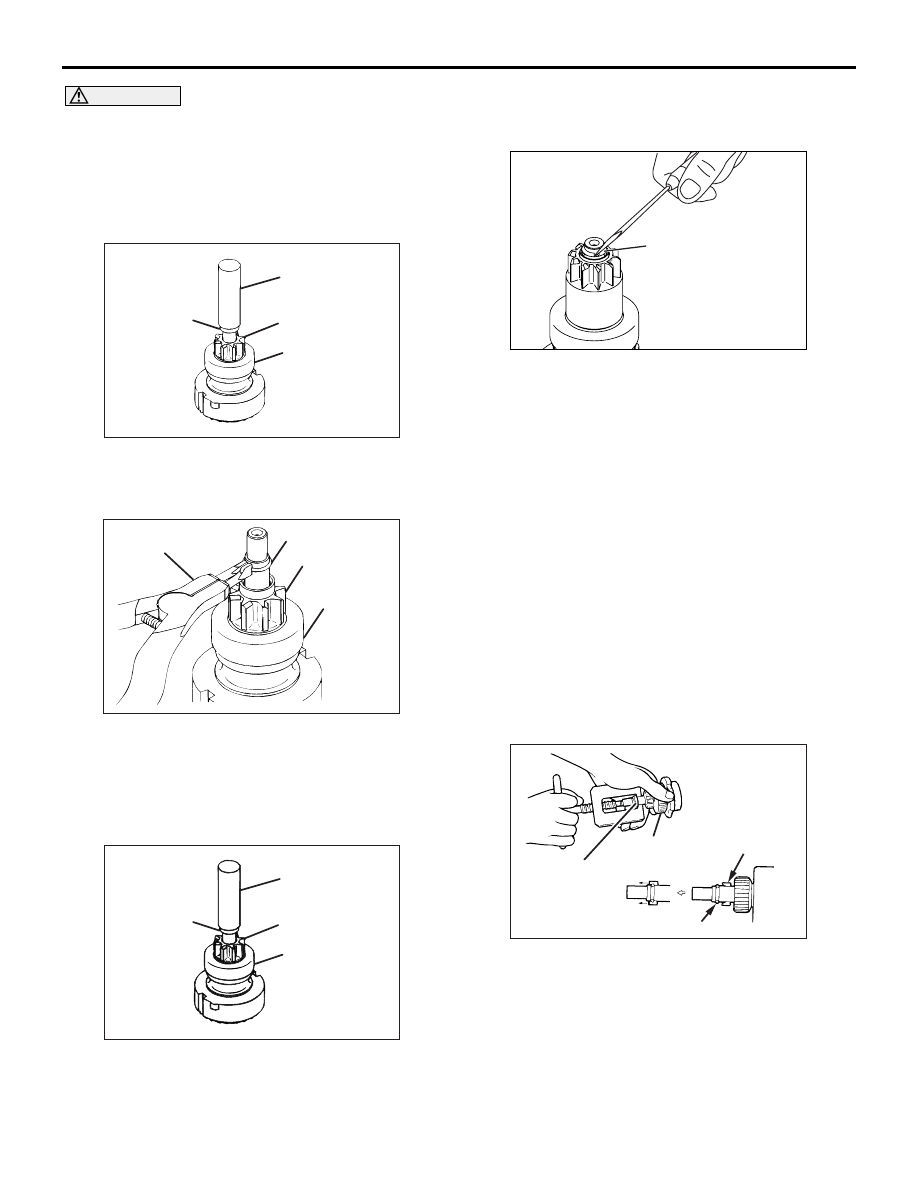

<<B>> SNAP RING/STOPPER RING
REMOVAL

AK202790

Socket wrench

Stopper ring

Pinion Gear

Overrunning
clutch

AD

1. Apply a long socket wrench of an appropriate size

to the stopper ring and strike the wrench to drive
out the stop ring toward the pinion gear side.

AK202791

Snap ring
pliers

Snap ring

Pinion gear

Overrunning
clutch

AB

2. Remove the snap ring with snap ring pliers, then

remove the stop ring and overrunning clutch.

<<C>> SNAP RING/STOPPER RING
REMOVAL

AK304685

Socket wrench

Stopper ring

Pinion Gear

Overrunning
clutch

AG

1. Apply a long socket wrench of an appropriate size

to the stopper ring and strike the wrench to drive
out the stopper ring toward the pinion gear side.

AK802929AB

Snap ring

2. After using the screwdriver to remove to remove

the snap ring, remove the stop ring.

STARTER MOTOR PARTS CLEANING

Never clean in a solvent such starter motor parts as

the magnetic switch, brush holder, and armature.
If they are soaked in a solvent, their insulation
could be impaired. When these parts require
cleaning, wipe off contamination with cloth.

1. Never soak the drive unit in a solvent. If it is

washed in a solvent, the grease having been
packed in the overrunning clutch at the factory will
be washed out. Wipe the drive unit with cloth if it
requires cleaning.

REASSEMBLY SERVICE POINTS

>>A<< STOPPER RING/SNAP RING
INSTALLATION

AK202911

Overrunning
clutch

Stopper ring

Snap ring

Stopper ring

AE

Use a suitable puller to pull the stopper ring until it
gets over the snap ring.

STARTING SYSTEM

ENGINE ELECTRICAL

16-25

>>B<< STOPPER RING/SNAP RING
INSTALLATION

AKA00042

Snap ring

Stopper ring

Planetary gear shaft

AB

1. Install the stopper ring to the planetary gear shaft.

2. Install the snap ring to the planetary gear shaft.

3. Pull the planetary gear shaft to install the stopper

ring to the position shown in the illustration.

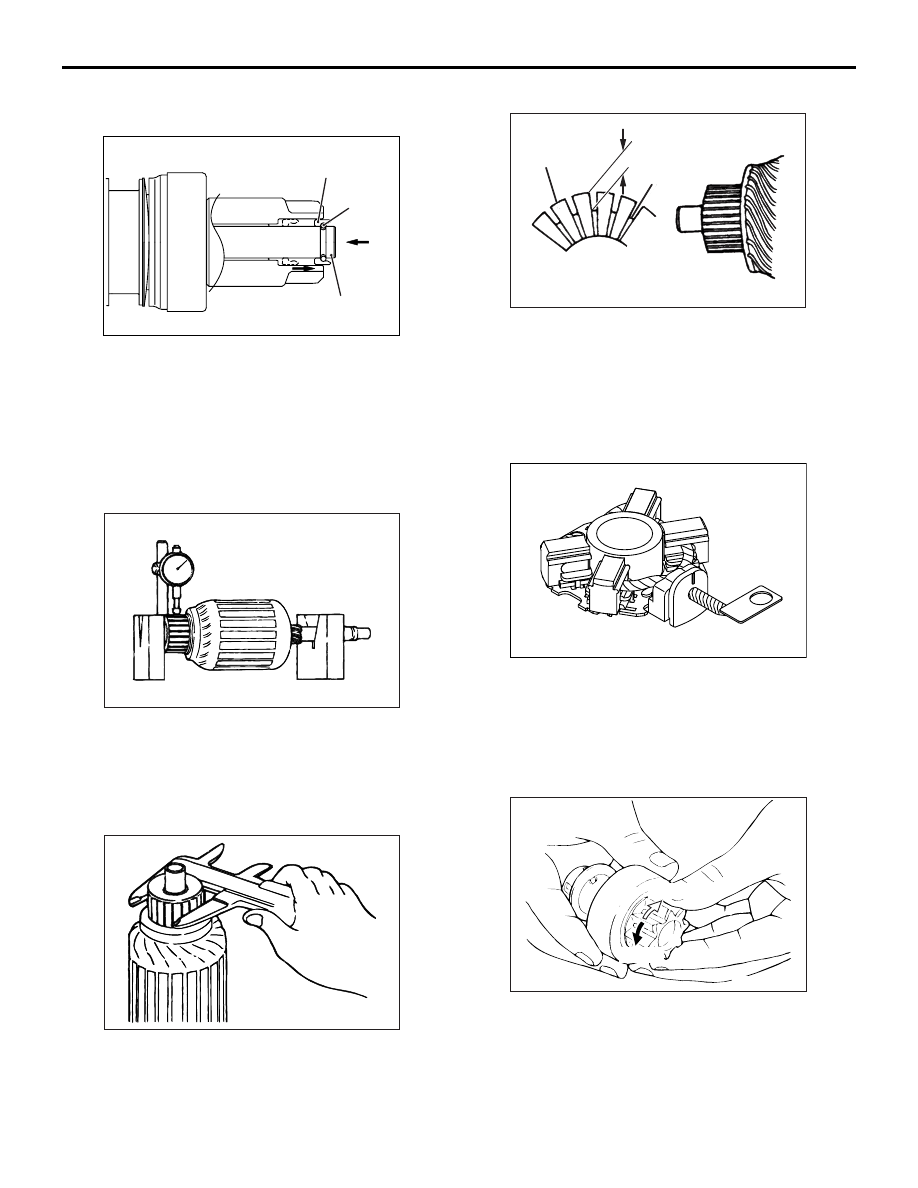

INSPECTION

M1162001300760

COMMUTATOR

AK304688

1. Support the armature with a pair of V block and

turn it to measure the runout of the surface not
rubbed by the brushes using a dial gauge.

Standard value: 0.05 mm or less
Limit: 0.1 mm

AK304689

2. Measure the diameter of the commutator.

Standard value: 29.4 mm

Limit: 28.8 mm

AK304690

Segment

Undercut

Mica

AB

3. Measure the depth of the undercut between

segments.

Standard value: 0.5 mm
Limit: 0.2 mm

BRUSH HOLDER

AK201187

Push the brush into the brush holder to make sure
that the spring is working on the brush.
If the spring is not working, replace the brush holder.

OVERRUNNING CLUTCH

AK202710

Free

Lock

AB

1. Make sure that the pinion cannot be turned

anti-clockwise and can be turned clockwise freely.

2. Check the pinion for abnormal ware and damage.

IGNITION SYSTEM

ENGINE ELECTRICAL

16-26

BRUSHES

AK202846

Brush
height

AB

1. Check the commutator contacting surface of each

brush for abnormal roughness. Also check the
height of the brush. Replace the brush holder if
the height is lower than the limit.

Limit: 10 mm

2. When the contact surface of the brush is rectified

or the brush holder is replaced, recondition the
contact surface with sandpaper wrapped around
the commutator.

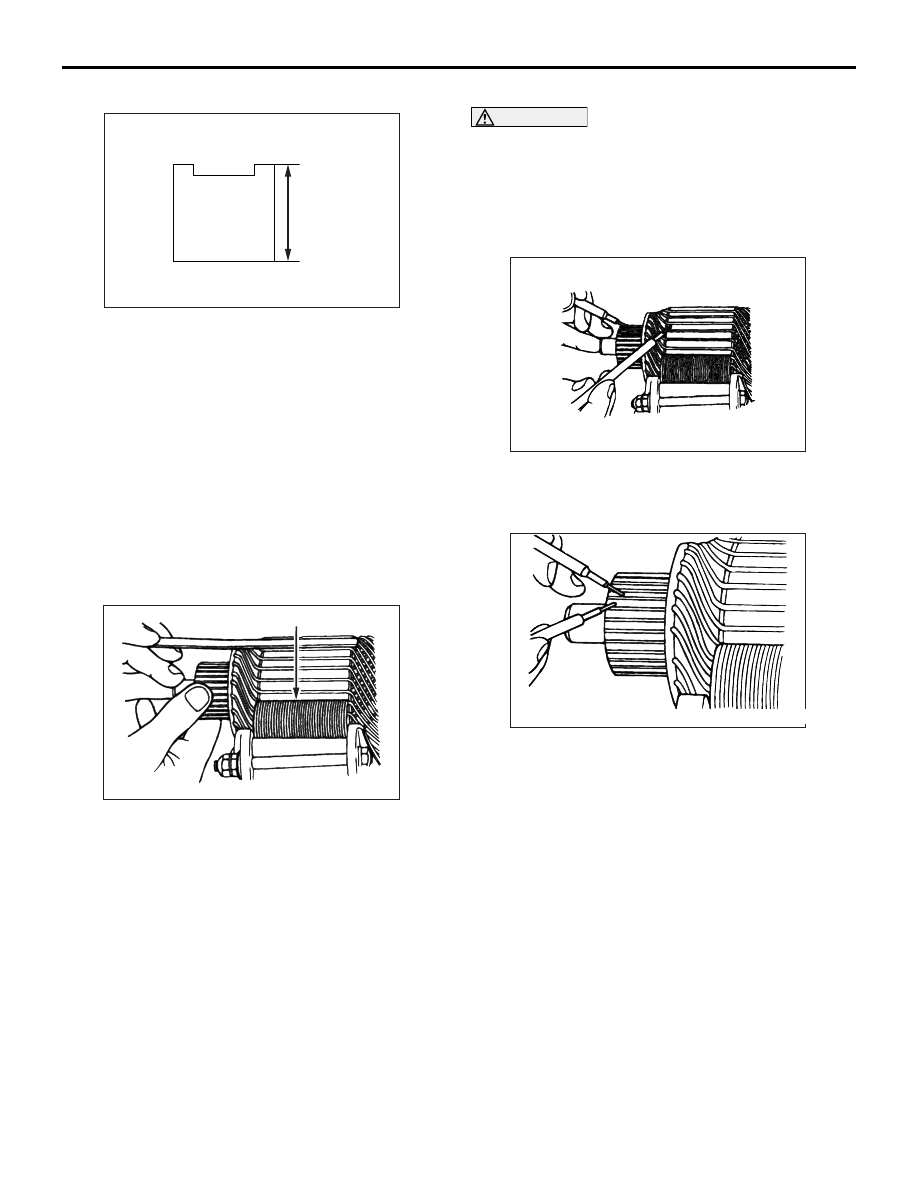

ARMATURE COIL

1. Check the armature coil for short circuit as

follows.

AK304692

Growler

AB

2. Set the armature in a growler.

CAUTION

Clean the surface of the armature thoroughly
before performing the test.
3. While holding a thin strip of iron against the

armature in parallel with its axis, turn the armature
slowly. The armature is normal if the iron strip is
not attracted to the armature or it does not vibrate.

AK304693

4. Check the insulation between commutator

segments and armature coils. The armature coils
are properly insulated if no continuity is present.

AK304694

5. Check continuity between a segment and another.

There is no open circuit in the tested coil if there is
continuity.

IGNITION SYSTEM

GENERAL INFORMATION

M1163000102018

This system is equipped with four ignition coils with
built-in power transistors for each of the cylinders.
Interruption of the primary current flowing in the pri-
mary side of an ignition coil generates a high voltage
in the secondary side of ignition coil. The high volt-
age thus generated is applied to the spark plugs to
generate sparks. The engine-ECU turns the power
transistors inside the ignition coils alternately on and
off. This causes the primary currents in the ignition
coils to be alternately interrupted and allowed to flow
to fire the cylinders in the order 1-3-4-2.

The engine-ECU determines which ignition coil
should be controlled by means of the signals from
the camshaft position sensor and the crank angle
sensor. It also detects the crankshaft position, in
order to provide ignition at the most appropriate tim-
ing in response to the engine operation conditions.
When the engine is cold or running at high altitudes,
the ignition timing is slightly advanced to provide
optimum performance. Furthermore, if knocking
occurs, the ignition timing is gradually retarded until
knocking ceases.

IGNITION SYSTEM

ENGINE ELECTRICAL

16-27

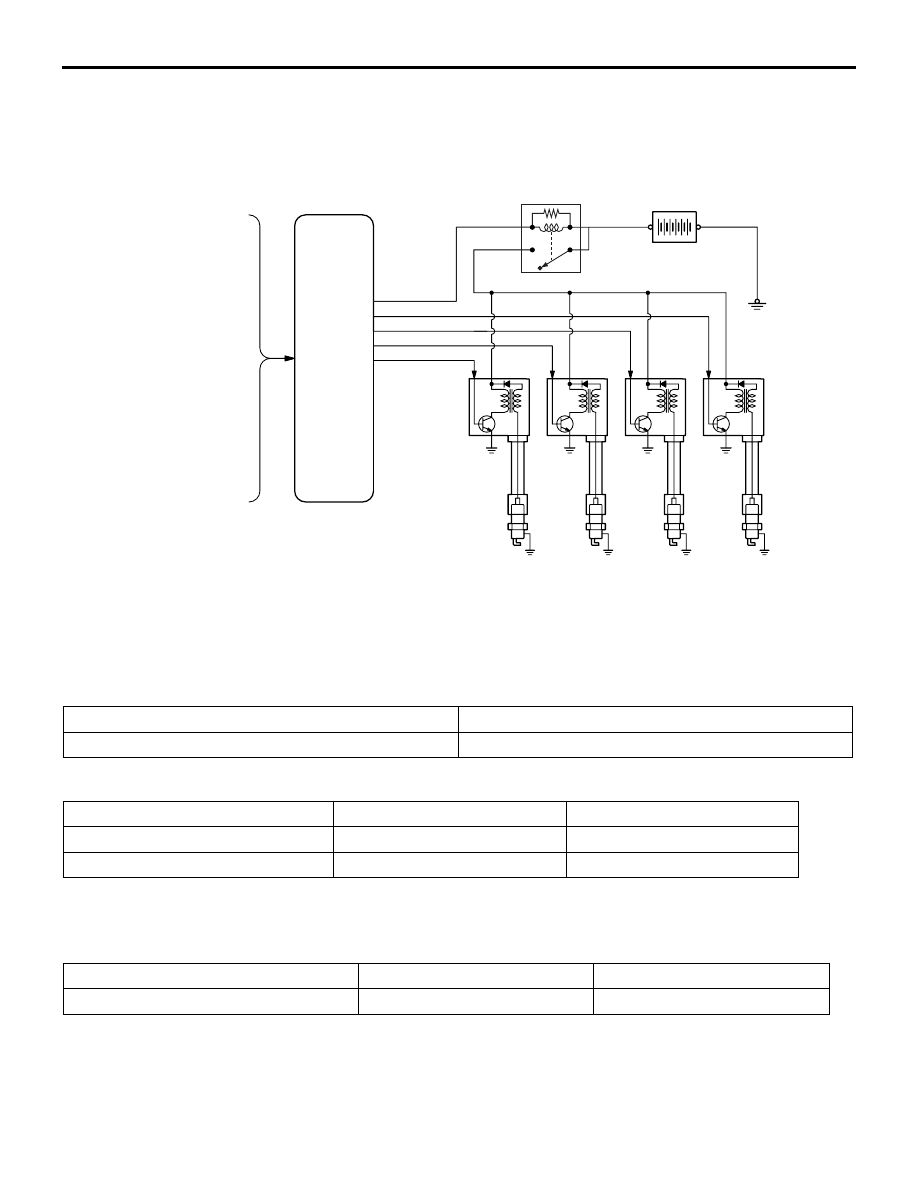

SYSTEM DIAGRAM

AK503331

Manifold absolute pressure
sensor

Air flow sensor

Intake air temperature
sensor

Engine coolant temperature
sensor

Accelerator pedal position
sensor

Camshaft position sensor

Crank angle sensor

Detonation sensor

Ignition switch-ST

Engine-ECU

Ignition coil

Cylinder No.

1

2

3

AB

4

Spark plug

Engine control relay

Battery

IGNITION COIL SPECIFICATION

Item

Specification

Type

Moulded 4-coil

SPARK PLUG SPECIFICATIONS

Item

4B11

4B12

NGK

FR6EI

FR5EI

DENSO

K20PSR-B8

K16PSR-B8

SERVICE SPECIFICATIONS

M1163000301644

SPARK PLUG

Item

Standard value

Limit

Spark plug gap mm

0.7

− 0.8

1.2
