OIL PUMP CHAIN <4B11>

ENGINE LUBRICATION

12-7

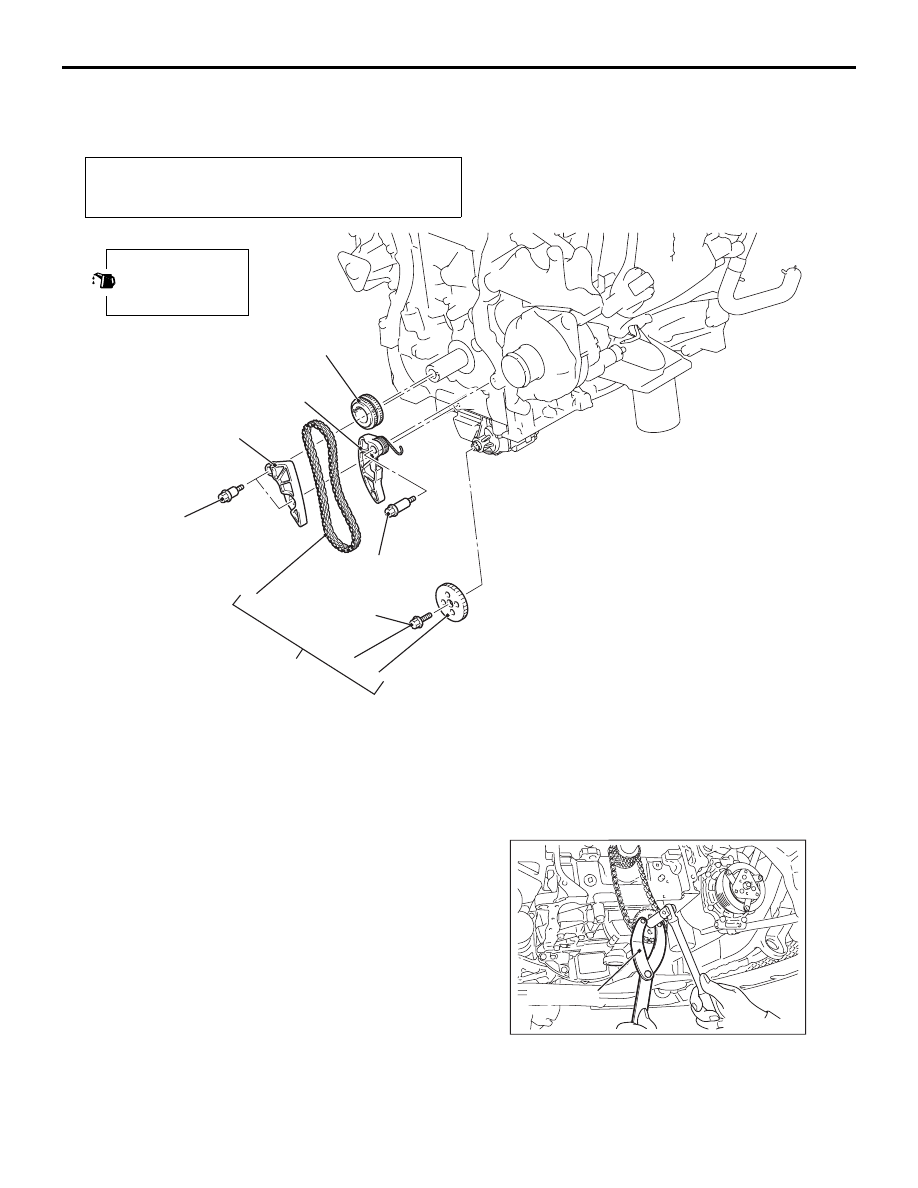

OIL PUMP CHAIN <4B11>

REMOVAL AND INSTALLATION

M1121003100442

Pre-removal and Post-installation Operation
• Valve Timing Chain Removal and Installation (Refer to

GROUP 11A

− Timing Chain ).

AC709699

10 ± 2 N·m

10 ± 2 N·m

23 ± 2 N·m

1

2

5

6

7

AB

3

4

Apply engine oil to all
moving parts before
installation.

Removal steps

1.

Balancer timing chain guide

2.

Engine oil pump chain tensioner

<<

A

>>

>>

B

<<

3.

Engine oil pump sprocket centre
bolt

<<

A

>>

4.

Engine oil pump drive chain and
engine oil pump sprocket

>>

B

<<

5.

Engine oil pump drive chain

>>

B

<<

6.

Engine oil pump sprocket

>>

A

<<

7.

Crankshaft sprocket

REMOVAL SERVICE POINT

<<A>> ENGINE OIL PUMP SPROCKET
CENTRE BOLT/ENGINE OIL PUMP DRIVE
CHAIN AND ENGINE OIL PUMP
SPROCKET REMOVAL

AC611491

MB991346

AC

1. Hold the engine oil pump sprocket with special

tool top cover wrench (MB991346).

OIL PUMP CHAIN <4B11>

ENGINE LUBRICATION

12-8

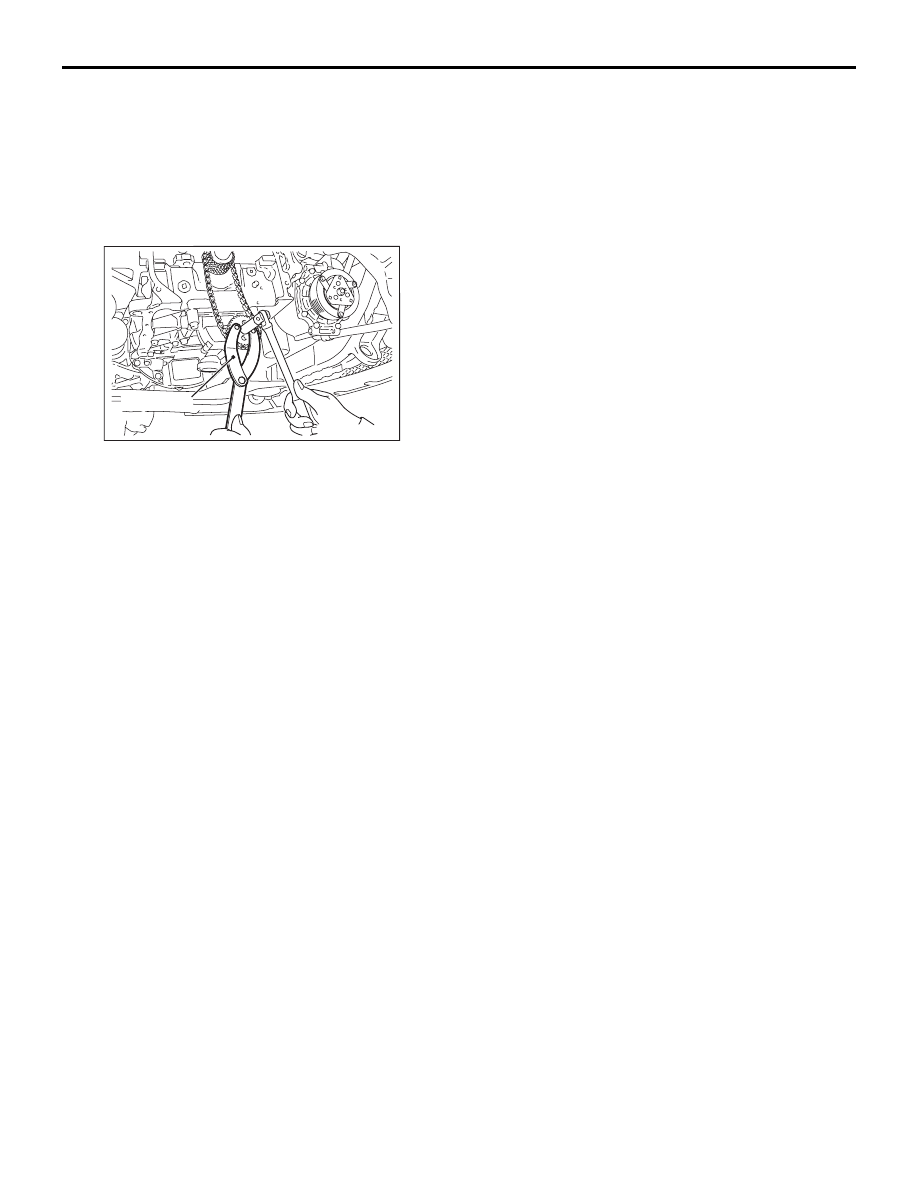

2. Loosen the engine oil pump sprocket centre bolt

and remove the engine oil pump drive chain and
engine oil pump sprocket.

INSTALLATION SERVICE POINTS

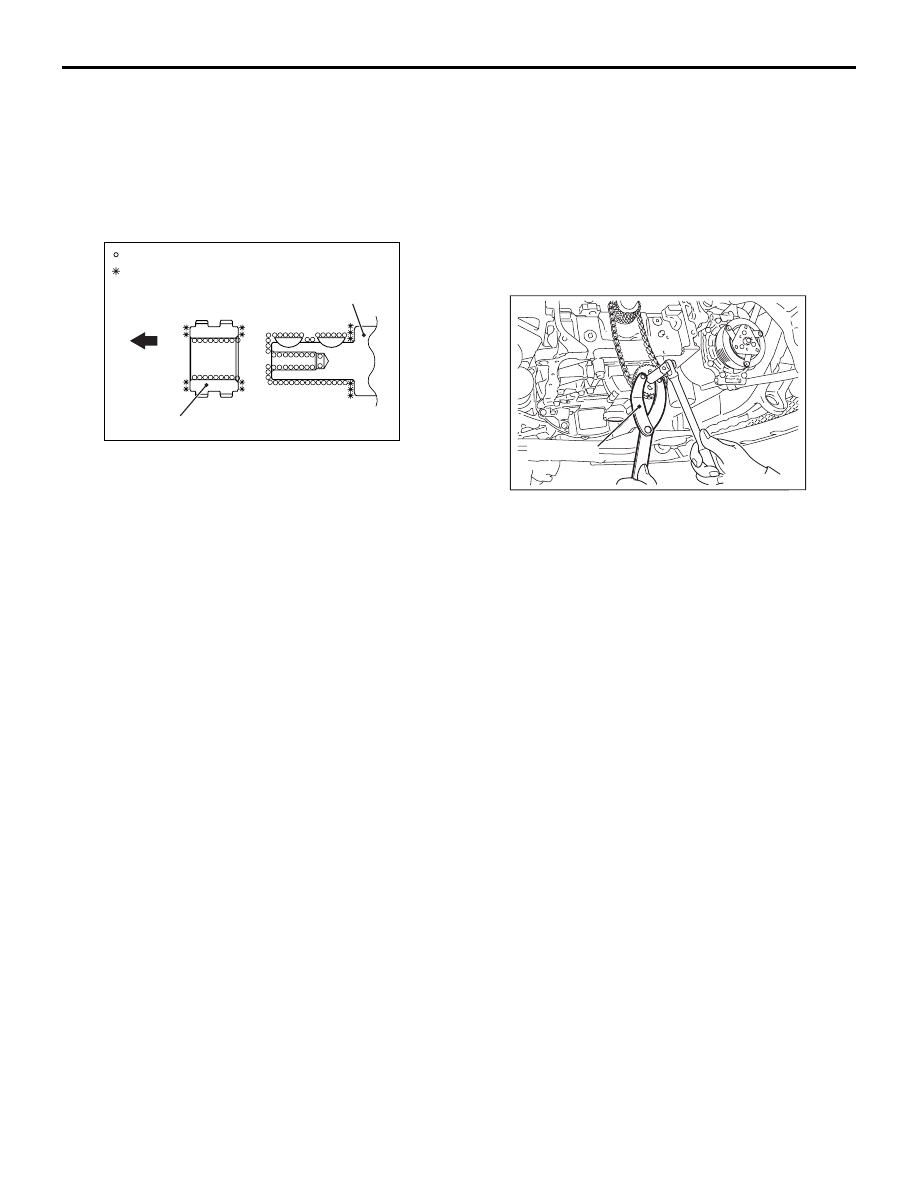

>>A<< CRANKSHAFT SPROCKET
INSTALLATION

AC705022

Crankshaft sprocket

Crankshaft

AB

Engine
front

: Wipe clean with a rag.
: Wipe clean with a rag and degrease.

1. Wipe off the dirt off the crankshaft sprocket and

crankshaft as shown in the figure using a rag, and
then degrease the areas.

NOTE: Degrease to prevent a drop in the coeffi-
cient of friction of the pressing portion caused by
adhesion of oil.

2. Install the crankshaft sprocket to the crankshaft.

>>B<< ENGINE OIL PUMP
SPROCKET/ENGINE OIL PUMP DRIVE
CHAIN/ENGINE OIL PUMP SPROCKET
CENTRE BOLT INSTALLATION

1. Set the No.1 cylinder at top dead centre of the

compression stroke.

2. Install the engine oil pump sprocket to the engine

oil pump drive chain.

3. Install the engine oil pump drive chain in the

crankshaft sprocket while the engine oil pump
sprocket is installed in the engine oil pump drive
chain.

4. Install the engine oil pump sprocket in the engine

oil pump assembly while the engine oil pump
sprocket is installed in the engine oil pump drive
chain.

AC611491

MB991346

AC

5. Hold the engine oil pump sprocket with special

tool top cover wrench (MB991346) in the same
manner as removal.

6. Tighten the engine oil pump sprocket centre bolt

to the specified torque.

Tightening torque: 23

± 2 N⋅m

OIL PUMP <4B11>

ENGINE LUBRICATION

12-9

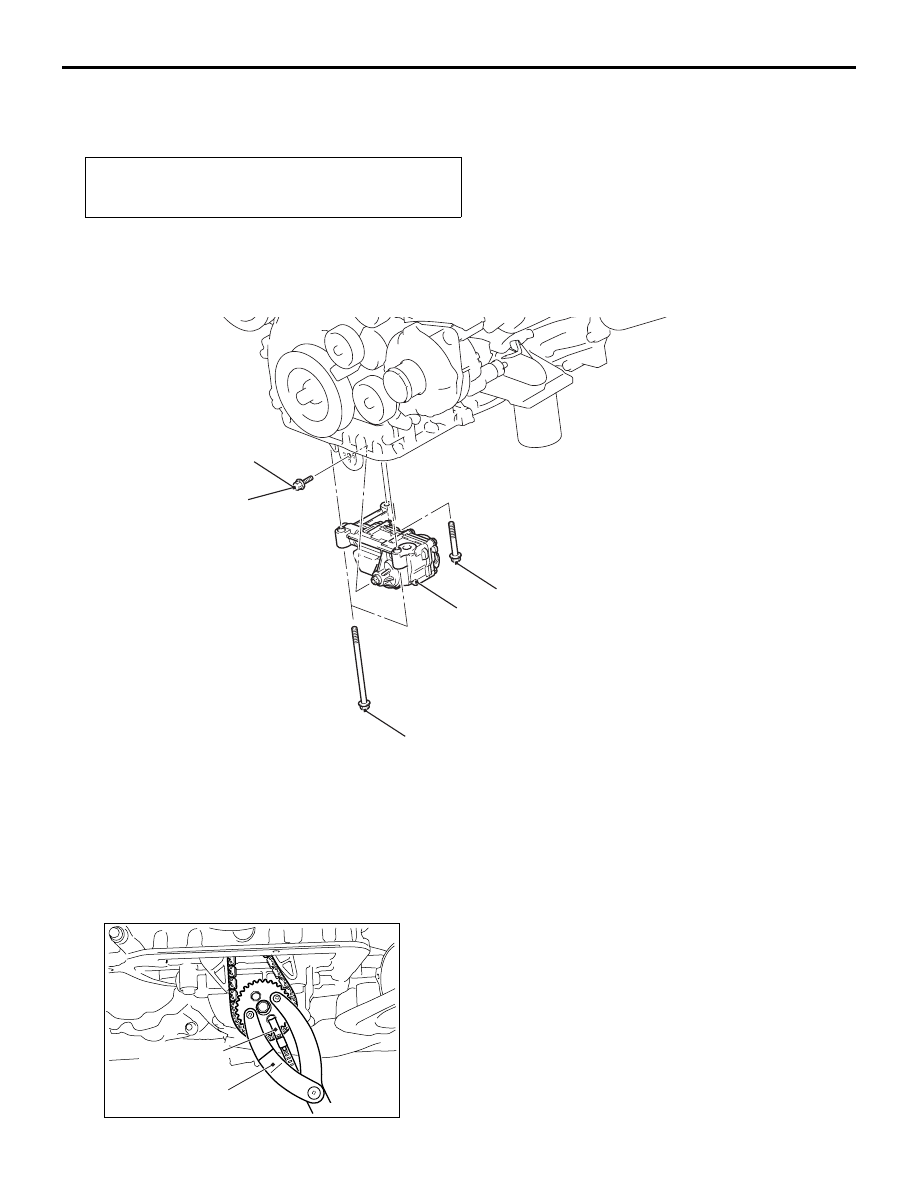

OIL PUMP <4B11>

REMOVAL AND INSTALLATION

M1121001600474

Pre-removal and Post-installation Operation
• Engine Oil Pan Removal and Installation (Refer to

GROUP 11A

− Oil Pan ).

AC613550

23 ± 2 N·m

28 ± 2 N·m

2

1

AD

28 ± 2 N·m

Removal steps

<<

A

>>

>>

A

<<

1.

Engine oil pump sprocket centre
bolt

2.

Engine oil pump assembly

REMOVAL SERVICE POINT

<<A>> ENGINE OIL PUMP SPROCKET
CENTRE BOLT REMOVAL

AC705465

MB991346

AD

Cable band

1. Secure the engine oil pump sprocket and the

engine oil pump drive chain with cable band to
prevent slippage between the engine oil pump
sprocket and the engine oil pump drive chain.

2. Hold the engine oil pump sprocket with special

tool top cover wrench (MB991346).

3. After removing the engine oil pump sprocket

centre bolt, disconnect the engine oil pump
sprocket from the engine oil pump assembly while
the engine oil pump sprocket is installed in the
engine oil pump drive chain.

OIL PUMP <4B11>

ENGINE LUBRICATION

12-10

INSTALLATION SERVICE POINT

>>A<< ENGINE OIL PUMP SPROCKET
CENTRE BOLT INSTALLATION

1. Install the engine oil pump sprocket in the engine

oil pump assembly while the engine oil pump
sprocket is installed in the engine oil pump drive
chain.

AC611491

MB991346

AC

2. Hold the engine oil pump sprocket with special

tool top cover wrench (MB991346) in the same
manner as removal.

3. Tighten the engine oil pump sprocket centre bolt

to the specified torque.

Tightening torque: 23

± 2 N⋅m

4. Remove the cable band securing the engine oil

pump sprocket and engine oil pump drive chain to
prevent the slippage between them.
