Mitsubishi Outlander (2013+). Manual - part 230





HOW TO USE THIS MANUAL

GENERAL

00-2

HOW TO USE THIS MANUAL

M1001000103357

SCOPE OF MAINTENANCE, REPAIR AND
SERVICING EXPLANATIONS

This manual provides explanations, etc. concerning
procedures for the inspection, maintenance, repair
and servicing of the subject model.

ON-VEHICLE SERVICE

"On-vehicle Service" is procedures for performing
inspections and adjustments of particularly important
locations with regard to the construction and for
maintenance and servicing, but other inspection (for
looseness, play, cracking, damage, etc.) must also
be performed.

INSPECTION

Under this title are presented inspection and check-
ing procedures to be performed by using special
tools and measuring instruments and by feeling, but,
for actual maintenance and servicing procedures,
visual inspections should always be performed as
well.

DEFINITION OF TERMS

STANDARD VALUE

Indicates the value used as the standard for judging
the quality of a part or assembly on inspection or the
value to which the part or assembly is corrected and
adjusted. It is given by tolerance.

LIMIT

Shows the standard for judging the quality of a part
or assembly on inspection and means the maximum
or minimum value within which the part or assembly
must be kept functionally or in strength. It is a value
established outside the range of standard value.

REFERENCE VALUE

Indicates the adjustment value prior to starting the
work (presented in order to facilitate assembly and
adjustment procedures, and so they can be com-
pleted in a shorter time).

DANGER, WARNING, AND CAUTION

DANGER, WARNING, and CAUTION call special
attention to a necessary action or to an action that
must be avoided. The differences among DANGER,
WARNING, and CAUTION are as follows:

• If a DANGER is not followed, the result is severe

bodily harm or even death.

• If a WARNING is not followed, the result could be

bodily injury.

• If a CAUTION is not followed, the result could be

damage to the vehicle, vehicle components or
service equipment.

INDICATION OF TIGHTENING TORQUE

Tightening torques (units: N

⋅m) are set to take into

account the central value and the allowable toler-
ance. The central value is the target value, and the
allowable tolerance provides the checking range for
tightening torques.

MODEL INDICATIONS

The following abbreviations are used in this manual
for identification of model types.
2000:Indicates models equipped with the 1,998 mL

<4B11> petrol engine.

2400:Indicates models equipped with the 2,360 mL

<4B12> petrol engine.

2WD:Indicates the 2-wheel drive vehicles.
4WD:Indicates the 4-wheel drive vehicles.
A/C:Indicates the air conditioner.
CVT: Indicates the continuously variable transmis-

sion.

DOHC:Indicates an engine with the double overhead

camshaft.

INVECS: Indicates the (Mitsubishi) intelligent and

innovative vehicles electronic control system.

MIVEC:Indicates the Mitsubishi innovative valve tim-

ing and lift electronic control system.

MPI:Indicates the multi point injection.

HOW TO USE THIS MANUAL

GENERAL

00-3

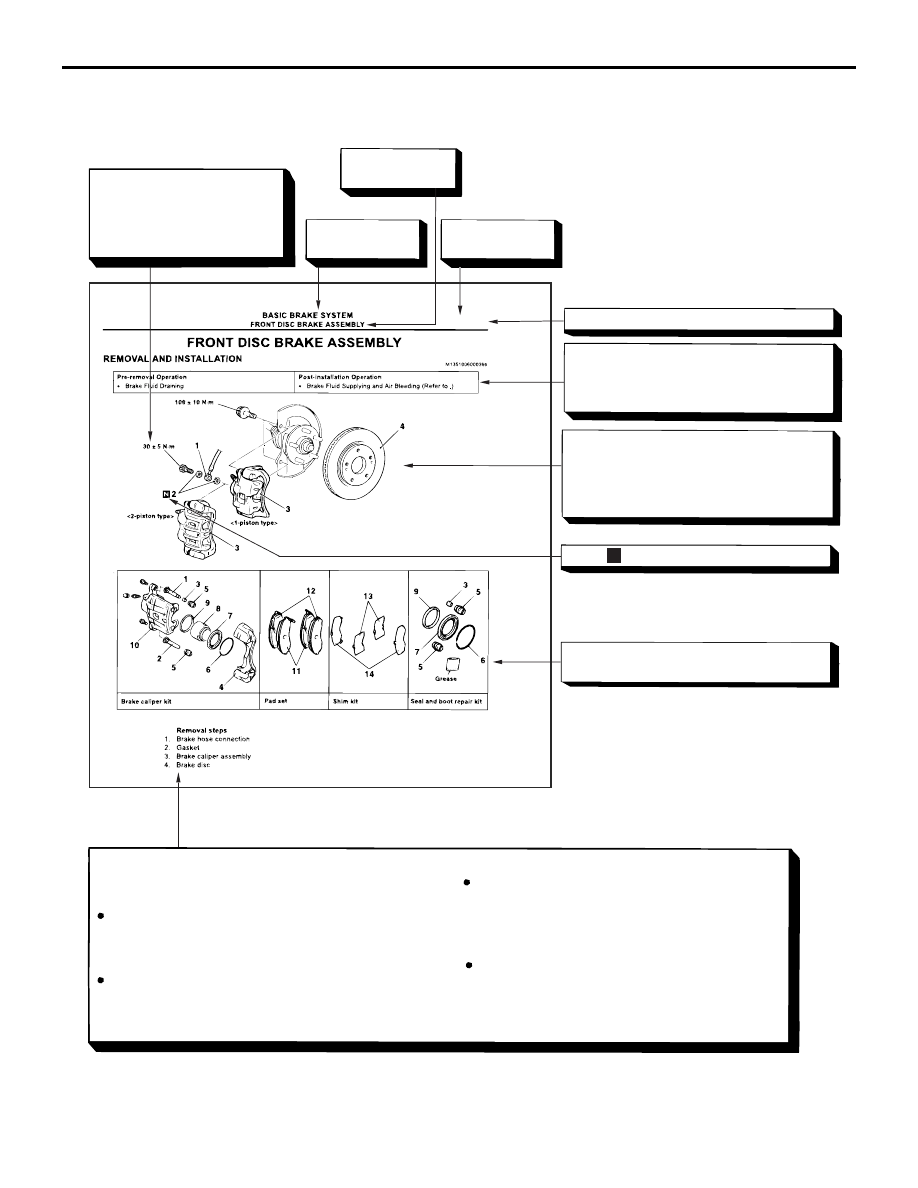

EXPLANATION OF MANUAL CONTENTS

AC311238

N

Denotes tightening torque.
For bolts and nuts which do
not have a tightening torque
listed, refer to the "Standard
Parts tightening-torque Table"

Indicates the
group title.

Indicates the
section title.

Indicates the
group number.

Indicates the page number.

Indicates procedures to be performed be-
fore the work in that section is started, and
procedures to be performed after the work
in that section is finished.

Component diagram
A diagram of the component parts is pro-
vided near the front of each section in order
to give the reader a better understanding of
the installed condition of component parts.

Mark      denotes nonreusable part.

Repair kit or parts sets are shown.
(Only very frequently used parts are shown.)

Removal steps :
        The part designation number corresponds to
        the number in the illustration to indicate remov-
        al steps.

 Disassembly steps :
        The part designation number corresponds to
        the number in the illustration to indicate disas-
        sembly steps.

Installation steps :
        Specified in case installation is impossible in
        reverse order of removal steps. Omitted if
        installation is possible in reverse order of re-
        moval steps.

Reassembly steps :
        Specified in case installation is impossible in
        reverse order of removal steps. Omitted if
        reassembly is possible in reverse order of dis-
        assembly steps.

Maintenance and servicing procedures

The numbers provided within the diagram indicate the
sequence for maintenance and servicing procedures.

AE

>>A<<

>>B<<

35A-19

AC509265

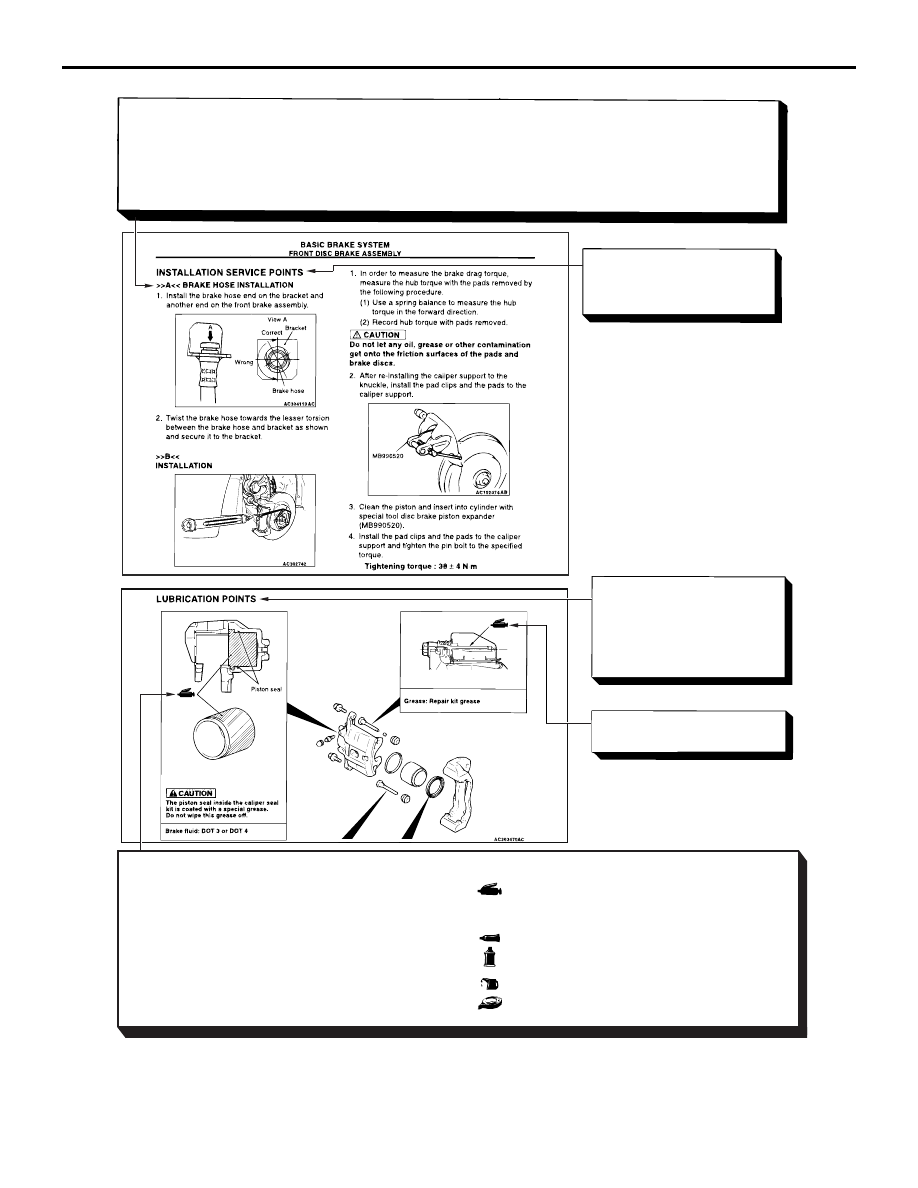

Classifications of major maintenance / service points

When there are major points relative to maintenance and servicing procedures (such as essential maintenance
and service points, maintenance and service standard values, information regarding the use of special tools, etc.).
These are arranged together as major maintenance and service points and explained in detail.

<<A>> : Indicates that there are essential points for removal or disassembly.
>>A<< : Indicates that there are essential points for installation or reassembly.

Operating procedures,
cautions, etc. on removal,
installation, disassembly and
reassembly are described

The title of the page
(following the page on which
the diagram of component
parts is presented) indicating
the locations of lubrication and
sealing procedures.

Indicates (by symbols) where
lubrication is necessary.

AF

BRAKE CALIPER ASSEMBLY

35A-21

Symbols for lubrication, sealants and adhesives

Symbols are used to show the locations for lubrication
and for application of sealants and adhesives.
These symbols are included in the diagram of compo-
nent parts or on the page following the component
parts page. The symbols do not always have accomp-
anying text to support that symbol.

: Grease
   (Multi-purpose grease unless there is a brand
   or type specified)
: Sealant or adhesive
: Automatic transmission fluid, brake fluid, power
  steering fluid or air conditioning compressor oil
: Engine oil or gear oil
: Adhesive tape or butyl rubber tape

HOW TO USE THIS MANUAL

GENERAL

00-4

HOW TO USE TROUBLESHOOTING/INSPECTION SERVICE POINTS

GENERAL

00-5

HOW TO USE TROUBLESHOOTING/INSPECTION SERVICE

POINTS

CONTENTS OF TROUBLESHOOTING

M1001013300824

CAUTION

During diagnosis, a diagnosis code associated
with other system may be set when the ignition
switch is turned on with connector(s) discon-
nected. On completion, confirm all systems for
diagnosis code(s). If diagnosis code(s) are set,
erase them all.

WARNING

Since the radiator fan rotates during CAN
bus line diagnostics, make sure that no one
is servicing the engine compartment before
diagnosing the CAN bus line. Since the CAN
communication stops when diagnosing the
CAN bus line, the ETACS-ECU detects the
time-out of the engine-ECU, and activates
the radiator fan to prevent overheating as
fail-safe.

Troubleshooting of electronic control systems for
which the M.U.T.-III can be used follows the basic
outline described below. Even in systems for which
the M.U.T.-III cannot be used, some of these sys-
tems still follow this outline.

1. STANDARD FLOW OF DIAGNOSIS TROUBLESHOOTING

Troubleshooting sections are based on the diagnostic flow as below. If the diagnostic flow is different from
that given below, or if additional explanation is required, the details of such differences or additions will also
be listed.
