Mitsubishi Outlander (2013+). Manual - part 227





HEATER AND AIR CONDITIONER SYSTEM

HEATER, AIR CONDITIONER AND VENTILATION

55-8

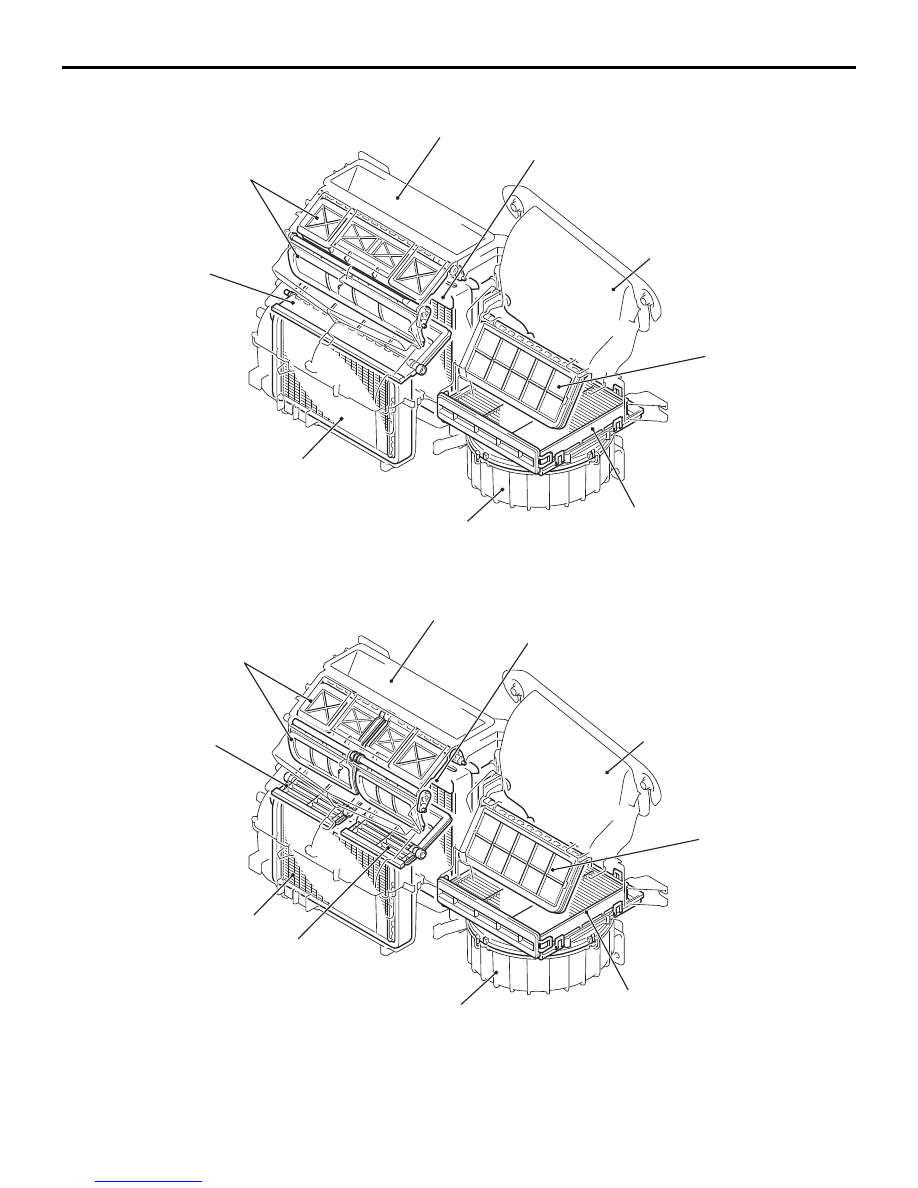

<SINGLE-ZONE AUTO A/C>

<DUAL- ZONE AUTO A/C>

ACB05542

Heater unit

Air mixing damper

Heater core

Evaporator

Mode selection damper

Outside / inside air
selection damper

AB

Air intake duct

Blower case

Clean air filter

ACC00509

Heater unit

Air mixing damper (LH)

Heater core

Evaporator

Mode selection damper

Outside / inside air
selection damper

AB

Air intake duct

Blower case

Clean air filter

Air mixing damper (RH)

Downloaded from

www.Manualslib.com



manuals search engine



HEATER AND AIR CONDITIONER SYSTEM

HEATER, AIR CONDITIONER AND VENTILATION

55-9

The following front heater unit has been adopted.

• A case of thinner panel thickness, a narrower

evaporator and condenser, a smaller expansion
valve, a lighter power transistor are used to save
weight.

• Higher density in the core enhances the cooling

performance. Internal temperature in the evapo-
rator are equalised due to an optimum multi-flow
structure and refrigerant circuit, thus improving
comfort.

• Openings on the dash panel are sealed securely

by adding a cover, etc. to the expansion valve.
Insulation pads are adhered to the HVAC case
and the duct, thus improving sound absorption
and insulation against external noise.

• A heater/cooling assembly unit is adopted for

greater fan power and reduced noise.

• The evaporator and heater core has been longi-

tudinally installed in the vehicle length, and a
crushable space has been ensured so that it
absorbs the impact in case of a collision and
reduces the risk of passenger injuries.

• Inside air recirculation is controlled by driving the

inside/outside damper, thus improving the heat-
ing performance in winter.

• The air temperature of the defroster outlets has

been set lower than at the foot outlets to prevent
the red glow on face in winter. In order to avoid
too cool temperature around the torso, the air dis-
tribution at the side face and foot outlets is opti-
mised.

• Clean air filter has been introduced as standard

to prevent the intrusion of foreign materials
including pollen, dust and cigarette smoke to
improve the air quality inside the passenger com-
partment.

• The installation position of clean air filter has

been set to the backside of glove box to facilitate
the filter replacement operation. At the same
time, the one-touch tab structure has been
adopted for the cover installation to enable the
replacement operation without tools.

• The air mixing damper control motors and the air

mixing dampers are installed as shown. The air
mixing dampers can be operated independently
to allow passengers to set temperature each for
the driver and the front passenger. <Vehicles with
DUAL-ZONE AUTO A/C>

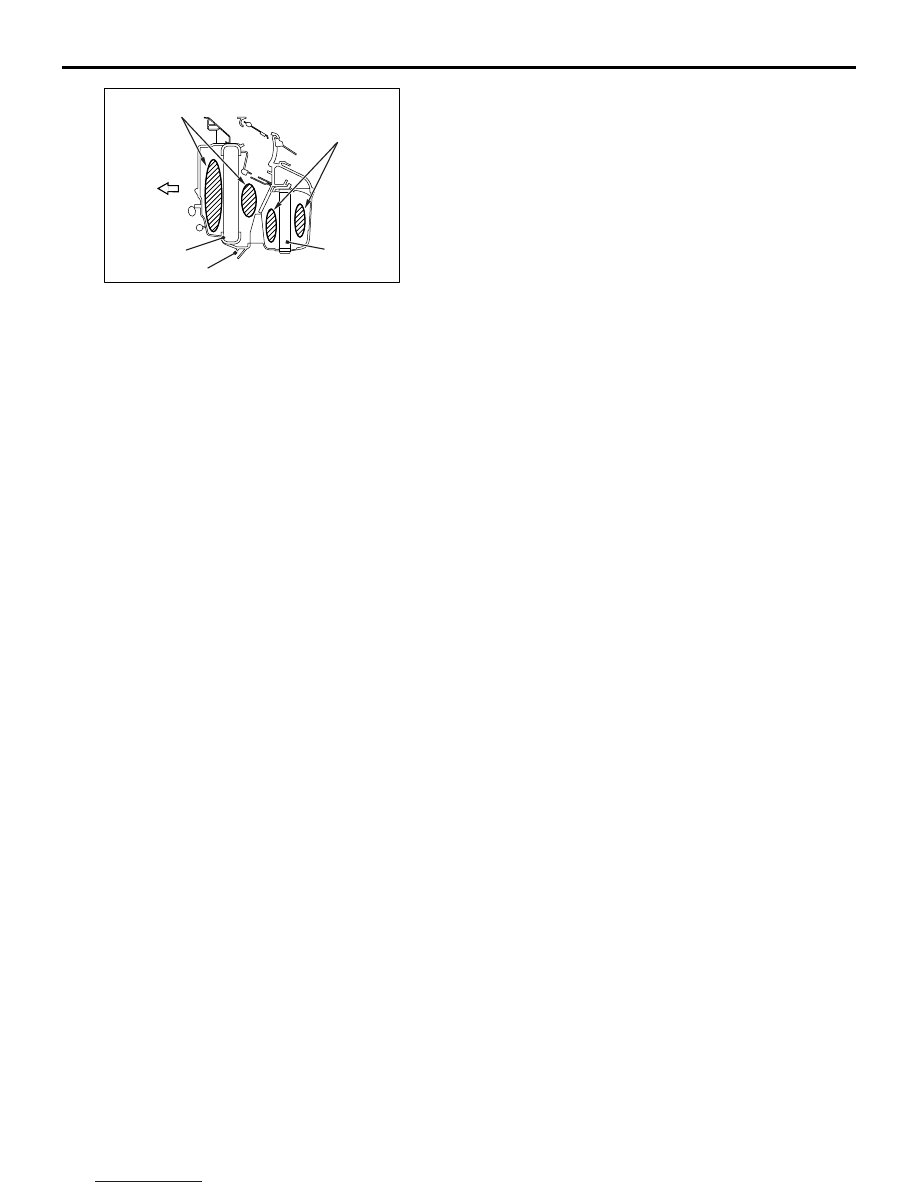

AC506491

Crushable space

Crushable space

Front side

Drain port

Evaporator

Heater core

AB

Downloaded from

www.Manualslib.com



manuals search engine



HEATER CONTROL

HEATER, AIR CONDITIONER AND VENTILATION

55-10

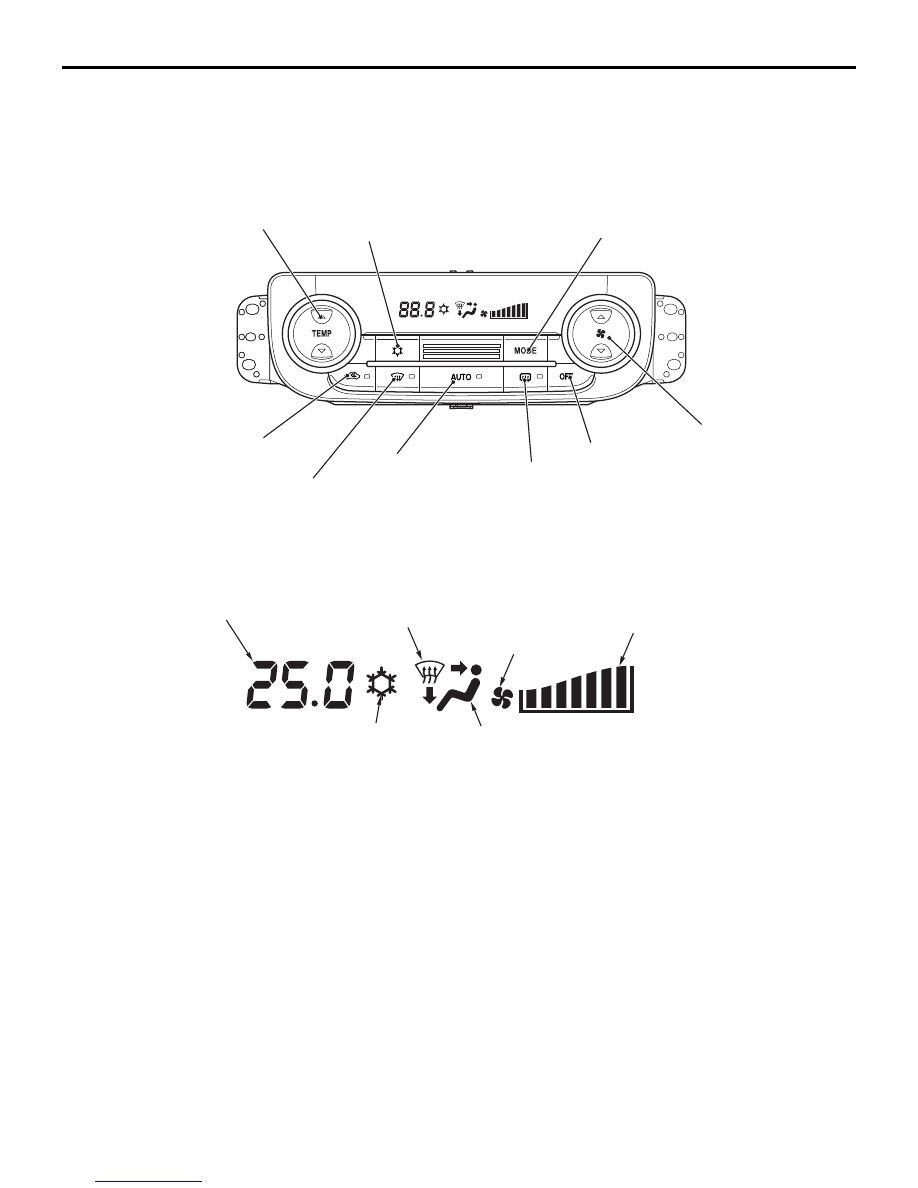

HEATER CONTROL

M2551000900904

WITHOUT DUAL A/C

LCD panel



<WITHOUT DUAL A/C>

ACB05984

A/C switch

Temperature set switch

Air outlet
changeover switch

Defogger switch

Outside/inside air
changeover switch

Fan mode
changeover switch

AUTO switch

Rear defogger switch

OFF switch

AB

ACB05986

Air volume
display

Illuminates at
A/C ON mode

AB

Air outlet display

Illuminates while
the blower motor is on

Inside/outside
air display

Set temperature
display

Downloaded from

www.Manualslib.com



manuals search engine



AIR CONDITIONER CONTROL SYSTEM

HEATER, AIR CONDITIONER AND VENTILATION

55-11

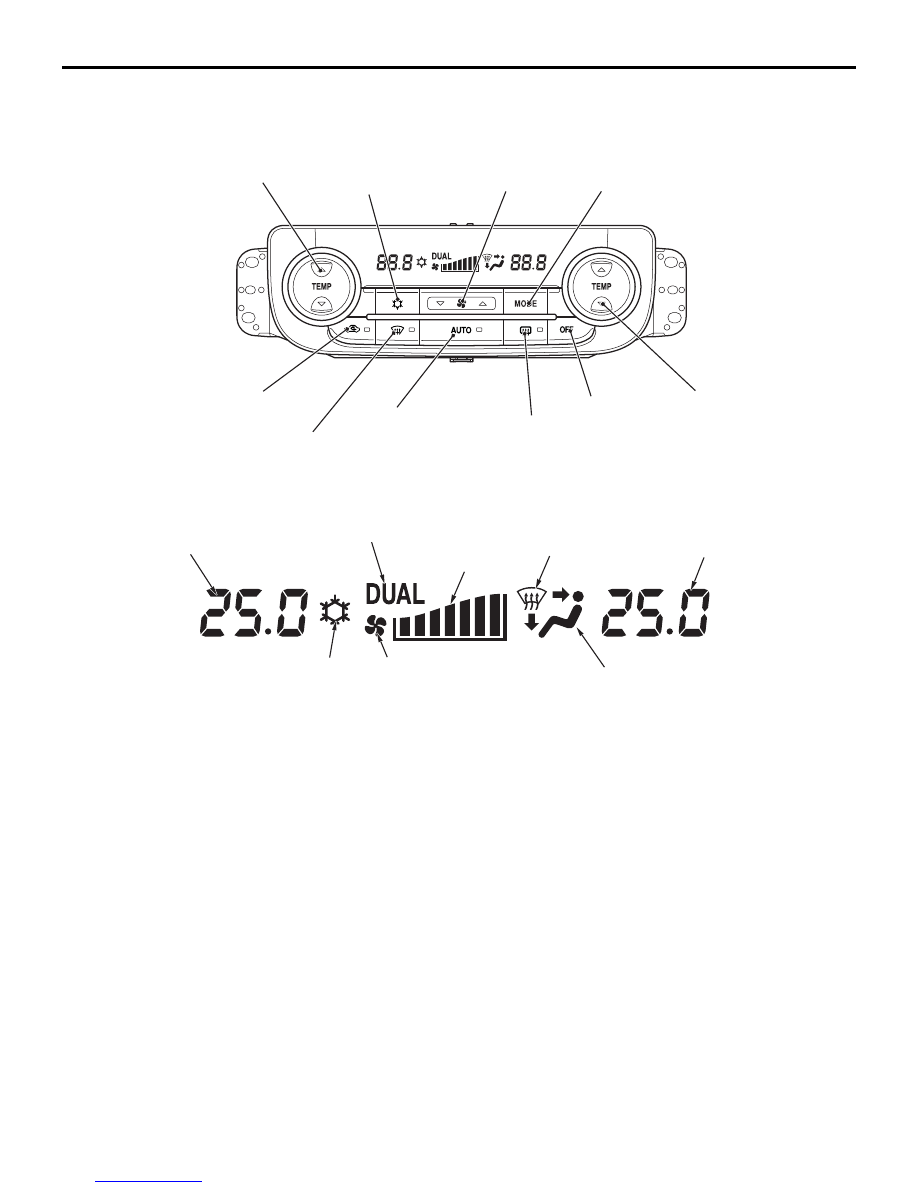

DUAL A/C

LCD panel <DUAL A/C>

The following heater controller has been adopted.

• To enhance luxurious appearance and conven-

ience, a liquid crystal display panel has been
adopted.

• A white character LCD is adopted in order to pro-

vide a better visibility.

• Ergonomic layout of the control panel allows the

driver to check the current status without less eye
movement.

• The smoke-shaded LCD screen provides a luxury

image.

AIR CONDITIONER CONTROL SYSTEM

M2551002800033

General

The air conditioner system with following features
has been adopted.

• If the heater fan runs at higher stage, the recircu-

lation ratio of heated air will be increased, thus
improving heating performance.

• The heating performance is enhanced by

increasing air volume.

• The heating performance is enhanced by restrict-

ing minimum air volume at low ambient tempera-
ture (-5

°C or less).

• The interior temperature sensor can measure

temperature more precisely due to better sealing
around it. This improves the response and com-
fort of the automatic air conditioner.

ACB05404

A/C switch

Temperature set switch (LH)

Air outlet
changeover switch

Defogger switch

Outside/inside air
changeover switch

AUTO switch

Rear defogger switch

OFF switch

AC

Fan mode
changeover switch

Temperature set switch (RH)

ACB05985

Air volume
display

Illuminates at
A/C ON mode

Illuminates
at DUAL mode

AB

Air outlet display

Set temperature display
(front passenger's side)

Illuminates while
the blower motor is on

Inside/outside
air display

Set temperature
display (driver's side)
