52A-1

GROUP 52A

INTERIOR

CONTENTS

GENERAL INFORMATION . . . . . . . .

52A-2

INSTRUMENT PANEL AND FLOOR



CONSOLE  . . . . . . . . . . . . . . . . . . . . .

52A-3

SEAT  . . . . . . . . . . . . . . . . . . . . . . . . .

52A-4

FRONT SEAT . . . . . . . . . . . . . . . . . . . . . . .

52A-4

SECOND SEAT  . . . . . . . . . . . . . . . . . . . . .

52A-6

SEAT BELT. . . . . . . . . . . . . . . . . . . . .

52A-7

TRIMS . . . . . . . . . . . . . . . . . . . . . . . . .

52A-8

INTERIOR TRIM . . . . . . . . . . . . . . . . . . . . .

52A-8

DOOR TRIM  . . . . . . . . . . . . . . . . . . . . . . . .

52A-9

LUGGAGE ROOM  . . . . . . . . . . . . . . .

52A-10

HEADLINING  . . . . . . . . . . . . . . . . . . .

52A-11

Downloaded from

www.Manualslib.com



manuals search engine



GENERAL INFORMATION

INTERIOR

52A-2

GENERAL INFORMATION

M2520000101767

Functionality, interior comfort, and safety have been
emphasized, giving interior design for elegance and
relaxation space. Various measures have been taken
actively to protect the environment and recycle
resources.

FEATURES

Quality improvement

1. Full interior trim
2. The double-action folding mechanism of the sec-

ond seat allows to flip up the seat cushion and
then fold the seatback with easy operation. Due
to this, a lowered flat cargo space can be
achieved without any compromise to seating
comfort.

Usability improvement

1. Armrest (rear floor console, second seat, front

door trim, rear door trim)

2. Cup holder (front floor console, second seat arm-

rest)

3. Bottle holder
4. Tonneau cover <Vehicles with tonneau cover>
5. Luggage hook

Convenient boxes

1. Glove box
2. Card holder (glove box)
3. Seatback pocket (front seat)
4. Centre lower tray

5. Rear console tray
6. Rear floor console box
7. Rear side box (lower quarter trim RH)
8. Door pocket (front door trim, rear door trim)

Safety enhancement

1. Front and rear collision protection seat mecha-

nism (front seat)

2. ISO-FIX child seat fixing bar (second seat out-

side)

3. Tether anchorage (second seat outside)
4. ELR 3-point seat belt
5. Seat belt retractor with a driver's side pre-ten-

sioner and force limiter

6. Seat belt retractor with a passenger’s side

pre-tensioner and force limiter

Consideration for the optimum driving position

1. Seat height adjustment (driver’s seat)
2. Headrestraint with height adjustment (front seat)
3. Seat slide adjustment (front seat)

Measures for resource recycling

1. Aggressively use PP materials that are easy to

recycle and easy to stamp material symbols on
the plastic (resin) parts.

2. Reduction of chemical material (formaldehyde

*

,

organic solvent)

NOTE:

*

: Clear and colourless, toxic, irritating odour

Downloaded from

www.Manualslib.com



manuals search engine



INSTRUMENT PANEL AND FLOOR CONSOLE

INTERIOR

52A-3

INSTRUMENT PANEL AND FLOOR CONSOLE

M2520001001473

The instrument panel offers the following features:

• The division unit of each part has been enlarged,

also the gap and level difference between the
instrument panel has been minimised to achieve
the delicate quality.

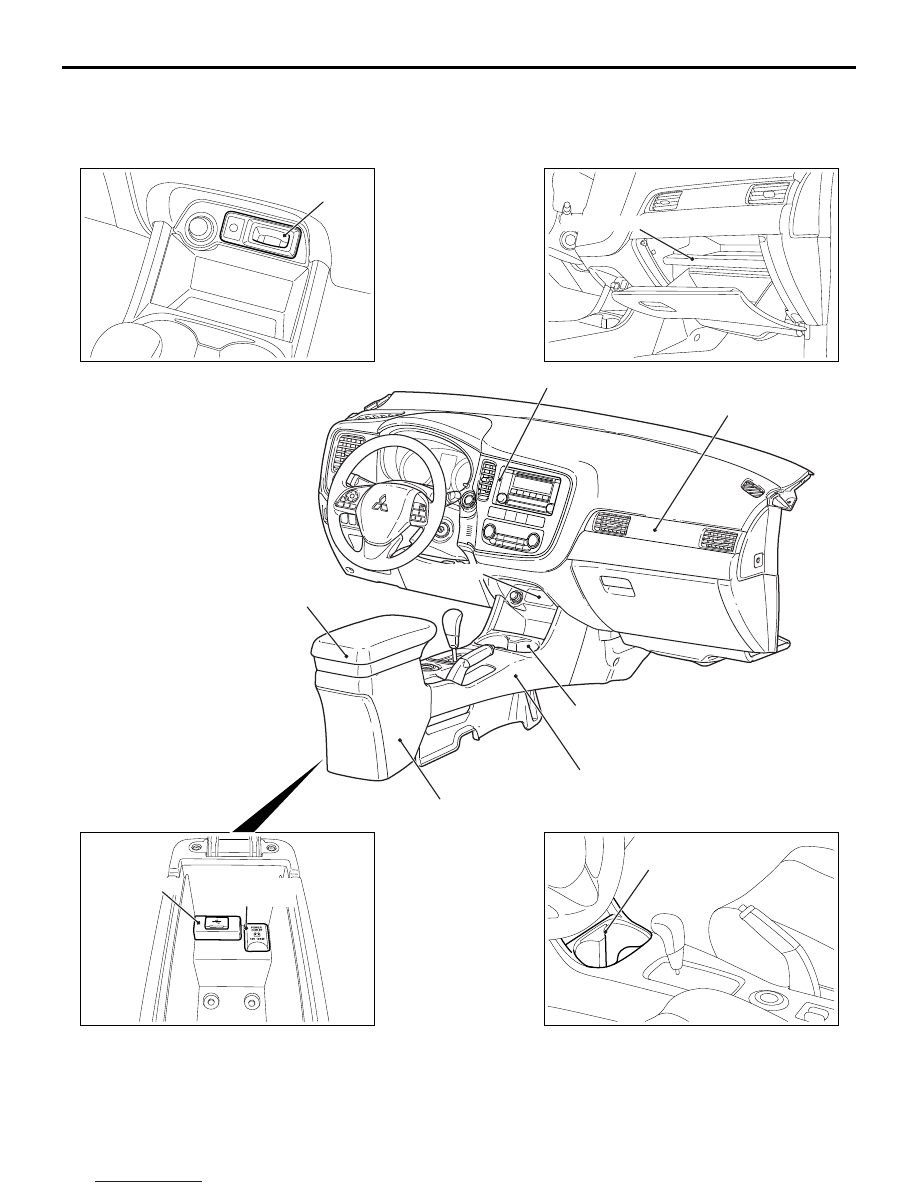

ACC00967

Key box

AB

Front floor console

Rear floor console

Console cup holder

Armrest

Instrument centre panel

Decoration panel

Key box

Console cup holder

Accessory
socket

USB adapter

 Glove box assembly
