HEADLAMP WASHER <OPTIONAL>

EXTERIOR

51-16

HEADLAMP WASHER <OPTIONAL>

M2510000500448

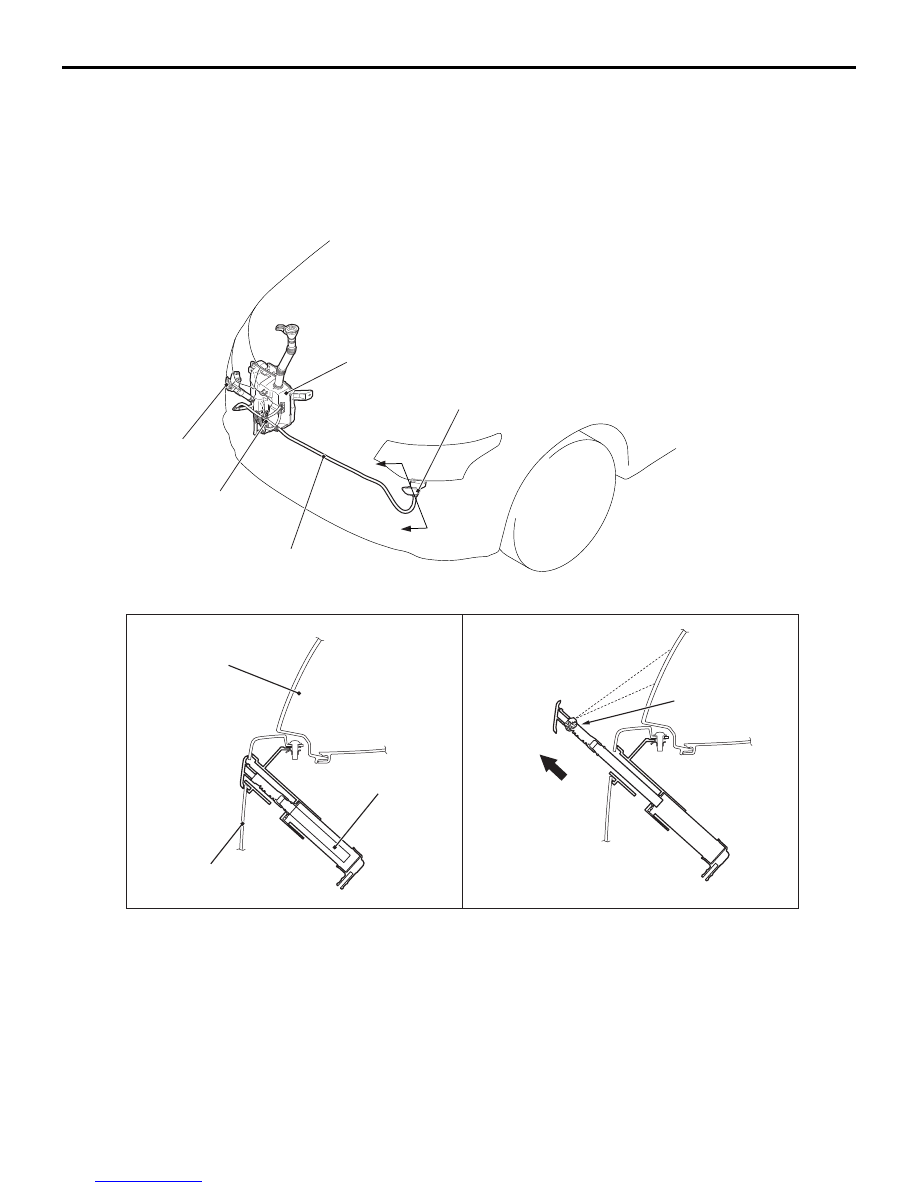

CONSTRUCTION DIAGRAM

• The headlamp washer can be operated with the

ignition switch at the ON or ACC position and the
headlamp switch at the ON position. Push the
headlamp washer button located at the end of the
lighting lever once and the washer will be
sprayed onto the headlamps.

• A headlamp washer mechanism that thrusts out

and retracts nozzles, utilizing the water pressure
produced by motors has been adopted as an
option. This mechanism contributes to better
appearances of vehicles when their washer noz-
zles are not in use.

• The headlamp washer tank used for this mecha-

nism is also used for the windshield and rear win-
dow washers.

ACC00343

A

A

AC

Section A – A <Headlamp washer operated>

Section A – A

Windshield washer tank

Headlamp washer motor

Headlamp
washer
nozzle

Headlamp washer hose

Headlamp washer
cover

Headlamp

Front bumper

Headlamp washer cover

Headlamp washer
 actuator assembly

Downloaded from

www.Manualslib.com



manuals search engine



WIPER DEICER <OPTIONAL>

EXTERIOR

51-17

WIPER DEICER <OPTIONAL>

M2510008200184

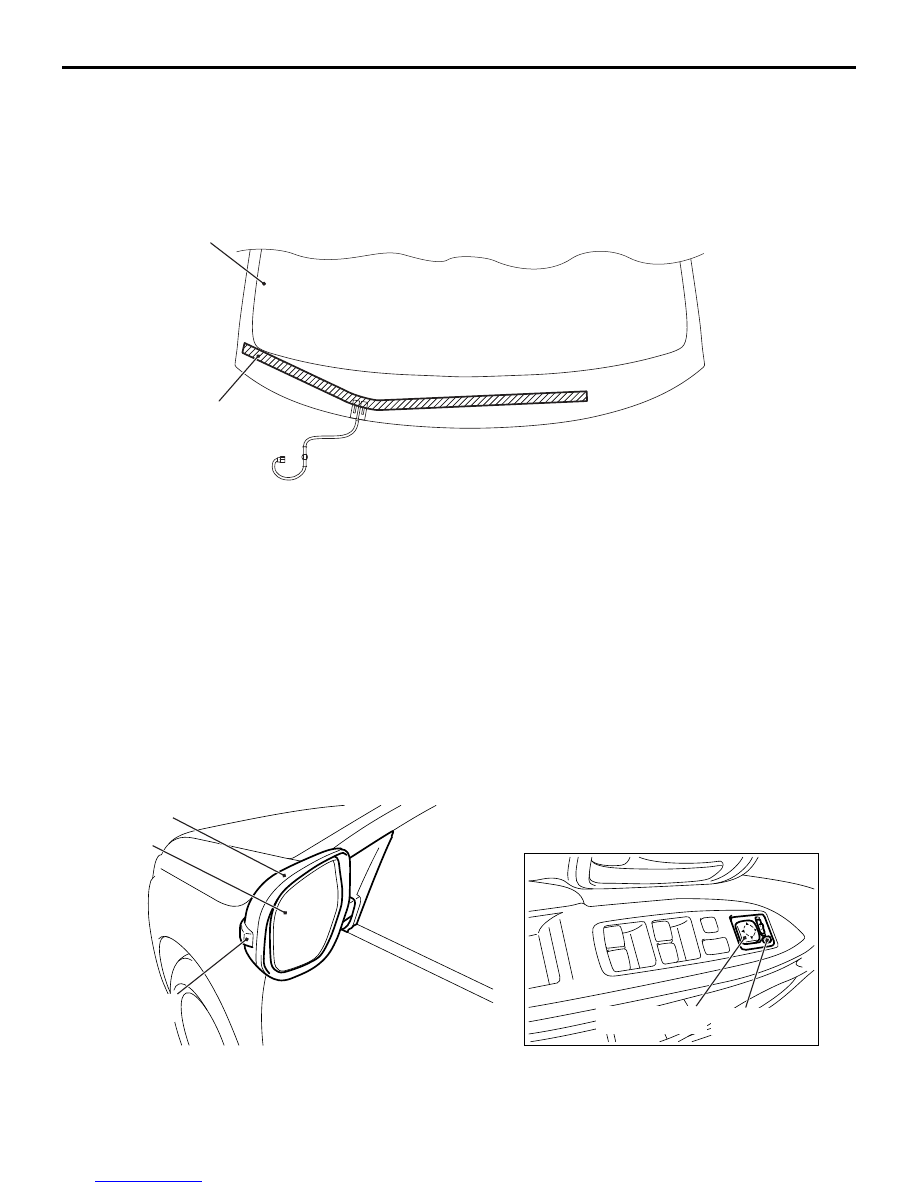

CONSTRUCTION DIAGRAM

For the prevention measures for the wiper freeze-up
at the stop position, the wiper deicer has been
installed. The wiper is deiced by the heater element
integrated in the windshield to perform its operation.
In addition, the wiper deicer is linked with the rear
window defogger.

OUTSIDE MIRROR

M2510008101005

CONSTRUCTION DIAGRAM

Door mirrors have the following features:

• Electric folding remote-controlled door mirrors

have been adopted <Some models>.

• Heated mirrors have been adopted.

• Door mirrors with built-in side turn-signal lamps

have been adopted <Some models>.

• Low air resistance door mirror shape has been

introduced.

ACB05706AB

Windshield glass

Heated print

ACC00012 AB

Door mirror assembly

Mirror glass

Mirror folding/
unfolding switch

Side turn-signal
lamp

Remote controlled
mirror switch

Downloaded from

www.Manualslib.com



manuals search engine



OUTSIDE MIRROR

EXTERIOR

51-18

• One of the optional functions, such as the vehicle

speed-dependent automatic unfolding function*,
ignition switch-linked function* or keyless
entry-linked function*, can be selected.

NOTE: *: Using the customise function, the vehicle
speed-dependent automatic unfolding function, igni-
tion switch-linked function or the keyless entry-linked
function can be selected (Refer to

P.51-20

).

DESCRIPTION OF CONSTRUCTION AND OPERATION

Electric retractable remote controlled door mirror

When the folding/unfolding switch on the electric
remote control mirror switch is turned ON while the
ignition switch is in ACC or ON position, ETACS
turns either of the door mirror fold relay or unfold
relay ON for 16 seconds to fold or unfold the door
mirrors. Even after the ignition switch is turned OFF,
the door mirrors remain operable for 30 seconds.
If the folding/unfolding switch on the remote control
mirror switch is turned ON while one of the door mir-
ror relays (fold/unfold) is in operation, the other oper-
ating relay is turned ON after 0.1 second.

NOTE: Whether the door mirrors are at the folding or
unfolding position is determined by ETACS accord-
ing to the memory of the door mirror relay position
(fold/unfold) operated previously. For this reason, if
the mirrors are manually folded, they may not move
when the folding/unfolding switch is pressed next
time.

Automatic unfolding function <Initial condition: Keyless entry-linked
folding/unfolding function)

1. Vehicle speed-dependent unfolding

1.

AC506503

Ignition switch
(ACC)

AB

t: 0.1 second
T1: 30 seconds
T2: 16 seconds

ON

OFF

T2

T2

T2

T2

T2

T2

t

t

t

T1

T1

OFF

ON

OFF

ON

Remote controlled
mirror switch (folding/
unfolding switch)

OFF

ON

Electric retractable remote
controlled mirror
(Unfolding)

Electric retractable remote
controlled mirror
(Folding)

AC207002AB

ON

OFF

ON

OFF

ON

OFF

ON

OFF

T

T

Ignition switch

30 km/h

0 km/h

Unfolding

Folding

Vehicle speed

Remote controlled mirror switch
(folding/unfolding switch)

Door mirror position

Door mirror unfold relay

Door mirror fold relay

T : 16 seconds
