SYSTEM OPERATION

KEYLESS OPERATION SYSTEM (KOS)

42B-24

Keyless
operation key
take out
warning

The keyless operation
key is carried out of
the vehicle when the
power supply mode is
in other than OFF,
and the door is
closed.

• The warning

indicator flashes
for 5 minutes.

• Outer buzzer

sounds for 5.69
seconds in
pattern 2.

• Power supply mode

OFF is detected.

• KOS-ECU has

detected a keyless
operation key inside
the vehicle.

• 5 minutes have passed

when the power supply
mode is in ACC.

Door lock
does not
operate
(keyless
operation key
is located
inside the
vehicle).

The lock/unlock
switch on the front
door outside handle
(driver's side, front
passenger's side) or
the tailgate lock
release handle
(tailgate open switch,
tailgate lock switch)
are pressed when the
keyless operation key
is still located inside
the car.

• Warning

indicator flashes
for 5 seconds.

• Outer buzzer

sounds for 2.96
seconds in
pattern 1.

• The lock/unlock switch

on the front door
outside handle (driver's
side, front passenger's
side) or tailgate lock
release handle (tailgate
open switch, tailgate
lock switch) are
pressed again.

• 5 seconds have passed

after the warning output
started.

Door lock
does not
operate (door
open).

The lock/unlock
switch on the front
door outside handle
(driver's side, front
passenger's side) or
the tailgate lock
release handle
(tailgate open switch,
tailgate lock switch)
are pressed when the
door is ajar.

• Warning

indicator flashes
for 5 seconds.

• Outer buzzer

sounds for 2.96
seconds in
pattern 1.

• All doors are closed.

• 5 seconds have passed

after the warning output
started.

Item

Indicator

State

Warning operation Warning cancellation

condition (when any of
the condition met)

AC809615

AC809615

AC809615

Downloaded from

www.Manualslib.com



manuals search engine



SYSTEM OPERATION

KEYLESS OPERATION SYSTEM (KOS)

42B-25

System error

Engine switch is
pressed when an
error has been
detected in EEPROM
of KOS-ECU.

The warning
indicator illuminates
for 5 minutes.

5 minutes have passed
after the alarm is output,
also the power supply
mode is OFF

Engine switch is
pressed when a
transmission antenna
has an open circuit or
short to power supply.

Open circuit or short
to earth is detected in
the key slot.

An error is detected,
and the power supply
mode is other than
OFF.

No keyless
operation key
detected
inside the car

No keyless operation
key is detected inside
the car when the
engine switch is
pressed.

The warning
indicator flashes for
5 seconds.

• Power supply mode

OFF is detected.

• 5 seconds have passed

after the warning output
started.

Key reminder

With the driver's door
kept open, the
keyless operation key
is not removed from
the key slot located in
the floor console.

• The warning

indicator flashes
for 1 minute.

• Outer buzzer

sounds for 2.96
seconds in
pattern 1.

• Key is removed from

the key slot in the floor
console.

• 1 minutes have passed

after the warning output
started.

Engine switch
reminder

The lock/unlock
switch on the front
door outside handle
(driver's side, front
passenger's side) or
the tailgate lock
release handle
(tailgate open switch,
tailgate lock switch)
are pressed when the
power supply mode is
other than OFF.

• Warning

indicator flashes
for 5 seconds.

• Outer buzzer

sounds for 2.96
seconds in
pattern 1.

• Power supply mode

OFF is detected.

• 5 seconds have passed

after the warning output
started.

Item

Indicator

State

Warning operation Warning cancellation

condition (when any of
the condition met)

AC809615

AC809615

AC809615

AC809615

Downloaded from

www.Manualslib.com



manuals search engine



SYSTEM OPERATION

KEYLESS OPERATION SYSTEM (KOS)

42B-26

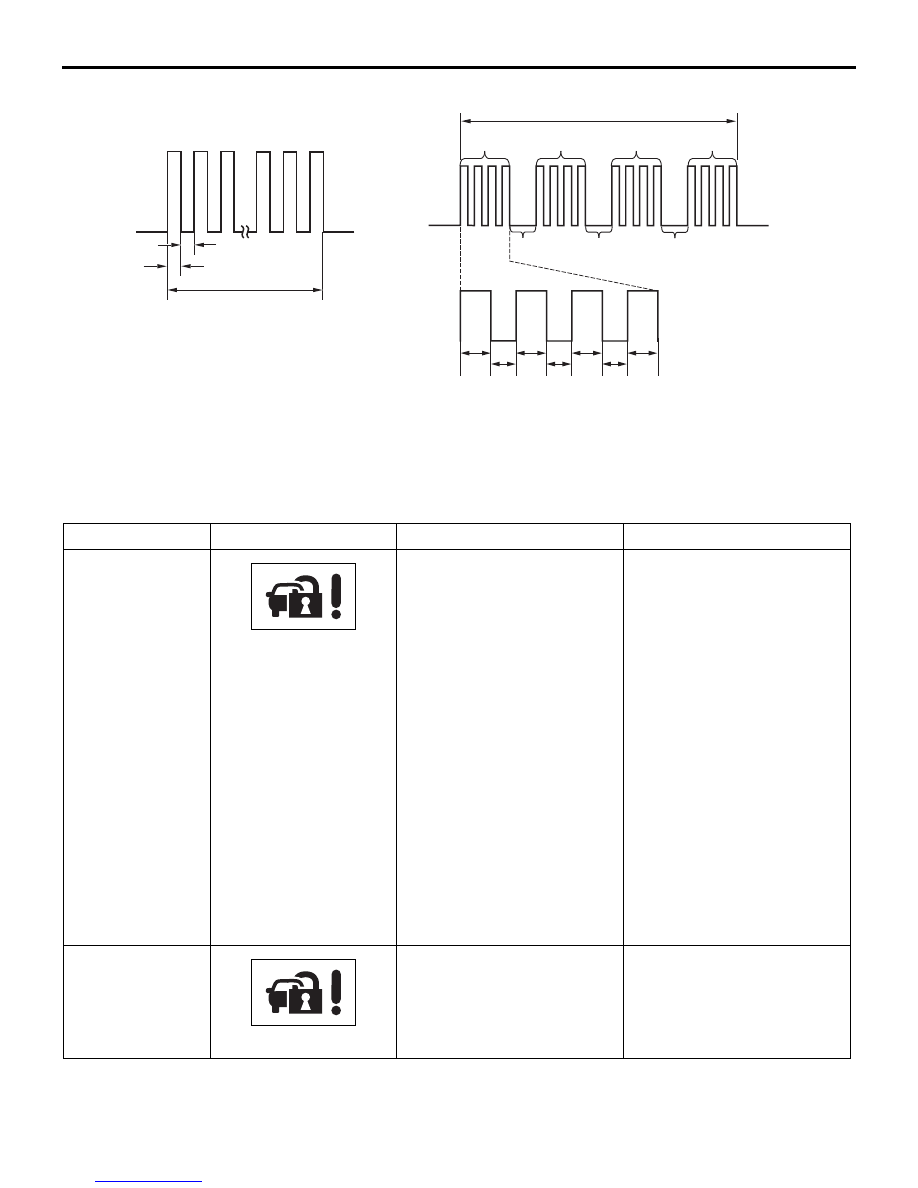

OSS WARNING AND WARNING INDICATOR LIST

When the OSS fails or operates improperly, the
OSS-ECU warns the driver of this by displaying the
one-touch start system warning by the indicator lamp
in the combination meter.

AC501053AE

T

1

T

2

T

1

: 0.08 ± 0.01 second

T

1

T

2

: 2.96 seconds

T

3

T

3

T

3

T

3

T

4

T

4

T

4

T

5

T

5

T

5

T

5

T

6

T

6

T

6

T

3

: 1.01 seconds

T

4

: 0.55 second

T

5

: 0.17 ± 0.01 second

T

6

: 0.11 ± 0.01 second

T

7

: 5.69 seconds

<Sound pattern 1>

<Sound pattern 2>

T

7

Item

Indicator

Factor

Warning operation

Immobilizer error

• Displayed when the

certification
communication fails with
KOS, electrical steering
lock, or engine-ECU.

• Displayed when the power

supply mode is turned ON
while the keyless operation
key is judged to be brought
outside the vehicle with the
power supply mode in
ACC, or when the engine
starting operation is
performed after such a
status.

• Displayed when the

electrical steering lock
cannot be locked because
there is a P detection
switch malfunction.

• The warning indicator

illuminates.

Steering turn
indication

Displayed when the steering
lock is not unlocked because
the steering force is applied.

• The warning indicator

flashes.

• Buzzer sounds.

AC904253

AC904253

Downloaded from

www.Manualslib.com



manuals search engine



SYSTEM OPERATION

KEYLESS OPERATION SYSTEM (KOS)

42B-27

WARNINGS/ALARMS <High contrast meter>

M2421009300415

KOS WARNING AND WARNING INDICATOR LIST

When KOS failed or operated improperly, KOS-ECU
warns the driver of this by setting off the outer buzzer
and the keyless operation warning indicator on the
multi information display in the combination meter.

Electrical steering
lock malfunction

Displayed when a malfunction
occurs to the steering lock
system.

• The warning indicator

illuminates.

• Buzzer sounds.

Steering lock not
locked

−

The door is open with the
steering lock not locked.

Buzzer sounds.

Power supply
system error

Displayed when an error
occurs to the power supply
system.

• The warning indicator

illuminates.

• Buzzer sounds.

Power OFF
indication

−

The door is open with the
power supply mode in ON or
in ACC.

Buzzer sounds.

Item

Indicator

Factor

Warning operation

AC809615

AC809615

Item

Display content

State

Warning
operation

Warning cancellation
condition (when any
of the condition met)

Keyless
operation
key battery
low voltage
warning

KEY
BATTERY
LOW

The keyless
operation key with
low battery voltage
is detected when
the engine switch
is pressed.

Warning
indicator display
for 30 seconds.

• Power supply mode

OFF is detected.

• 30 seconds have

passed after the
warning output
started.

Keyless
operation
key take out
warning

KEY NOT
DETECTED

The keyless
operation key is
carried out of the
vehicle when the
power supply
mode is in other
than OFF, and the
door is closed.

• The warning

indicator
display for 5
minutes.

• Outer buzzer

sounds for
5.69 seconds
in pattern 2.

• Power supply mode

OFF is detected.

• KOS-ECU has

detected a keyless
operation key
inside the vehicle.

• 5 minutes have

passed when the
power supply mode
is in ACC.

AC809614

AC809615

Downloaded from

www.Manualslib.com
