SYSTEM OPERATION

KEYLESS OPERATION SYSTEM (KOS)

42B-12

CONTROL OF UNLOCKING OPERATION

1. KOS-ECU detects the lock/unlock switch ON

signal of door outside handle (driver's side, front
passenger's side) or the tailgate lock release
handle (open switch) ON signal.

NOTE: When KOS-ECU detects the lock/unlock
switch ON signal of door outside handle (driver's
side, front passenger's side) or the tailgate lock
release handle (open switch) ON signal,
KOS-ECU judges the unlock prohibition condition.
When the unlock prohibition condition is met, the
unlocking operation is terminated.

2. When KOS-ECU detects the lock/unlock switch

ON signal of front door outside handle (driver's
side, front passenger's side) or the tailgate lock
release handle (open switch) ON signal,
KOS-ECU transmits the exterior data from the
exterior transmitter antenna assembly on the
operation side.

3. After the exterior data are transmitted from the

exterior transmitter antenna assembly, the interior
data are transmitted from the interior transmitter
antenna assembly (front, rear).

4. For the specified time (varies with the number of

keyless operation keys registered in KOS-ECU),

the response from the keyless operation key
meeting the unlock condition is monitored.

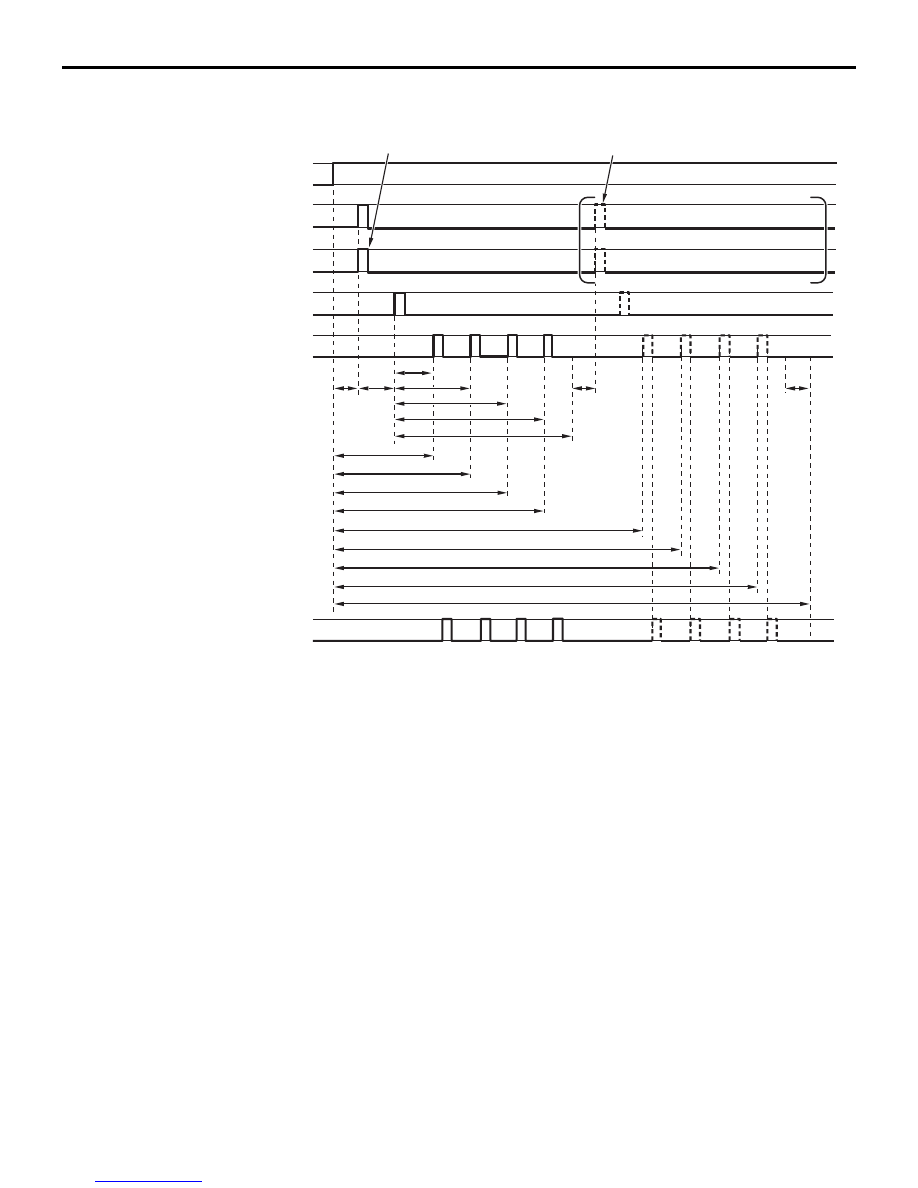

AC904853AB

ON

OFF

b

d

c

e

f

g

i

j

k

l

a

h

h

m

n

o

p

q

Lock/unlock switch of
door outside handle (driver's
side, passenger's side) or
open switch of tailgate
lock release handle

CAN

Communication

No communication

Response

No response

Keyless operation key
1 to 4 response

Transmission

Outside transmission
antenna assembly
opposite side

Transmission

Inside transmission
antenna assembly

Transmission

No transmission

No transmission

No transmission

Outside transmission
antenna assembly
operation side

a: Exterior data transmitting start: 0.015 to 0.04 sec
b: Interior data transmitting start: 0.03 to 0.05 sec
c: Keyless operation key 1 response onset time: 0.035 to 0.06 sec
d: Keyless operation key 2 response onset time: 0.08 to 0.115 sec
e: Keyless operation key 3 response onset time: 0.135 to 0.18 sec
f: Keyless operation key 4 response onset time: 0.2 to 0.26 sec

If there is no keyless operation key

response, retry is performed once.

Jamming is not transmitted at

the time of tailgate operation.

i: CAN communication onset time: keyless operation key 1
   priority order response time (4-key registration: 0.1 to 0.2 sec)*
j: CAN communication onset time: keyless operation key 2
   priority order response time (4-key registration: 0.14 to 0.25 sec)*

g: Reception-waiting time: It is variable by the registration number
    (4 registration: 0.3 sec)
h: Retry transference time (retry completed): 0.01 sec
   Function completed time (retry failed): 0.02 to 0.03 sec

m: CAN communication onset time: keyless operation key 1
   priority order response time (4-key registration: 0.44 to 0.56 sec)*
n: CAN communication onset time: keyless operation key 2
   priority order response time (4-key registration: 0.48 to 0.61 sec)*

k: CAN communication onset time: keyless operation key 3
   priority order response time (4-key registration: 0.2 to 0.32 sec)*
l: CAN communication onset time: keyless operation key 4
   priority order response time (4-key registration: 0.26 to 0.4 sec)*

o: CAN communication onset time: keyless operation key 3
   priority order response time (4-key registration: 0.54 to 0.68 sec)*
p: CAN communication onset time: keyless operation key 4
   priority order response time (4-key registration: 0.6 to 0.76 sec)*
q: Operation completed time: keyless operation key 4
   priority order response time (4-key registration: 0.28 to 0.78 sec)*

Note:*: Including CAN communication onset time: to 0.03 sec

Downloaded from

www.Manualslib.com



manuals search engine



SYSTEM OPERATION

KEYLESS OPERATION SYSTEM (KOS)

42B-13

• When the registered keyless operation key

receives the exterior data only, KOS-ECU trans-
mits the unlock request (request to unlock the
applicable position) to ETACS-ECU.

• Even after the specified time has elapsed, if

KOS-ECU receives no response that satisfies the
unlock, it performs a retry once. (When no
response after the retry, KOS-ECU terminates
the unlocking operation.)

• When the unlocking operation is performed on

the driver's side, the priority order of keyless
operation key is updated.

UNLOCKING OPERATION INHIBITION
TIME (WHEN THE TAILGATE IS
OPERATED)

Considering that the customer operates the lock
switch of tailgate lock release handle to make sure
the doors are locked, the unlocking operation is pro-
hibited for 3 seconds after the locking operation is
performed by the lock switch of tailgate lock release
handle. Using the customisation function, the unlock
prohibition time can be changed.

UNLOCKING OPERATION INHIBITION
CONDITIONS

In the following cases, the unlocking operation is pro-
hibited.

• Any door or the tailgate is open (door switch is

ON). (including door ajar)

• Inside lock knob position of driver's side and front

passenger's side is set to Unlock.

• The engine switch is other than OFF.

• The lock and unlock signals are input at the same

time. (When the tailgate is operated)

• The exterior/interior transmitter antenna assem-

bly is being detected to be open, or it is open.

• The wiring of exterior/interior transmitter antenna

assembly is contacting against the power supply
line.

• During the unlocking operation inhibition time

(When the tailgate is operated)

• The door entry function is prohibited by the cus-

tomisation function.

ANSWERBACK FUNCTIONS

When KOS-ECU sends a signal to ETACS-ECU,
ETACS-ECU outputs the lock/unlock signal and acti-
vates the hazard warning lamp to notify the driver the
doors are locked/unlocked.

KOS TIMER LOCK FUNCTION

When none of the doors are opened within 30 sec-
onds after the doors are unlocked by KOS,
ETACS-ECU automatically outputs the door lock sig-
nal to lock the doors. This function prevents the
doors from being unlocked accidentally.

Lock signal received

Unlock signal received

ETACS-ECU

Lock signal output

Unlock signal output

Hazard warning lamp

Flashes once (initial setting)

Flashes twice (initial setting)

Downloaded from

www.Manualslib.com



manuals search engine



SYSTEM OPERATION

KEYLESS OPERATION SYSTEM (KOS)

42B-14

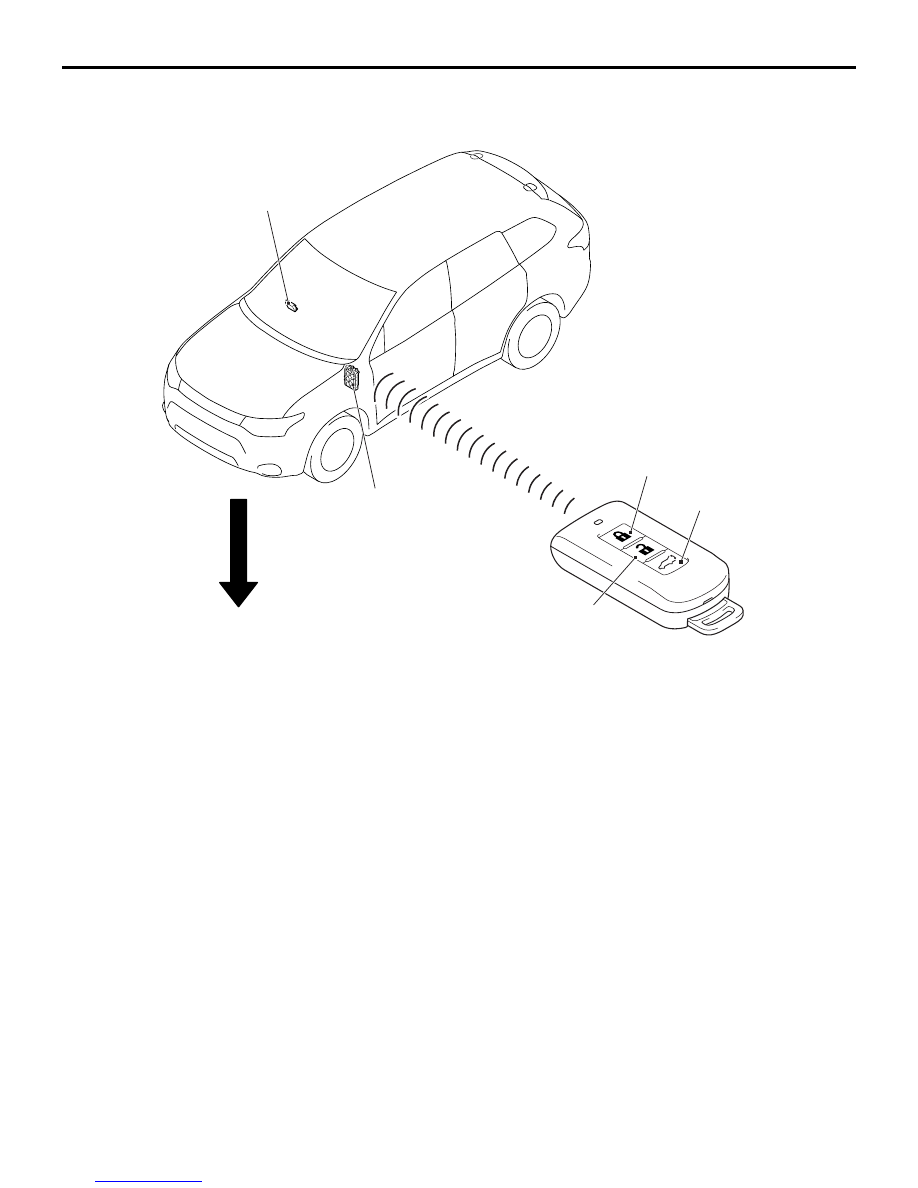

KEYLESS ENTRY FUNCTION

M2421000400512

This keyless entry function has the following fea-
tures:

• A two switches keyless operation key with lock

and unlock switches is adopted <Vehicles without
electric tailgate>.

• A three switches keyless operation key with lock,

unlock and electric tailgate switches is adopted
<Vehicles with electric tailgate>.

• The power door locks with selective unlocking

has been adopted.

• The KOS-ECU incorporates a receiver and a

receiving antenna.

• Up to 4 security codes can be registered using

M.U.T.-III.

• Answerback functions

NOTE: The answerback function can be enabled/dis-

abled using a customisation function (Refer to

P.42B-31

).

• Using the lock/unlock switches, all doors (includ-

ing tailgate) can be locked or unlocked, door mir-
rors can be retracted or opened <Vehicles with
electric-folding door mirrors>.

NOTE: Using the customisation function, a change

for multi-mode function (door mirrors) can be set.
(Refer to

P.42B-31

.)

• Keyless entry timer lock

NOTE: Timer of the keyless entry timer lock can be

enabled/disabled using a customisation function
(Refer to

P.42B-31

).

ACC00257

AC608093

ACB05509

AB

Electric signal

Radio frequency signal

ETACS-ECU

KOS-ECU
(incorporating receiver
and antenna)

Lock switch

Electric tailgate switch
<Vehicles with electric tailgate>

Unlock switch

Keyless operation key

Door lock actuators (lock/unlock)
Tailgate latch assembly

Door mirror assembly (unfolding/folding)

Electric tailgate control unit <Vehicles with electric tailgate>

The signal causes the hazard warning lamp to flash once when the doors are locked, or flash twice when unlocked (Initial setting).

The signal causes the room lamp to extinguish when the doors are locked, or come on for 15 seconds when unlocked.

Downloaded from

www.Manualslib.com



manuals search engine



SYSTEM OPERATION

KEYLESS OPERATION SYSTEM (KOS)

42B-15

DESCRIPTION OF CONSTRUCTION AND
OPERATION

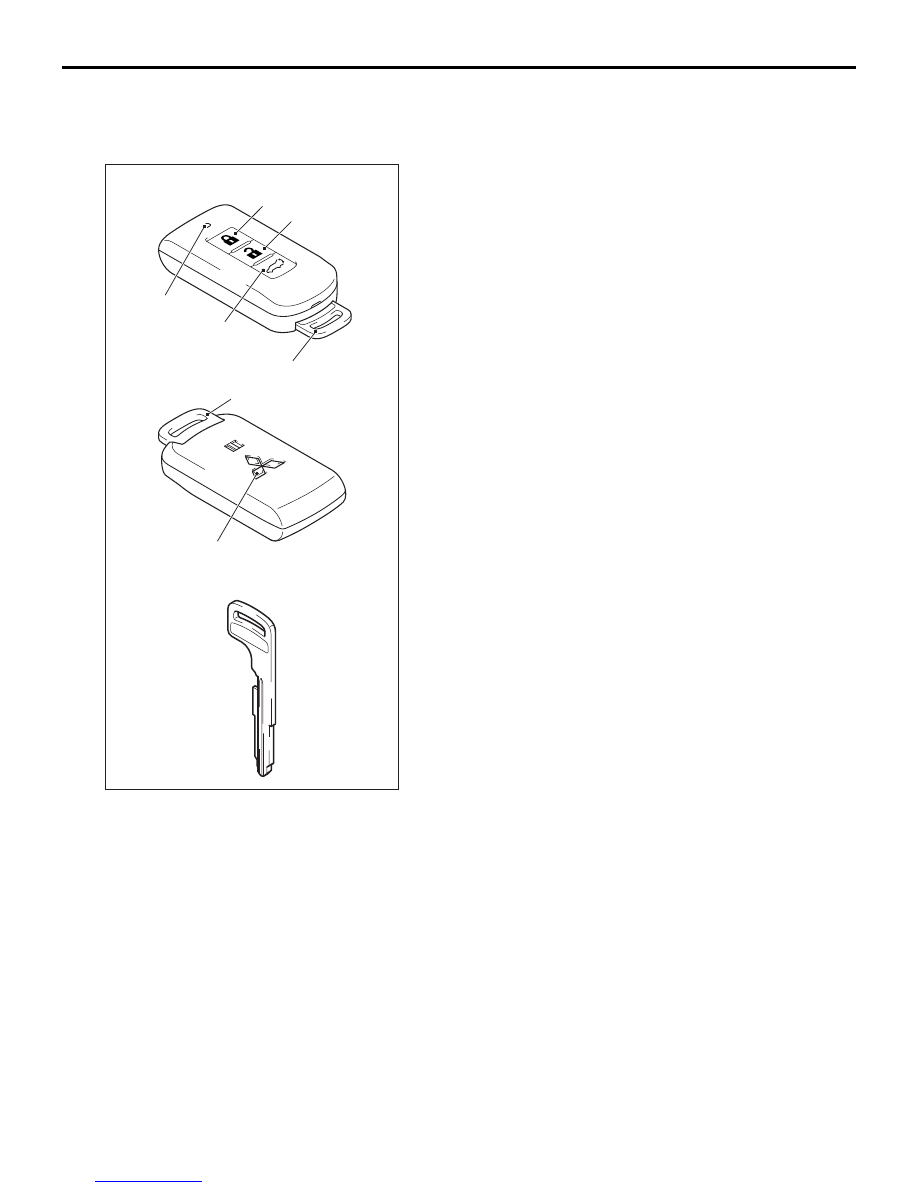

KEYLESS OPERATION KEY

• The two switches <vehicles without electric tail-

gate> and three switches <vehicles with electric
tailgate> have been adopted for keyless opera-
tion key, and the specific encrypted code is trans-
mitted as radio wave signal.

• A shining three-diamond mark on the back of the

keyless operation key gives it a classy look.

• Matt-plating is adopted for switches to improve

appearance.

• An indicator lamp, which illuminates when signals

are received, is added on the keyless operation
key. This indicator lamp informs you of the signal
transmission status and warns you of flat battery.

• The switch operation of the keyless operation key

allows the system to operate as follows:

ACB05934

AC610747

AC608093

AC608094

AB

Lock switch

Electric tailgate switch
<Vehicles with electric tailgate>

Unlock switch

Emergency key

Emergency key

Indicator lamp

<Front view>

<Keyless operation key>

<Emergency key>

Three-diamond mark

<Rear view>
