SUNROOF

BODY

42A-36

SUNROOF-ECU

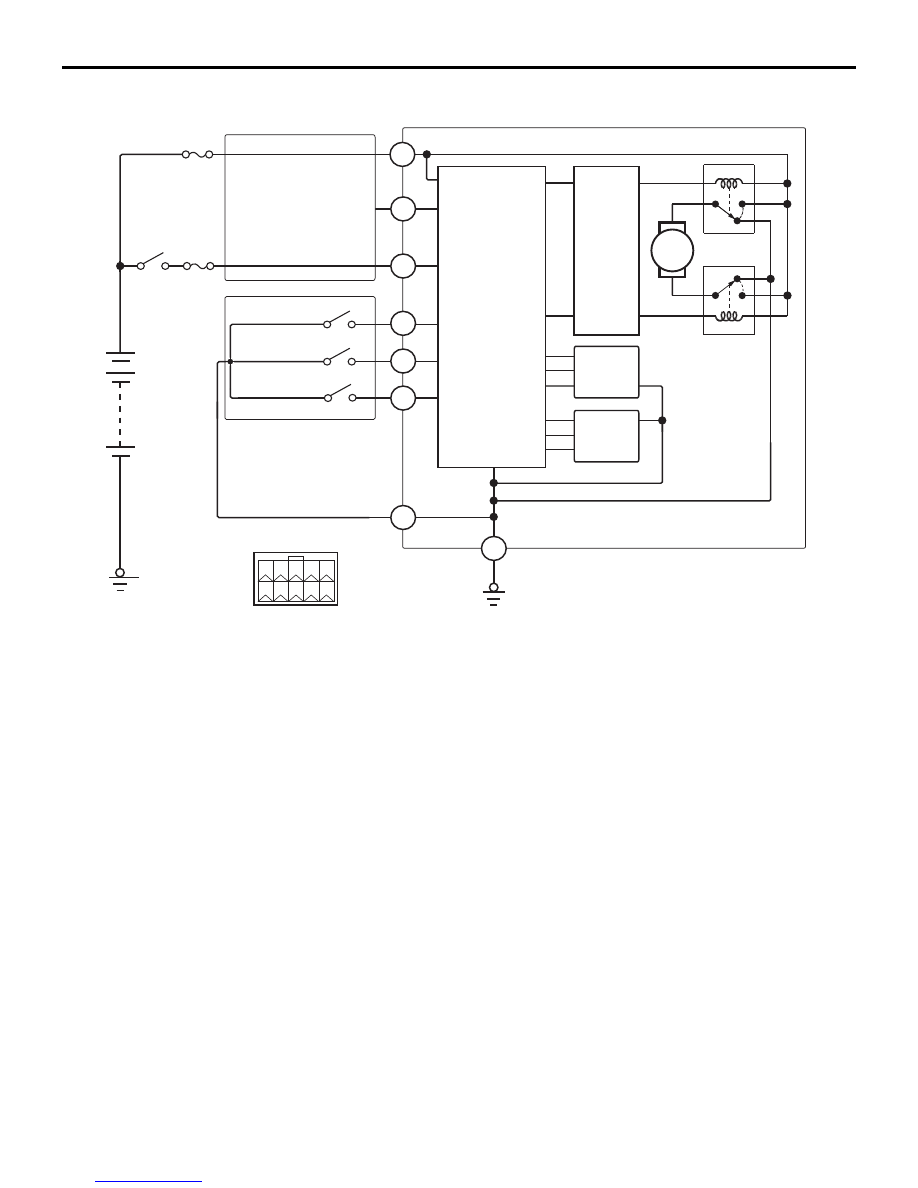

The sunroof-ECU incorporates a microcomputer and
controls motor operations with the sunroof switch
signals, depending on various conditions.

AC700720

ZC604430

AC609032

ZC604430

M

AB

ETACS-ECU

EEPROM

5

4

3

2

1

10

9

8

7

6

10

6

7

1

5

4

2

Open switch

Tilt-up switch

Close/Tilt-down
switch

Sunroof switch

Ignition
switch

Sunroof motor assembly

Motor

Sensor

Driver

circuit

3

Sunroof-ECU

Downloaded from

www.Manualslib.com



manuals search engine



LOOSE PANELS

BODY

42A-37

LOOSE PANELS

M2420000200418

The front end side panel under the engine compart-
ment absorbs impact energy during frontal collision
more effectively than the predecessor. In addition, an
impact-absorbing bumper minimises the risk of injury
to pedestrians, in particular to legs and head.

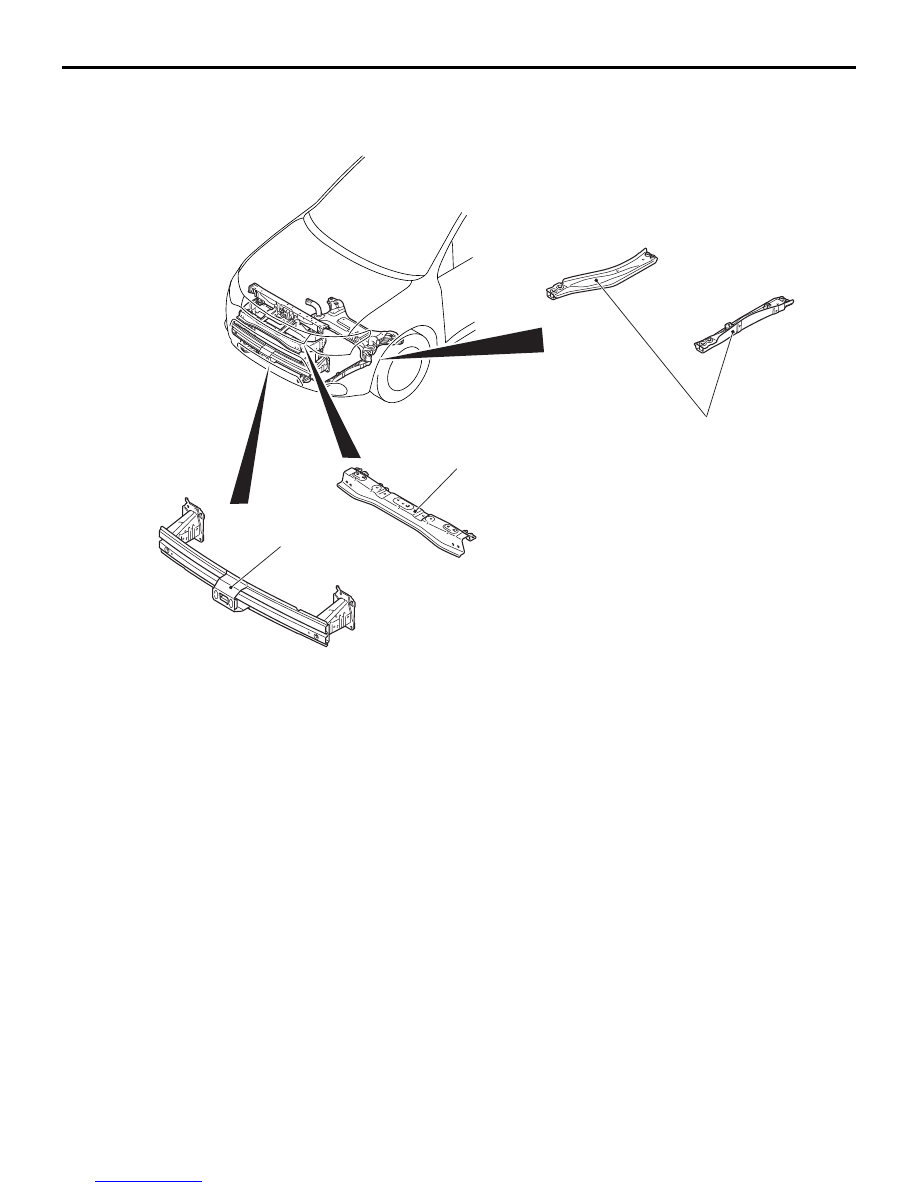

ACC00273AB

Front end side panel

Front bumper reinforcement A

Front bumper reinforcement B

Downloaded from

www.Manualslib.com



manuals search engine



CUSTOMISATION FUNCTION

BODY

42A-38

CUSTOMISATION FUNCTION

M2420002500891

By operating the M.U.T.-III ETACS system, the fol-
lowing functions can be customised. The pro-
grammed information is held even when the battery
is disconnected.

Adjustment
item (M.U.T.-III
display)

Adjustment item

Adjusting content
(M.U.T.-III display)

Adjusting content

Hazard answer
back

Adjustment of the
number of keyless
hazard warning
lamp answer back
flashes

Lock:1, Unlock:2

LOCK: Flashes once, UNLOCK: Flashes
twice (initial condition)

Lock:1, Unlock:0

LOCK: Flashes once, UNLOCK: No flash

Lock:0, Unlock:2

LOCK: No flash, UNLOCK: Flash twice

Lock:2, Unlock:1

LOCK: Flash twice, UNLOCK: Flash once

Lock:2, Unlock:0

LOCK: Flash twice, UNLOCK: No flash

Lock:0, Unlock:1

LOCK: No flash, UNLOCK: Flash once

Lock:0, Unlock:0

No function

Auto fold mirror

Electric folding door
mirror automatic
unfolding function
<vehicles with
electric retractable
remote controlled
door mirrors>

Not Auto

No synchronised operation

Open Vehicle SPD

Vehicle speed-dependent operation

Open/Close by IG

Ignition switch linked operation

OPN/CLS Keyless

Keyless entry linked operation (initial
condition)

Auto door
unlock

Adjustment of the
auto door unlock
function

Disable

Without function <M/T, A/T, CVT> (initial
condition)

Always (P pos)

With function: Operates when the shift
lever or the selector lever is moved to the
P position. <A/T, CVT>

Always(Lock pos)

With function: Operates when the ignition
switch is moved to the LOCK (OFF)
position. <M/T, A/T, CVT>

Door unlock
mode

Adjustment of
power door locks
with selective
unlocking <Vehicles
without dead lock
system>

All Doors Unlock

Without function: The first operation of
keyless entry system or unlock operation
by KOS unlocks all doors (initial condition).

Dr Door Unlock

With function: The first operation of
keyless entry system or unlock operation
by KOS unlocks the driver's door only, and
the second unlock operation within 2
seconds after that unlocks all doors.

Deadlock
Button
Operation

Adjustment of the
dead lock system
setting procedure
<vehicles with dead
lock system>

Twice

Operate the lock switch of the keyless
entry system or KOS twice.(initial
condition)

Once

Operate the lock switch of the keyless
entry system or KOS once.

Downloaded from

www.Manualslib.com



manuals search engine



CUSTOMISATION FUNCTION

BODY

42A-39

Timer lock timer Timer lock period

adjustment

30 sec.

30 seconds (initial condition)

60 sec.

60 seconds

120 sec.

120 seconds

180 sec.

180 seconds

Multi mode

Multi-mode keyless
entry function
customisation
<Vehicles with
electric retractable
remote controlled
door mirrors>

Disable

No function

D/M: O&C

Door mirror fold/unfold operation only
(initial condition)

Adjustment
item (M.U.T.-III
display)

Adjustment item

Adjusting content
(M.U.T.-III display)

Adjusting content
